In the oil and gas industry, separators are essential equipment used to separate well fluids into their constituent components: oil, gas, and water. These components must be separated to ensure safe and efficient transportation, processing, and storage. Separators come in various types, each designed to perform specific functions based on the characteristics of the well fluids and the desired separation efficiency.

Types of Separators

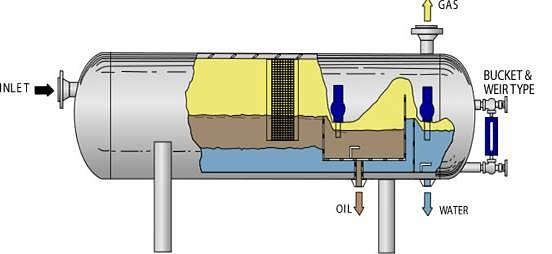

Horizontal separators are the most commonly used type in the oil and gas industry. They are typically used for bulk separation of oil and gas, where the gas is separated from the liquid mixture by gravity settling. Horizontal separators are suitable for handling large volumes of well fluids with high gas-to-oil ratios (GOR).

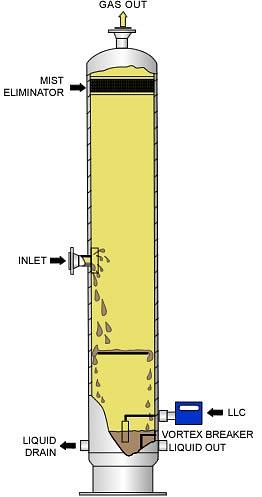

Vertical separators are preferred for handling well fluids with low GOR or when a high degree of separation efficiency is required. They are also suitable for handling well fluids with high water content, as the water can be easily separated from the oil and gas in a vertical configuration.

Spherical separators are less common than horizontal and vertical separators. However, they are typically used for smaller well streams or in situations where space is limited. Spherical separators are also suitable for handling well fluids with high GOR and low water content.

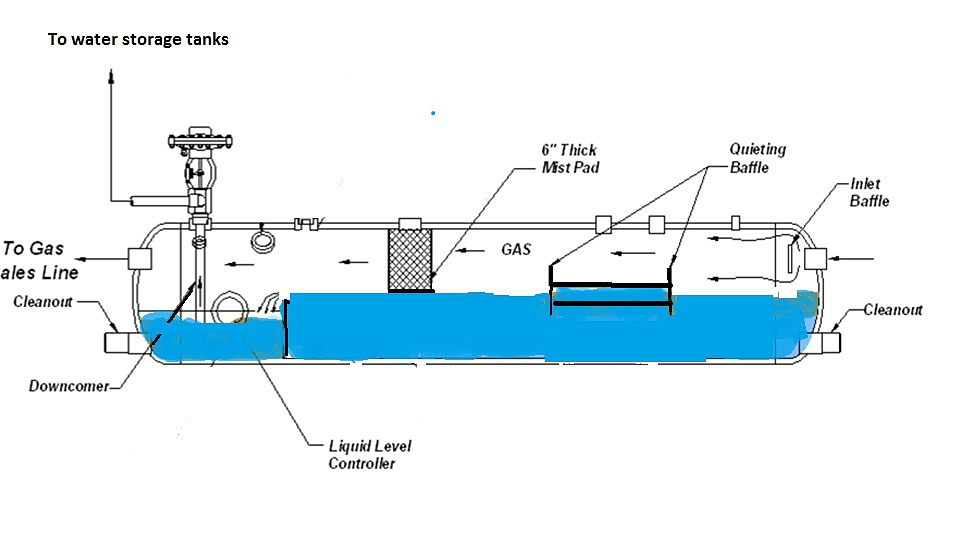

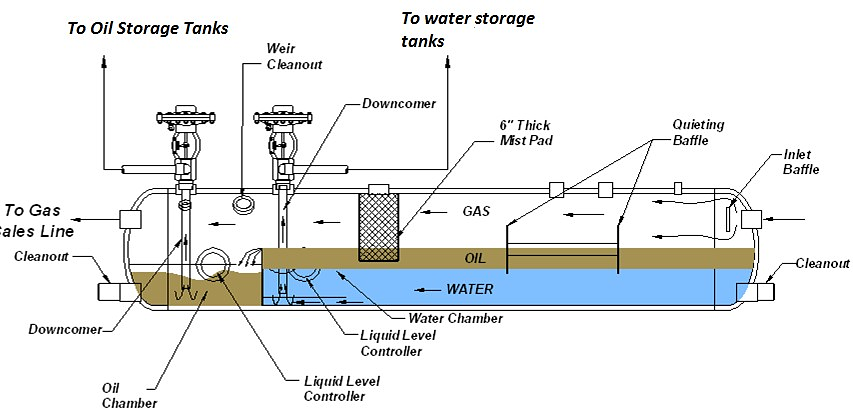

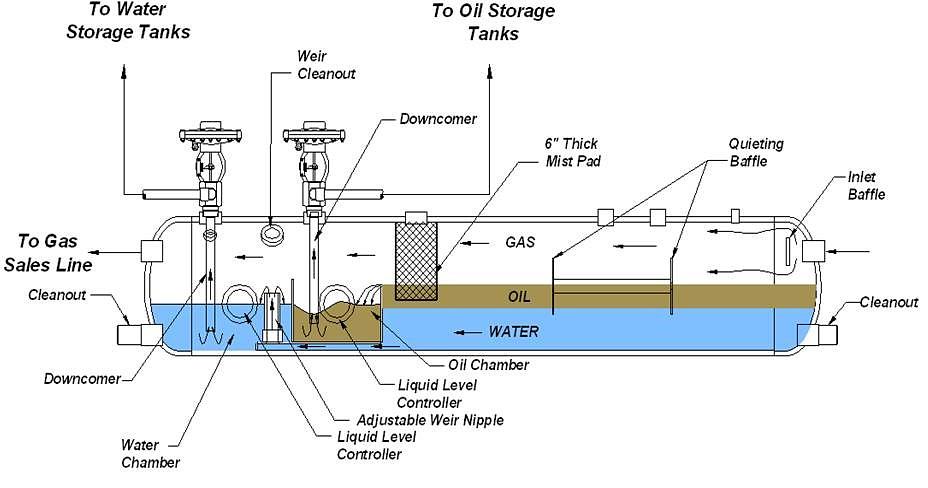

Separators can also come in various arrangements such as two-phase and three-phase which refer to the different states of matter that exist in the well fluids that are being separated. In the gas phase, gaseous components of the well fluids (primarily natural gas) are being separated where in the liquid phase, oil and water are separated.

Other types of separators include centrifugal, filter, and scrubbers.

Roles of Separators on Well Sites

The primary purpose of separators is to separate well fluids into their constituent components. This separation allows for the efficient transportation, processing, and storage of the individual components. They also play a crucial role in reducing the pressure of the well fluids. This pressure reduction is necessary to prevent damage to downstream equipment and to ensure the safety of personnel.

Additionally, separators are designed to maximize liquid recovery from the well fluids. This is achieved by providing sufficient retention time for the liquids to settle out of the gas stream. As well as liquid recovery, separators help to stabilize the separated oil and gas by removing volatile components. This stabilization process ensures that the oil and gas are suitable for transportation and storage.

Lastly, separators are used to separate water from the well fluids. This water separation is important to prevent corrosion and other problems in downstream equipment. This water can be either free water or emulsified water.

Conclusion

Separators are essential equipment in the oil and gas industry, playing a critical role in separating well fluids into their constituent components. By effectively separating oil, gas, and water, separators ensure the safe and efficient operation of well sites and downstream processing facilities. You can take a look at all the types of separators that Oilfield Logic has to offer by clicking HERE.
