In the upstream oil and gas sector, temperature management is critical for ensuring smooth and efficient operations. Among the key pieces of equipment for this task is the line heater. Used extensively in well sites, flow lines, and processing facilities, line heaters play a vital role in maintaining the proper flow of hydrocarbons and preventing operational issues like hydrate formation.
What is a Line Heater?
A line heater is a type of indirect heating system designed to heat oil, gas, or water flowing through a pipeline. The term "indirect" refers to the fact that the fluid is heated via a heat transfer medium, usually a water-glycol bath, rather than direct flame contact. This method ensures safe and even heating, reducing the risk of overheating or damaging the pipeline contents.

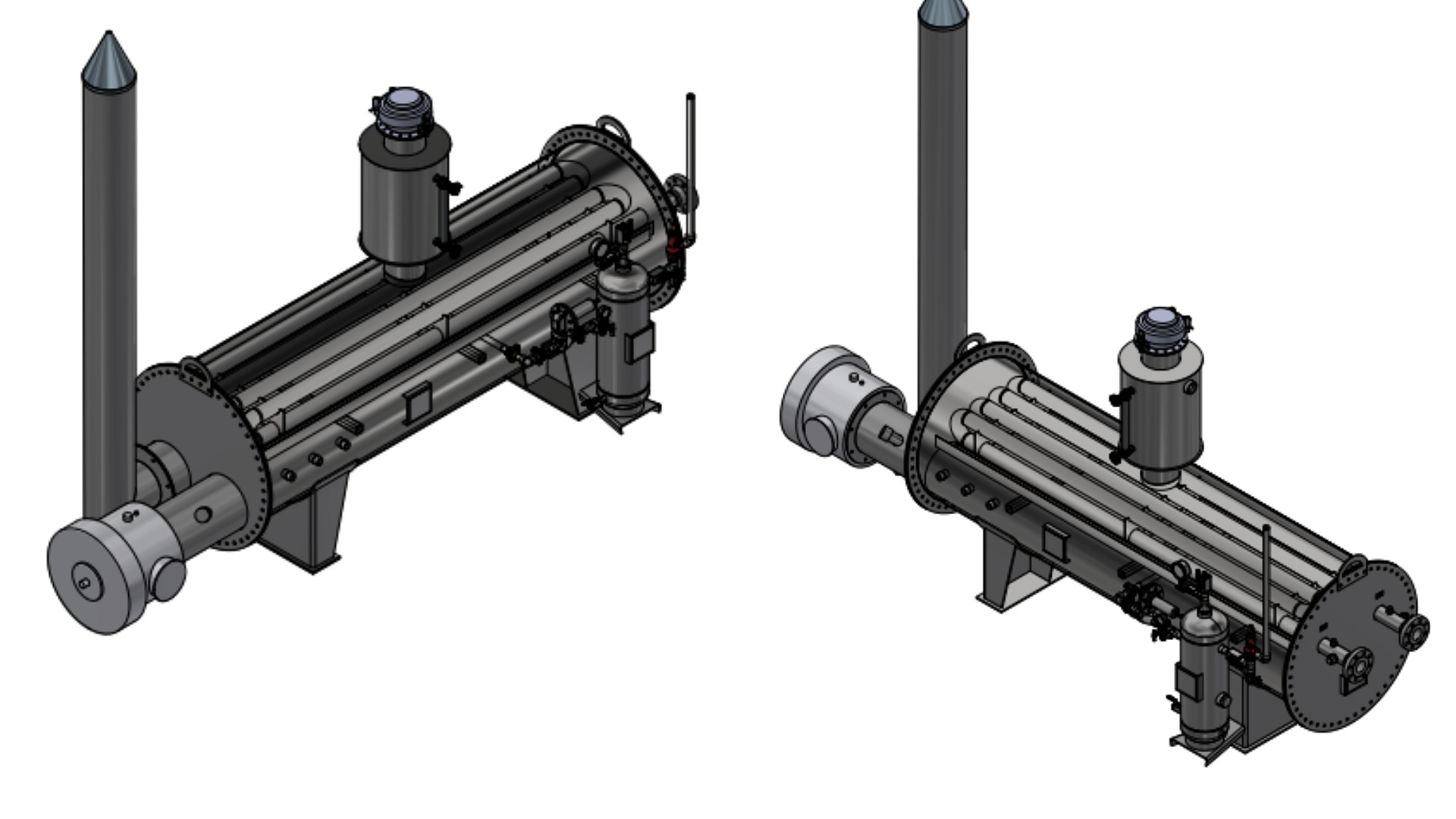

Line heaters typically consist of...
- A firetube where the combustion of fuel takes place.
- A bath solution (usually water and glycol) that transfers heat.
- Coils or piping that carry the fluid being heated.
- Temperature and pressure controls for precision and safety.
Why Are Line Heaters Important?
Hydrate Prevention in Gas Streams
Natural gas, especially when it contains moisture, is prone to hydrate formation at lower temperatures and higher pressures. Hydrates are ice-like crystals that can block pipelines and equipment. The Joule-Thomson effect causes gas to cool significantly when its pressure is reduced (e.g., across a choke). If this temperature drop leads to hydrate formation, operations can come to a standstill. By pre-heating the gas using a line heater before pressure reduction, operators can ensure the final temperature stays above the hydrate formation threshold.
Emulsion Treatment in Oil and Water Streams
In oil production, crude oil often contains water emulsions that must be separated before processing. Heating these streams helps reduce the viscosity of the mixture, allowing water and oil to separate more efficiently in downstream equipment like Gunbarrel tanks or free water knockouts.
Maintaining Flow Assurance
In cold environments or during winter months, the risk of wax deposition or paraffin buildup increases, which can clog pipelines. Line heaters maintain the temperature of the crude oil above its pour point, ensuring smooth flow through pipelines.
How Do Line Heaters Work?
The process involves several key steps.

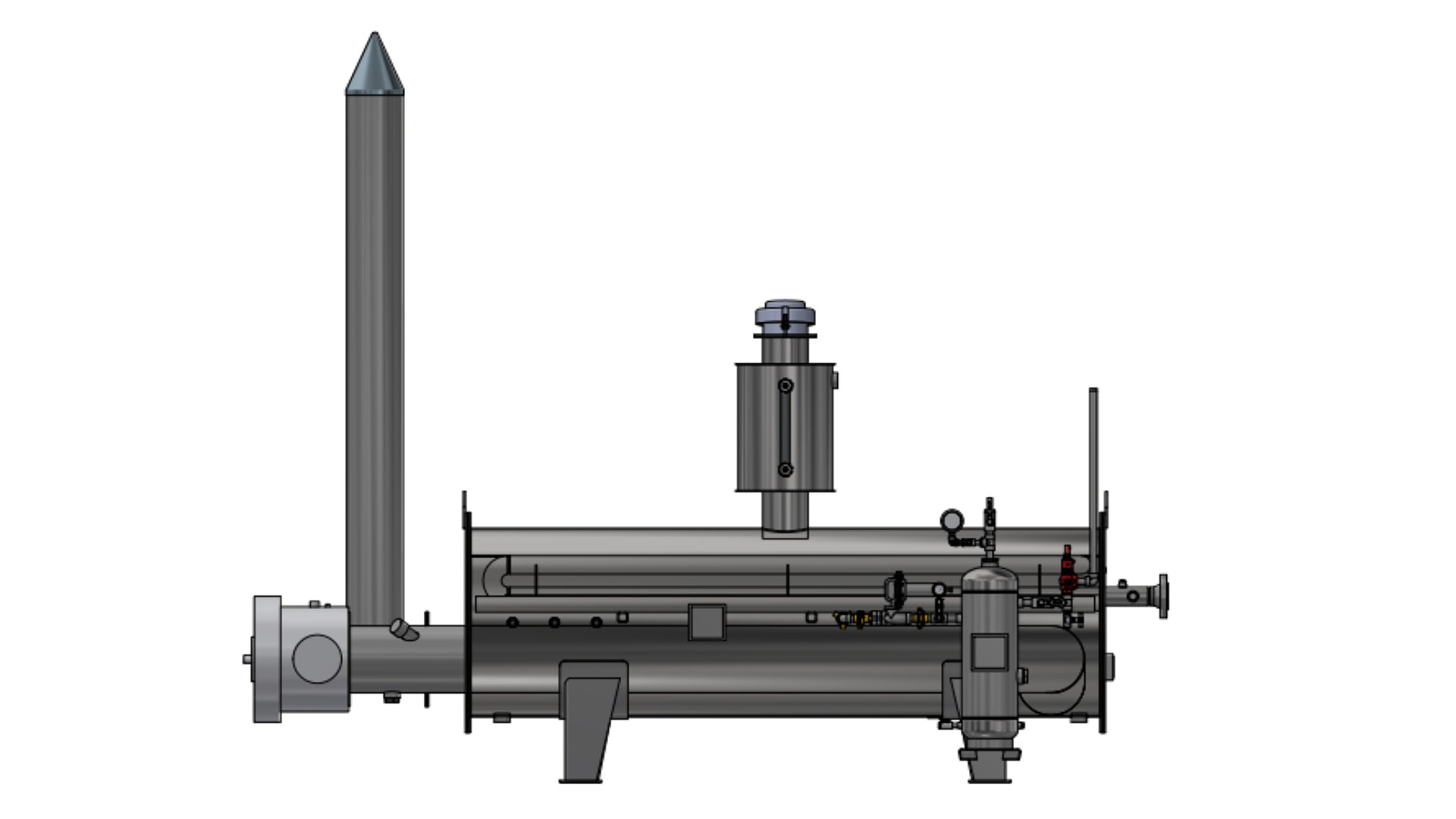

- Combustion occurs in the firetube, generating heat.
- This heat is transferred to a water-glycol bath within the heater vessel.
- The fluid to be heated flows through coiled piping submerged in the bath.
- The heat from the bath is indirectly transferred to the fluid as it flows through the coils.
This indirect method is advantageous because it minimizes the risk of combustion directly affecting hydrocarbons, thereby enhancing safety.
Line heaters are deployed in various stages of production and processing.
- At the Wellhead to ensure gas entering the sales line or transmission pipeline is free from hydrates.
- In Flow Lines ahead of separators or emulsion treatment equipment.
- Pipeline Reheating for gas pipelines that traverse cold regions, line heaters can be installed at intervals to maintain temperatures above hydrate formation levels.
Professional Insights on Design Considerations
Flow Rate and Composition
The size and capacity of the heater depend on the volume of fluid and its properties. For instance, gas streams with a high moisture content or heavier hydrocarbons may require more heating capacity to prevent hydrates.
Pressure Conditions
High-pressure gas streams, especially those from wellheads, may require line heaters with reinforced coils to withstand the pressure drop across chokes.
Temperature Requirements
The desired outlet temperature must be carefully determined based on the specific operational needs, such as preventing hydrate formation or facilitating oil-water separation.
Material Selection
For gas streams, steel coils are common due to their strength and durability. For oil-water emulsions, cast iron coils may be used due to their resistance to corrosive fluids.
Heat Transfer Efficiency
Understanding the overall heat transfer coefficient and ensuring clean coils are essential for maintaining efficiency. Any fouling can significantly reduce performance, so routine maintenance is critical.
Conclusion
Line heaters are indispensable tools in the upstream oil and gas industry. They ensure the smooth operation of pipelines and processing equipment by managing temperatures, preventing hydrates, and aiding in emulsion separation. Tri-Logic understands the importance of reliable and efficient equipment, and our focus is on providing solutions that keep your operations running seamlessly.
Whether it's optimizing flow assurance or protecting against operational risks, investing in quality line heating solutions can enhance both efficiency and safety in the field. To shop our selection of used and surplus line heaters, click HERE.
