Filter Separator, Vertical, 24"x7', 1440
Sold
Filter Separator, Vertical, 24"x7', 1440
$4,900 (USD)
Location:Pennsylvania
Description

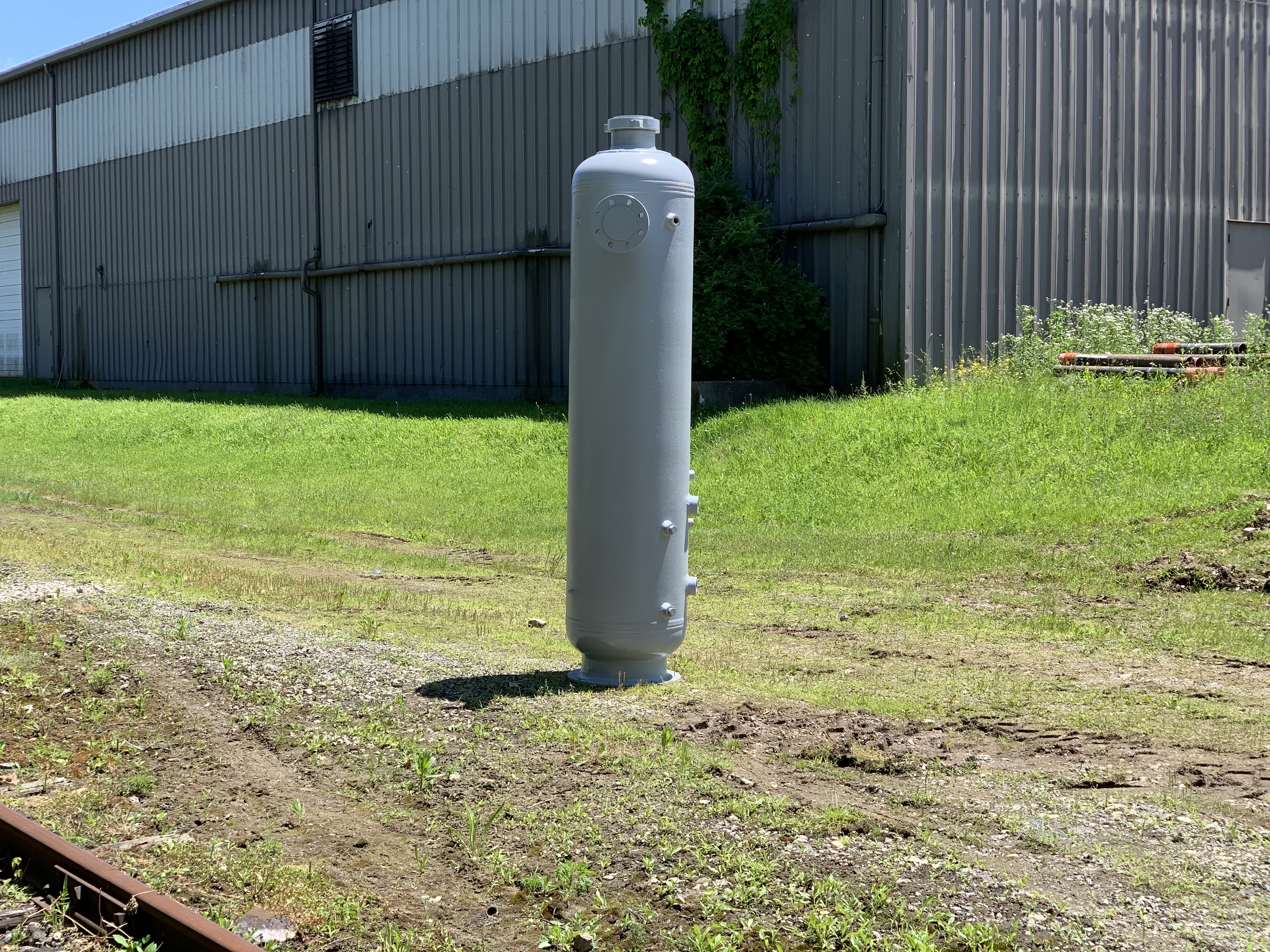

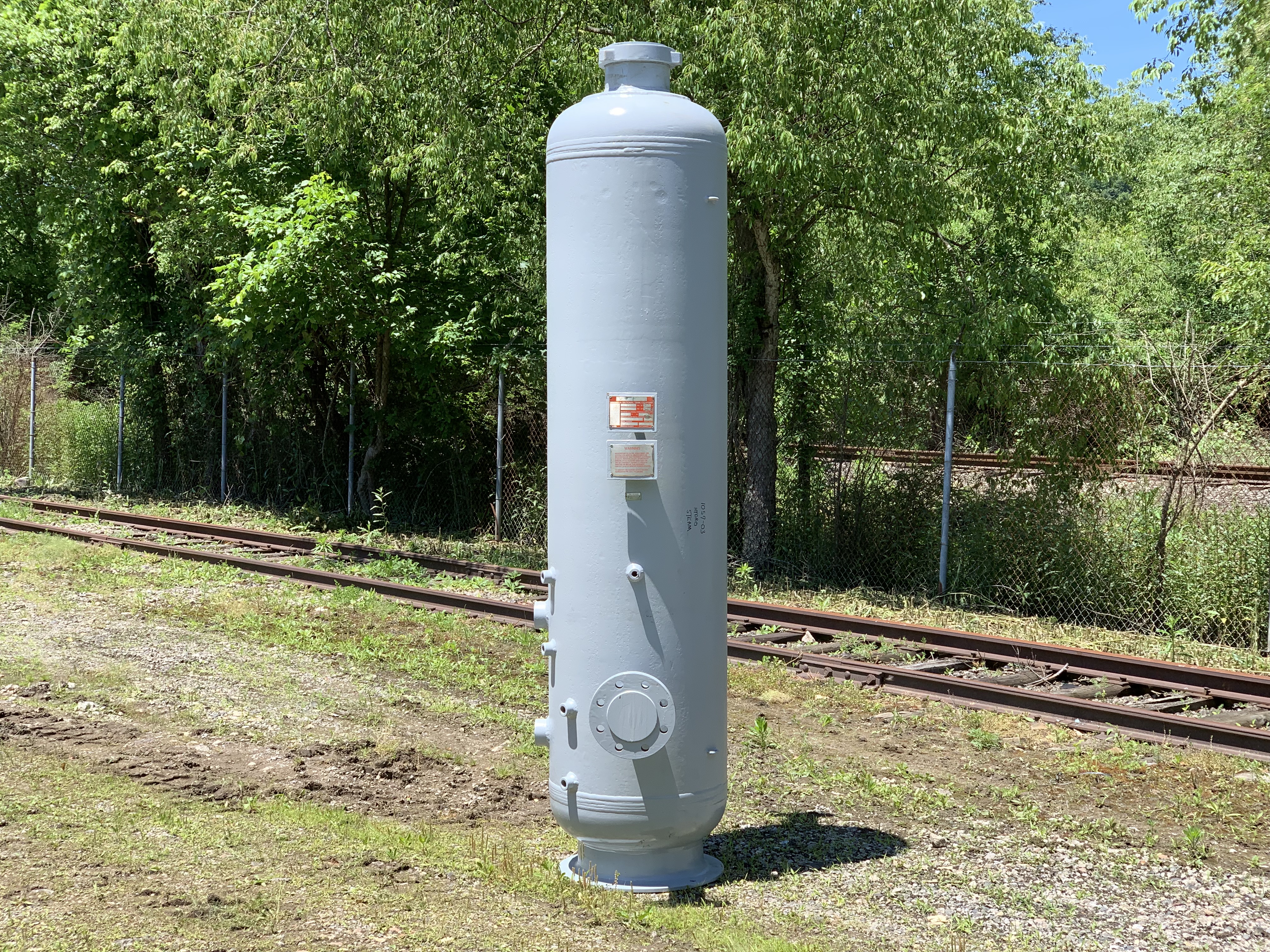

24"x7' 1440# MAWP vertical filter separator with 3" flanged inlet and outlet. Access to the filters is via an 8" closure on the top head.
Specifications

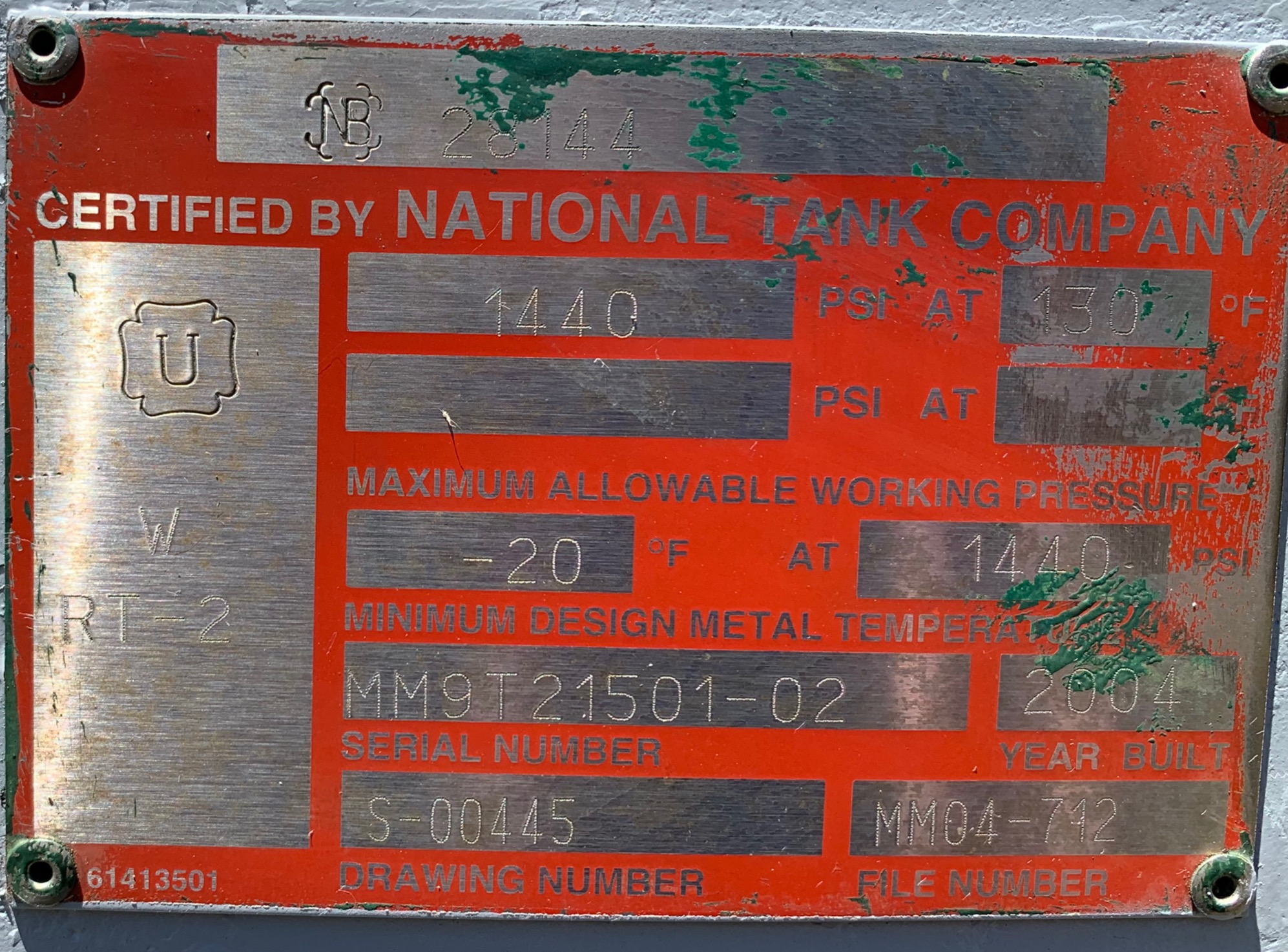

Manufacturer | National Tank Company |
Model | 24"x7', 1440# |
Year | 2004 |
Condition | Used |
Serial Number | 28114 |
Stock Number | 1057-03 |
Vessel Orientation | Vertical |
Vessel Pressure Rating (psi) | 1440 |
Vessel Outside Diameter (in.) | 24 |
Vessel s/s Length (in.) | 84 |
Inlet & Outlet Diameter (in.) | 3 |
Inlet & Outlet Connection Type | Flange |
Accessories | None |
Certification | ASME "U" |
Work Recently Performed | Prepped surface and applied coat of primer |
Wear and Tear | Threads on filter access are compromised. We will perform a code repair and replace the closure at no additional cost. |
Test | None |
Notes | Closure needs replaced. We will do the code repair at no additional cost. |
Origin Code | OC01 |
