GPU, Single, 24"x10', 1440, 750 mbtu
GPU, Single, 24"x10', 1440, 750 mbtu
$22,400 (USD)
Ask Us About Our Leasing Options!
Location:Oklahoma
or
Call 1 (844) 564-4237
Description

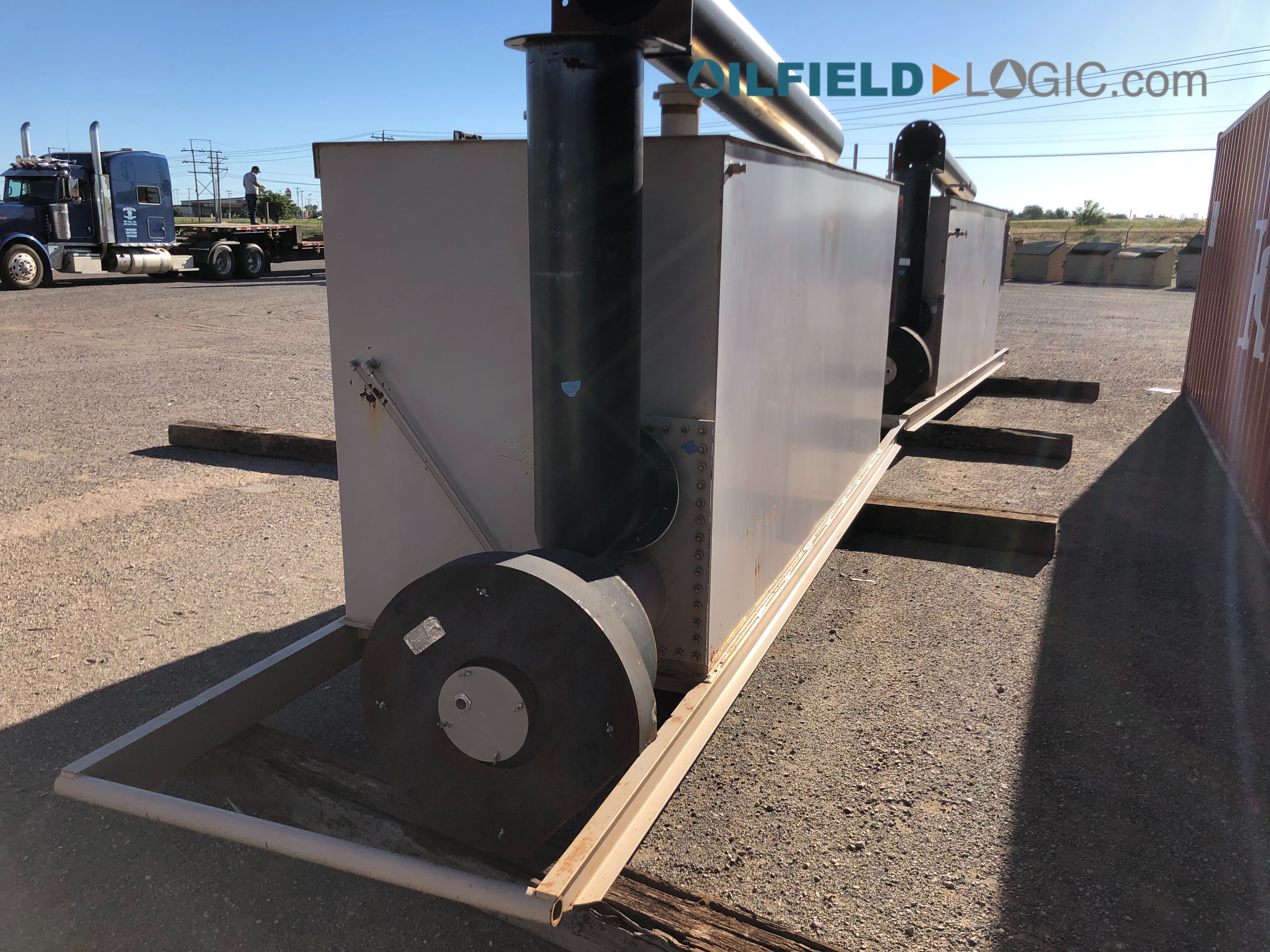

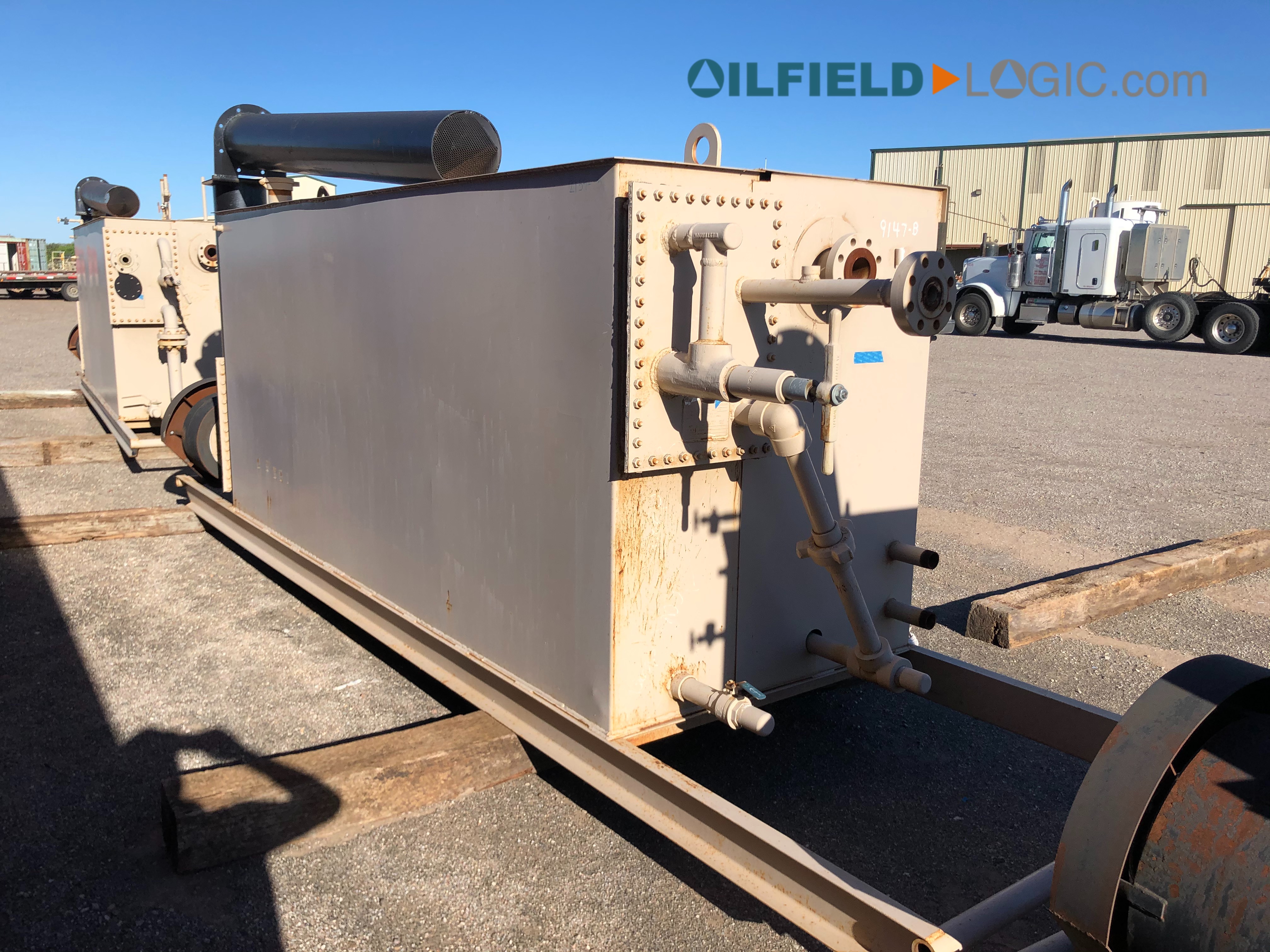

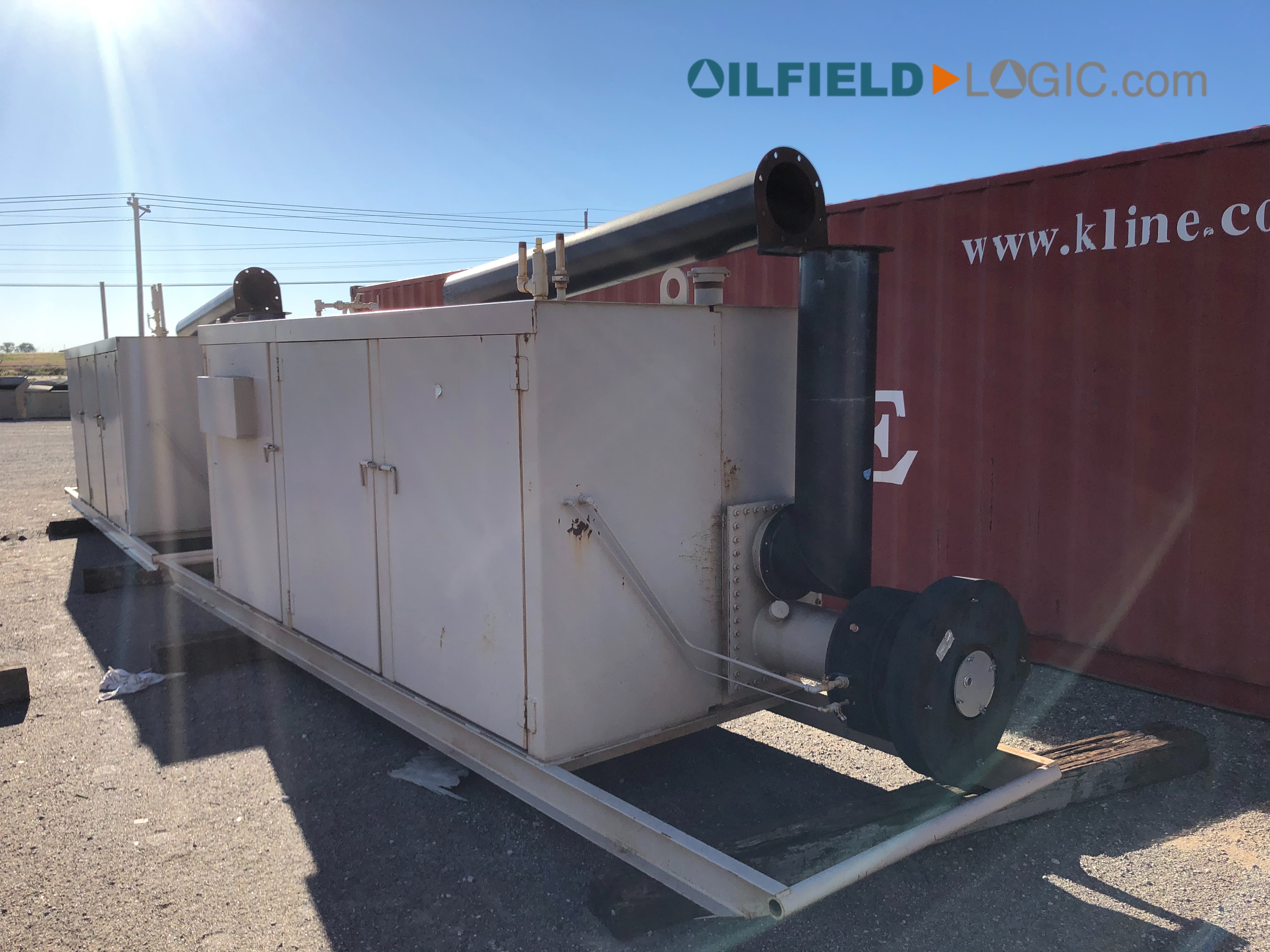

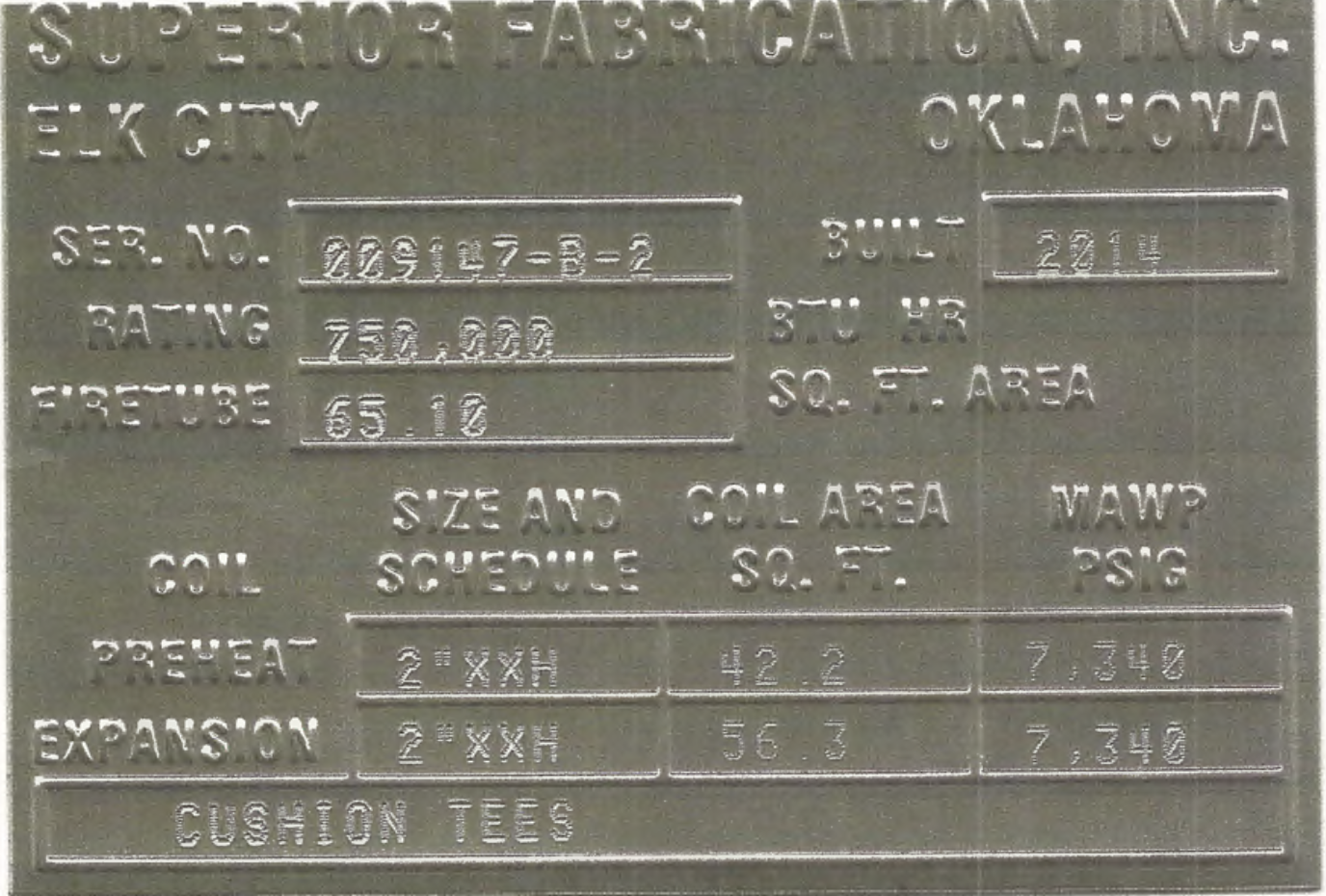

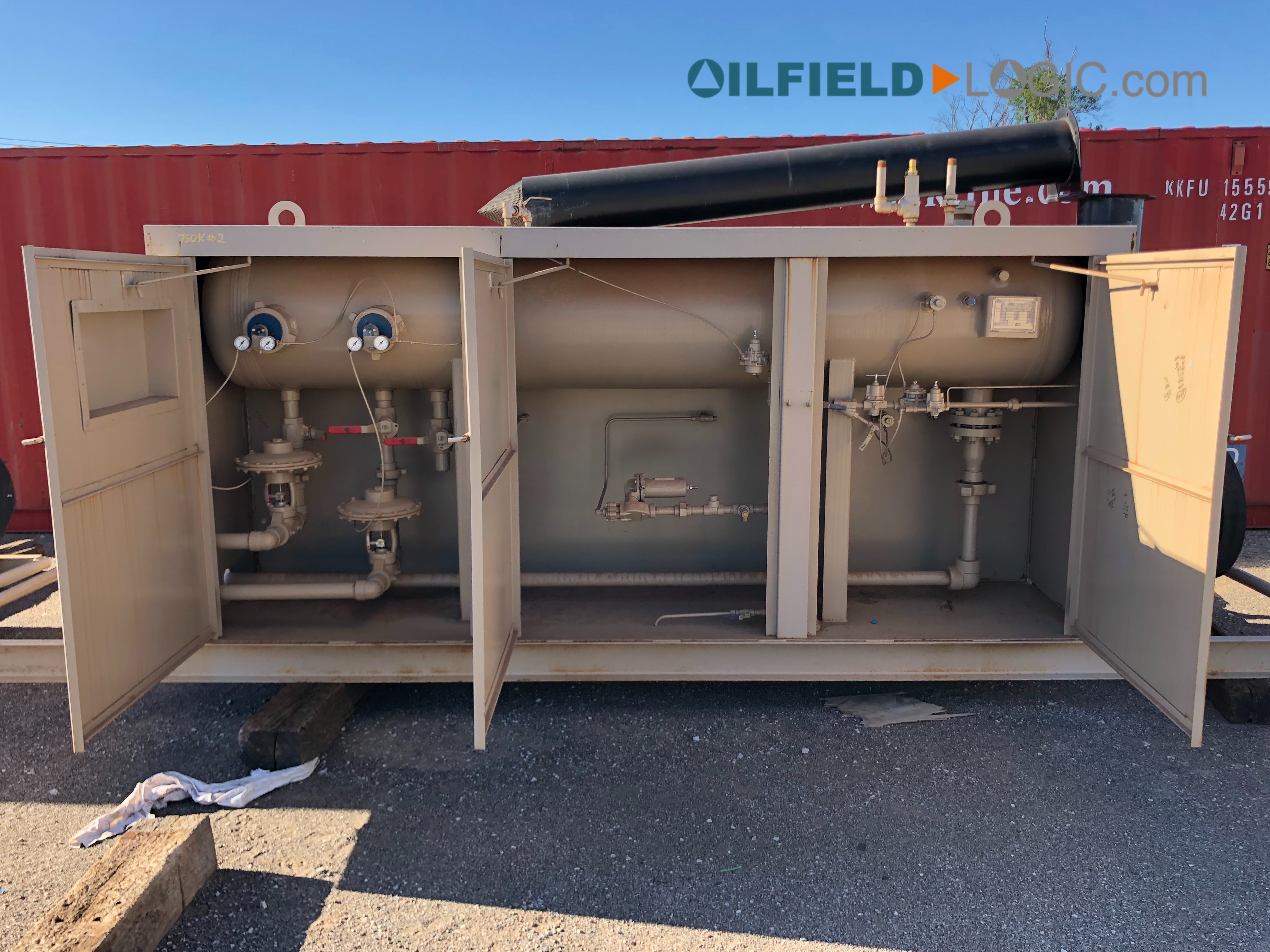

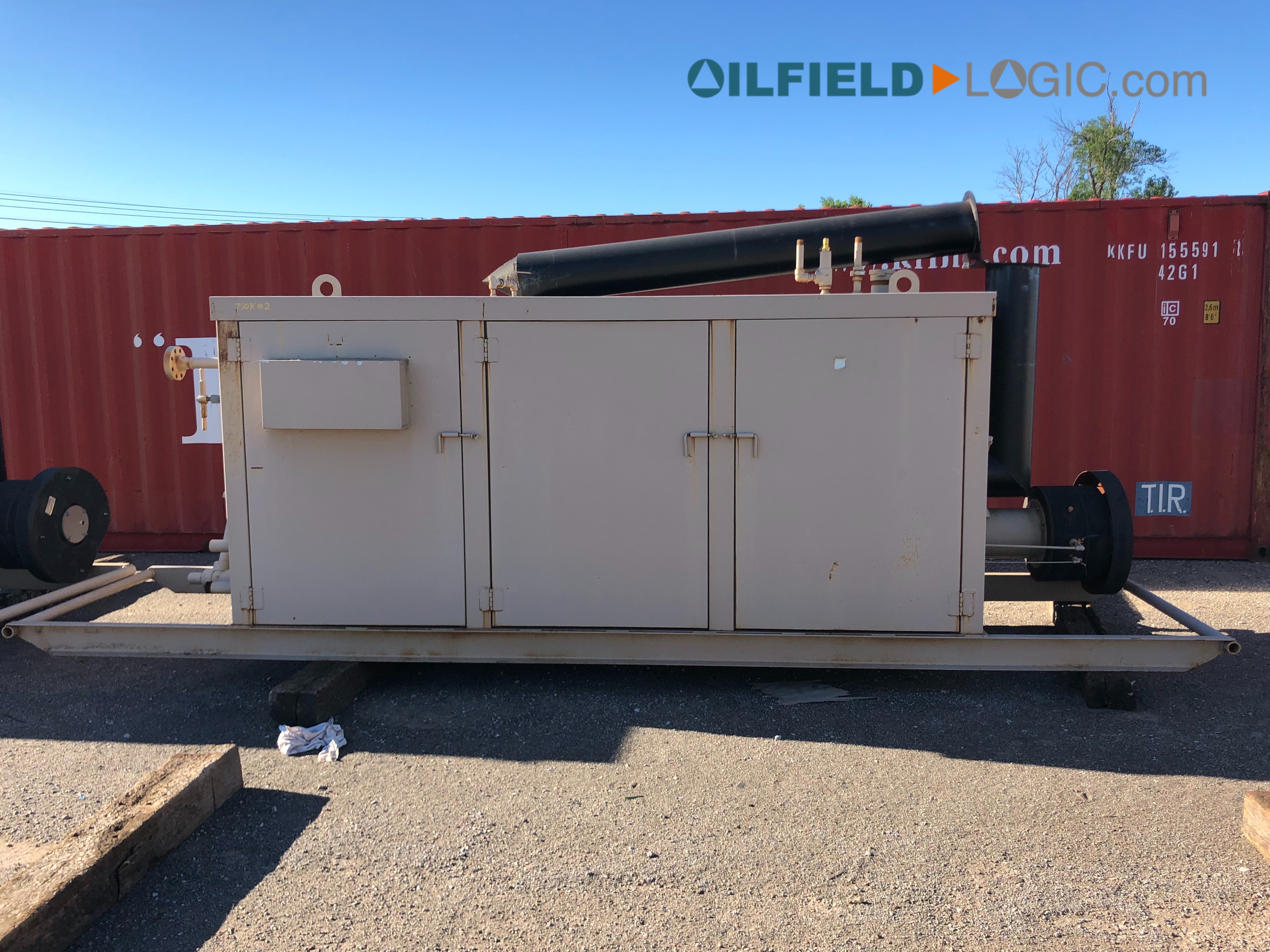

Gas production unit with a 24"x10' 1440 3-phase weir bucket separator. Heater has a 750 mbtu/hr burner and a 10-3/4" x 11'6" firetube. Coil is a single rated 14-pass coil with 2" XXH 7,340 psi MAWP. All returns on coil are cushion T's. The unit is fully plumbed and fit for service.
Specifications
| Manufacturer | Superior Fabrication Inc. |
| Model | 24"x10', 1440# Sep, 2" 7,340# Coil |
| Year | 2014 |
| Condition | New |
| Serial Number | 6653 |
| Stock Number | 6653 |

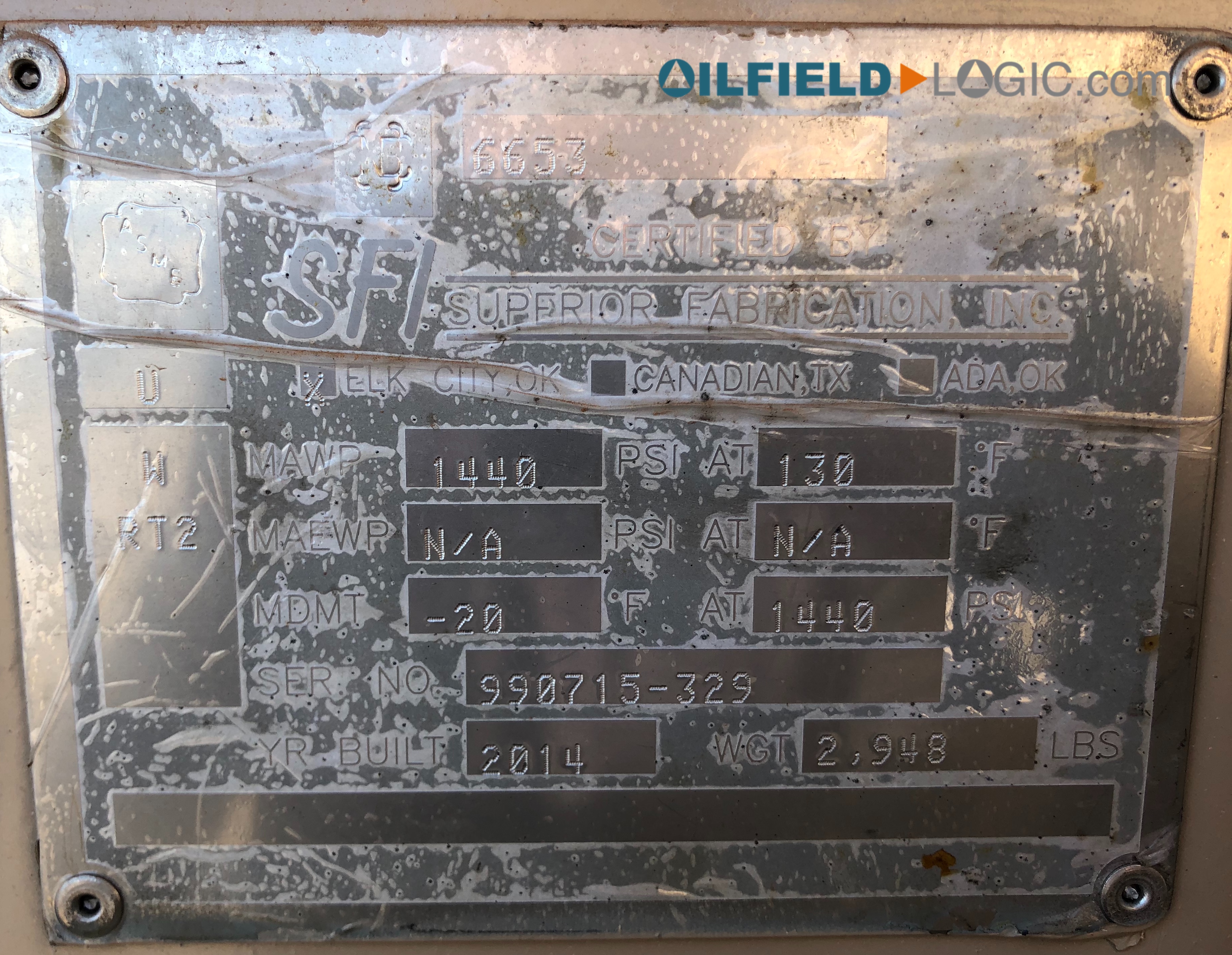

| Vessel | Horizontal 3-Phase 24"x10' 1440 MAWP |
| Subcategory 2 | ASME |
| Coils | 2" 7340# |
| Heater rating | 750 mbtu/hr |
| Shipping Dimensions | 222"L x 52"W x 70"T |

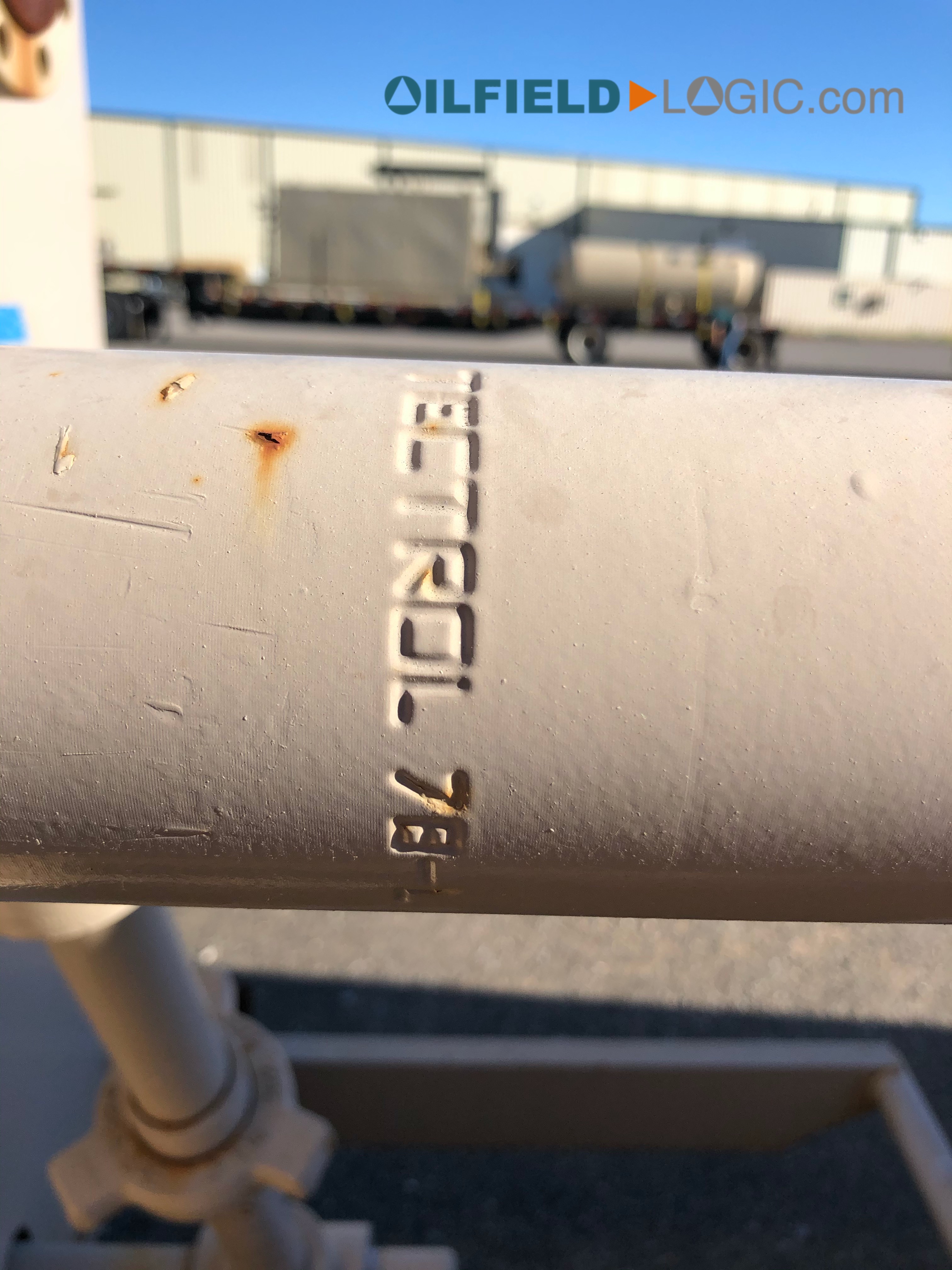

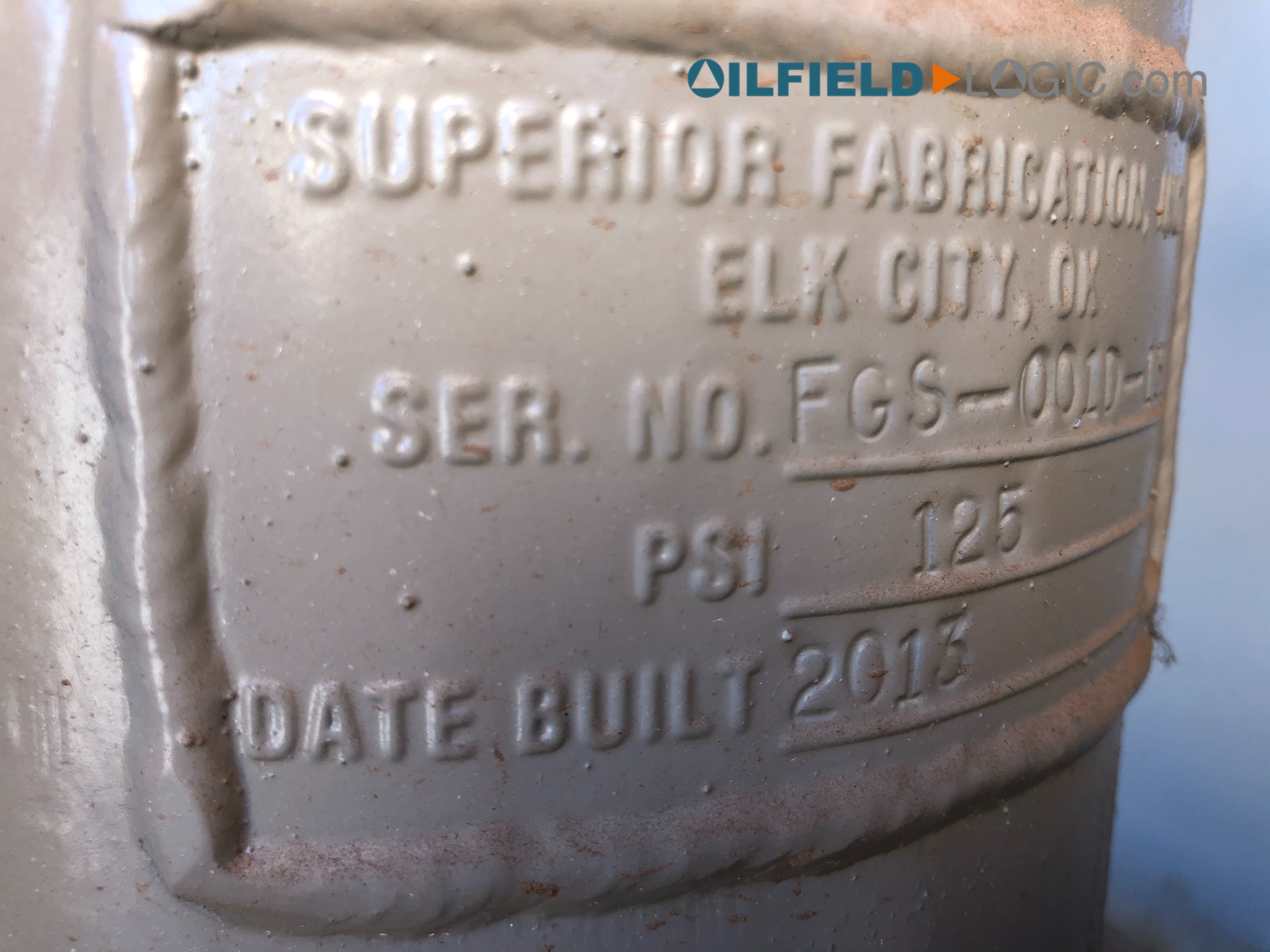

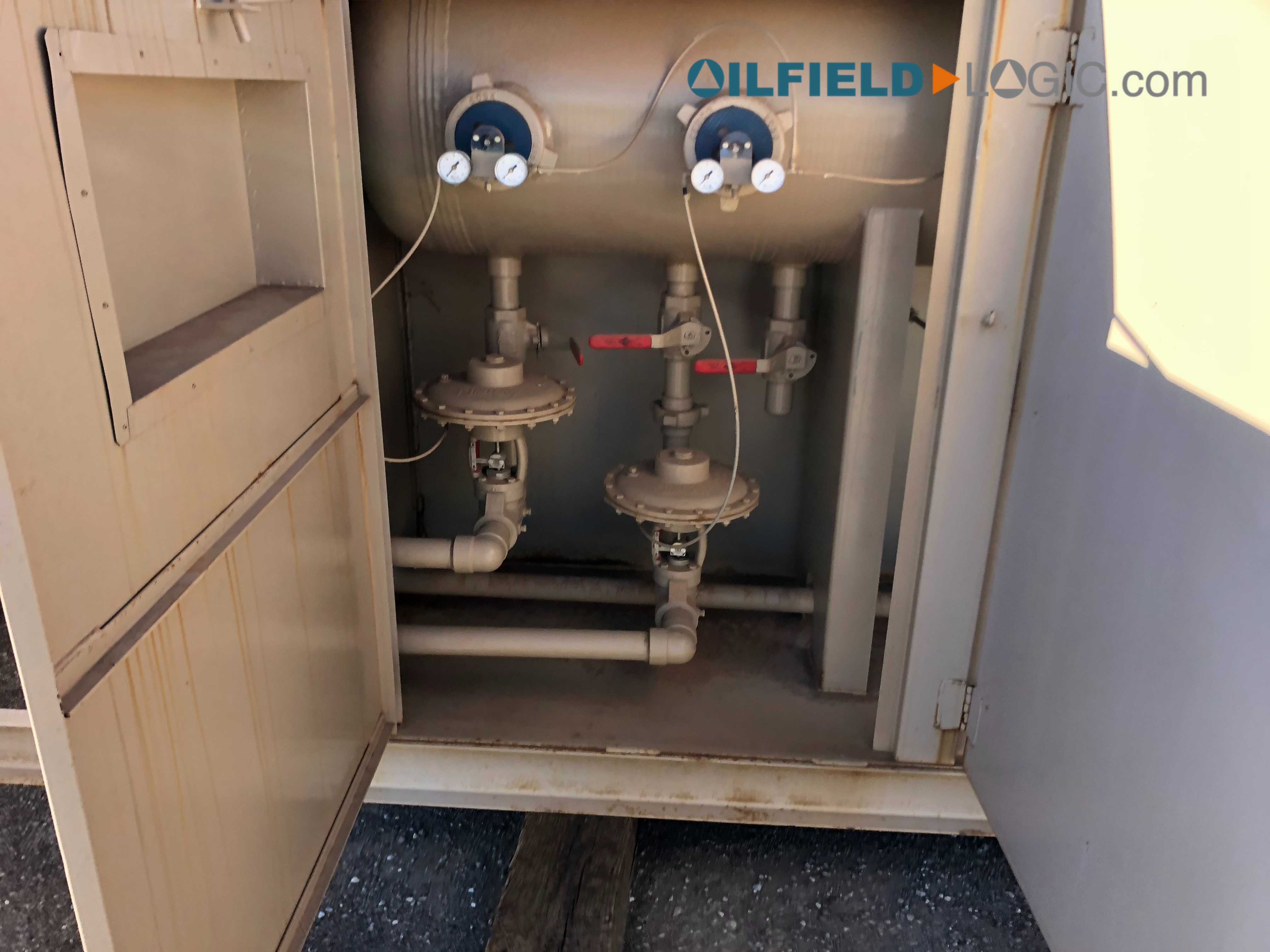

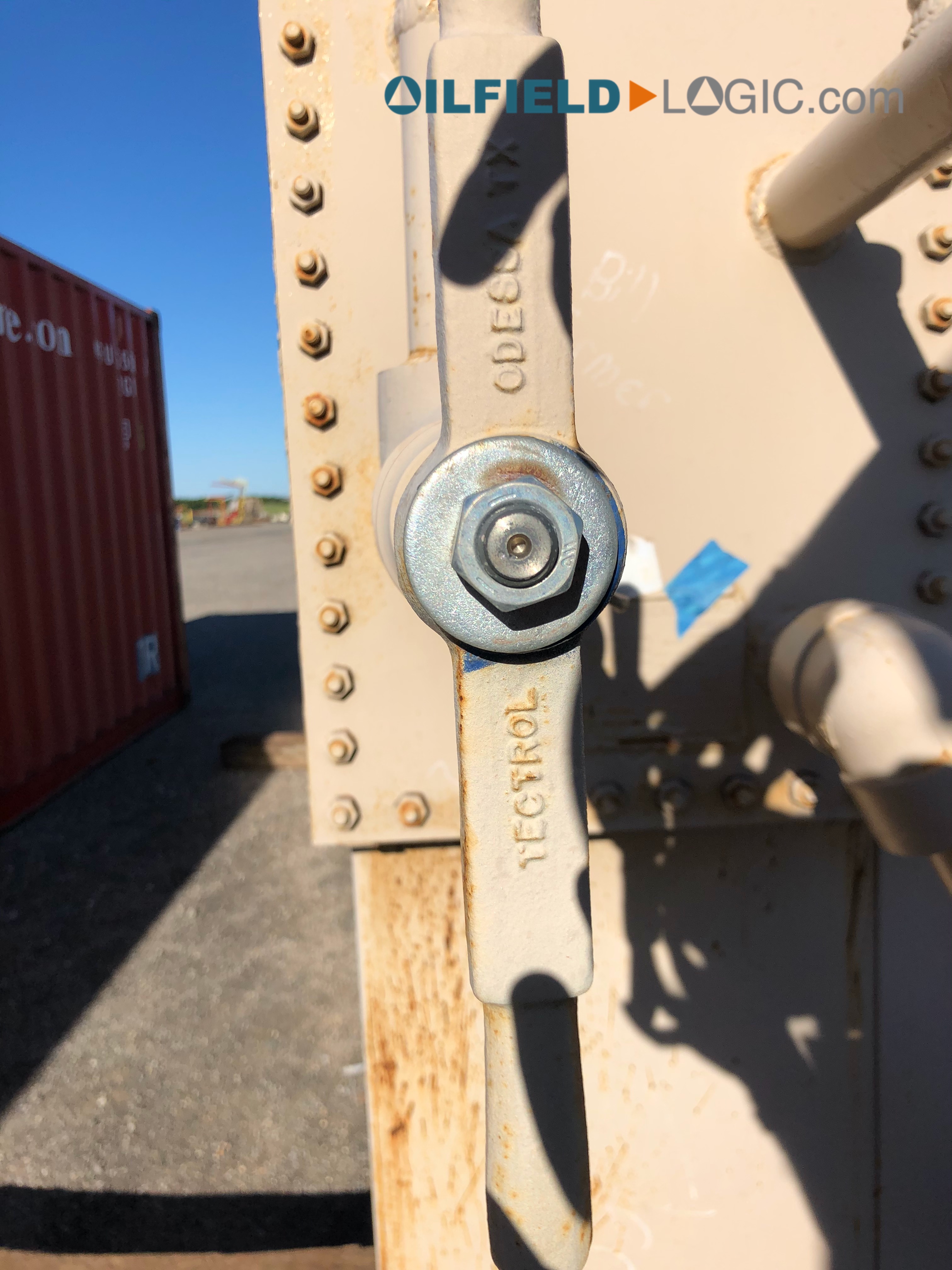

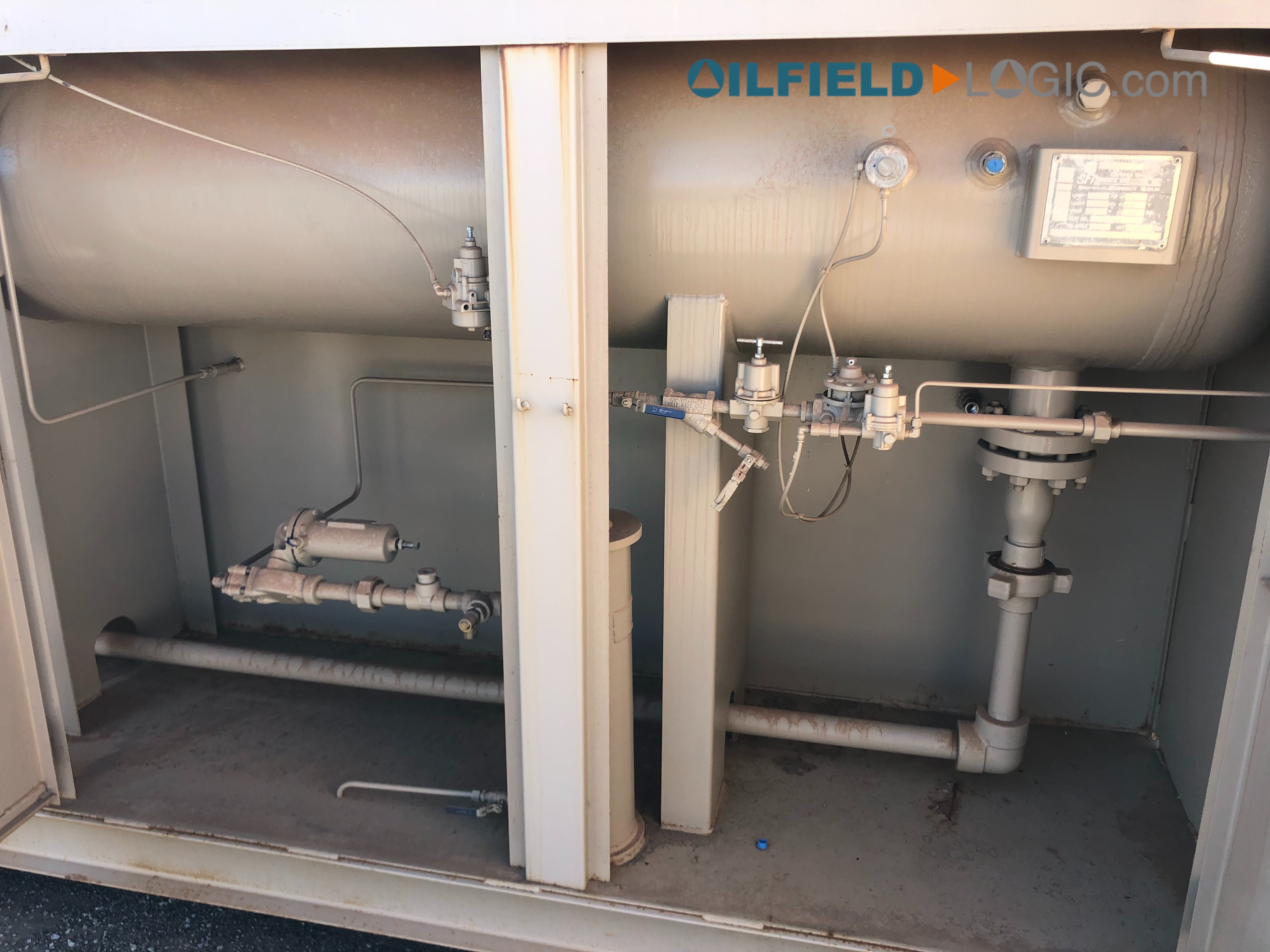

| Accessories | (1) Tectrol choke (2) Wellmark 5CSUA-LC-LO8 liquid level controllers (2) Kimray ECPCB 2400 SMA dump valve (1) 1"x1" PSV with set point @ 1440 psi (1) 1" 1600 psi rupture disk (1) 1/2" fuel train with regulators, valves and pressure gauges (1) 6-5/8"x2' 125 psi fuel pot (non-code) |
| Work Recently Performed | None |
| Wear and Tear | Normal |
| Notes | The unit is surplus equipment built and stored by the OEM. |
| Origin Code | OC01 |
