GPU, Single, 24"x10', 1440, 1 mmbtu
GPU, Single, 24"x10', 1440, 1 mmbtu
$26,600 (USD)
Location:Oklahoma
orCall 1 (844) 564-4237
Description

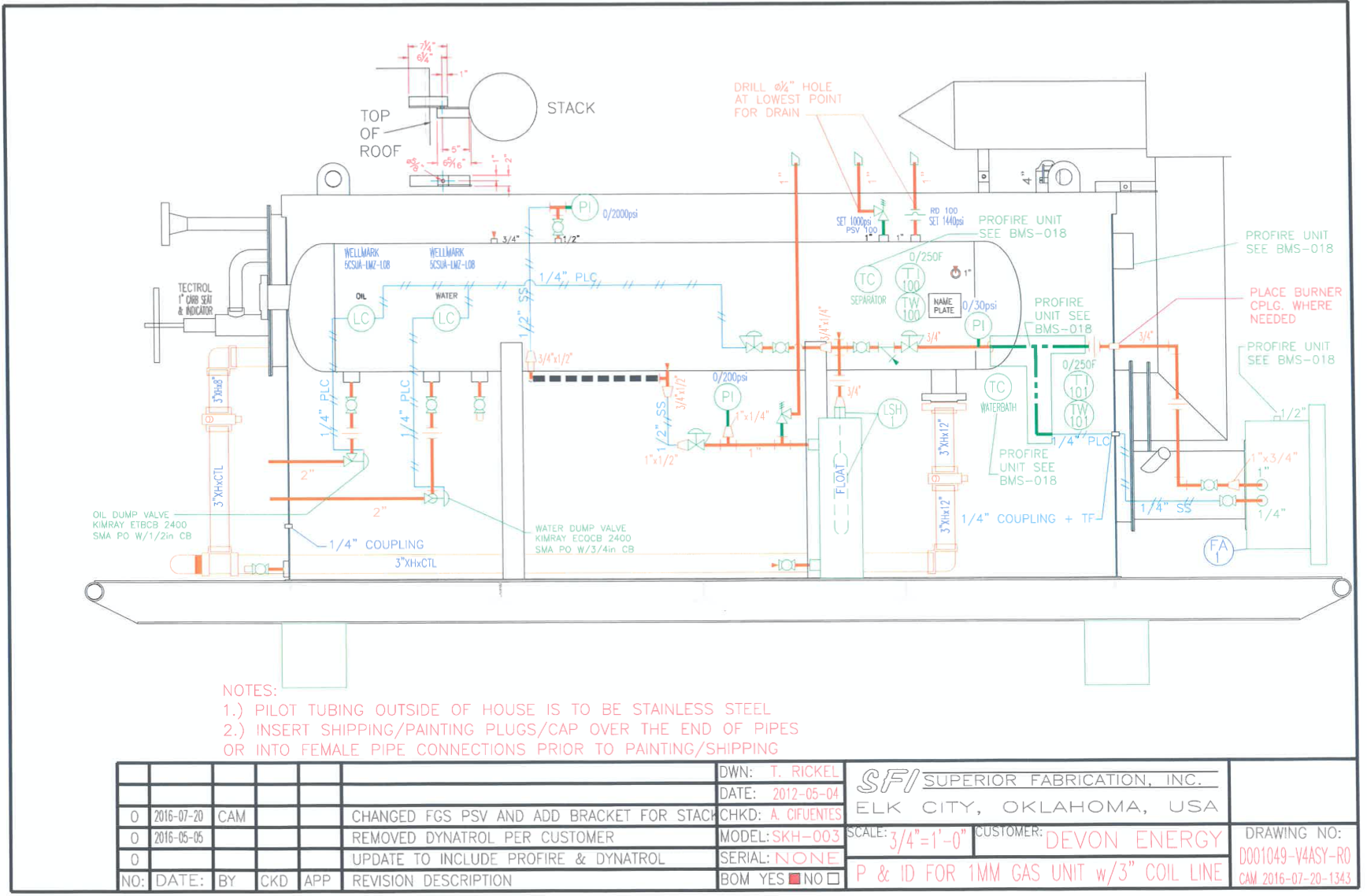

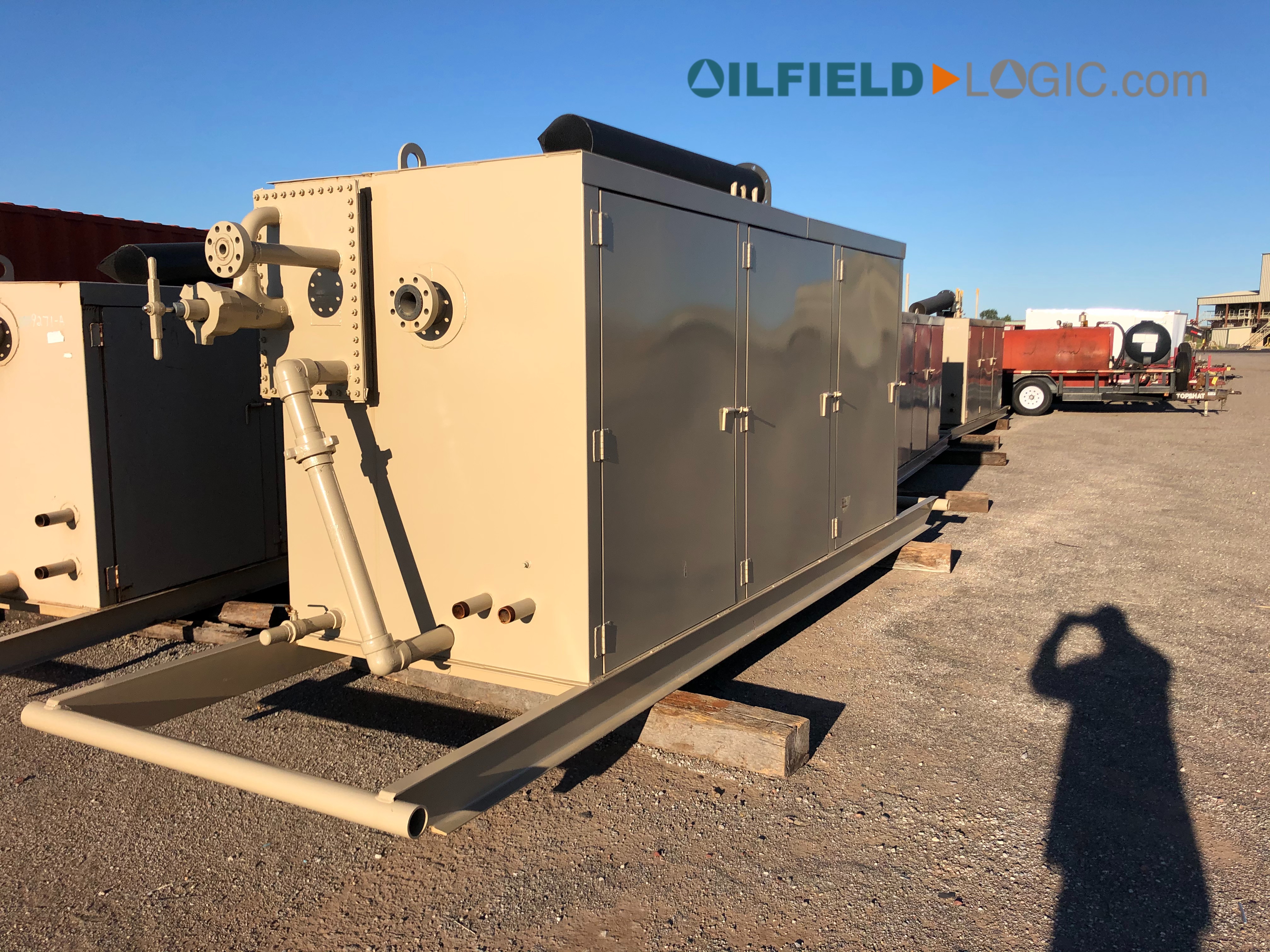

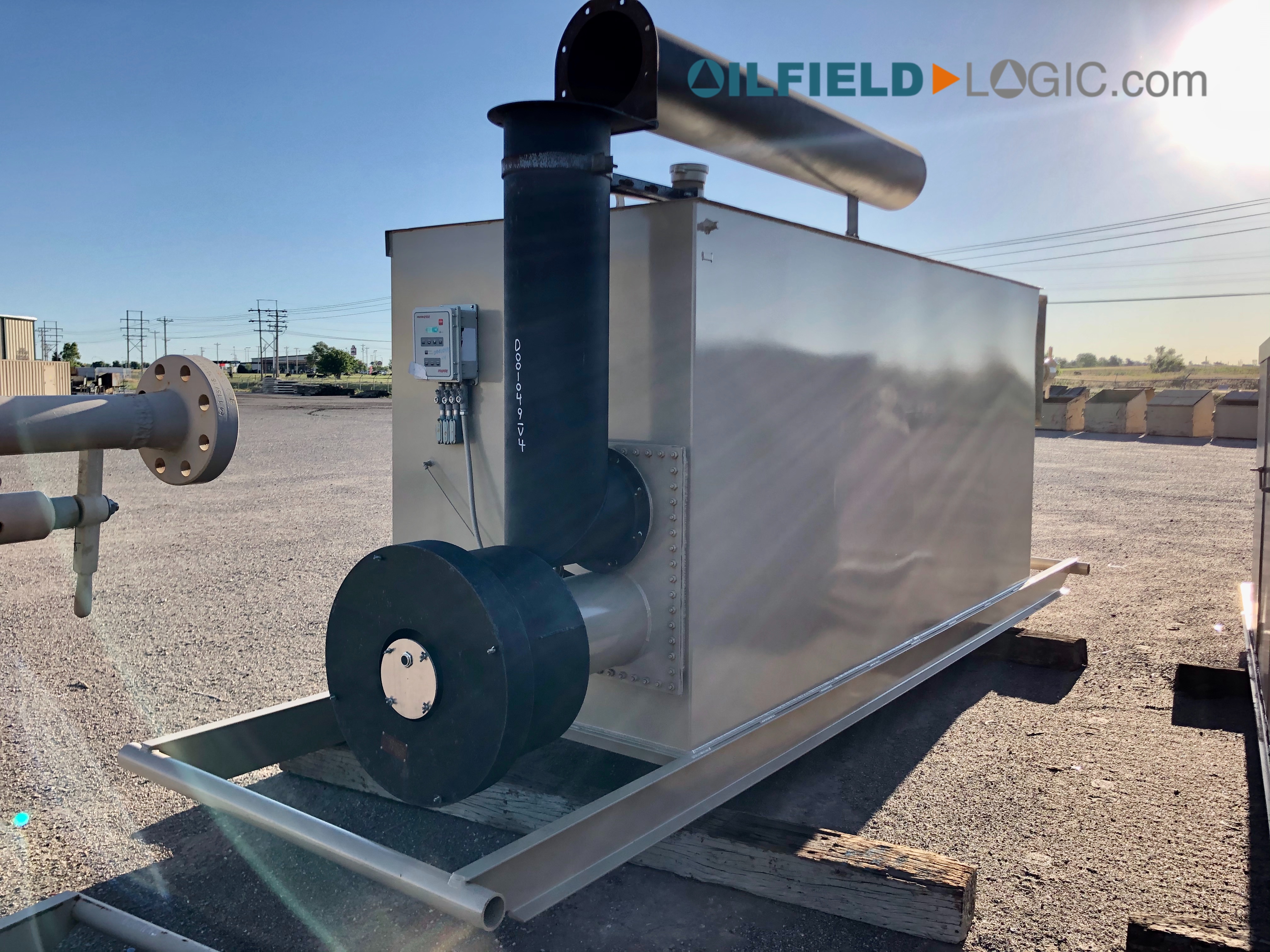

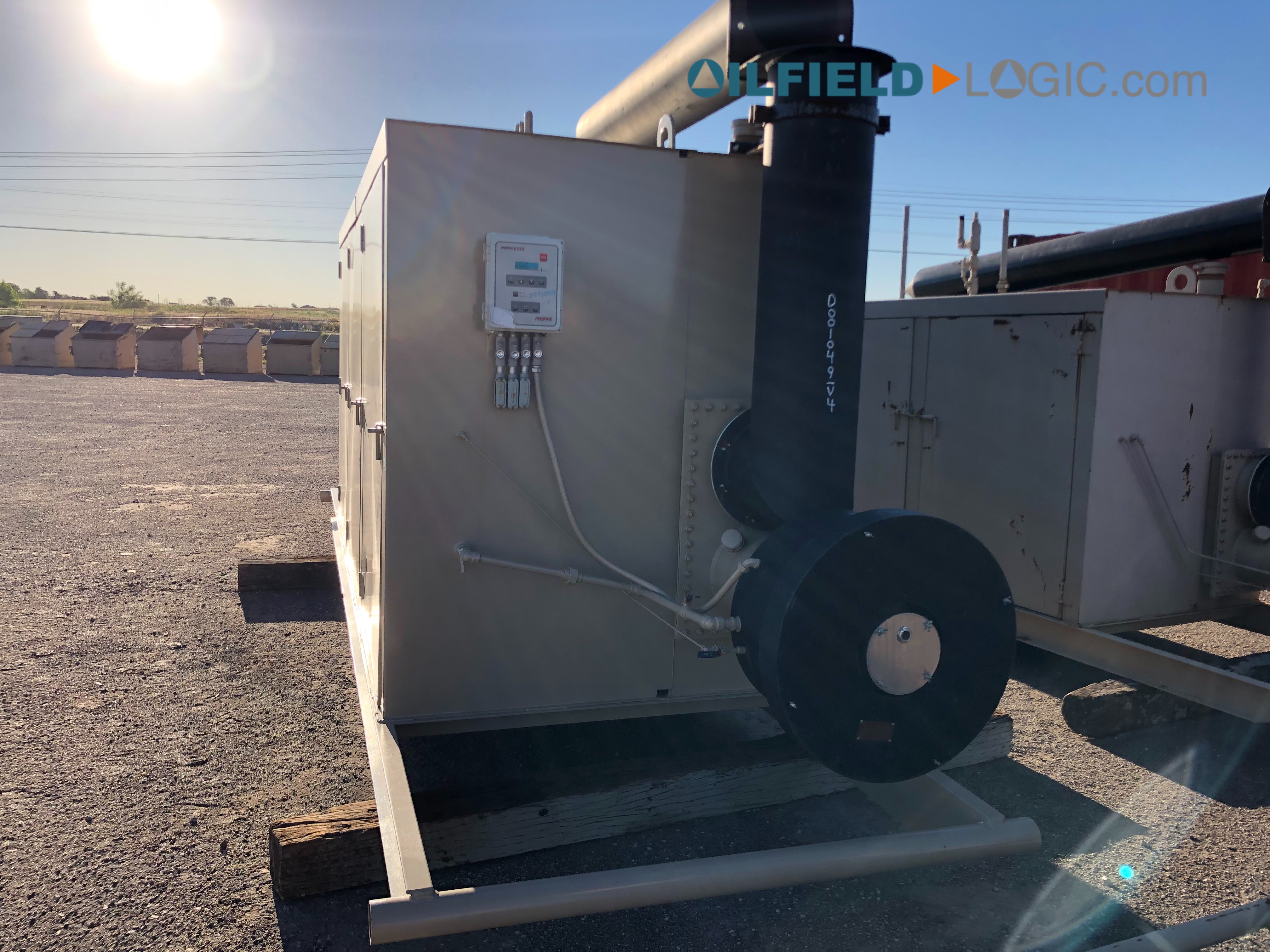

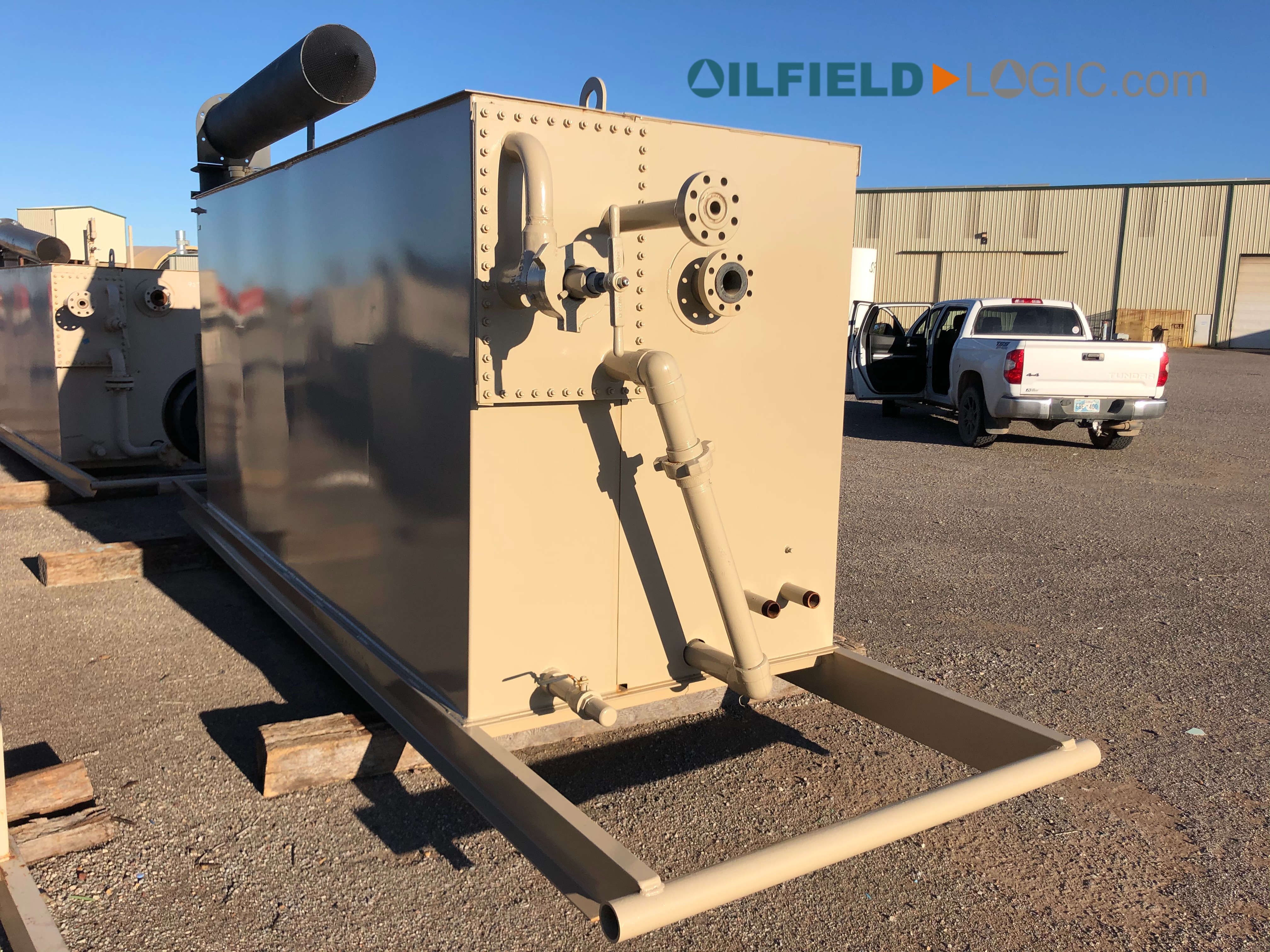

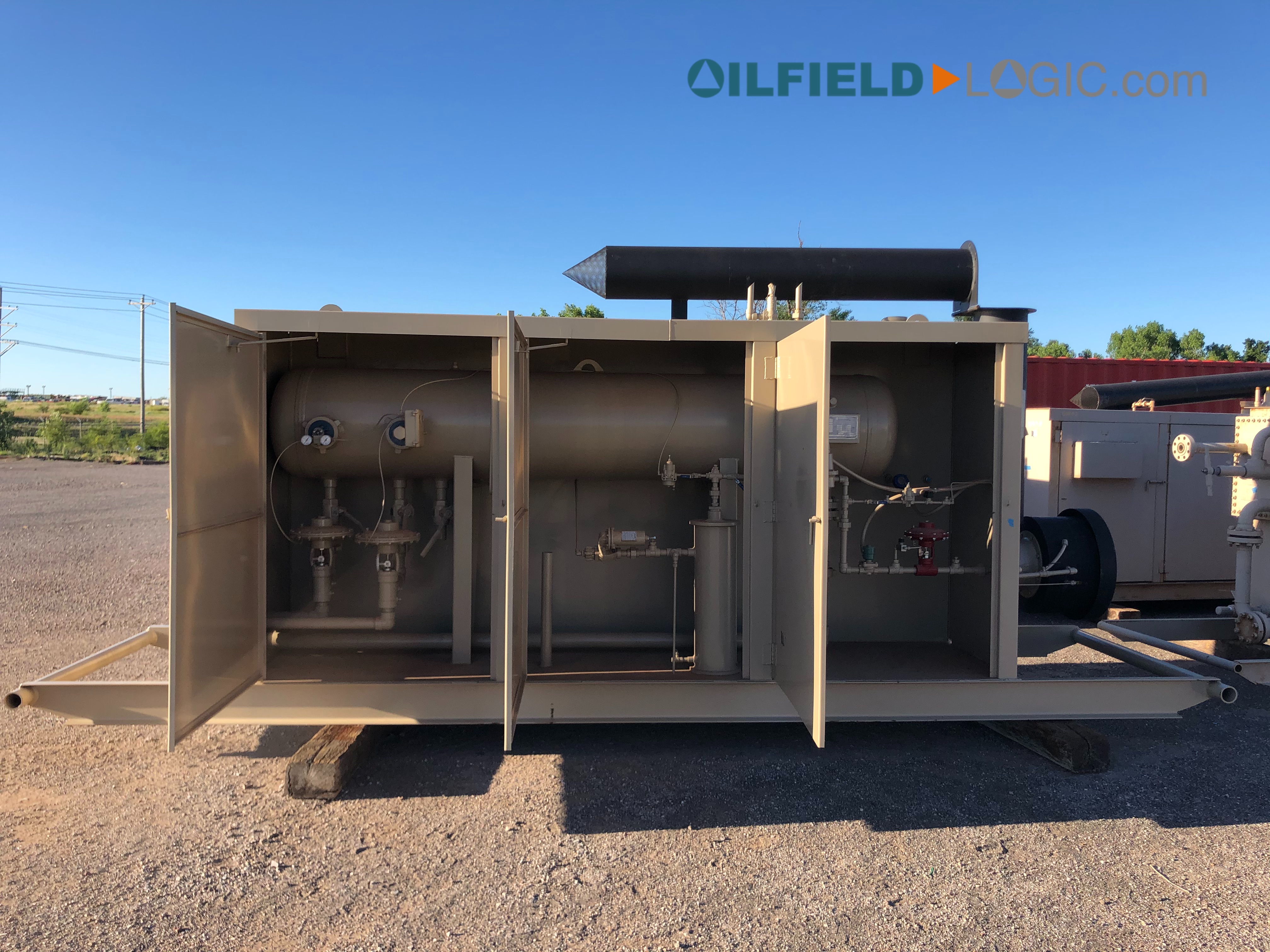

Gas production unit with a 24"x10' 1440 3-phase interface (spillover) separator. Heater has a 1 mmbtu/hr burner and a 12-3/4" x 12'6" firetube. A Profire 2100 BMS controls the burner. Coil is a split rated 10-pass coil with (4) 2-1/2" XXXH 10,000 psi preheat passes and (6) 3" XH 3,200 psi expansion passes. The unit is fully plumbed and fit for service.
Specifications
| Manufacturer | Superior Fabrication Inc. |
| Model | 24"x10', 1440# Sep, 2.5" 10,000# Coil |
| Year | 2016 |
| Condition | New |

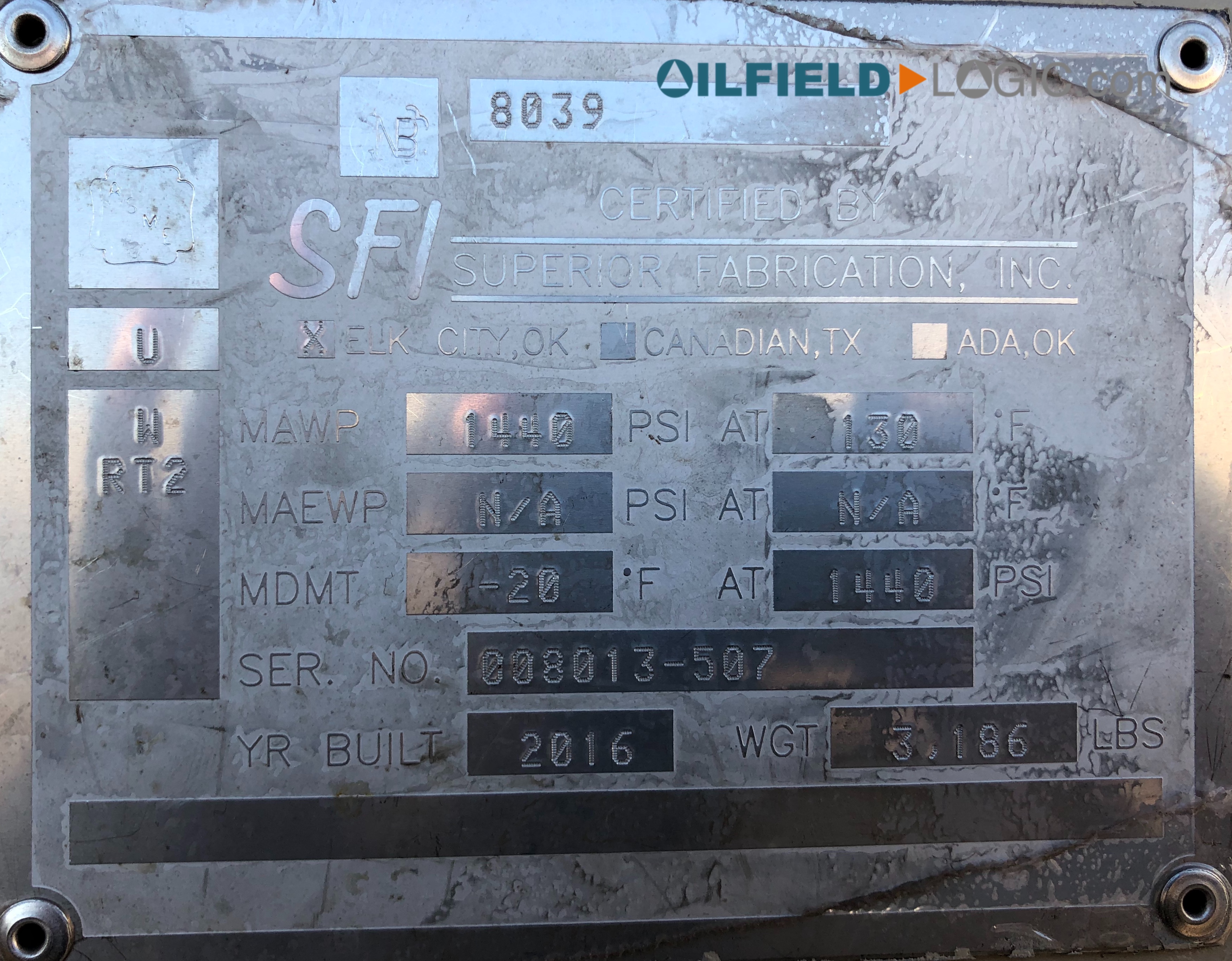

| Serial Number | 8039 |
| Stock Number | 8039 |
| Vessel | Horizontal 3-Phase 24"x10' 1440 MAWP |
| Subcategory 2 | ASME |
| Coils | 2.5" 10000# x 3" 3200# |
| Heater rating | 1 mmbtu/hr |
| Overall dimensions | 237"L x 68"W x 82"T |

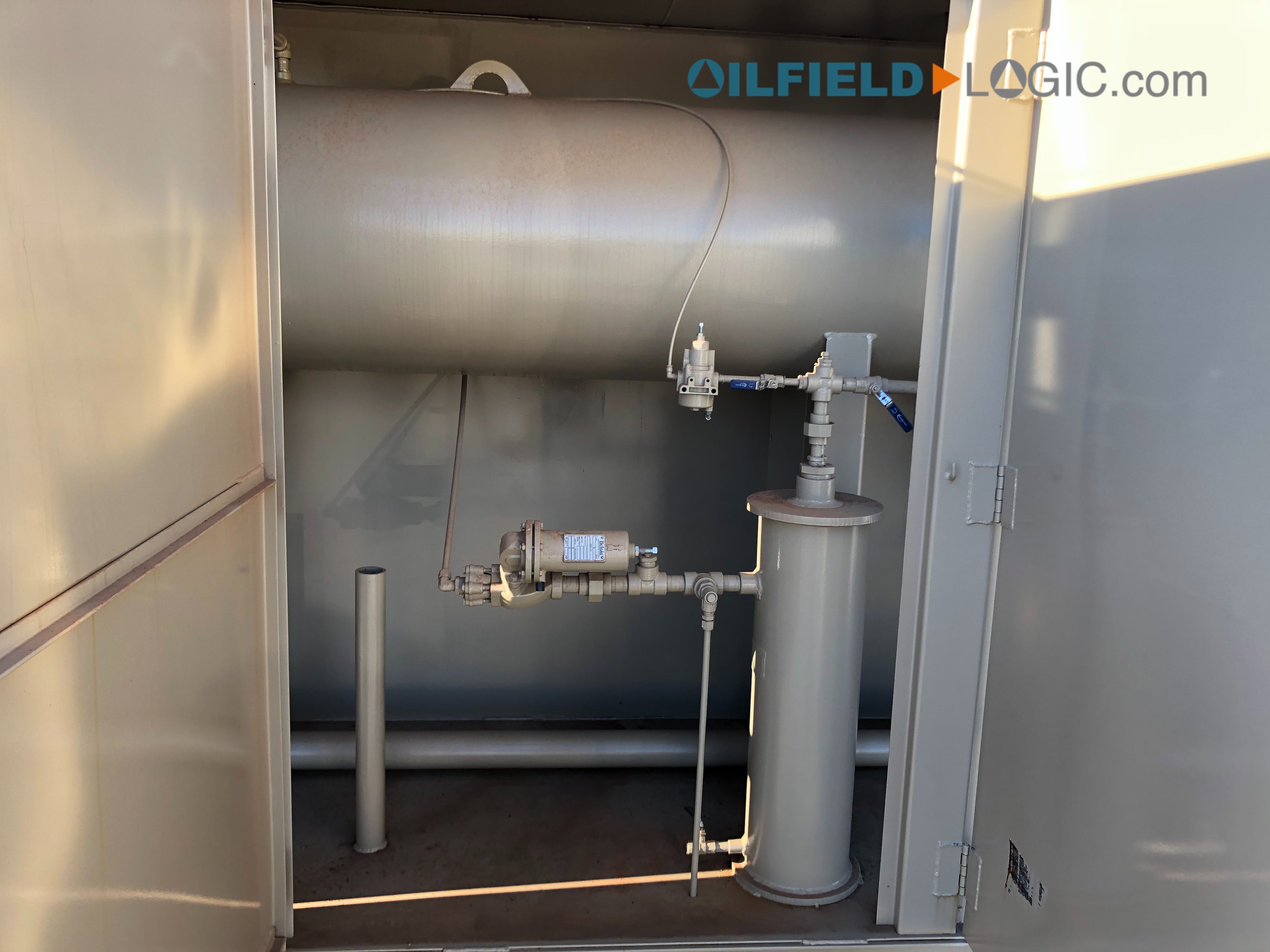

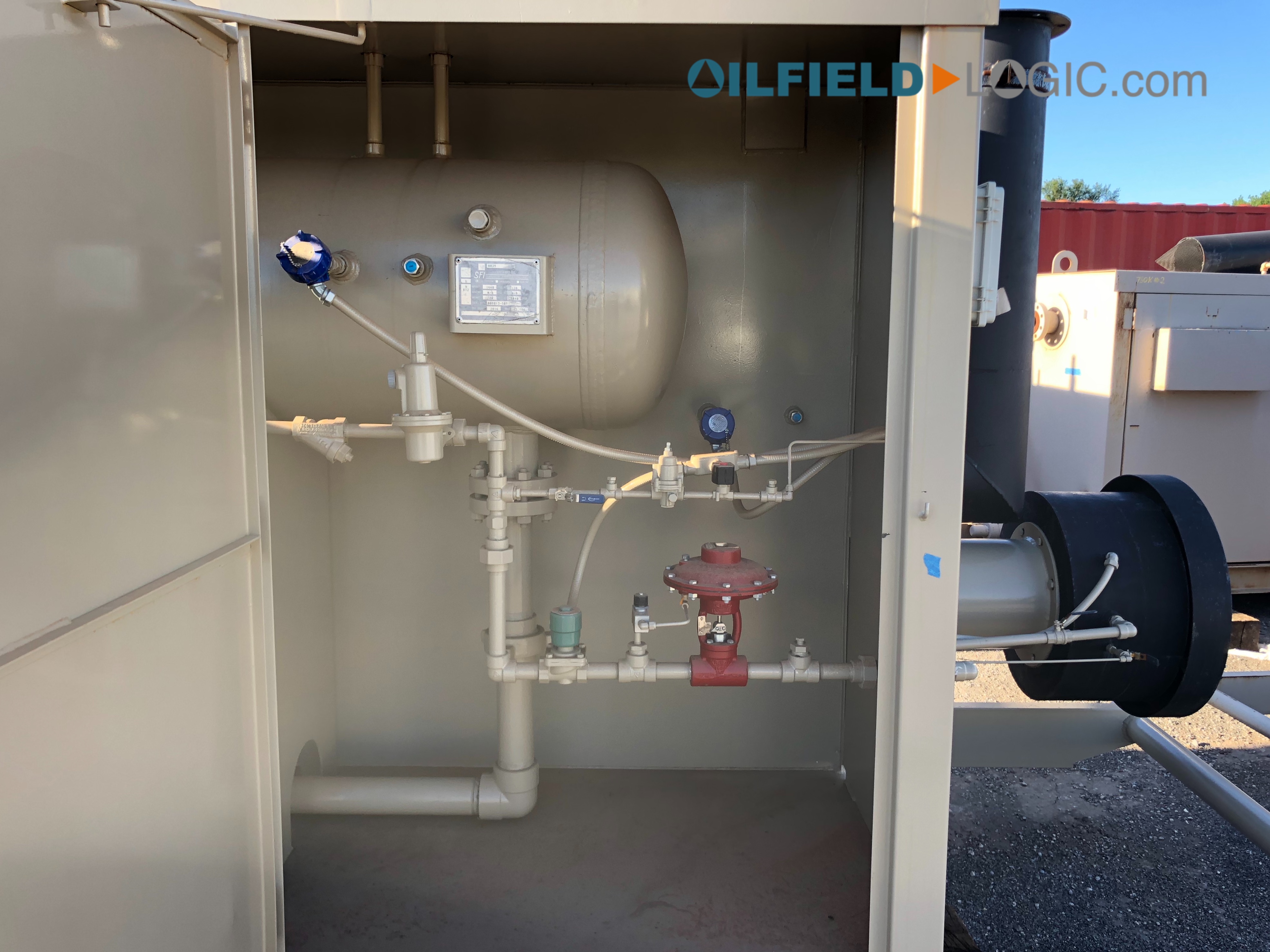

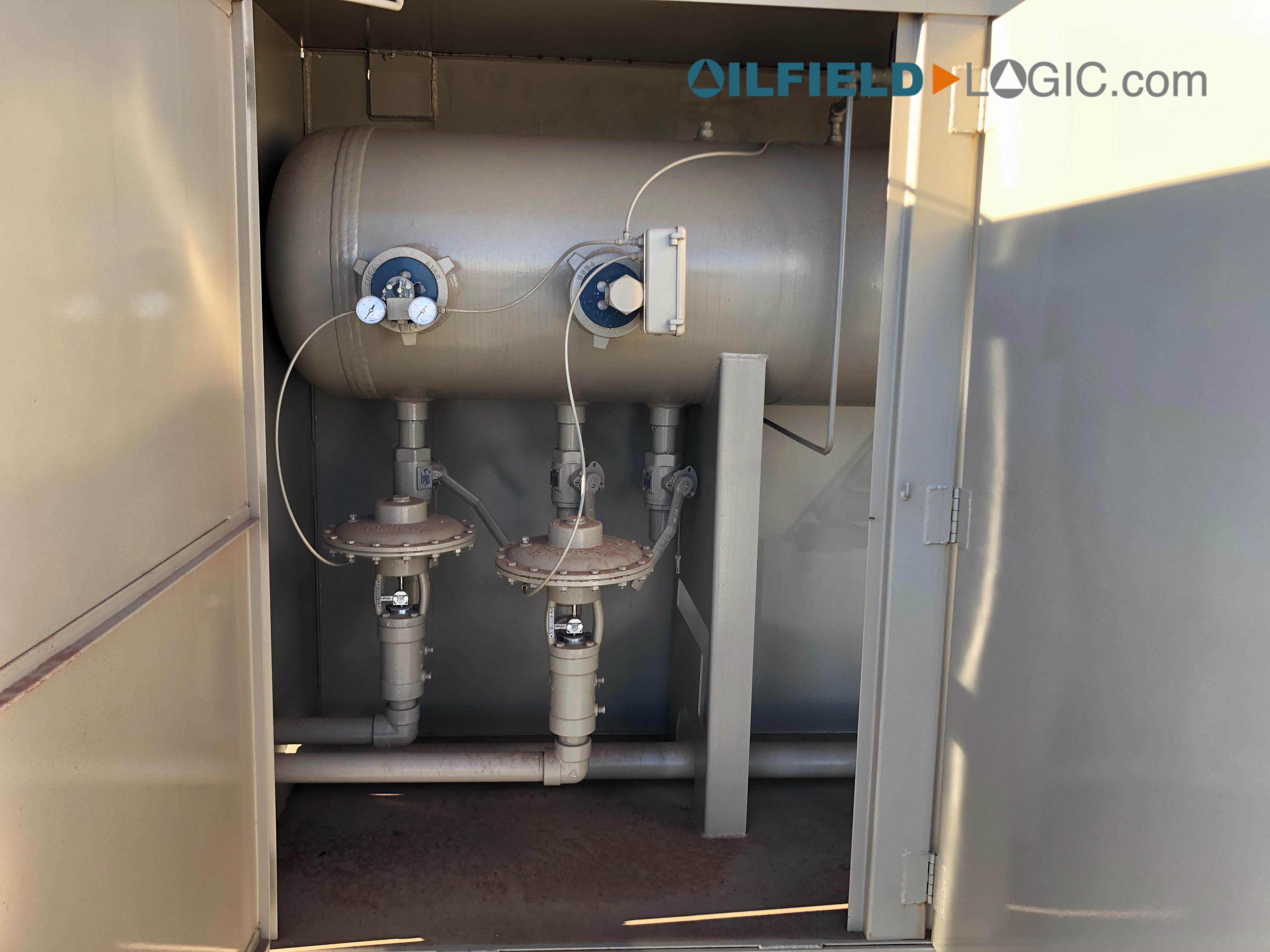

| Accessories | (1) Tectrol choke with 1" carbide seat (2) Wellmark 5CSU-UMZ-LO8 liquid level controllers (1) Kimray ECQCB 2400 SMA dump valve with 3/4" carbide trim (water) (1) Kimray ETBCB 2400 SMA dump valve with 1/2" carbide trim (oil) (1) Profire 2100 BMS (1) 1"x1" PSV with set point @ 1000 psi (1) 1" 1440 psi rupture disk (1) 3/4" fuel train with regulators, valves and pressure gauges (1) 8-5/8"x2'6" 125 psi fuel pot (non-code) |
| Work recently performed | No work recently performed |
| Wear and tear | None |
| Notes | The unit is surplus equipment built and stored by the OEM. |
| Origin Code | OC01 |
