GPU & Sand Sep, Single, 30"x8', 1440, 1.5 mmbtu
GPU & Sand Sep, Single, 30"x8', 1440, 1.5 mmbtu
$199,000 (USD)
Location:Oklahoma
orCall 1 (844) 564-4237
Description

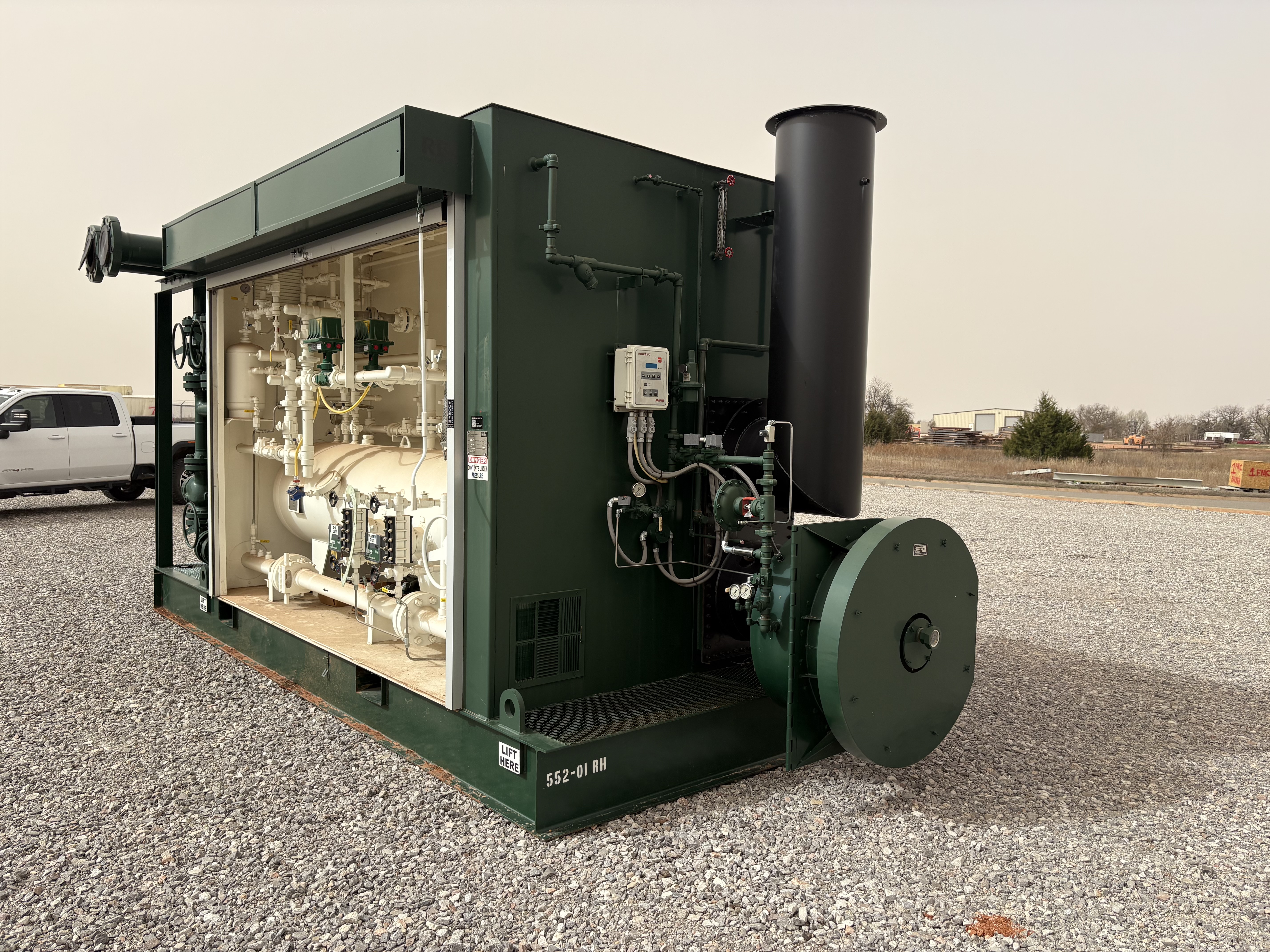

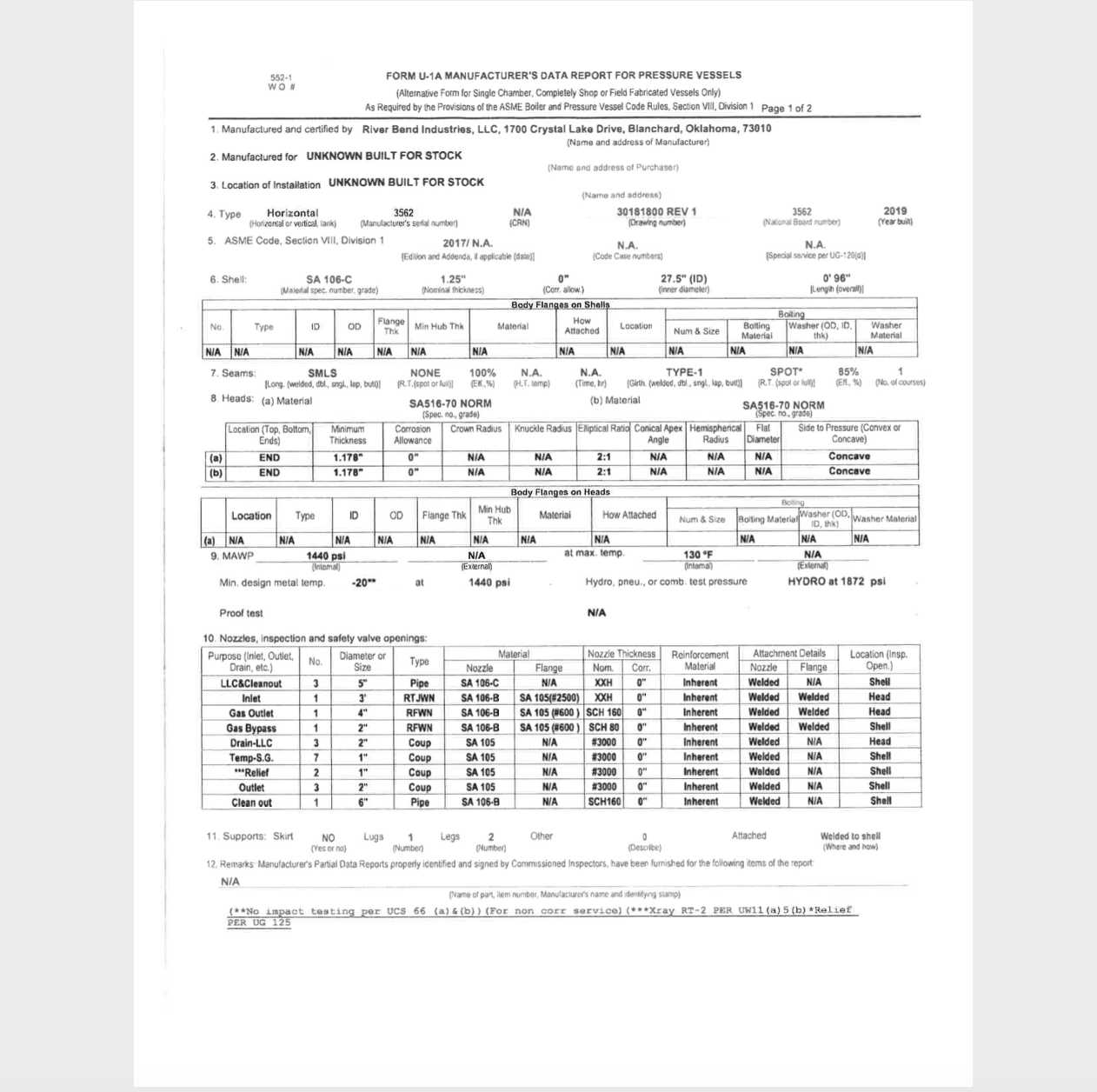

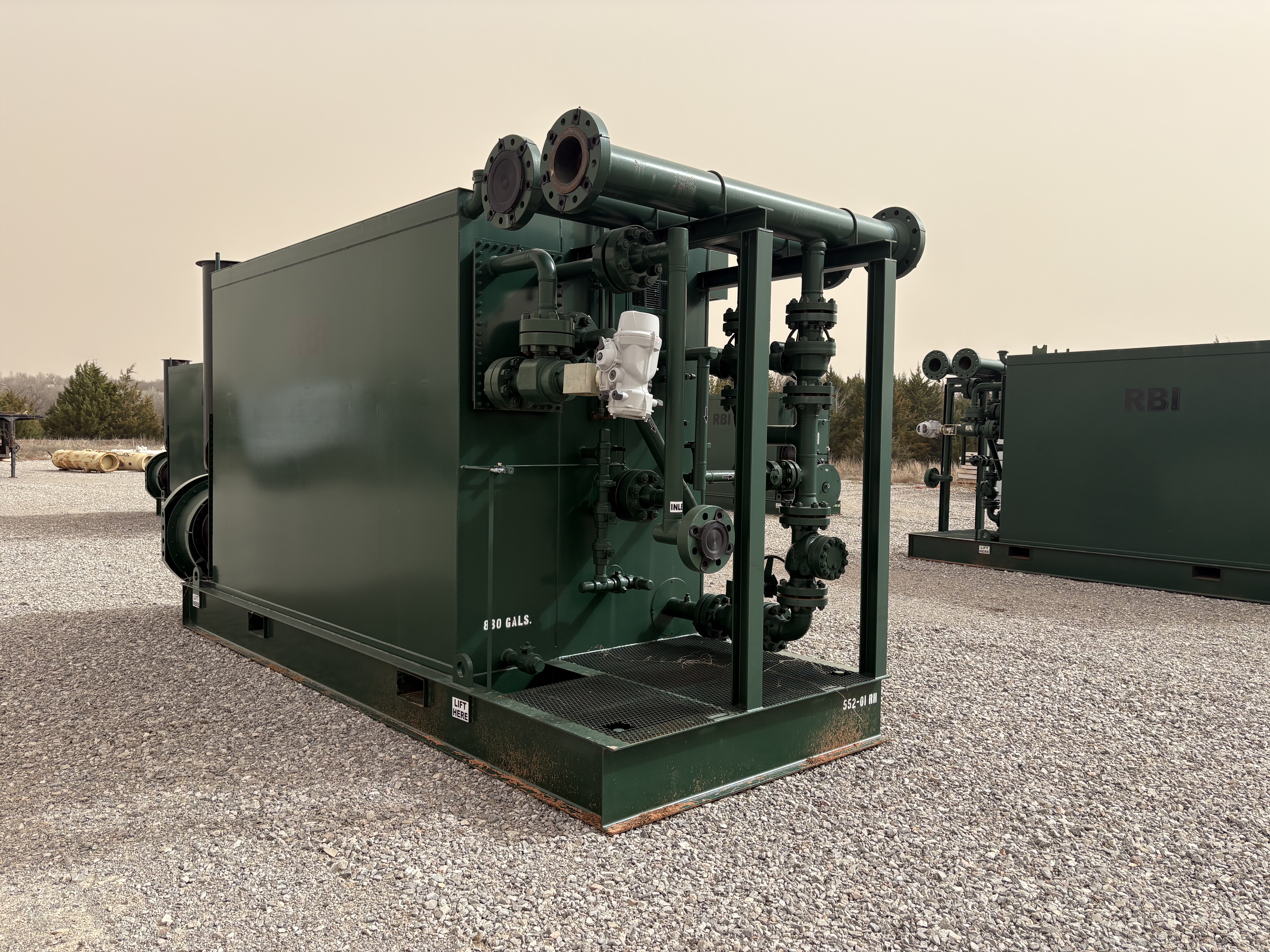

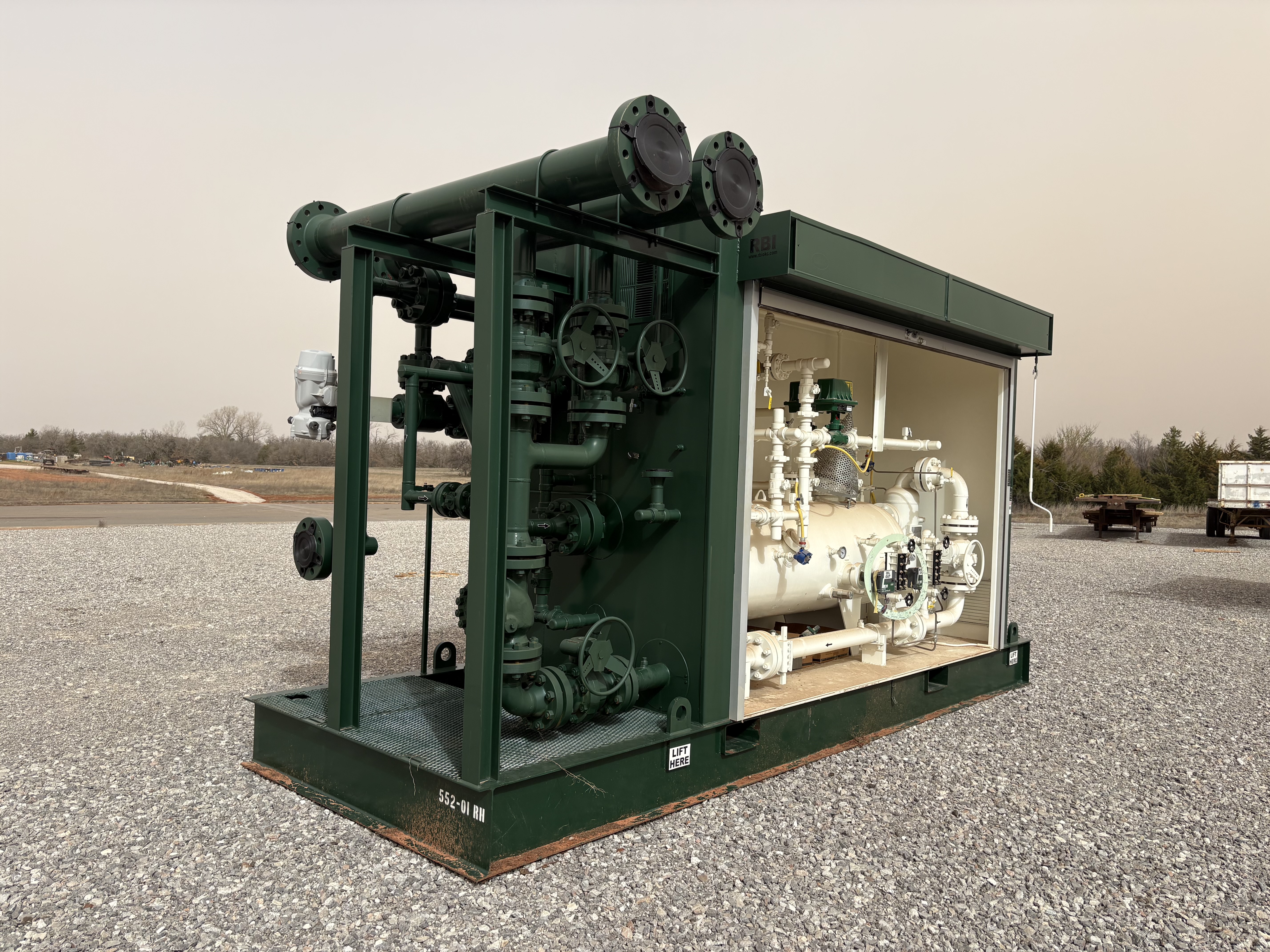

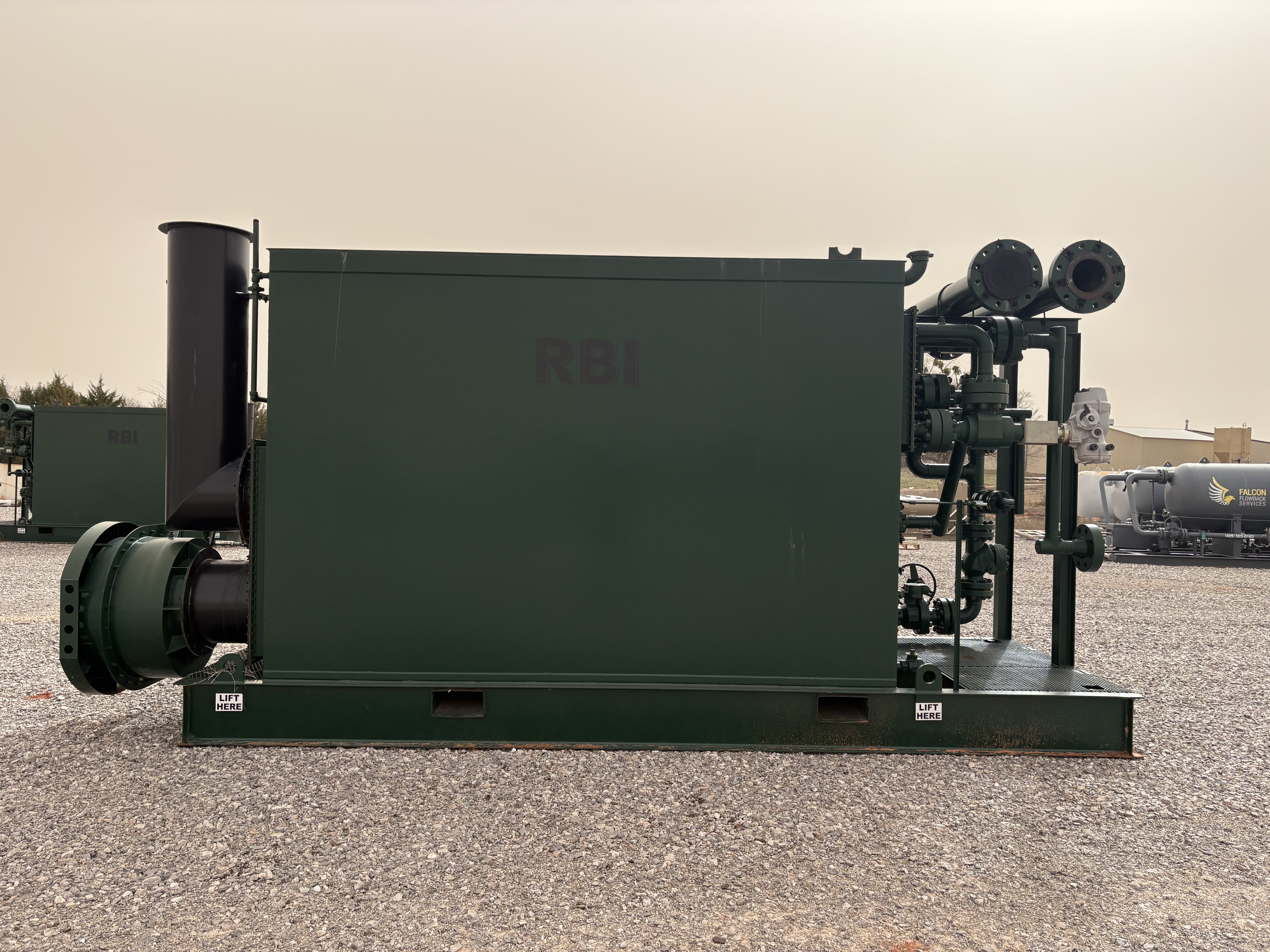

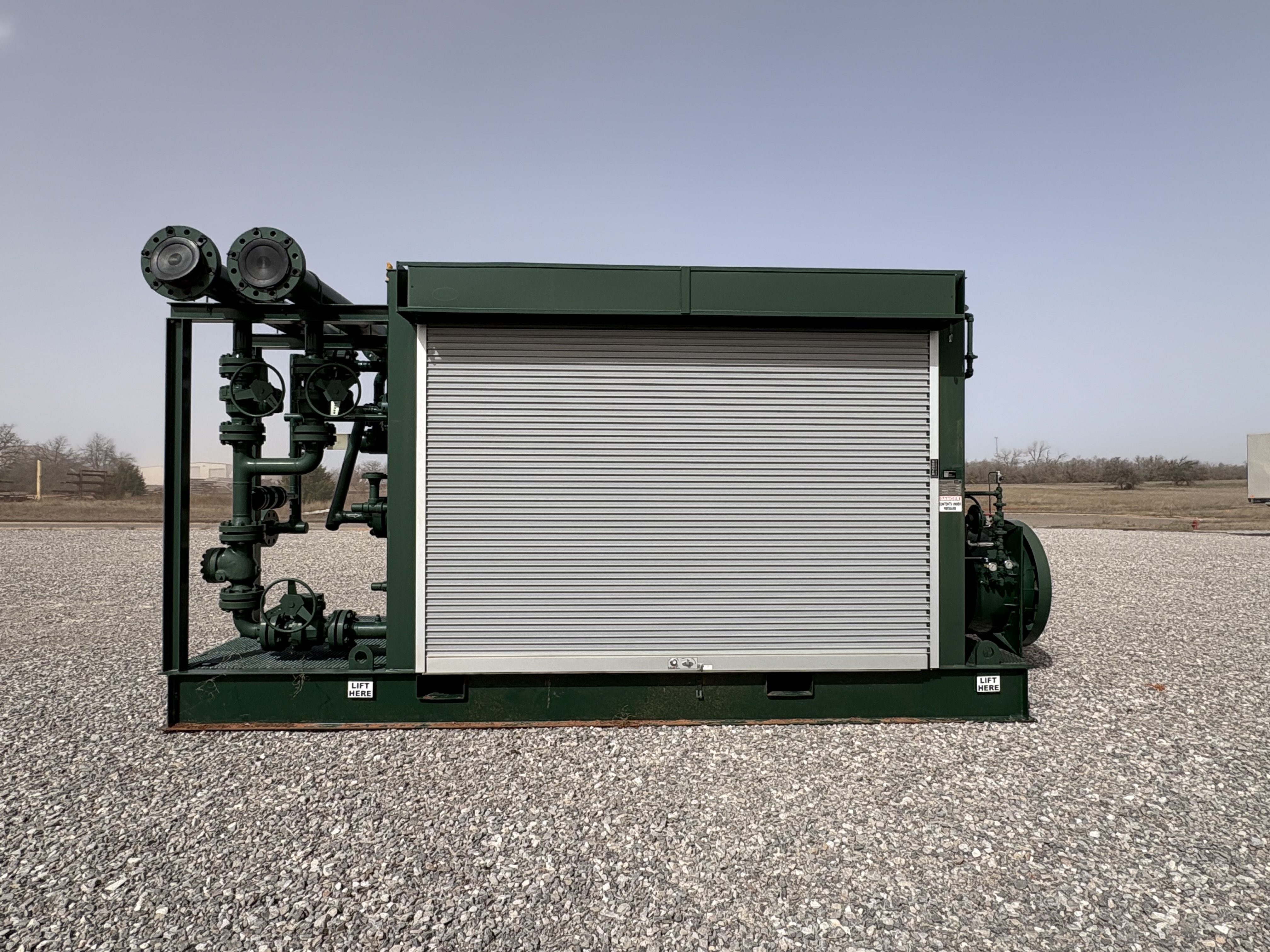

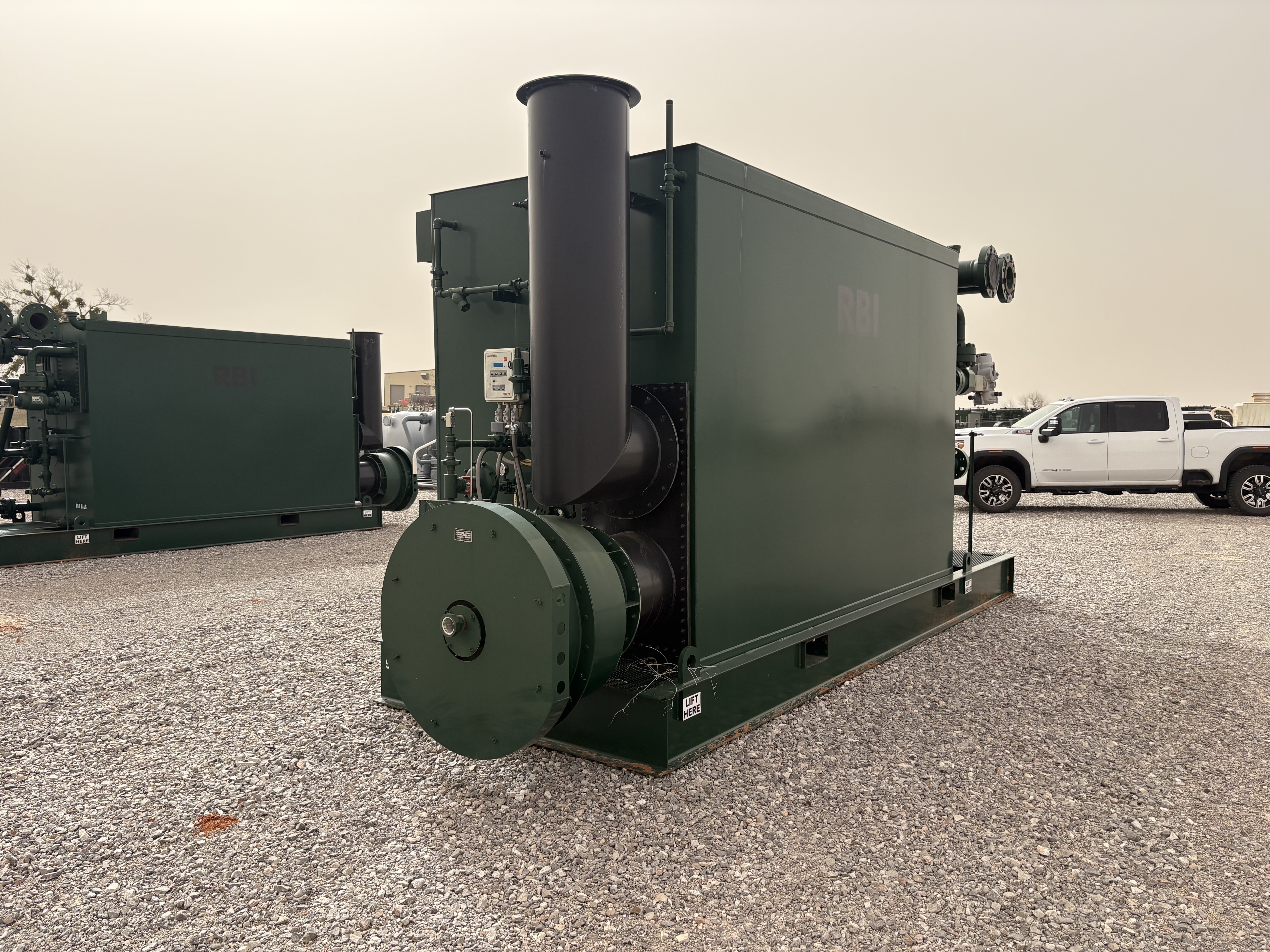

Package consists of a GPU skid and sand separator skid that connect for easy installation. GPU includes a 30"x8' 1440# 3-phase separator, 3" 5,000# coils, 1.5 mmbtu/hr heater, and ALL ELECTRIC controls. Sand separator is a 24"x10' 5,000# trap with 4" H/U inlet, 3" H/U outlet, 2" H/U dump. ***Manufacturer data book, P&ID and GA drawings are available upon request***
Specifications

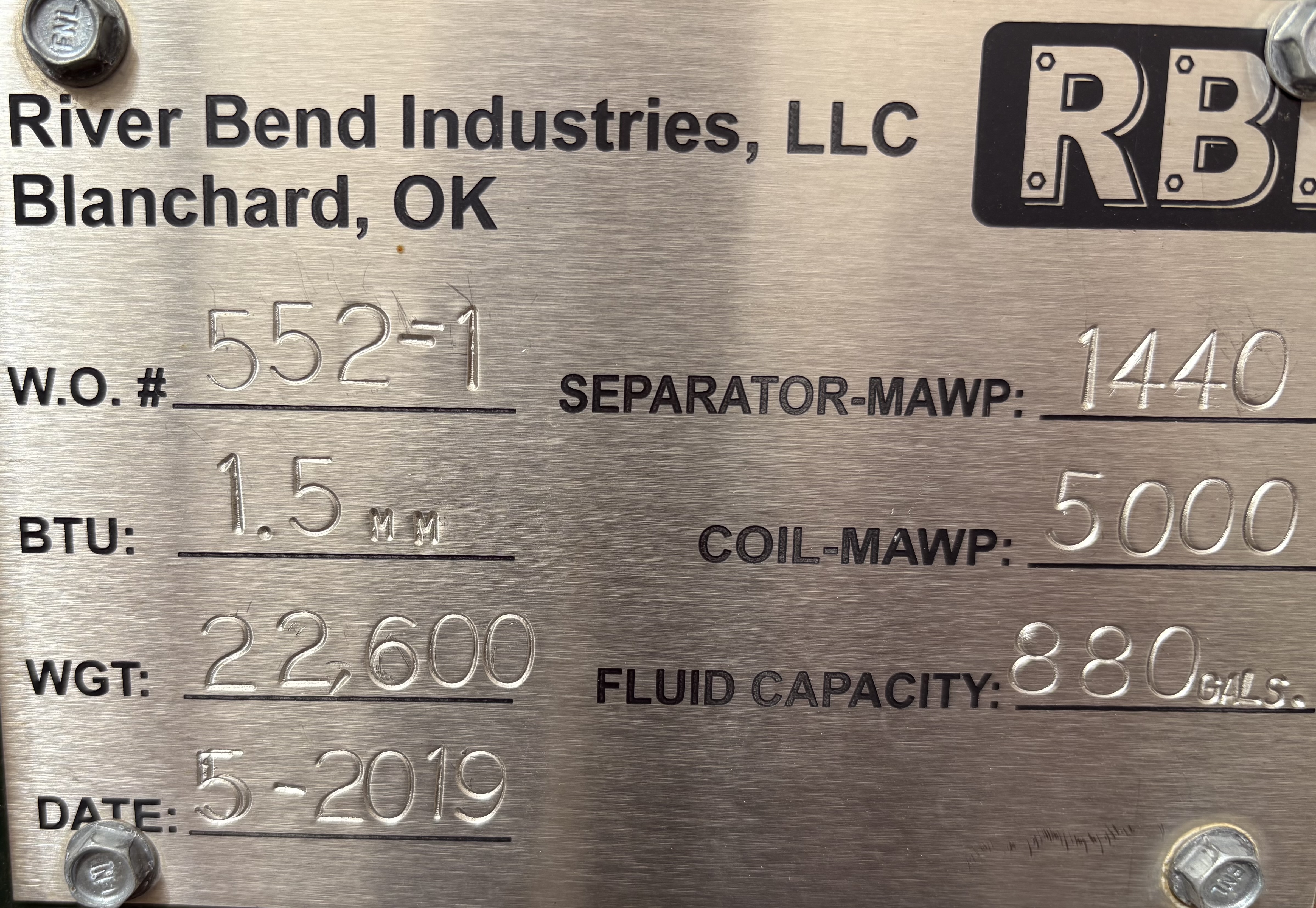

| Manufacturer | River Bend Industries |
| Model | 30"x8', 1440# Sep, 3" 5,000# Coil |
| Year | 2019 |
| Condition | New |
| Serial Number | 3564 |
| Stock Number | 552-01 |

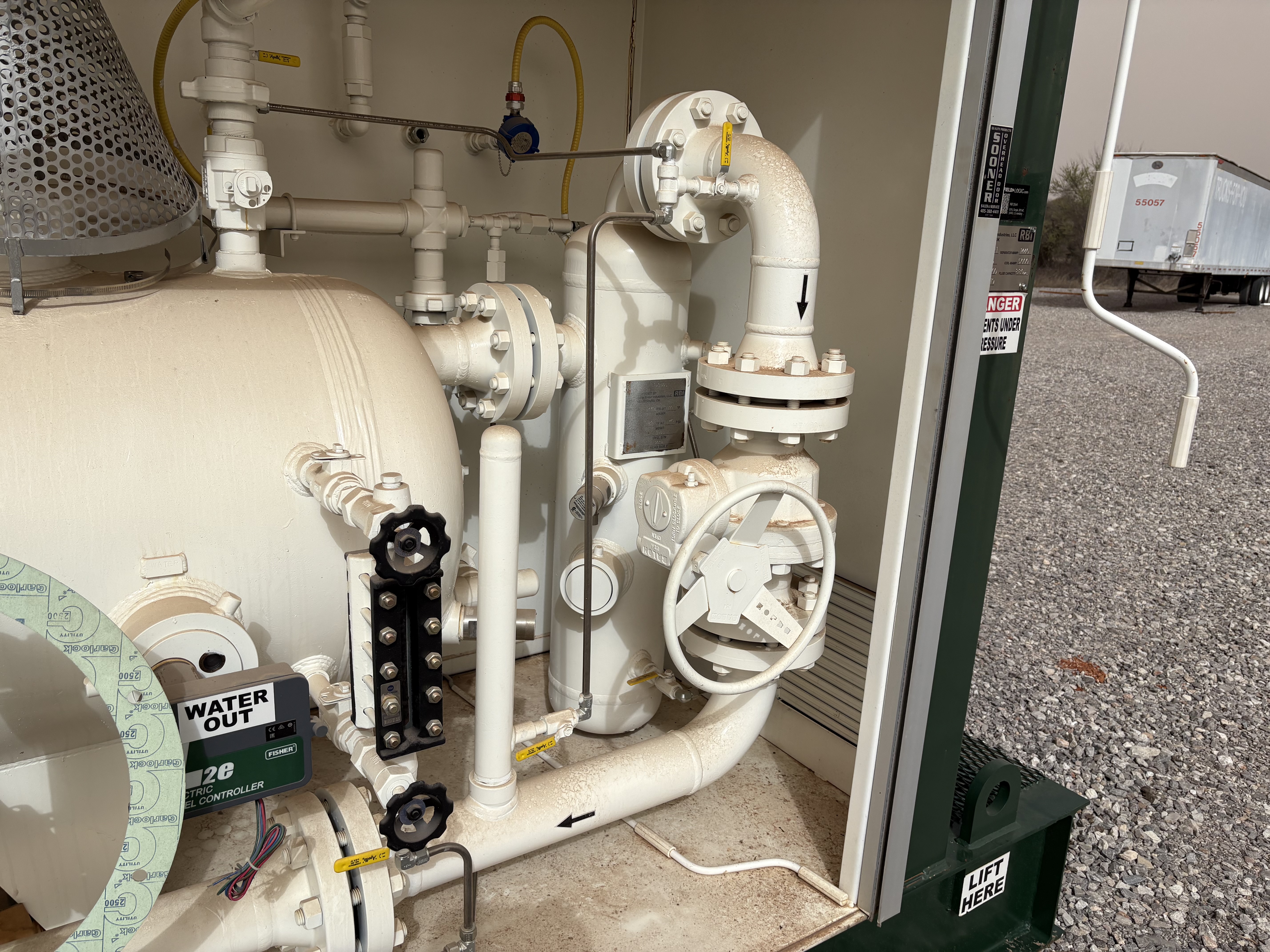

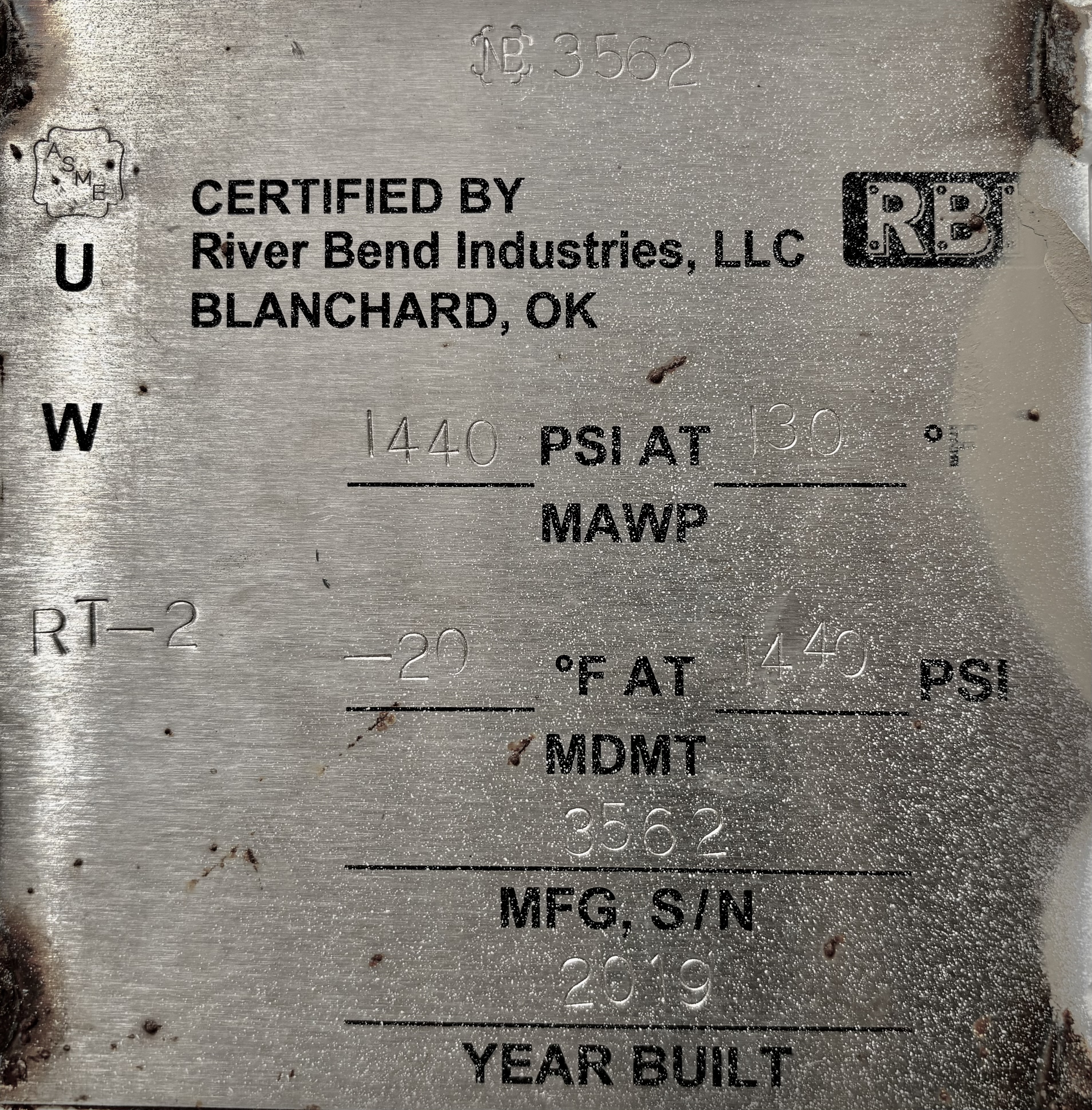

| Vessel | Horizontal 3-Phase 30"x8' 1440 MAWP |
| Subcategory 2 | ASME |

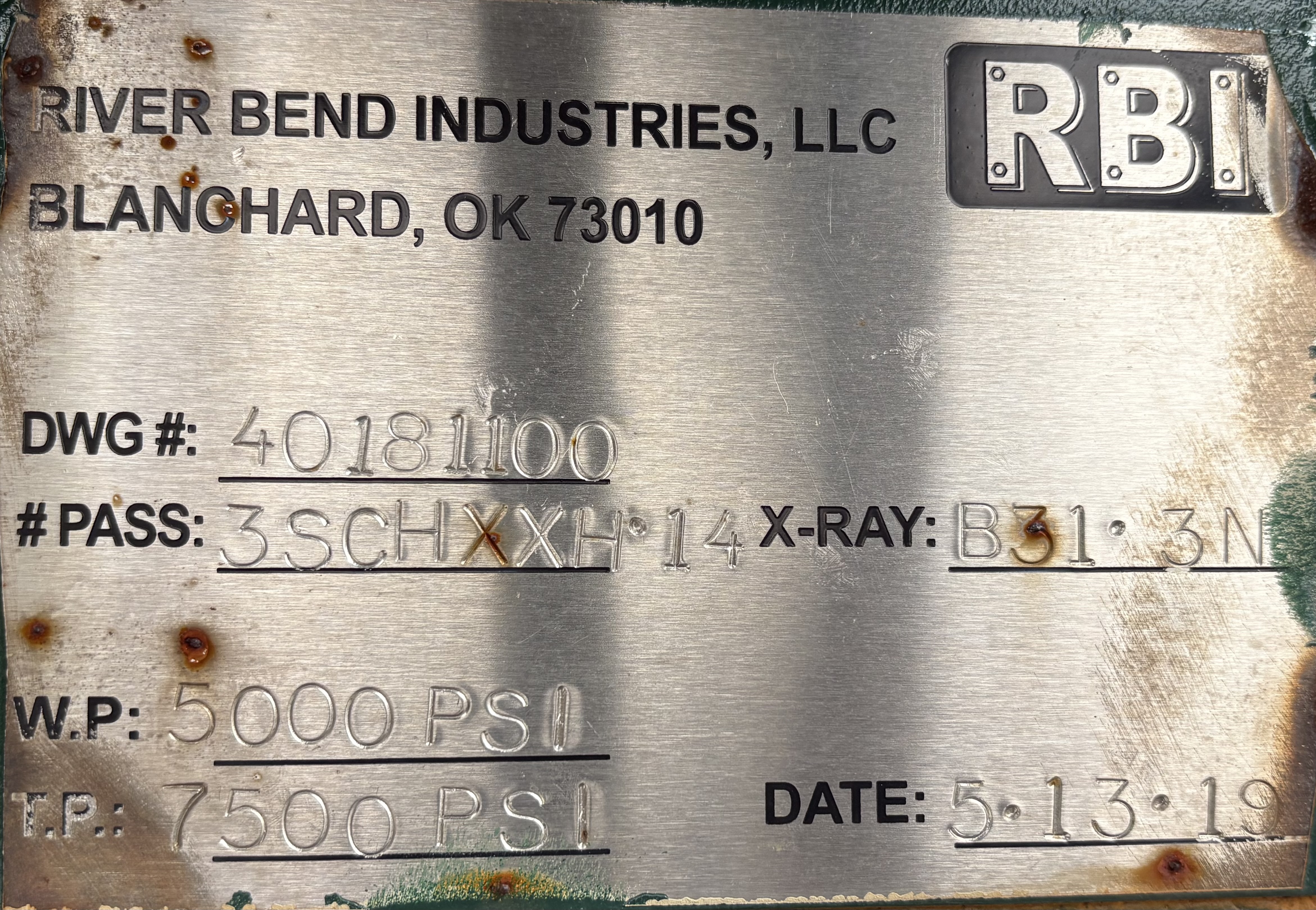

| Coils | 3" 5000 psi MAWP |

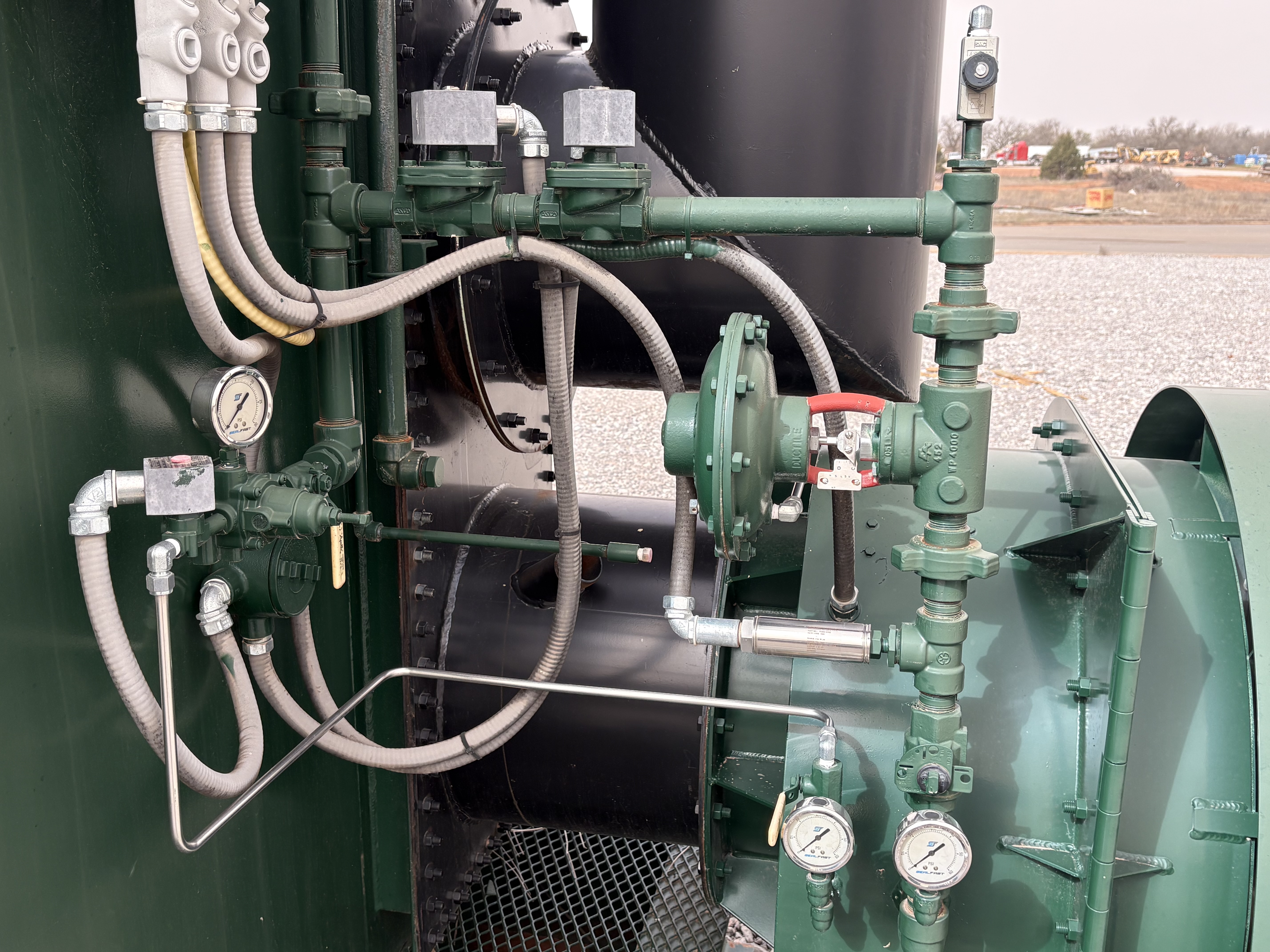

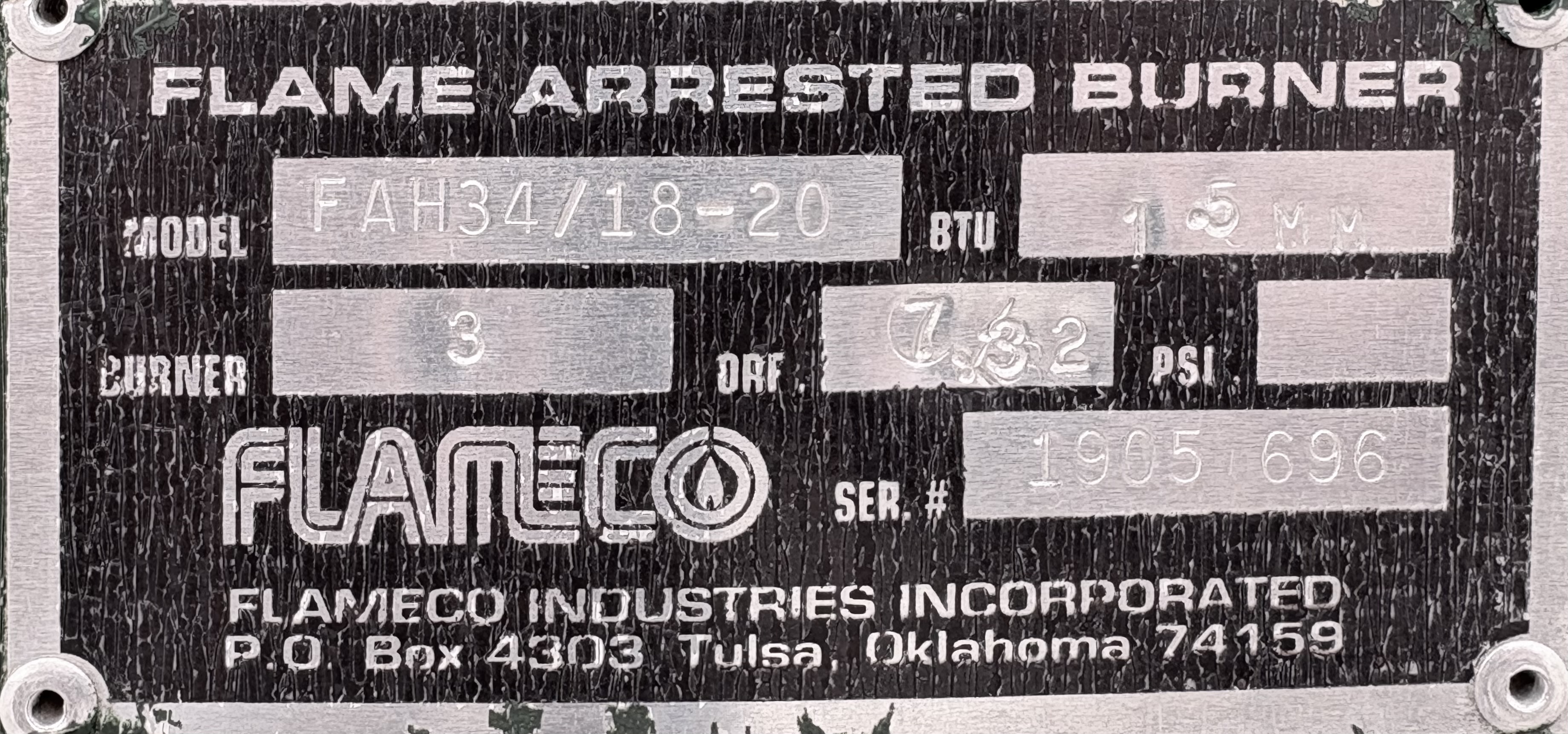

| Heater rating | 1.5 mmbtu/hr |
| Overall dimensions | 100"W x 325"L x 162"T standing |

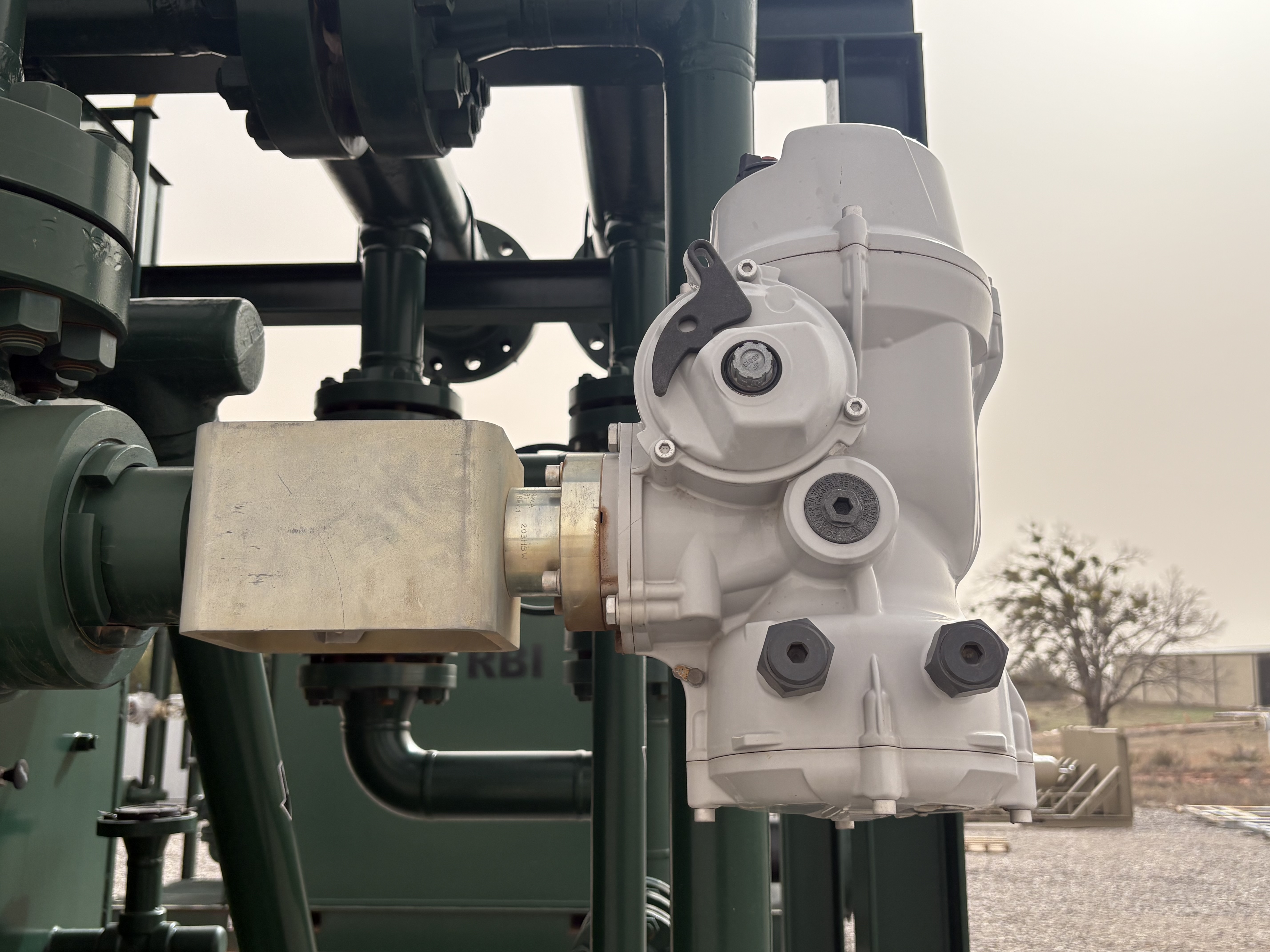

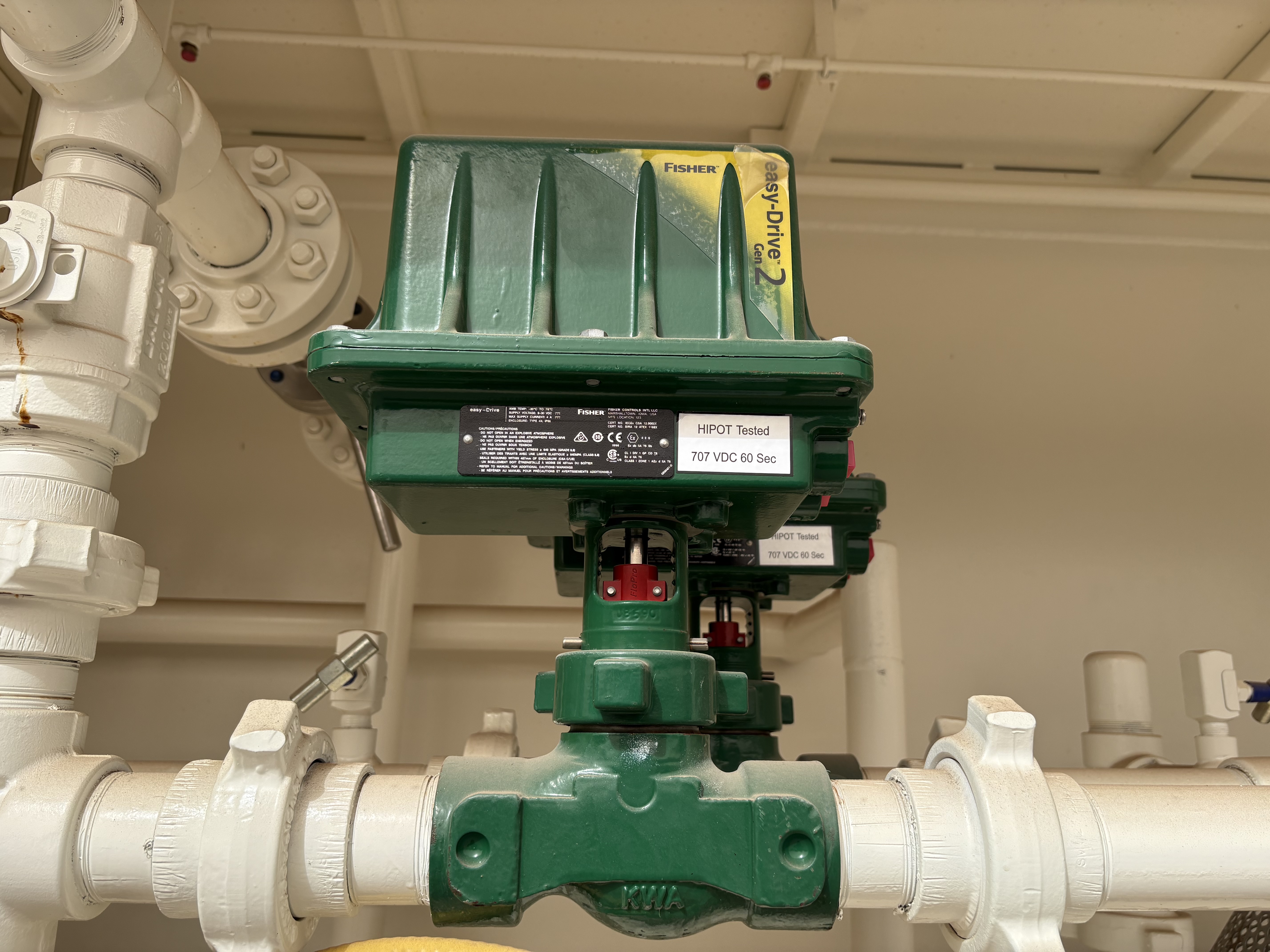

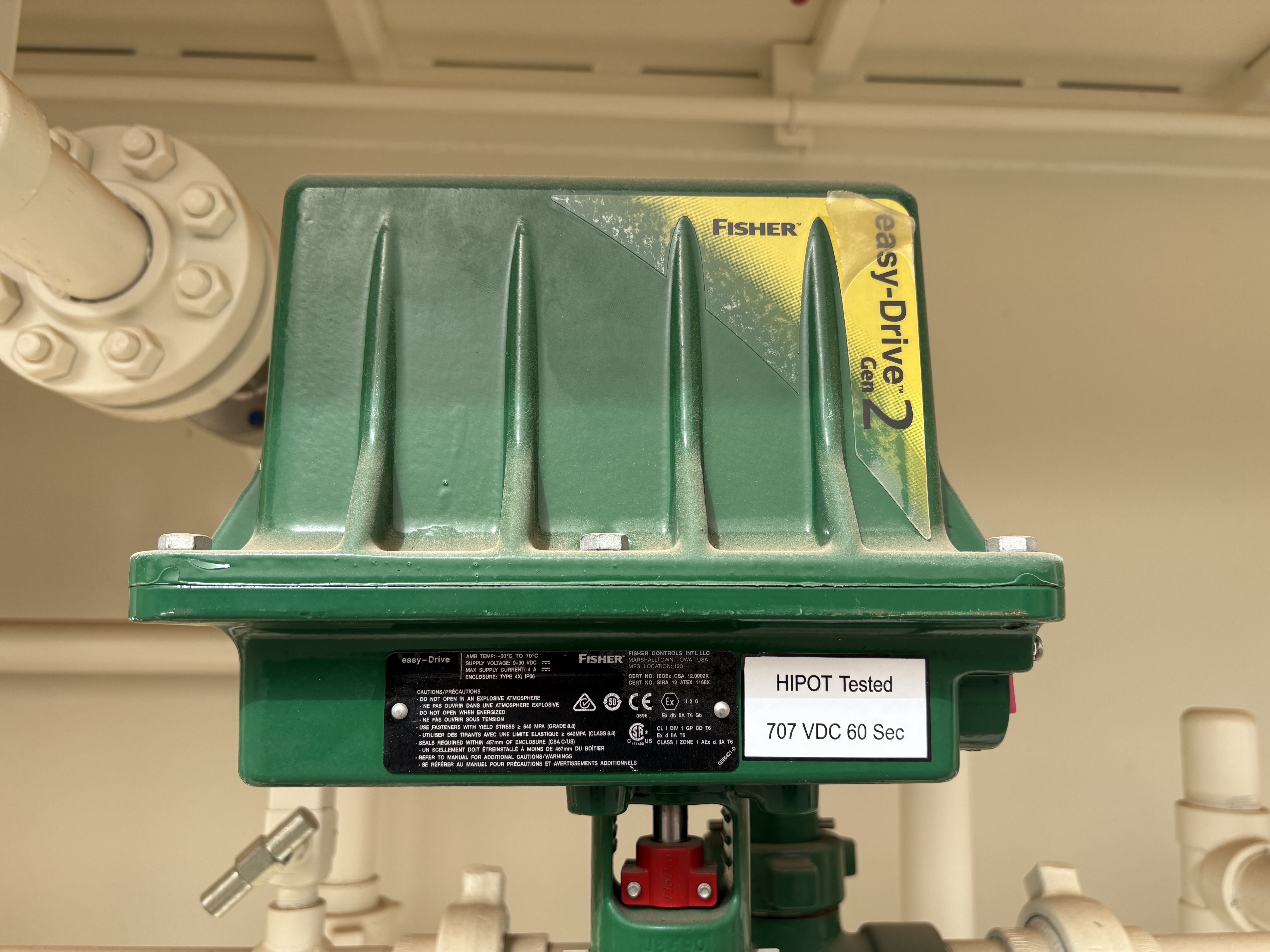

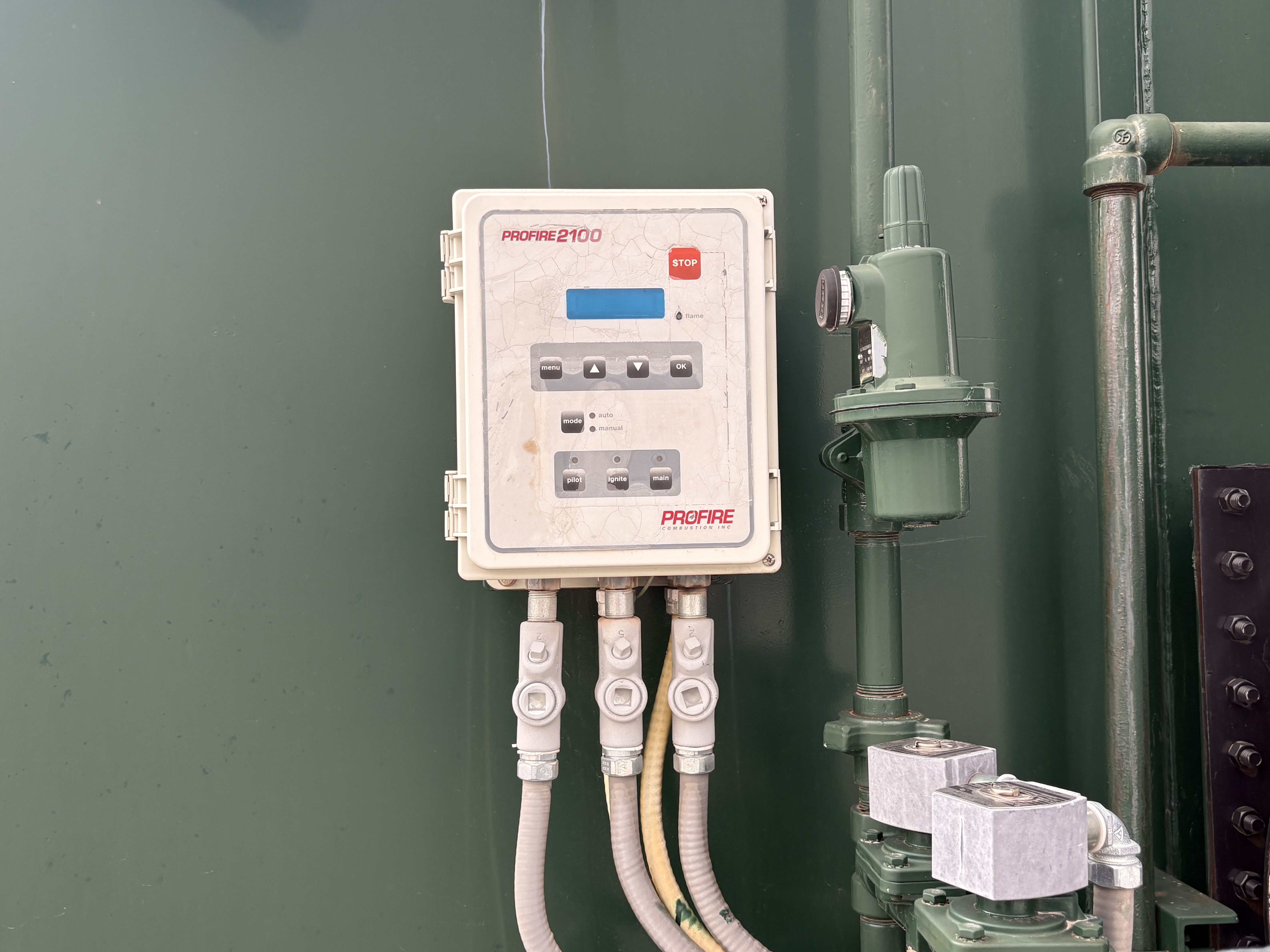

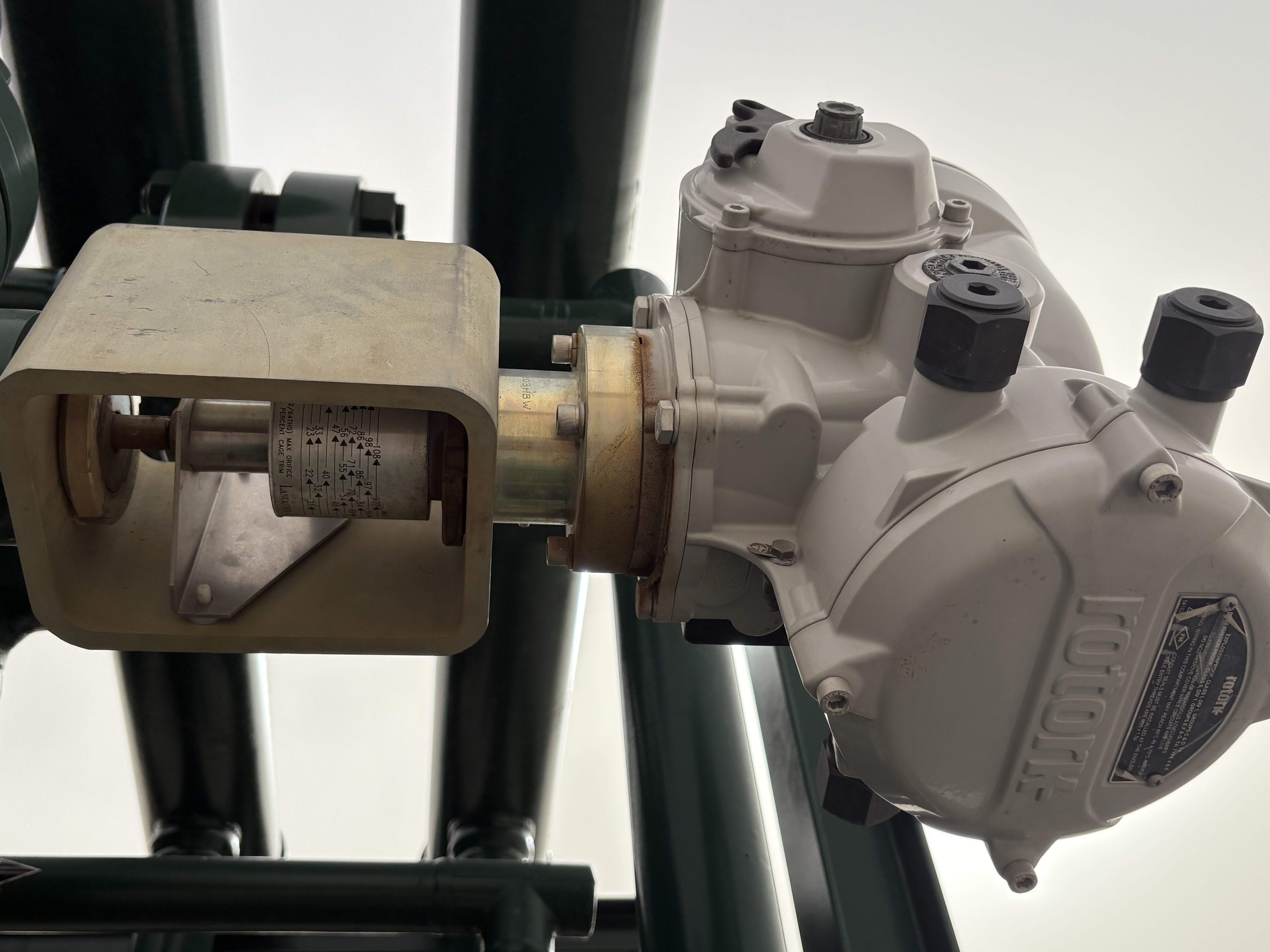

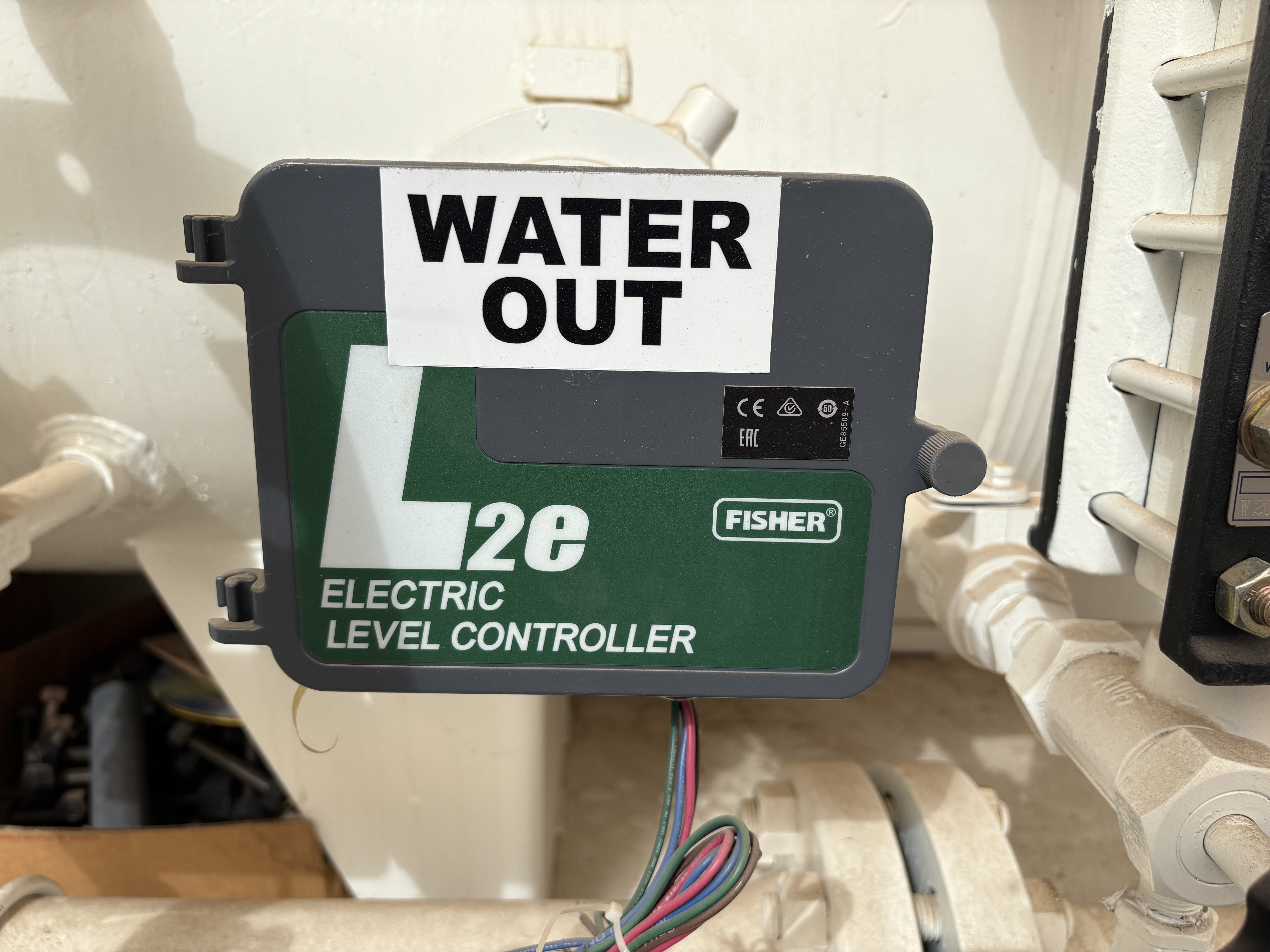

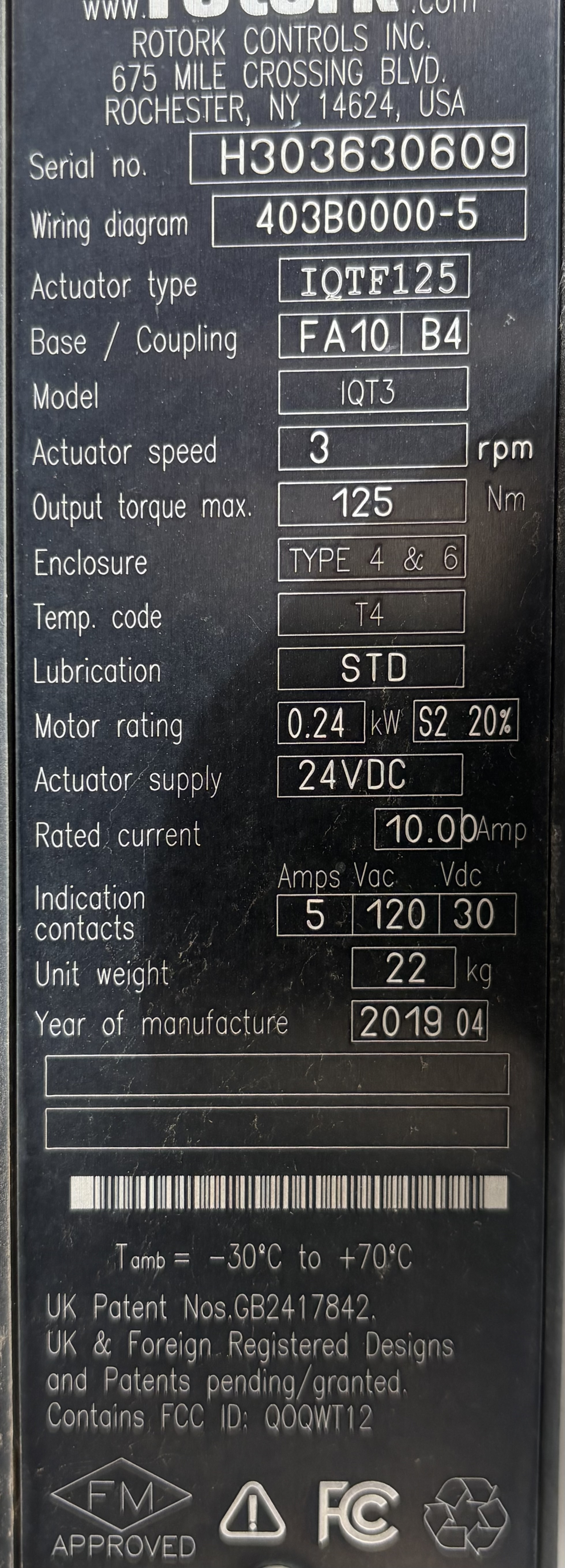

| Accessories | ***No Pneumatic controls on unit. Zero emission, electric controls throughout unit (full P&ID available upon request)** |
| Work recently performed | None |
| Wear and tear | Unit is new, and in the same condition as warranted by manufacturer |

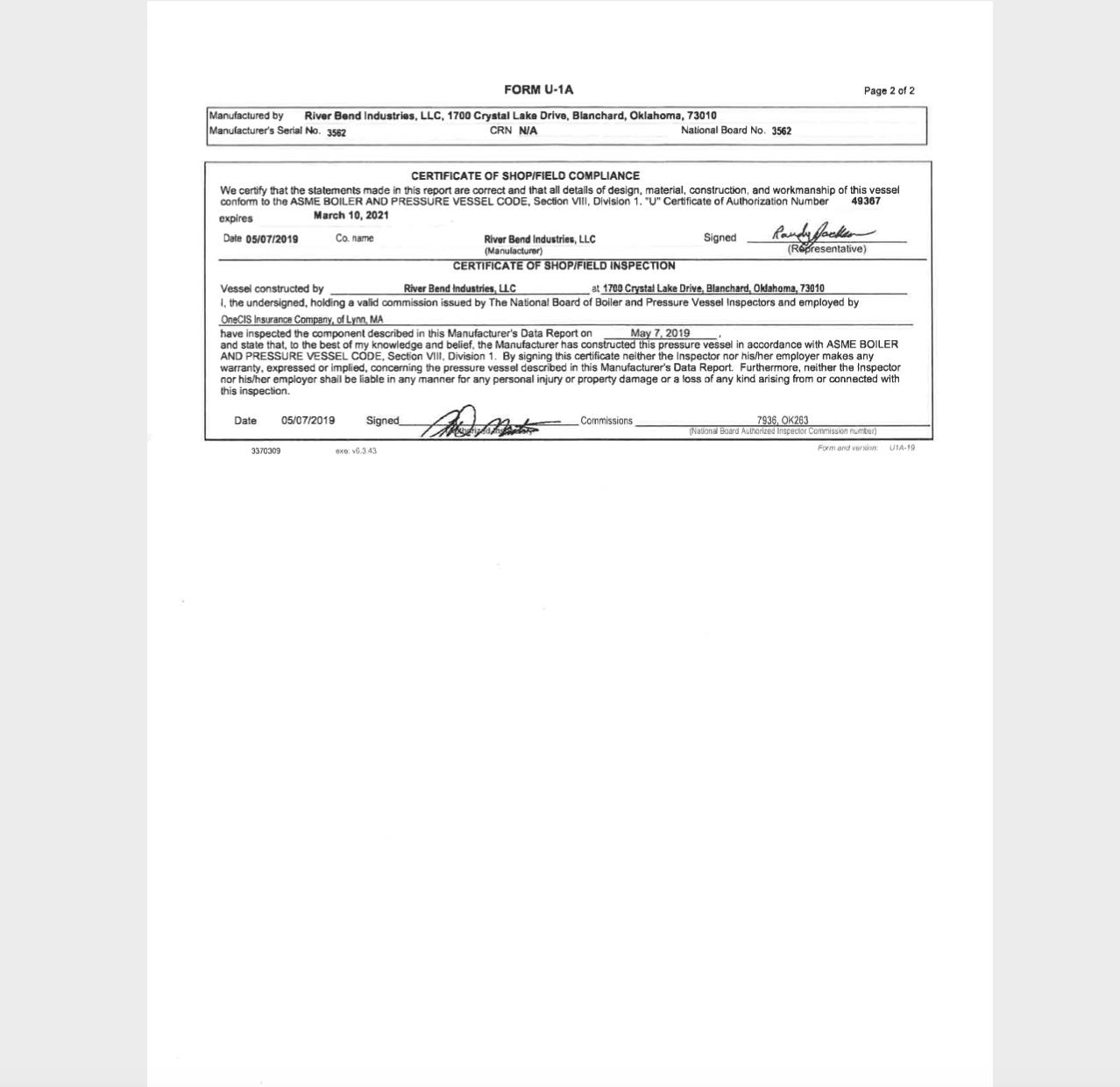

| Test | Unit was built to B31.3 and ASME Section VII, Div 1 specifications. |

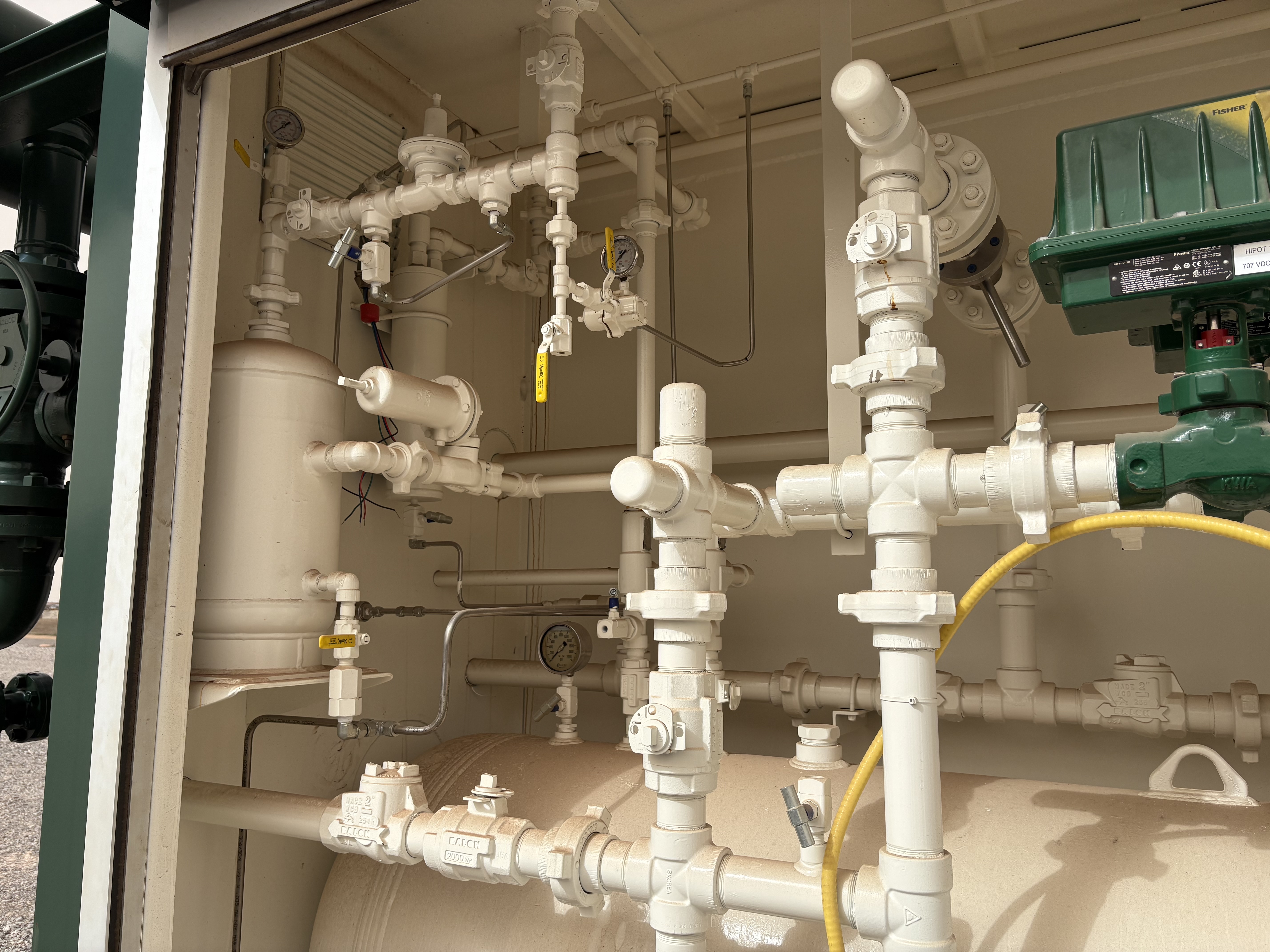

| Notes | ALL CONTROLS ON UNIT ARE ZERO EMISSION 5K sand separator is included in package, and is designed to seamlessly connect with GPU skid GPU includes rollup door for easy access |
| Origin Code | OC05 |
