Heater Treater, Horizontal, 6'x20', 75#
![Heater Treater, Horizontal, 6'x20', 75#](https://i.machineryhost.com/12904660044c7402331bb4361aaed775/original-7178c8_e8ed1b3caefc4e3681866fad55eb0f6f_mv2.jpeg)
Sold
Heater Treater, Horizontal, 6'x20', 75#
$17,000 (USD)
Location:Oklahoma
Description

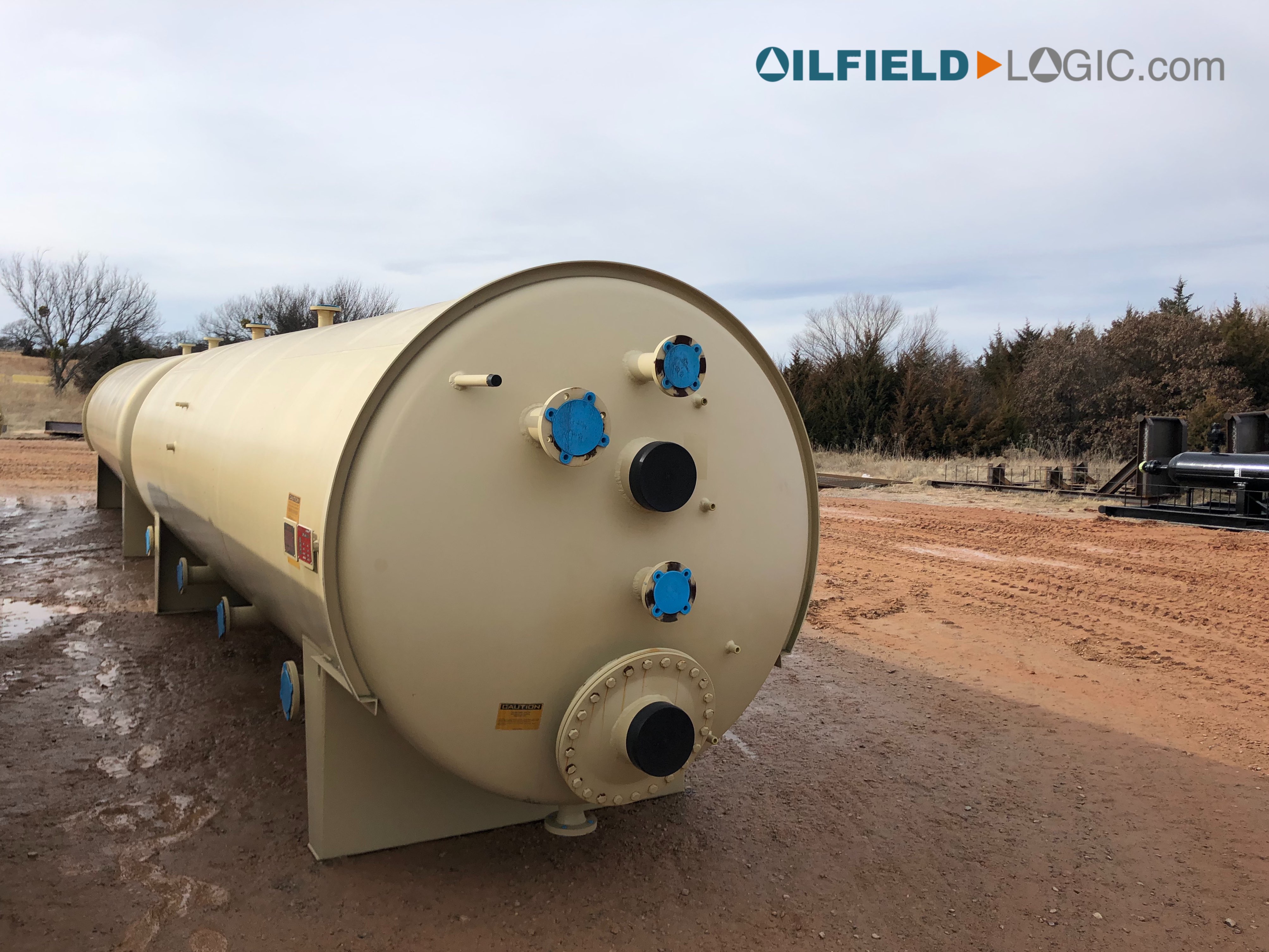

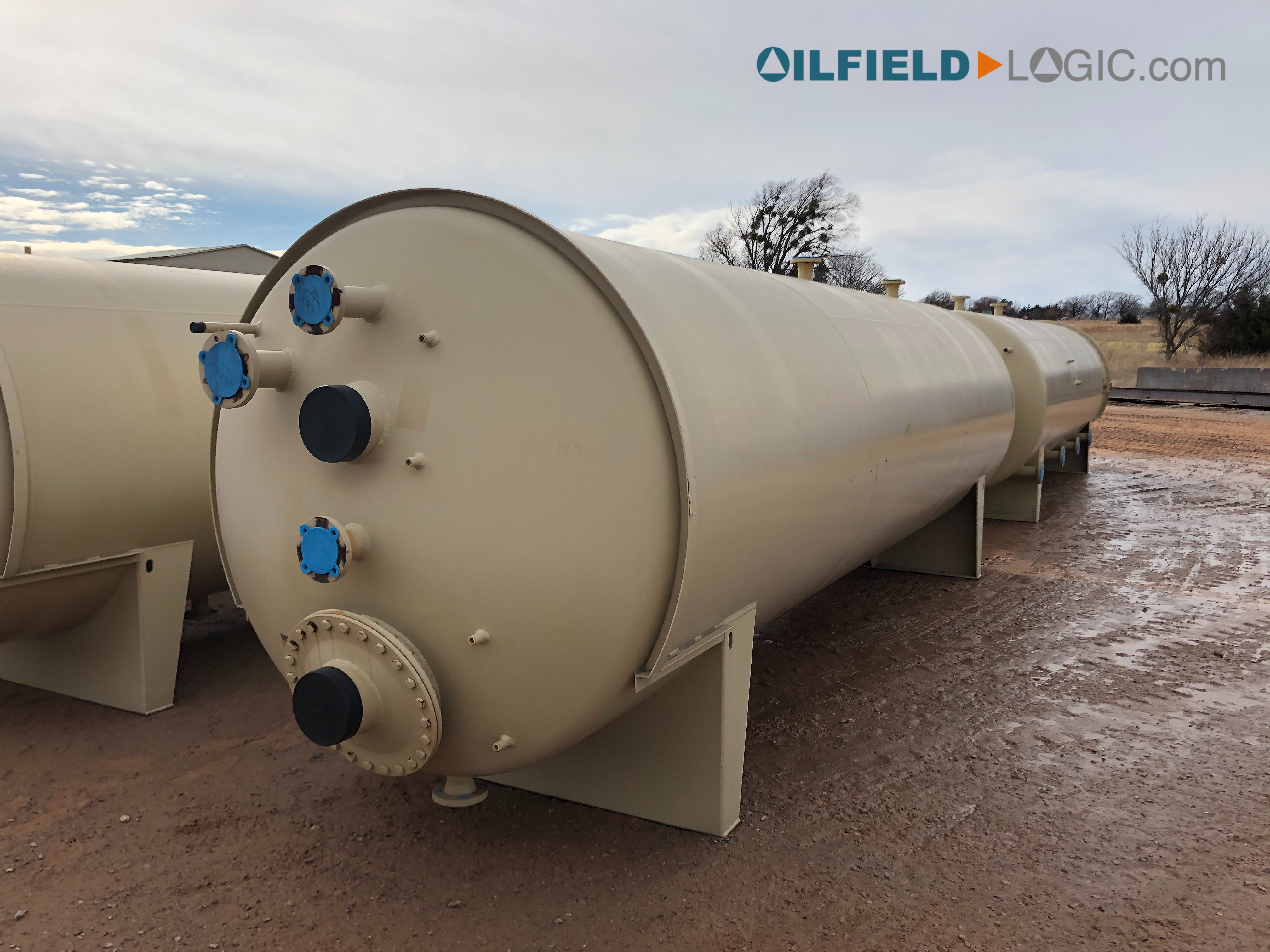

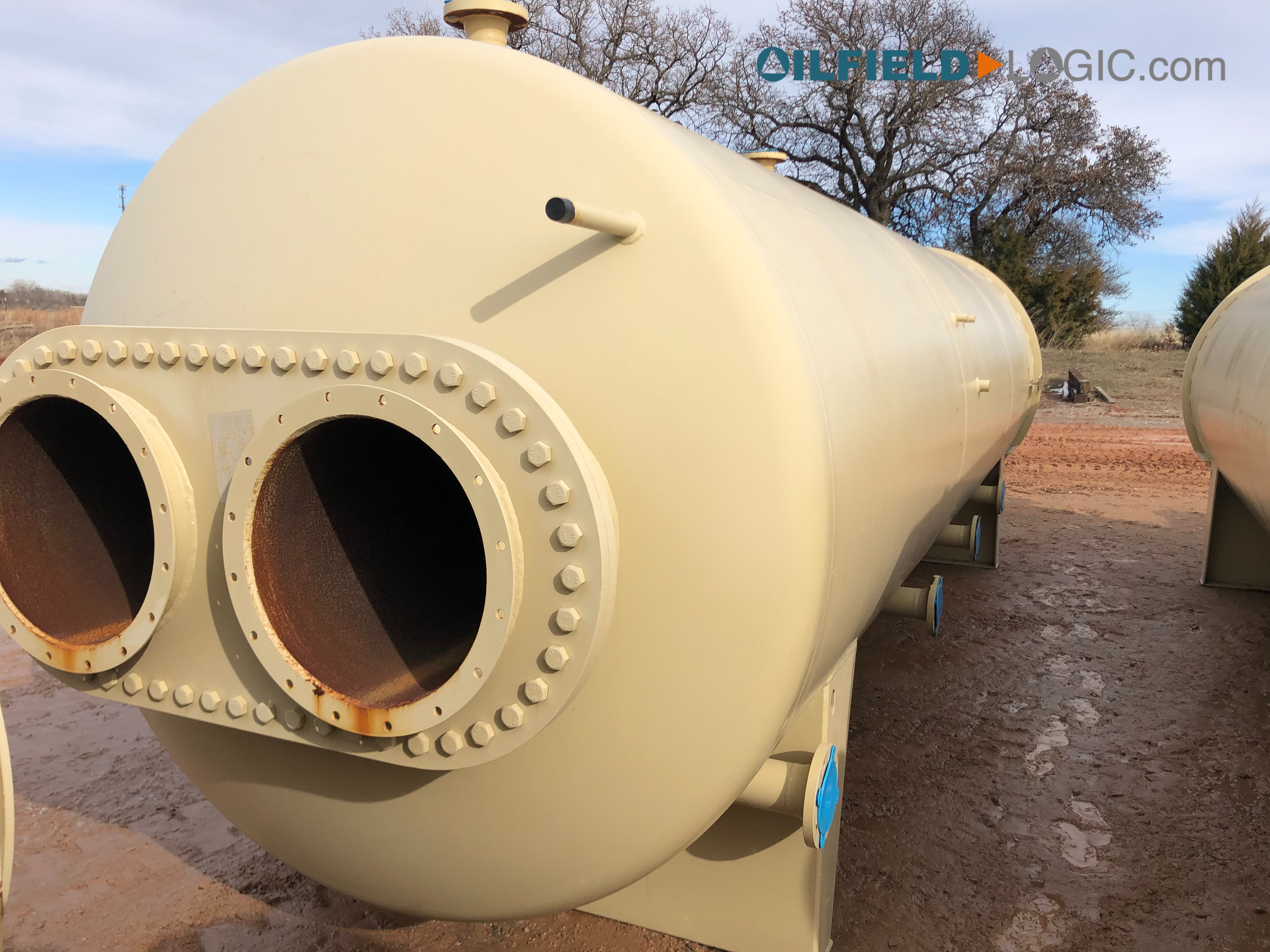

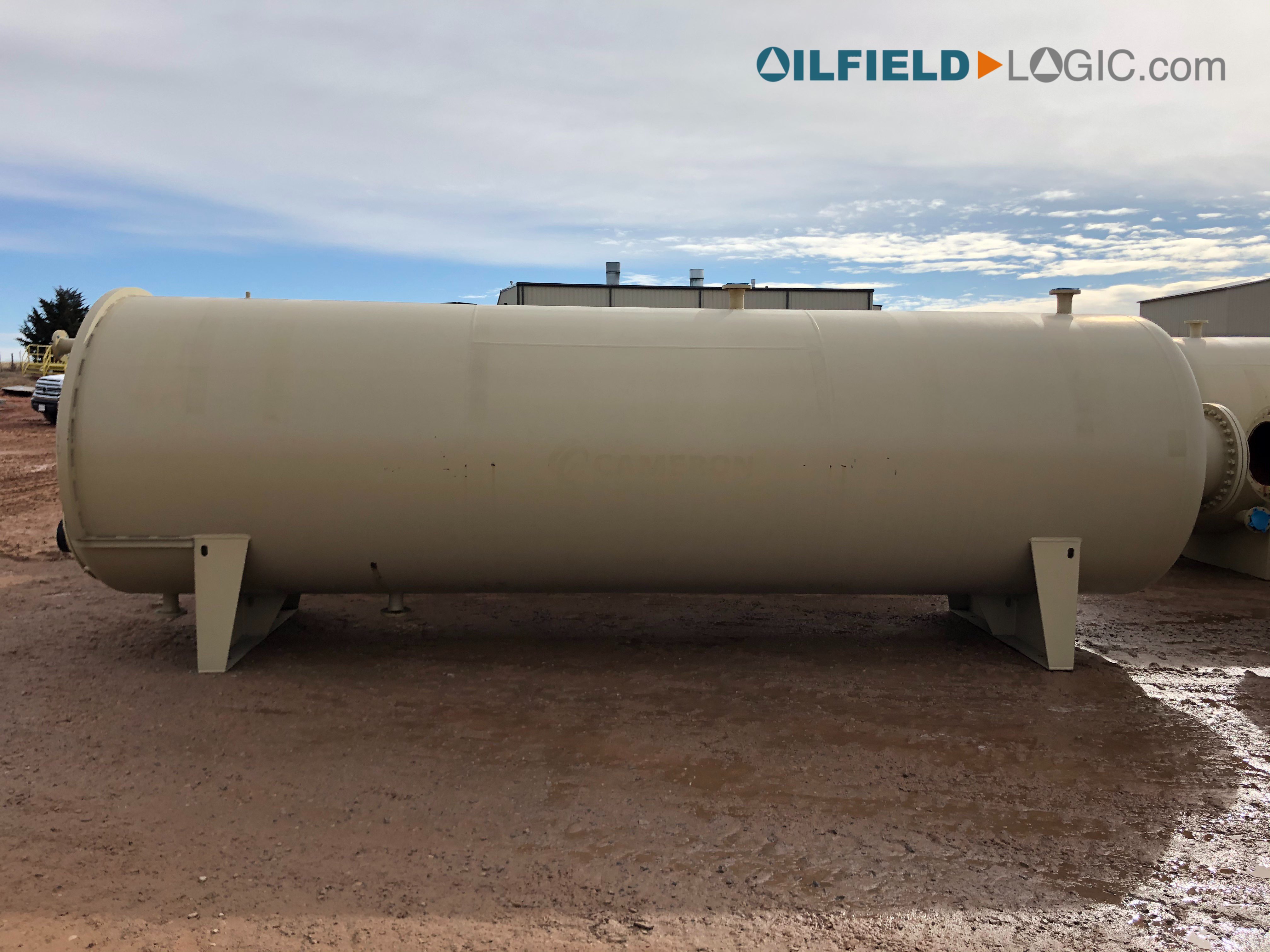

Horizontal 6x20 75# treater with internal Corchem 204 epoxy coating. Internals include center baffle, pre-heat line, and oil chamber in the control head. Firetube is 18" diameter. Nozzles include 3" flanged inlets and outlets, and qty 4 4" flanged connections for cathodic protection.
Specifications

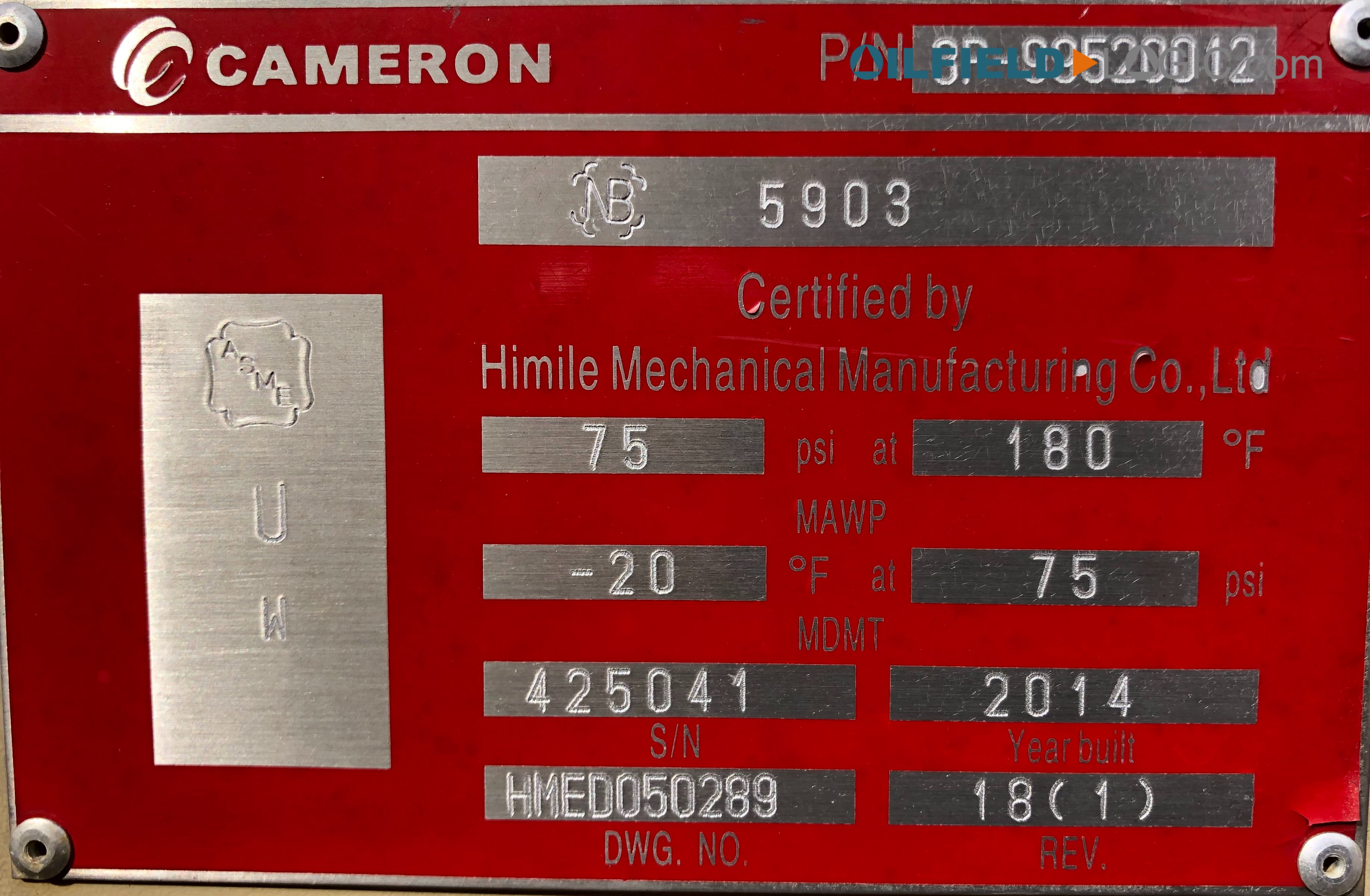

Manufacturer | Cameron |
Model | 75# MAWP |
Year | 2014 |
Condition | New |
Serial Number | 5903 |
Stock Number | 1079 |
Orientation | Horizontal |
Pressure Rating (psi) | 75 |
Vessel Outside Diameter (in.) | 72 |
Vessel s/s Length (in.) | 240 |

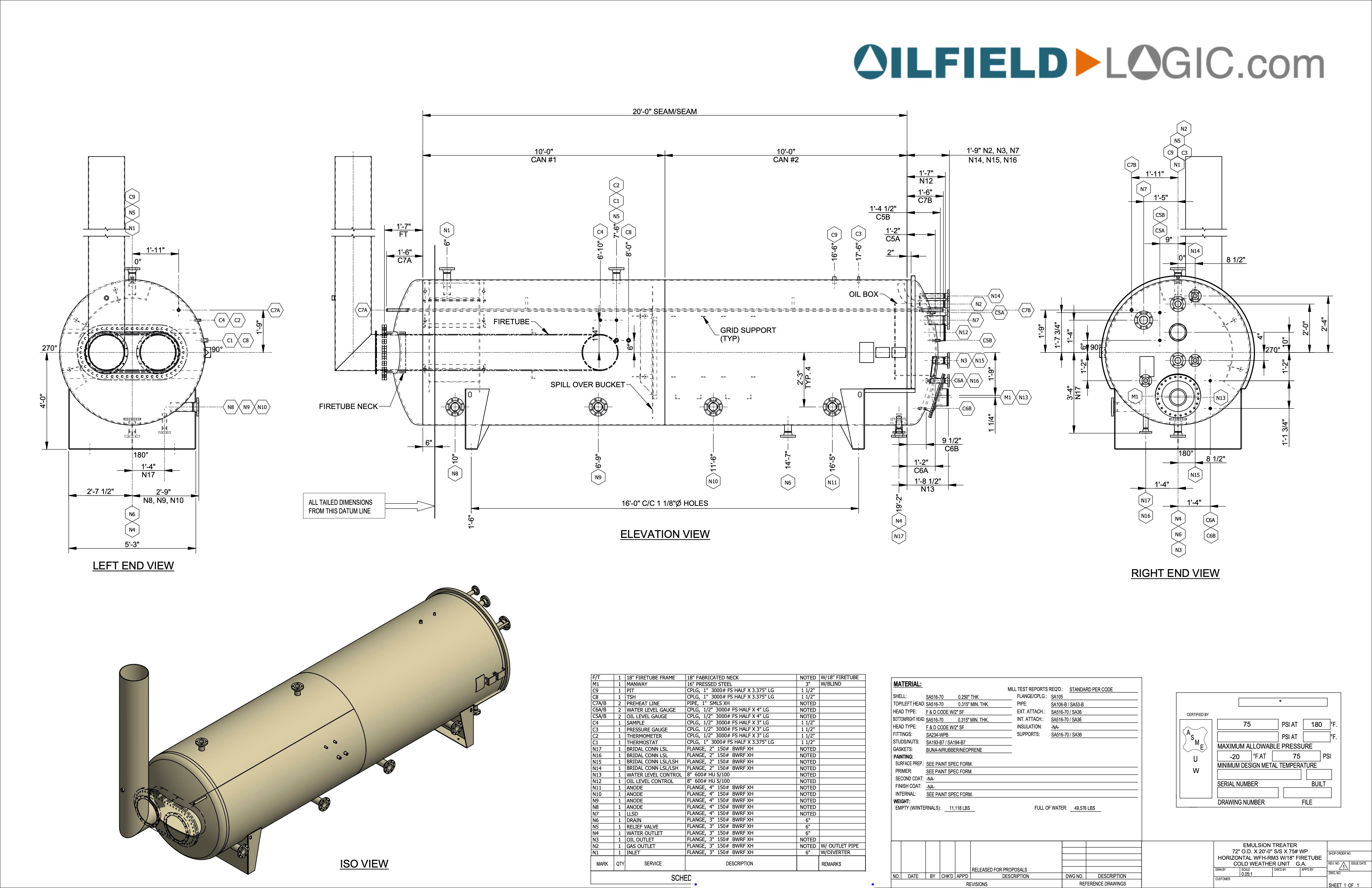

Overall dimensions | 72"W x 276"L x 89"T |
Accessories & ship loose | Firetube stack |
Nozzles | 3” ANSI 150# RFWN – Inlet 3” ANSI 150# RFWN – Gas Outlet 3” ANSI 150# RFWN – Oil Outlet 3” ANSI 150# RFWN – Water Outlet 3” ANSI 150# RFWN – Relief 3” ANSI 150# RFWN – Drain 4” ANSI 150# RFWN – Low Level Safety 4” ANSI 150# RFWN – Anodes - 4 8” Hammer Unit – Level Controls – 2 2” ANSI 150# RFWN – Bridle Connections - 4 1” 3000# NPT Cplgs 1⁄2” 3000# NPT Cplgs - 7 16” Pressed Steel Manway |
Wear and Tear | Normal, with no visible wear and tear |
Certification | ASME "U" |
Notes | None |
Origin Code | OC01 |
