Separator, Horizontal, 4P, 78"x15', 500#
Separator, Horizontal, 4P, 78"x15', 500#
$75,000 (USD)
Location:Pennsylvania
orCall 1 (844) 564-4237
Description

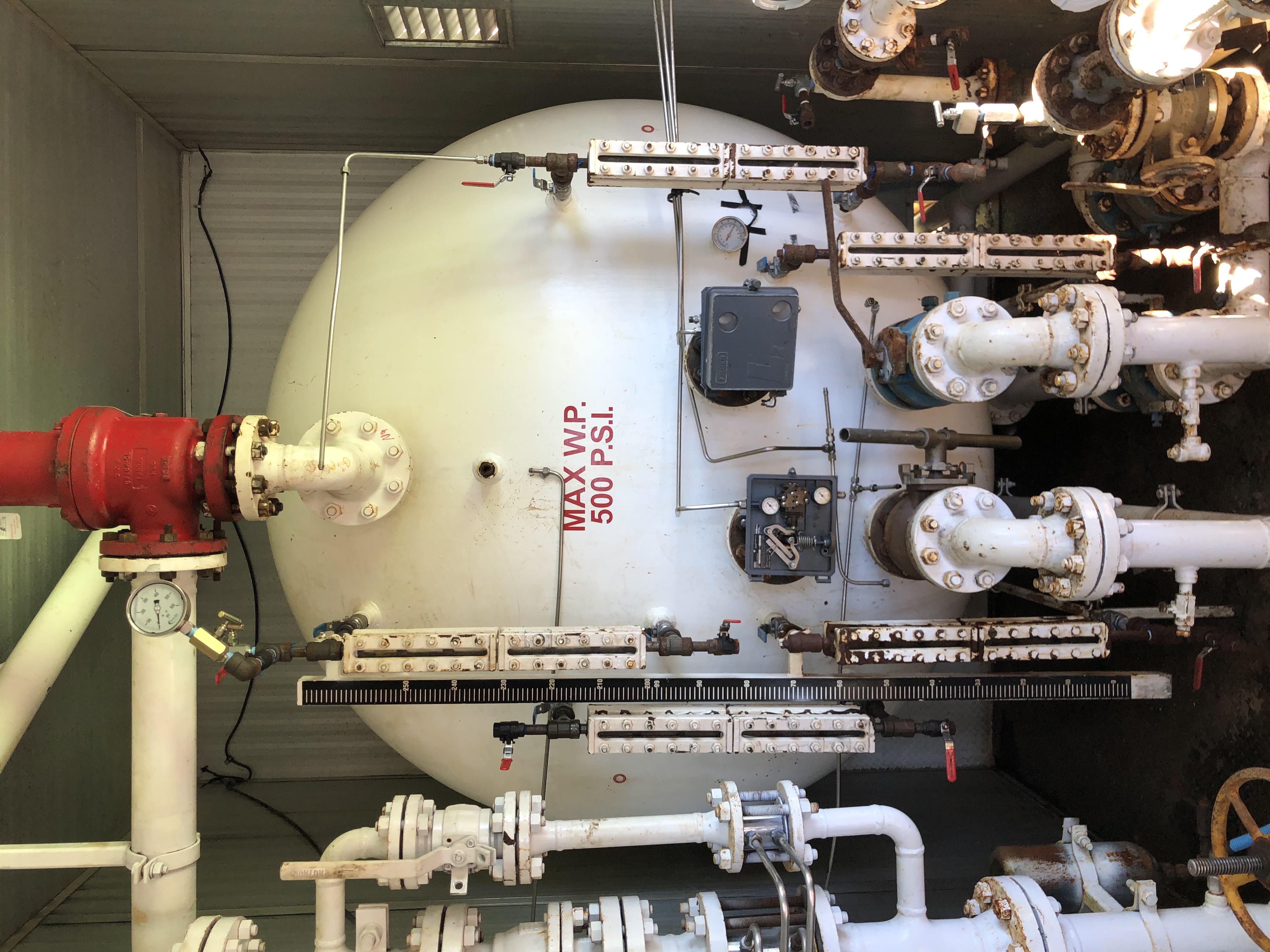

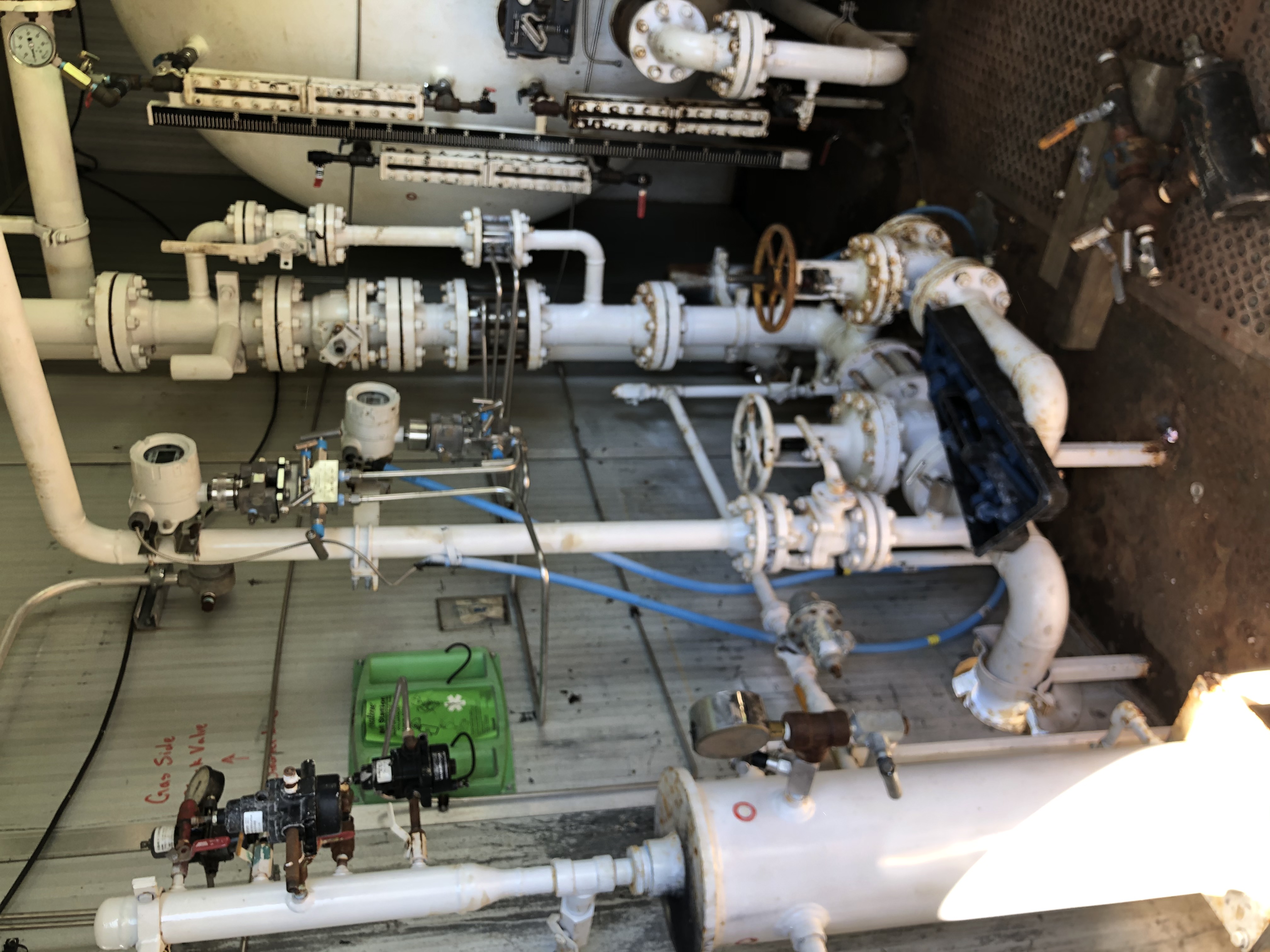

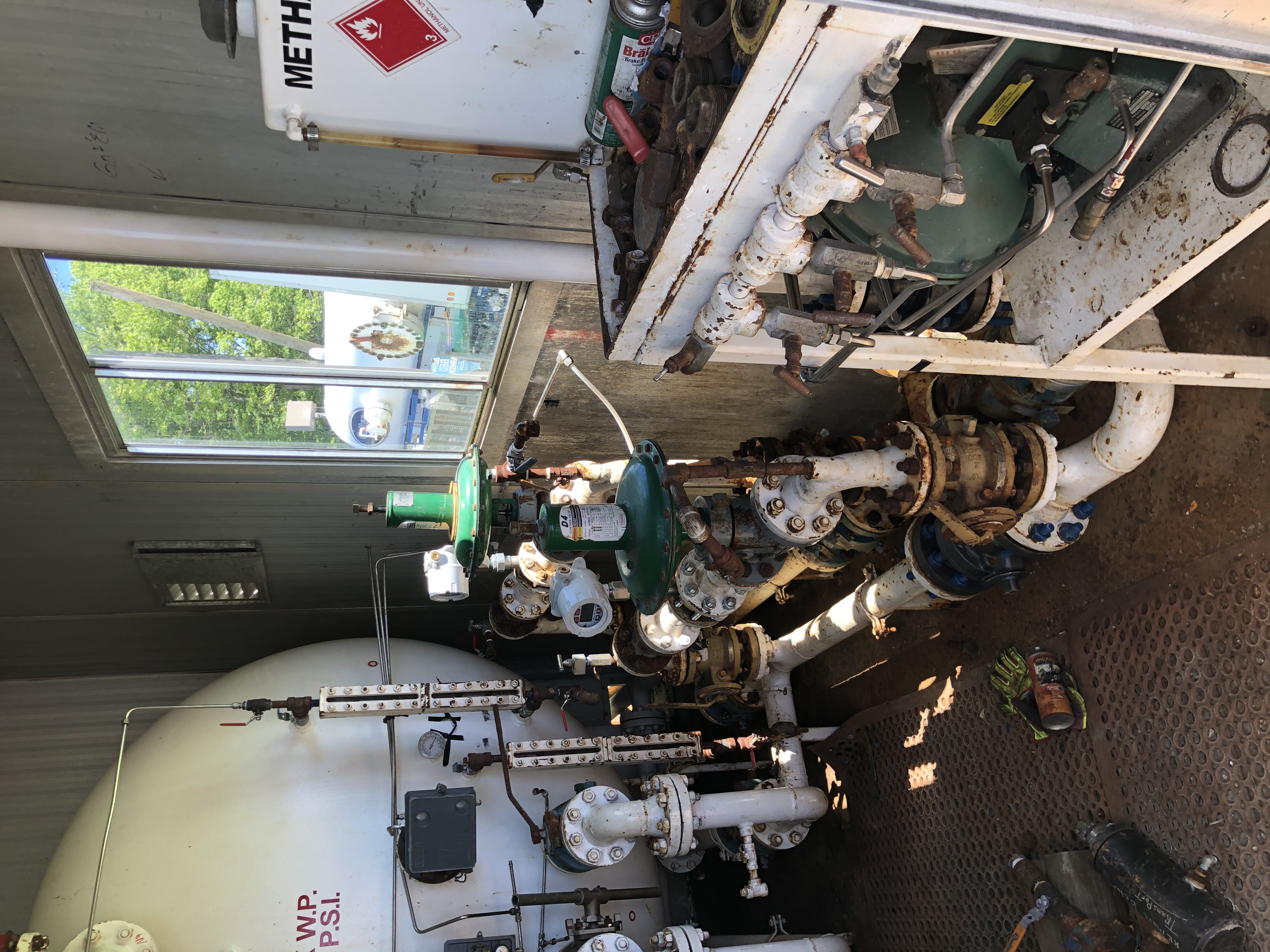

Horizontal 4-phase 78"x15' 500# separator. Separator is trailer mounted with heated enclosure over control head of separator. Inlet connection is a 4" Fig 300 HU, water dump is 3" Fig 206 HU, oil dump is 3" Fig 206 HU, and sand dump is 3" Fig 206 HU. Separator is a weir bucket design.
Specifications
| Manufacturer | Elite Energy Products |
| Model | 78"x15', 500# |
| Year | 2003 |
| Condition | Used |
| Serial Number | 1087 |
| Stock Number | 1087 |
| Separator Design | 4-Phase |
| Subcategory 2 | ASME |
| Vessel Orientation | Horizontal |
| Vessel Pressure Rating (psi) | 500 |
| Vessel Outside Diameter (in.) | 78 |
| Vessel s/s Length (in.) | 180 |
| Inlet & Outlet Diameter (in.) | 4 |
| Inlet & Outlet Connection Type | Hammer Union |
| Work Recently Performed | None |
| Wear and Tear | Normal |
| Test | None |

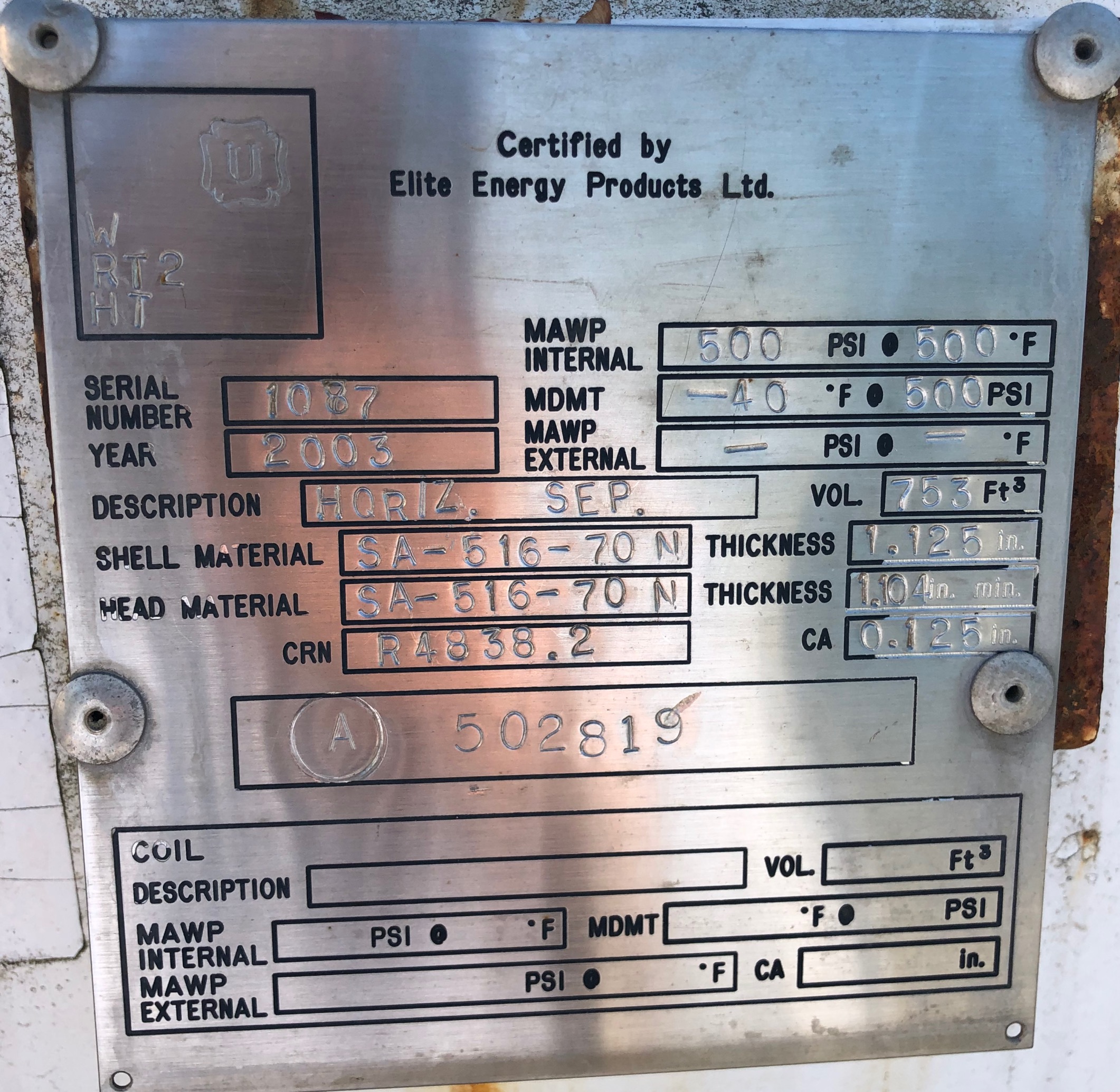

| Certification | ASME "U" with CRN |
| Notes | None |
| Origin code | OC02 |
