Separator, Vertical, 2P, 72"x18', 250#

Sold

Separator, Vertical, 2P, 72"x18', 250#

Location:Colorado

Description

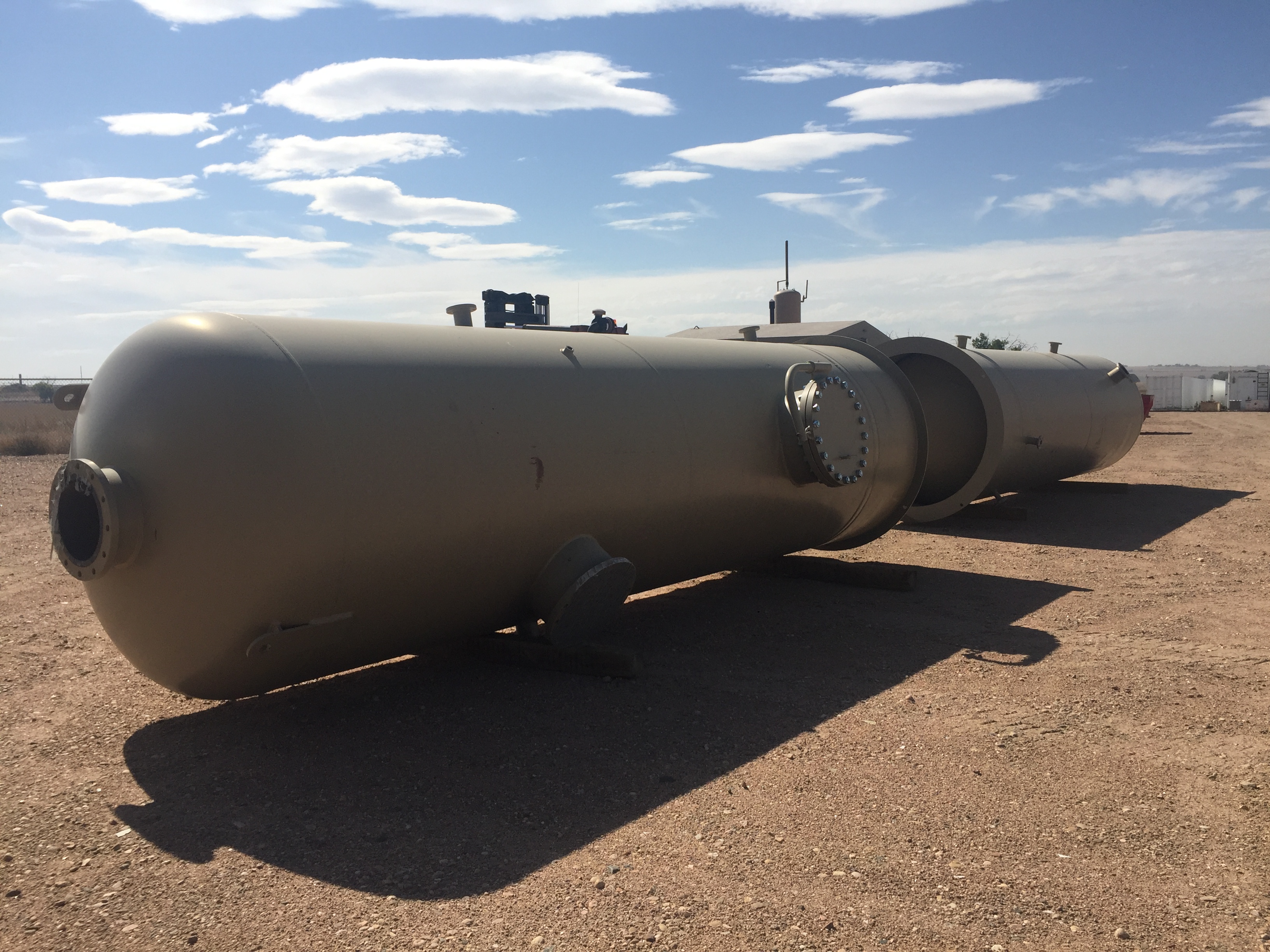

Vertical 2-phase 72"x18' 250# separator with 18" RFWN flanged inlet and 14" RFWM flanged outlet. 2" RFWN flanged siphon drain.  24" manway with davit arm assembly. Mist pad design is 8" thick and 72" diameter.  Drawings available. Call (844) 564-4237 or email sales@tri-logic.net for pricing.

Specifications

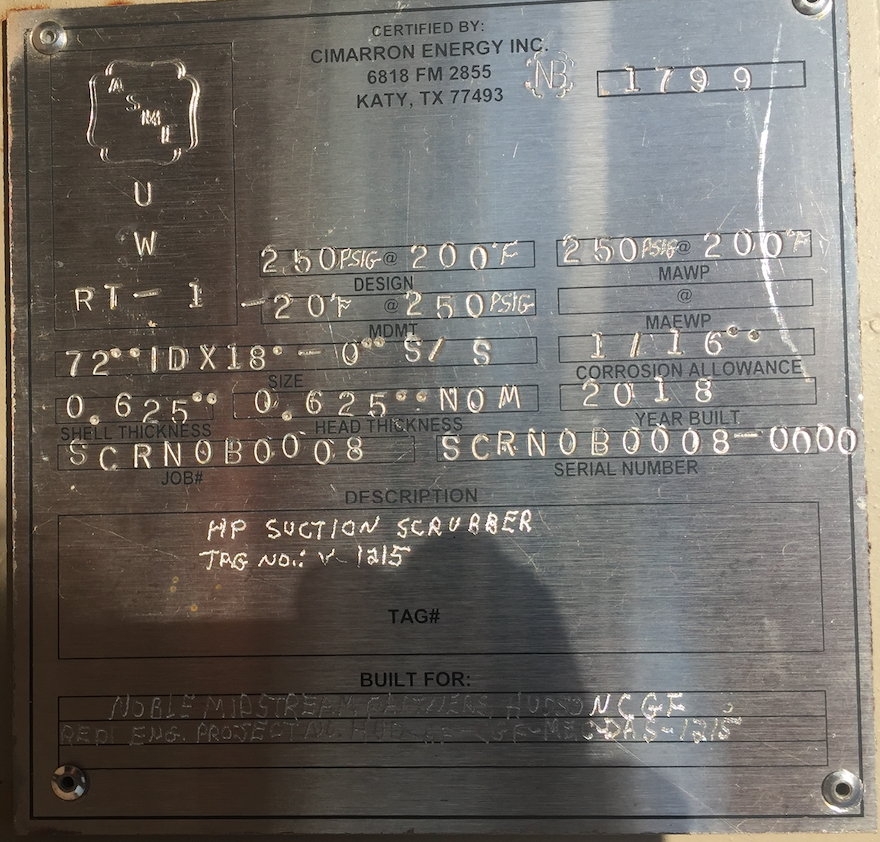

ManufacturerCimarron Energy
Model72"x18', 250#
Year2018
ConditionNew
Serial Number1799
Stock Number1799
Separator Design2-Phase
Vessel OrientationVertical
Vessel Pressure Rating (psi)250
Vessel Outside Diameter (in.)72
Vessel s/s Length (in.)216
Inlet & Outlet Diameter (in.)18
Inlet & Outlet Connection TypeFlange
AccessoriesNone
CertificationASME "U"
Shipping dimensions23'-3"L x 7'-1"W x 7'-8"T
Weight14,000 lbs
Work Recently PerformedNone
Wear and TearUnit is in great condition.
TestNone
NotesNone
Origin codeOC03
