Separator, Vertical, 2P, 78"x20', 500#
Sold
Separator, Vertical, 2P, 78"x20', 500#
Location:Colorado
Description

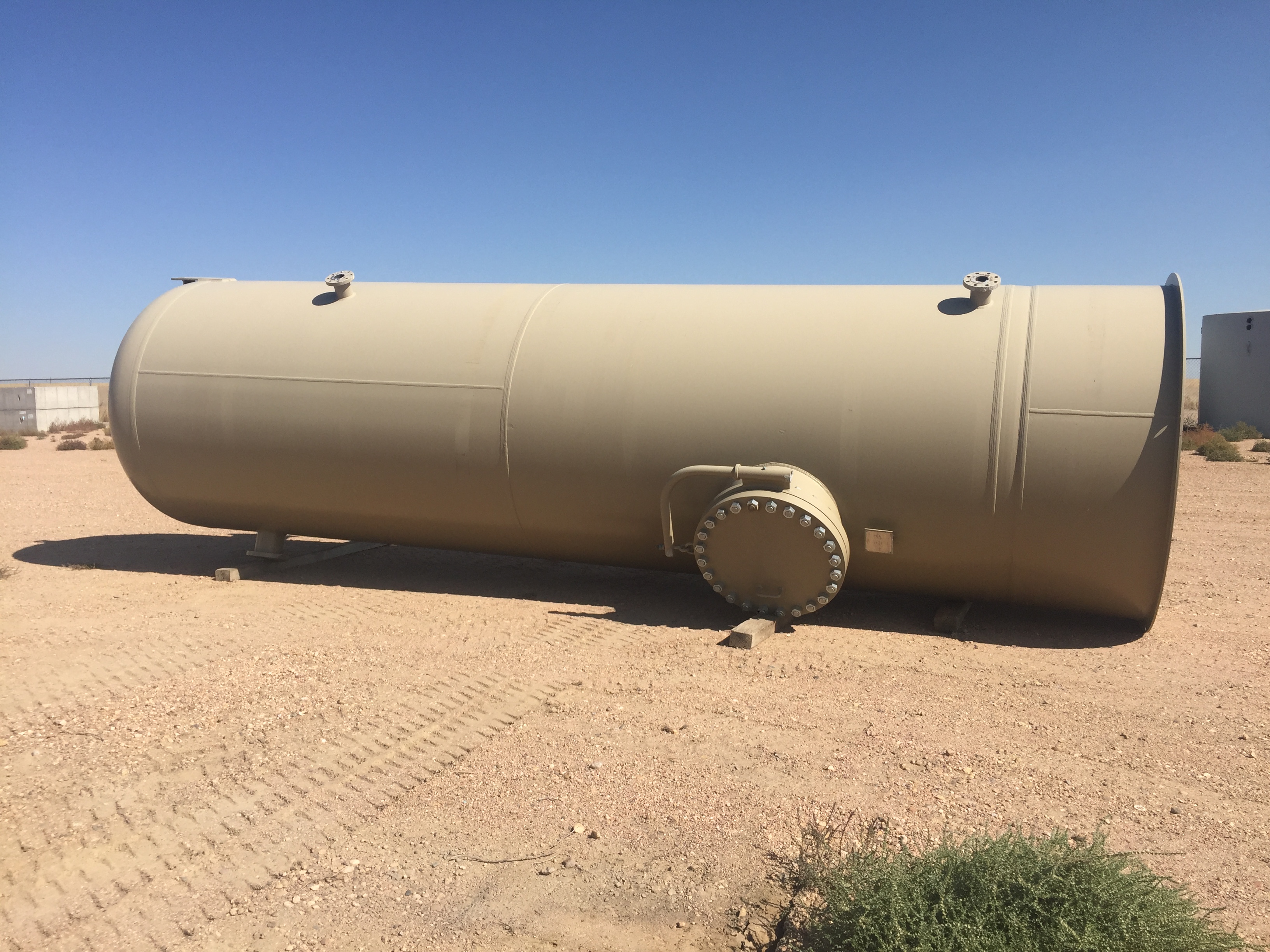

Vertical 2-phase 78"x20' 500# separator with 14" RFWN flanged inlet and outlet. 2" RFWN flanged siphon drain. 24" manway with davit arm assembly. Mist pad design is 8" thick and 78" diameter. Drawings available. Call (844) 564-4237 or email sales@tri-logic.net for pricing.
Specifications
| Manufacturer | Cimarron Energy |
| Model | 78"x20', 500# |
| Year | 2018 |
| Condition | New |
| Serial Number | 1800 |
| Stock Number | V-1915 |
| Separator Design | 2-Phase |
| Vessel Orientation | Vertical |
| Vessel Pressure Rating (psi) | 500 |
| Vessel Outside Diameter (in.) | 78 |
| Vessel s/s Length (in.) | 240 |
| Inlet & Outlet Diameter (in.) | 14 |
| Inlet & Outlet Connection Type | Flange |
| Accessories | None |
| Certification | ASME "U" |
| Shipping dimensions | 25'-7"L x 8'-10"W x 7"-11"T |
| Weight | 31,500 lbs |
| Work Recently Performed | None |
| Wear and tear | Unit is in great condition. |
| Test | None |
| Origin Code | OC03 |
