Separator, Vertical, 2P, 72"x18', 250#
Sold
Separator, Vertical, 2P, 72"x18', 250#
Location:Colorado
Description
Vertical 2-phase 72"x18' 250# separator with 18" RFWN flanged inlet and 14" RFWM flanged outlet. 2" RFWN flanged siphon drain. 24" manway with davit arm assembly. Mist pad design is 8" thick and 72" diameter. Drawings available. Call (844) 564-4237 or email sales@tri-logic.net for pricing.
Specifications

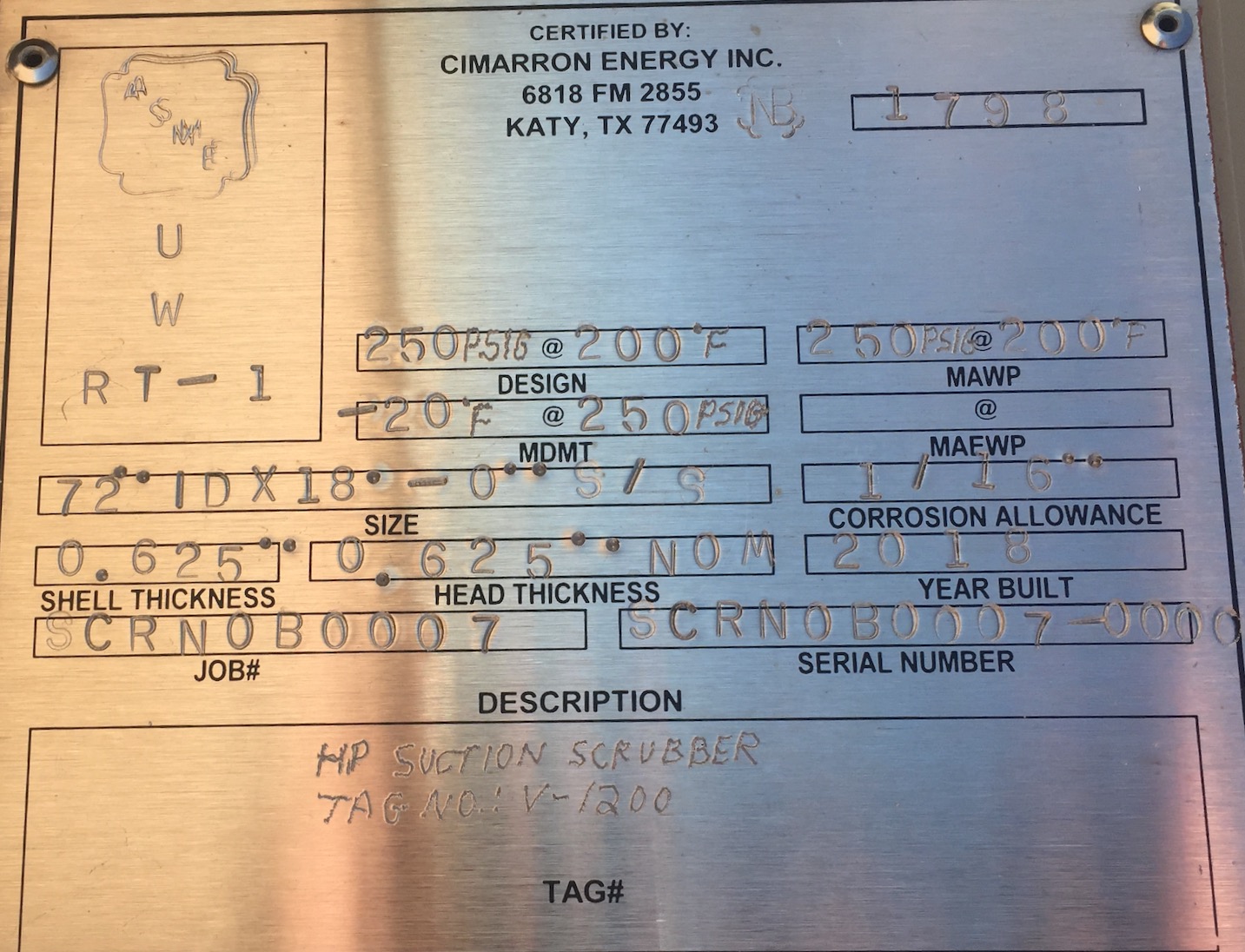

Manufacturer | Cimarron Energy |
Model | 72"x18', 250# |
Year | 2018 |
Condition | New |
Serial Number | 1798 |
Stock Number | V-1200 |
Separator Design | 2-Phase |
Vessel Orientation | Vertical |
Vessel Pressure Rating (psi) | 250 |
Vessel Outside Diameter (in.) | 72 |
Vessel s/s Length (in.) | 216 |
Inlet & Outlet Diameter (in.) | 18 |
Inlet & Outlet Connection Type | Flange |
Accessories | None |
Certification | ASME "U" |
Shipping dimensions | 23'-3"L x 7'-1"W x 7'-8"T |
Weight | 14,000 lbs |
Work Recently Performed | None |
Wear and Tear | Unit is in great condition. |
Test | None |
Origin Code | OC03 |
