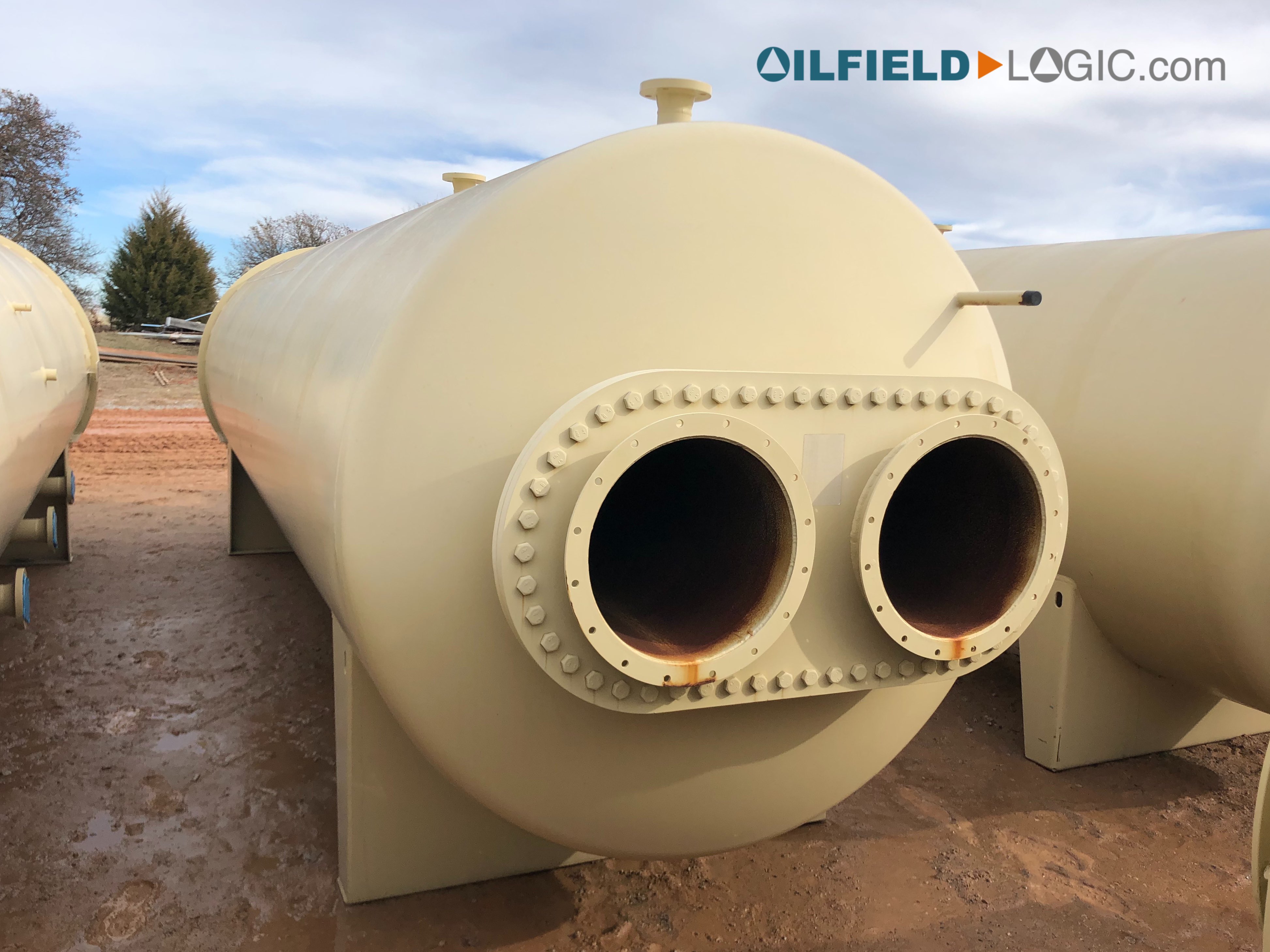

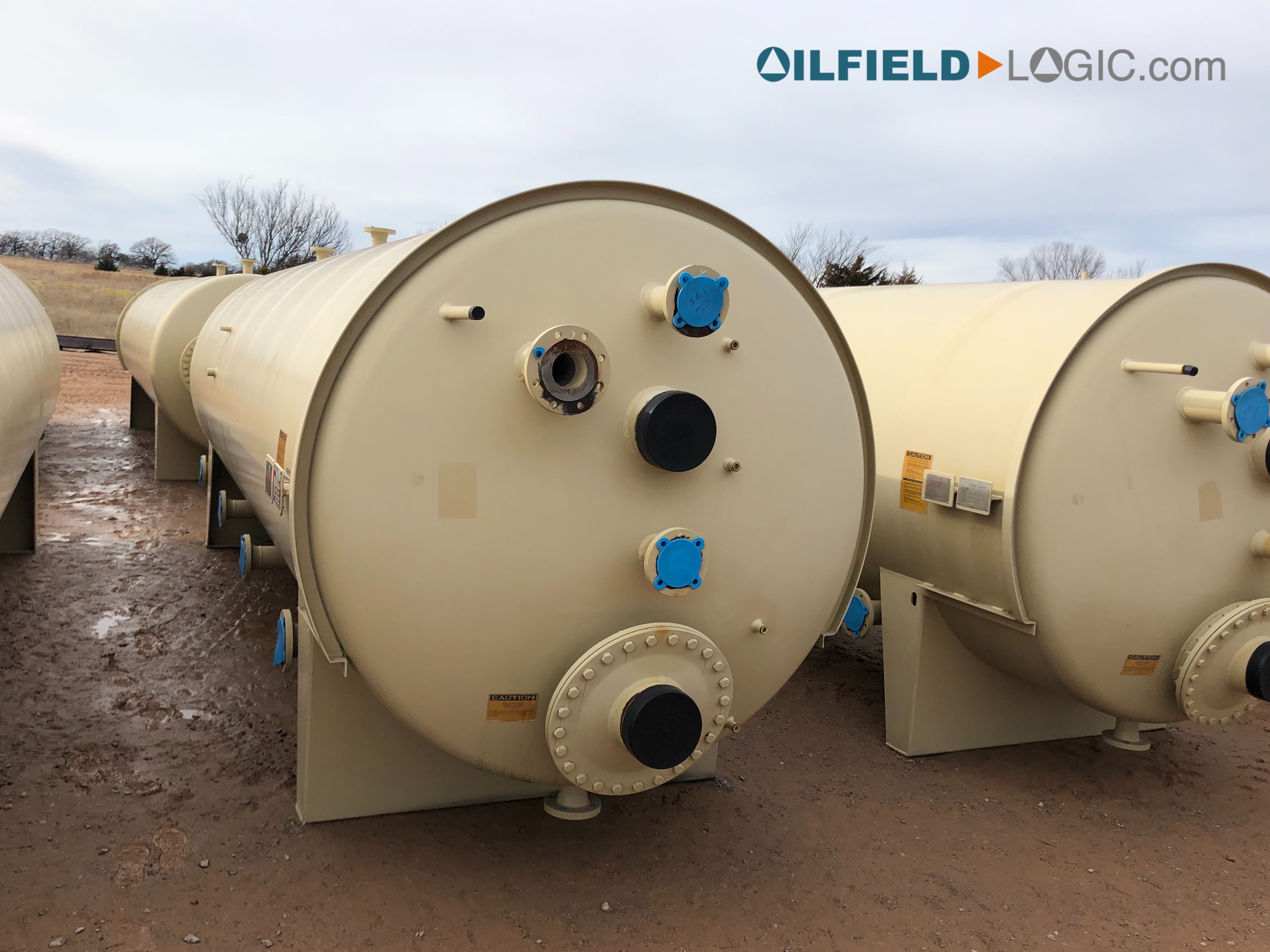

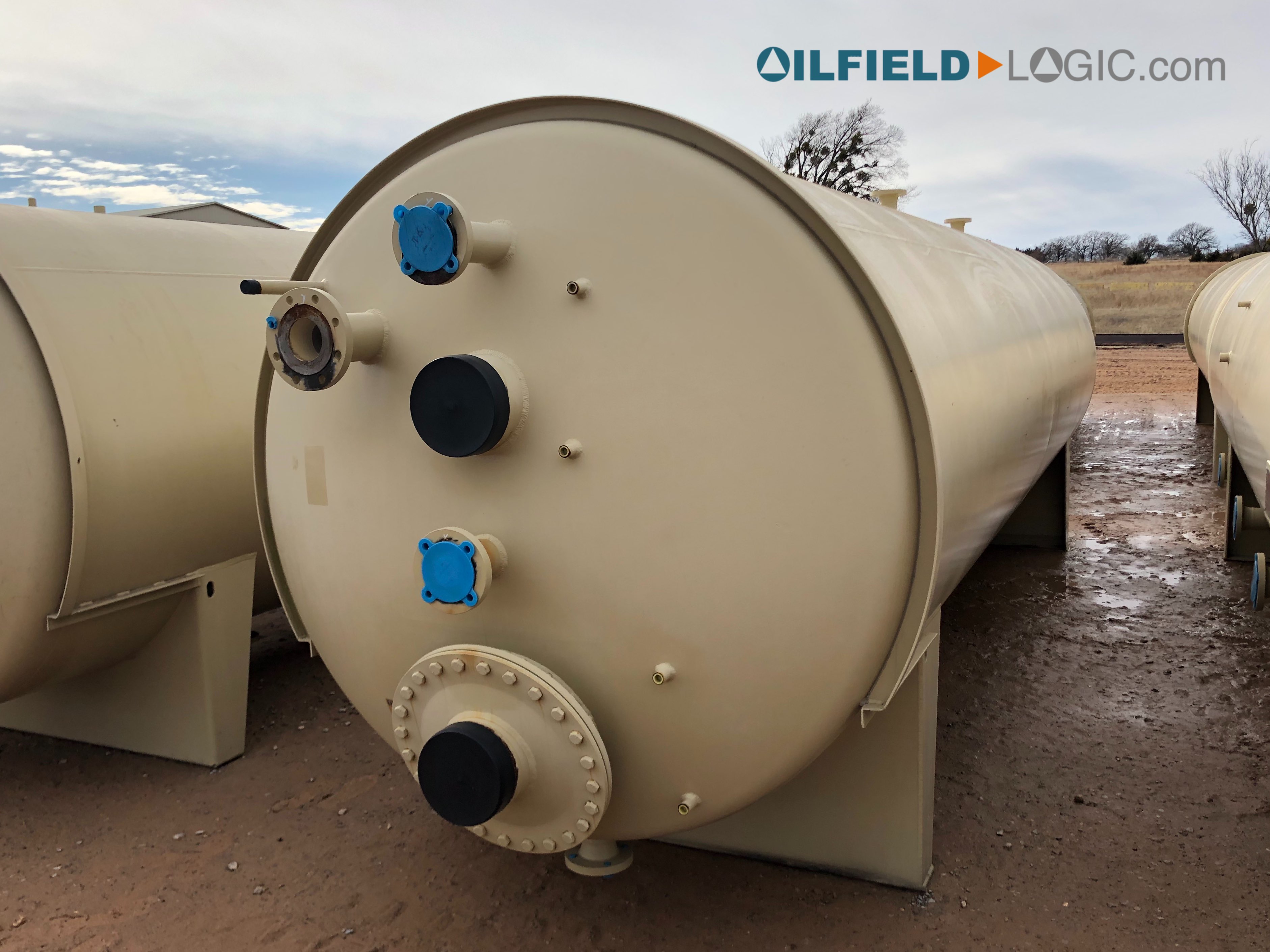

Heater Treater, Horizontal, 6'x20', 75#
Sold
Heater Treater, Horizontal, 6'x20', 75#
$17,000 (USD)
Location:Oklahoma
Description
Horizontal 6x20 75# treater with internal Corchem 204 epoxy coating. Internals include center baffle, pre-heat line, and oil chamber in the control head. Firetube is 18" diameter. Nozzles include 3" flanged inlets and outlets, and qty 4 4" flanged connections for cathodic protection.
Specifications
| Manufacturer | Cameron |
| Model | 75# MAWP |
| Year | 2014 |
| Condition | New |
| Serial Number | 6221 |
| Stock Number | 1079 |
| Vessel Orientation | Horizontal |
| Pressure Rating (psi) | 75 |
| Vessel Outside Diameter (in.) | 72 |
| Vessel s/s Length (in.) | 240 |
| Overall dimensions | 72"W x 276"L x 89"T |
| Accessories & Ship Loose | Firetube stack |
| Nozzles | 3” ANSI 150# RFWN – Inlet 3” ANSI 150# RFWN – Gas Outlet 3” ANSI 150# RFWN – Oil Outlet 3” ANSI 150# RFWN – Water Outlet 3” ANSI 150# RFWN – Relief 3” ANSI 150# RFWN – Drain 4” ANSI 150# RFWN – Low Level Safety 4” ANSI 150# RFWN – Anodes - 4 8” Hammer Unit – Level Controls – 2 2” ANSI 150# RFWN – Bridle Connections - 4 1” 3000# NPT Cplgs 1⁄2” 3000# NPT Cplgs - 7 16” Pressed Steel Manway |
| Wear and tear | Normal |

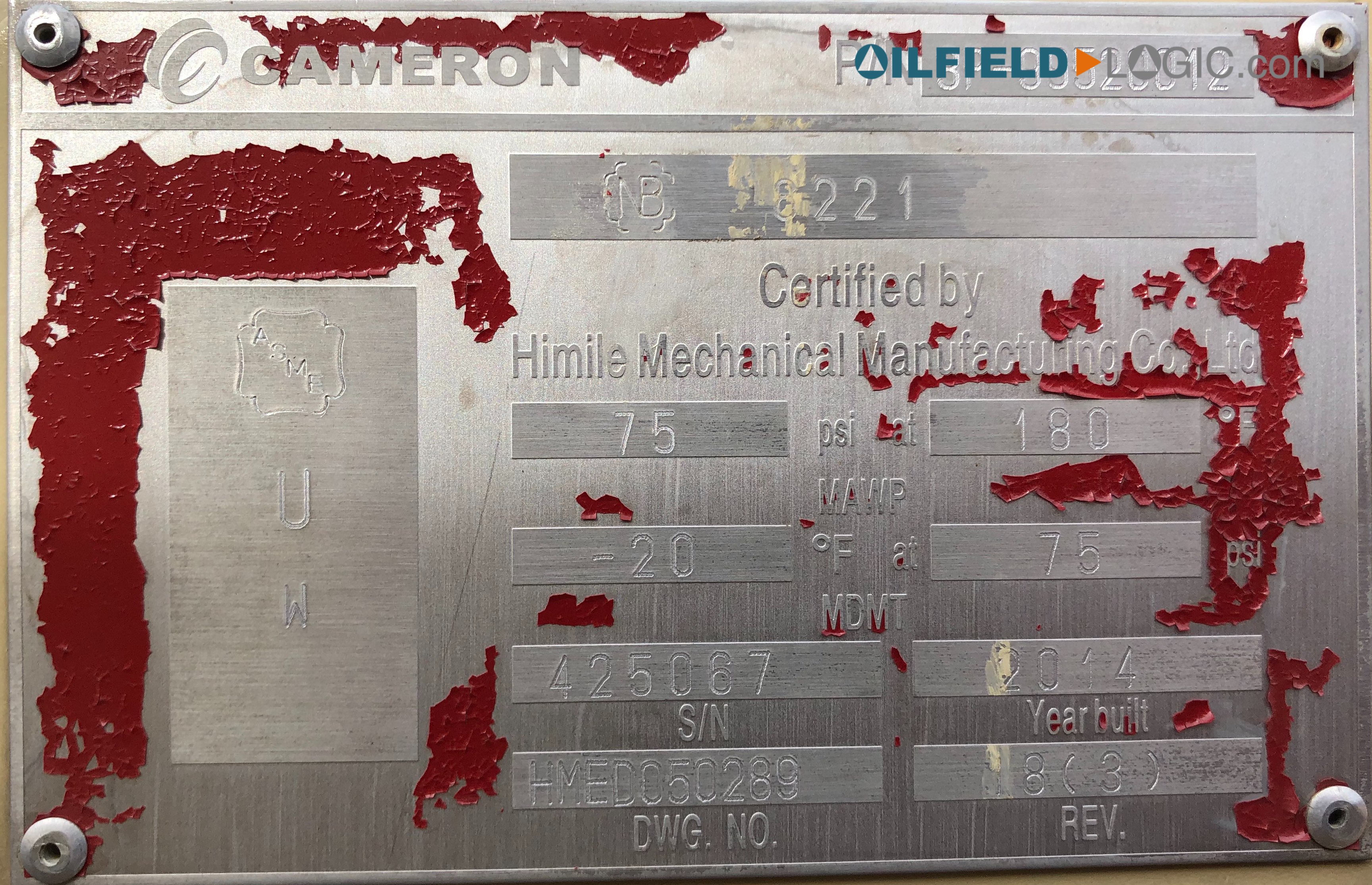

| Certification | ASME "U" |
| Notes | None |
| Origin Code | OC01 |
