Separator, Vertical, 2P, 30"x10', 250#
Separator, Vertical, 2P, 30"x10', 250#
$5,800 (USD)
Location:Texas
orCall 1 (844) 564-4237
Description

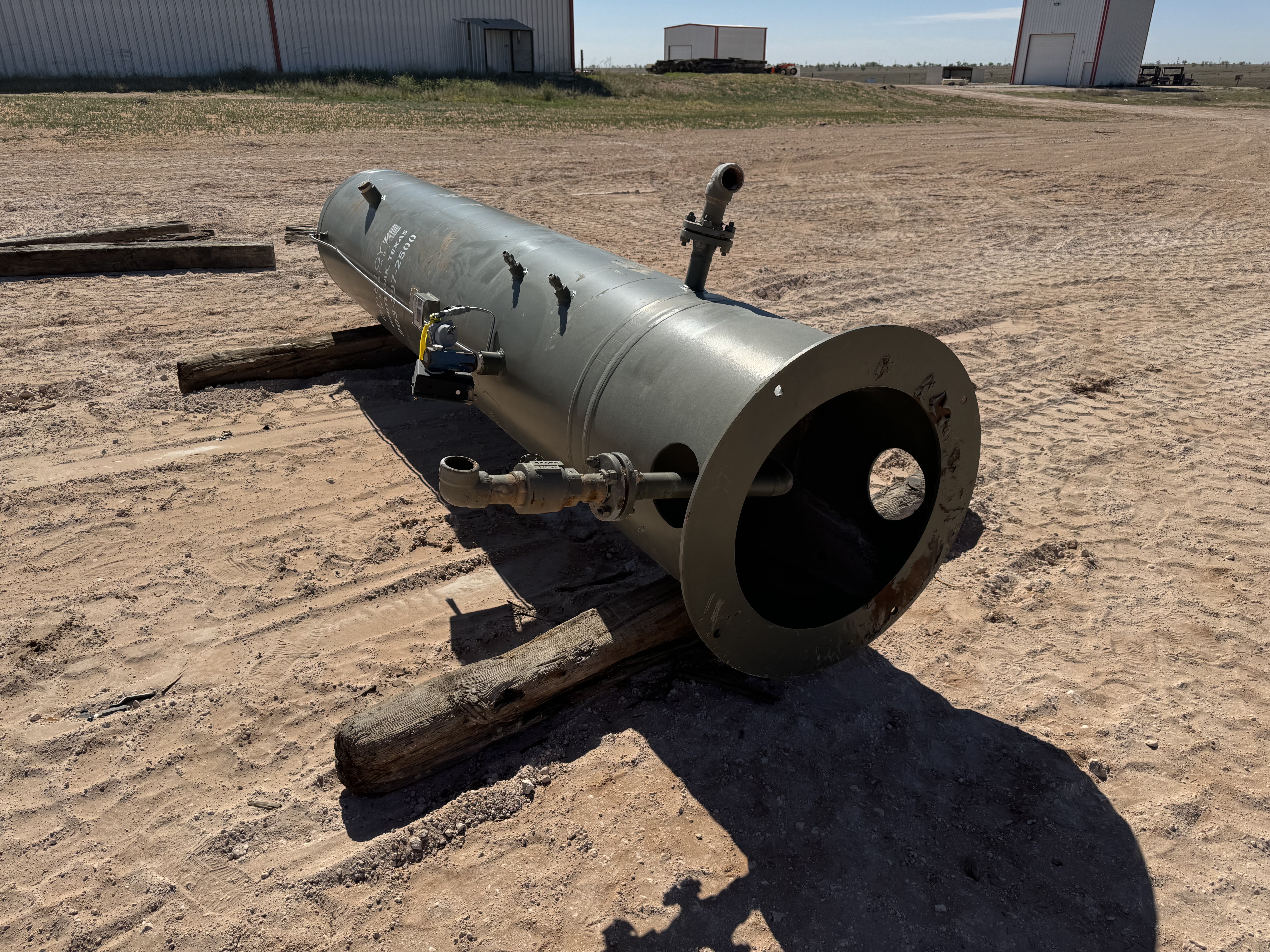

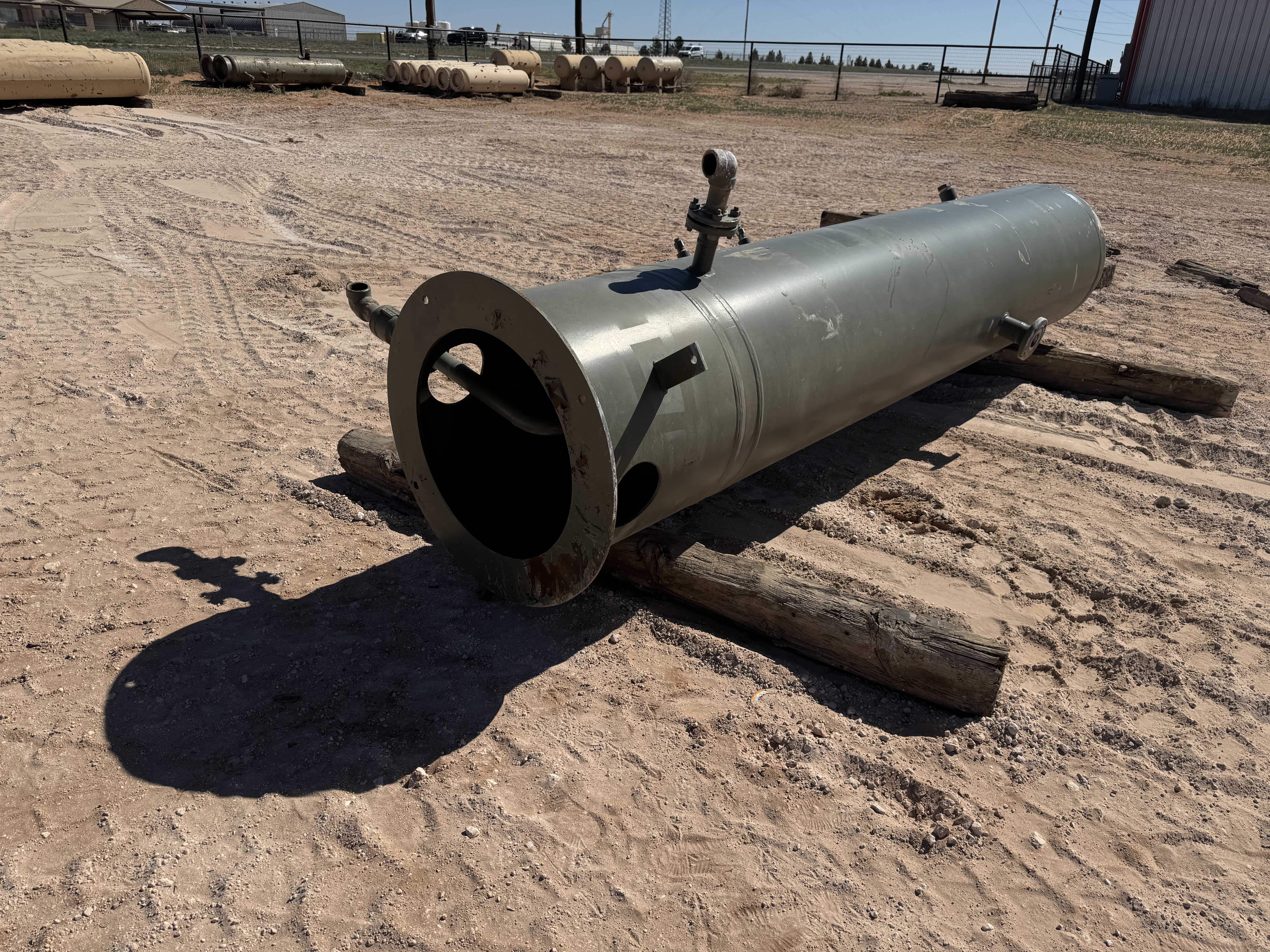

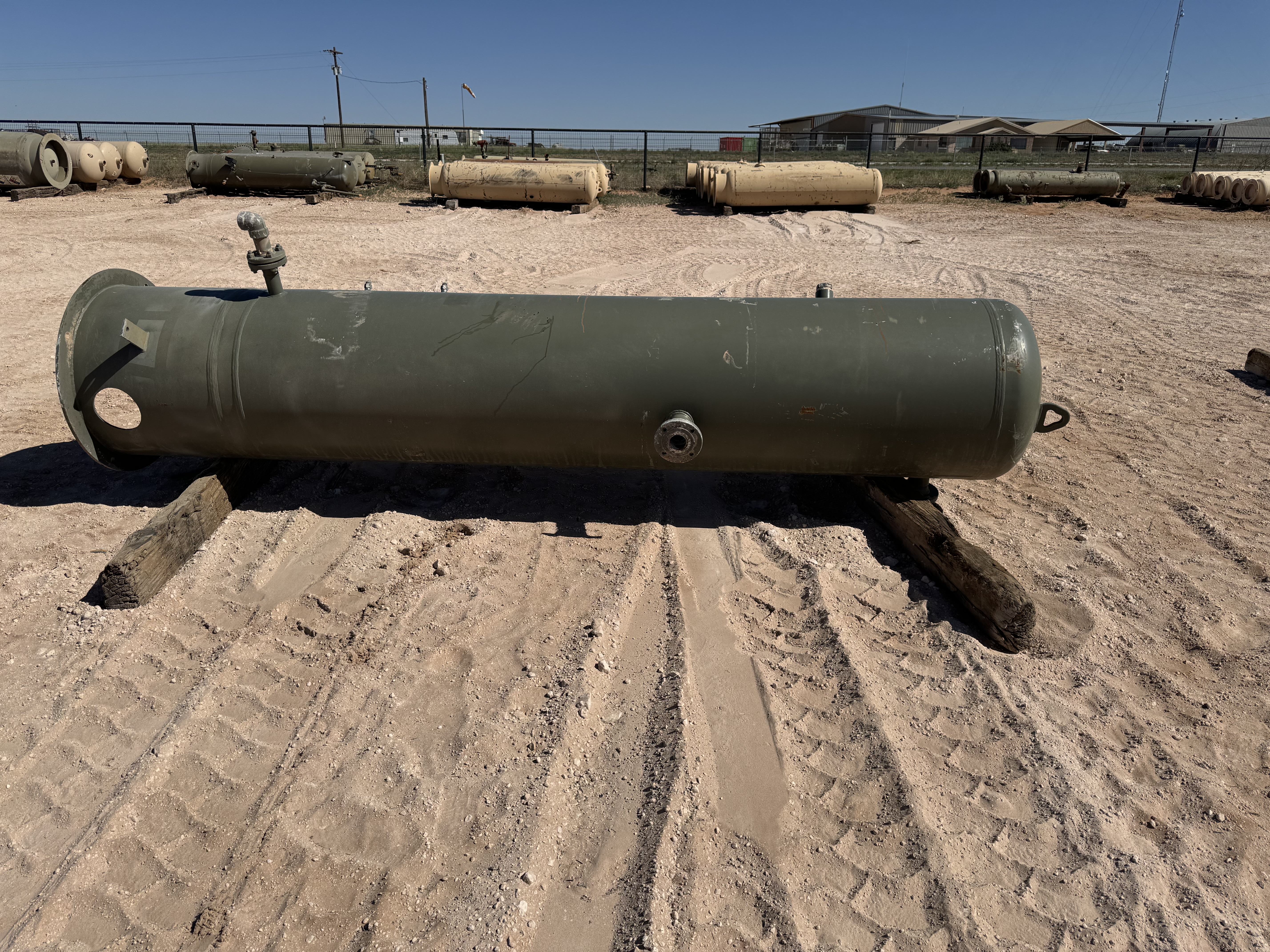

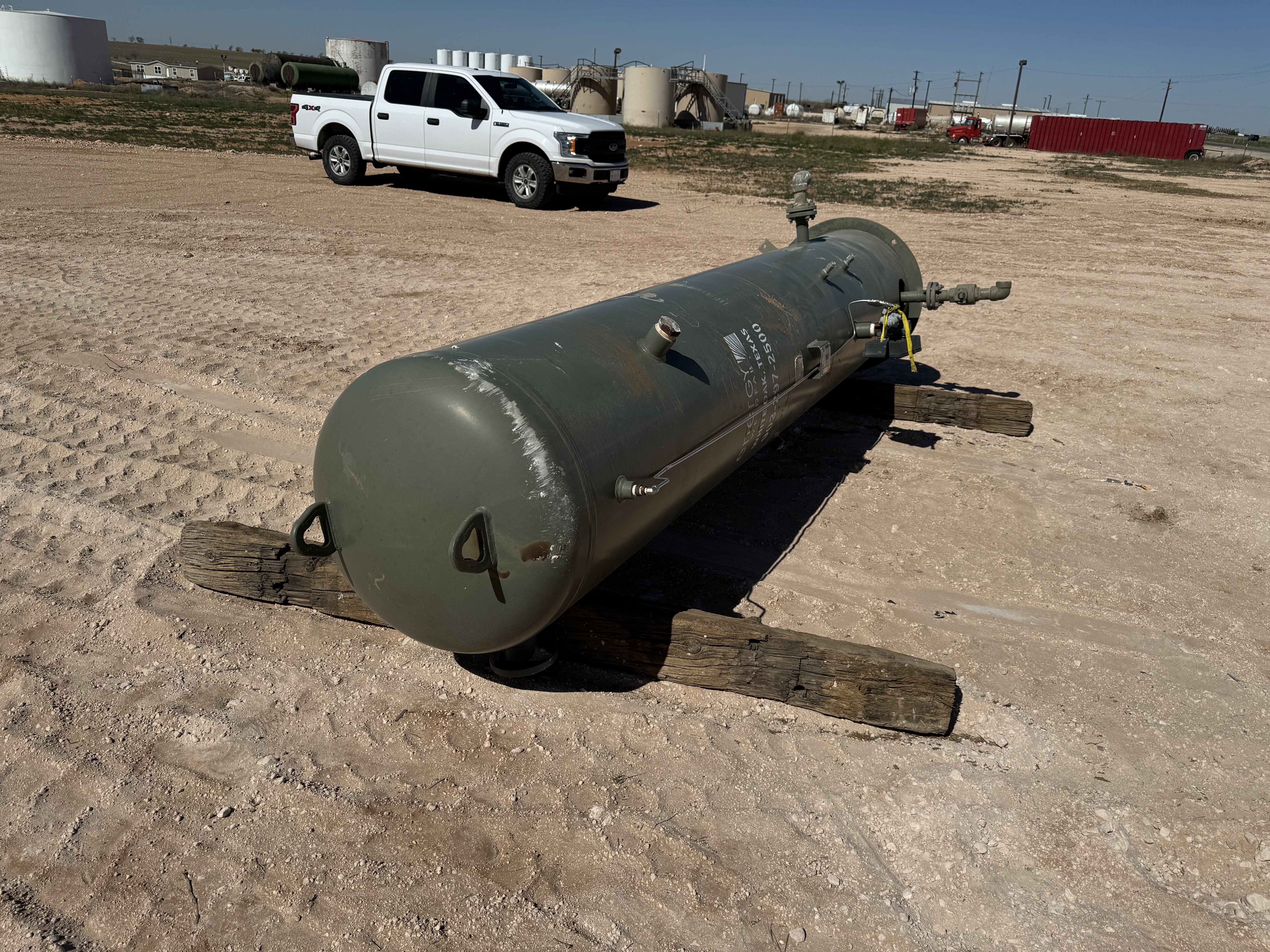

Vertical 2-phase 30"x10' 250# separator with 3" flanged inlet and gas outlet. LLC port is a 2" FNPT connection, and the connection for the PRV is a 2" threaded connection.
Specifications
| Manufacturer | Energy Weldfab |
| Model | 30"x10', 250# |
| Year | 2017 |
| Condition | Used |
| Serial Number | 8168 |
| Stock Number | 8168 |
| Separator Design | 2-Phase |
| Subcategory 2 | ASME |
| Vessel Orientation | Vertical |
| Vessel Pressure Rating (psi) | 250 |
| Vessel Outside Diameter (in.) | 30 |
| Vessel s/s Length (in.) | 120 |
| Inlet & Outlet Diameter (in.) | 3 |
| Inlet & Outlet Connection Type | Flanged |
| Accessories | None |
| Certification | ASME "U" |
| Work Recently Performed | None |
| Wear and Tear | Normal |
| Test | None |
| Notes | Accessories not included |
| Origin code | OC01 |
