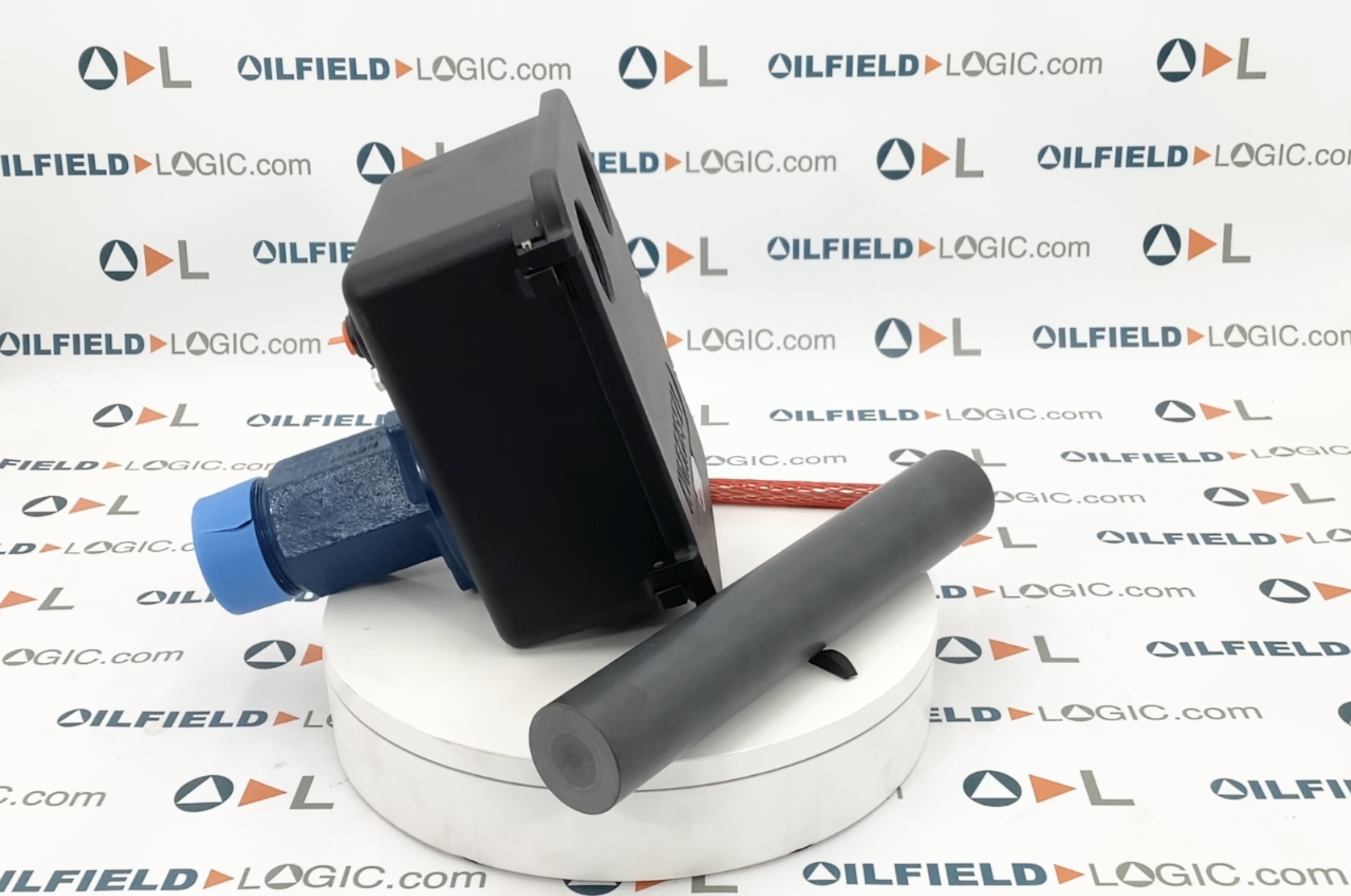

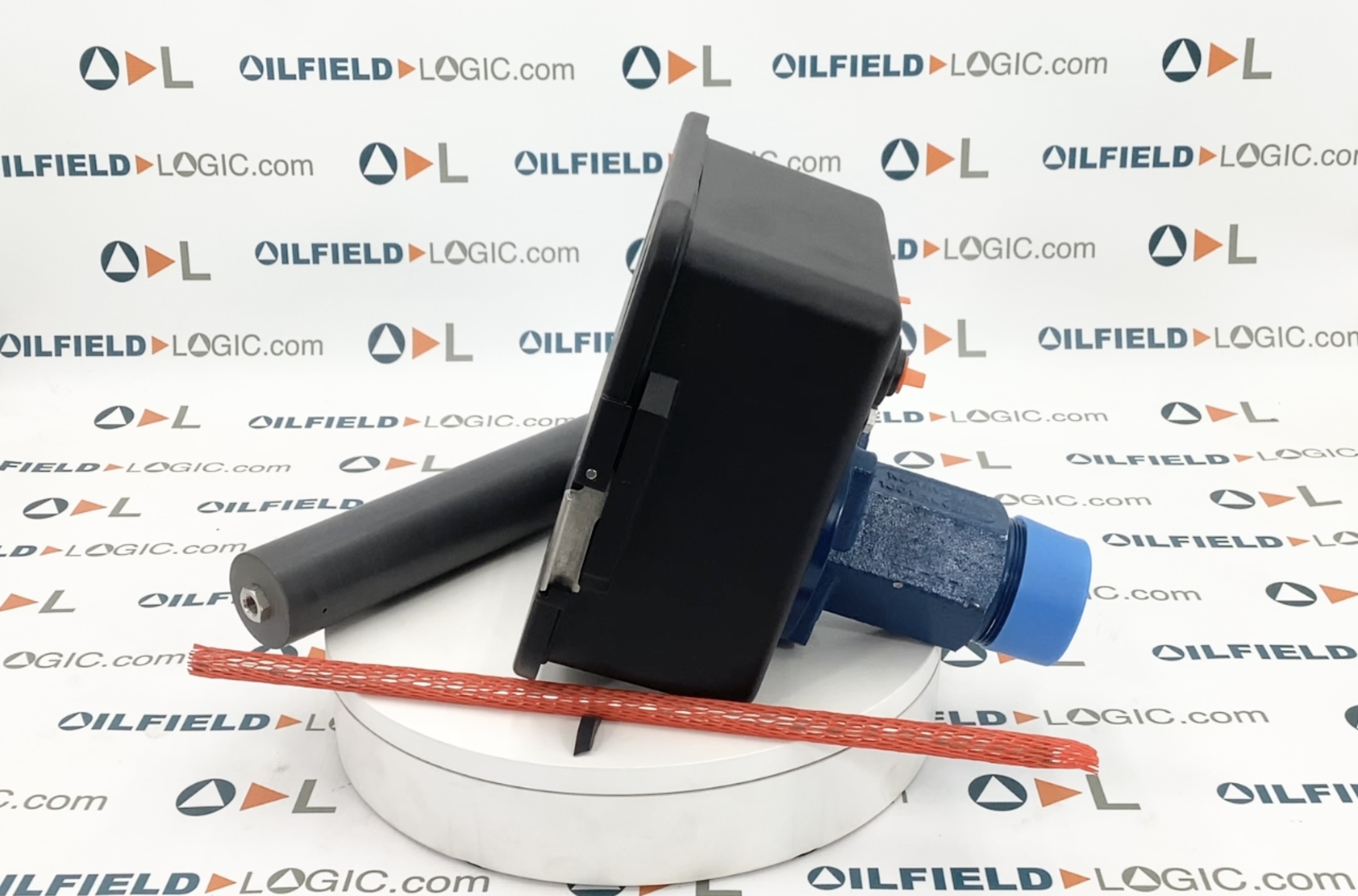

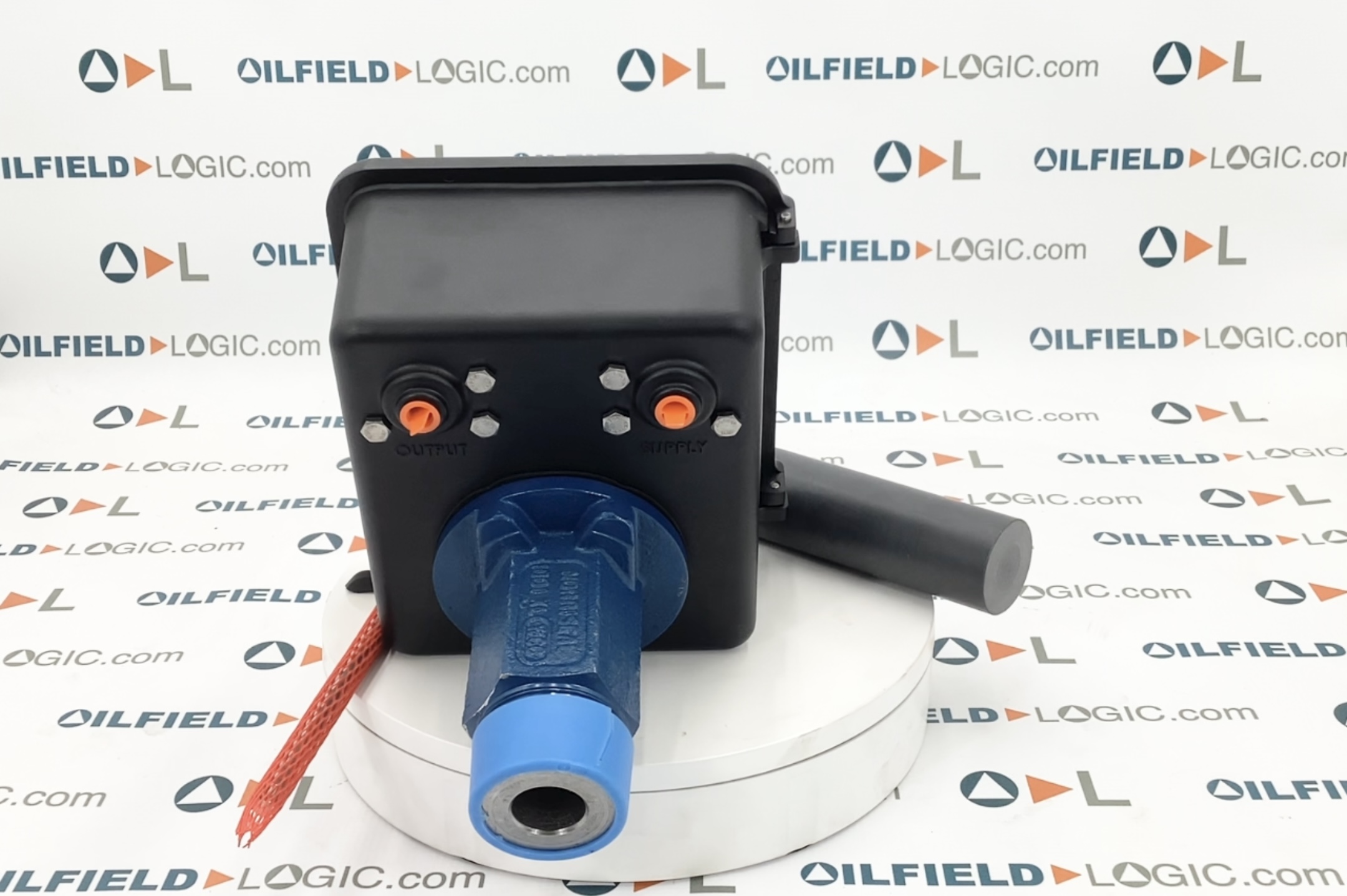

LLC, Norriseal, 1001XL, 2", 6000#
LLC, Norriseal, 1001XL, 2", 6000#
$727.50 (USD)
Location:Pennsylvania
Available quantity:2
orCall 1 (844) 564-4237
Description

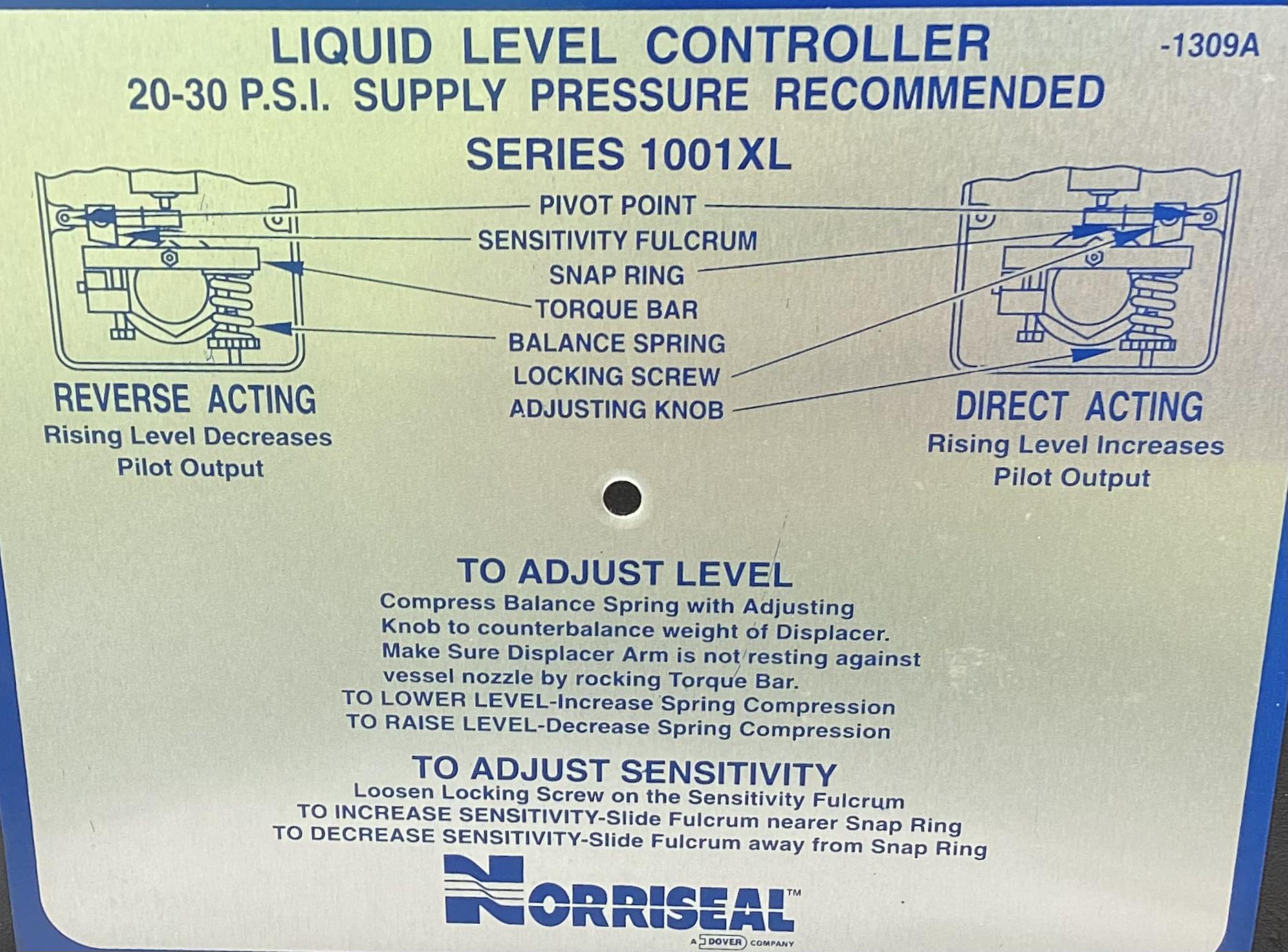

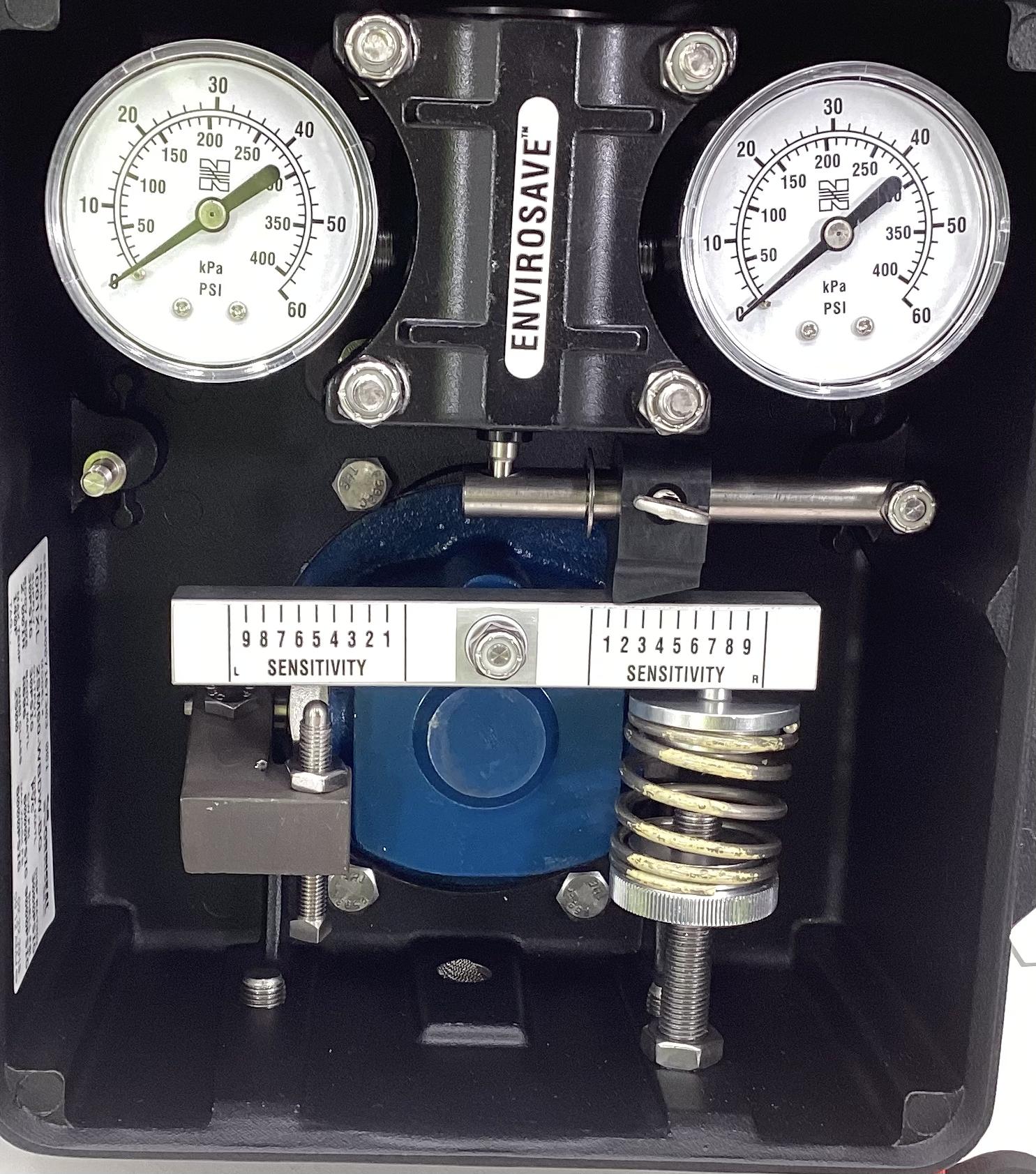

The operation of the Series 1001, 1001A, and 1001XL level controllers is based on the Force Balance Principle. The Force Balance Principle states when an object is submerged in a liquid, it creates a buoyant force that is proportional to the weight of the liquid displaced. A Norriseal level controller uses a spring to balance the weight of a displacement-type element (displacer), eliminating the need for custom-weighted displacers and floats.

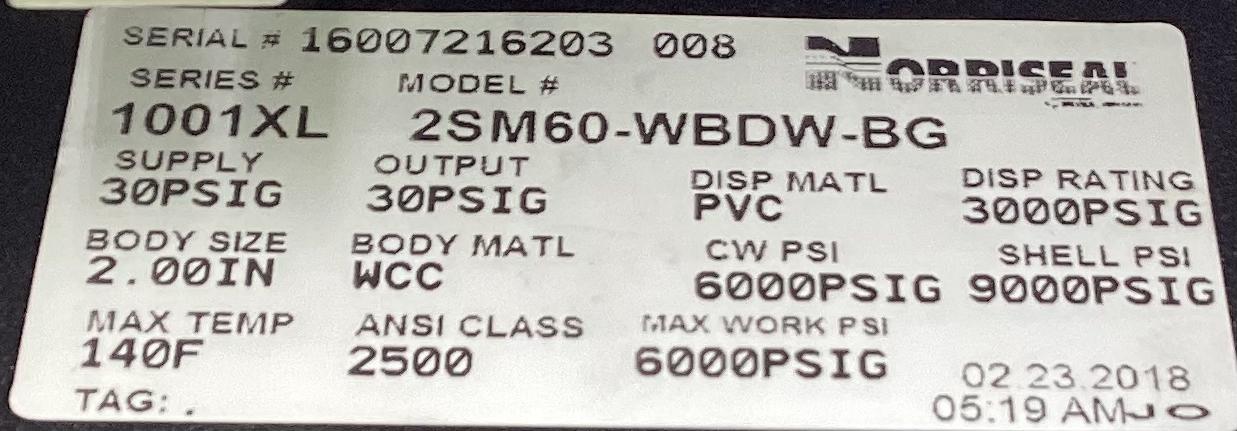

Specifications
| Manufacturer | Norriseal |
| Model | 2", 6000# |
| Condition | New |
| Stock Number | 2SM60-WBDW-BG |
| Connection Size (in.) | 2 |
| Subcategory 2 | Pneumatic |
| Warehouse Location | PA1B3 |
| Connection Type | MNPT |
| Enclosure | Weather-resistant |
| Pilot Output | Direct |
| Max Working Pressure (psi) | 6000 |
| Max Temperature (°F) | 140 |
| Mounting Orientation | Back Mount |
| Operation | Pneumatic |
| Float Material | PVC |
| Origin code | OC01 |
| Notes | New surplus; includes displacer and displacer arm |
