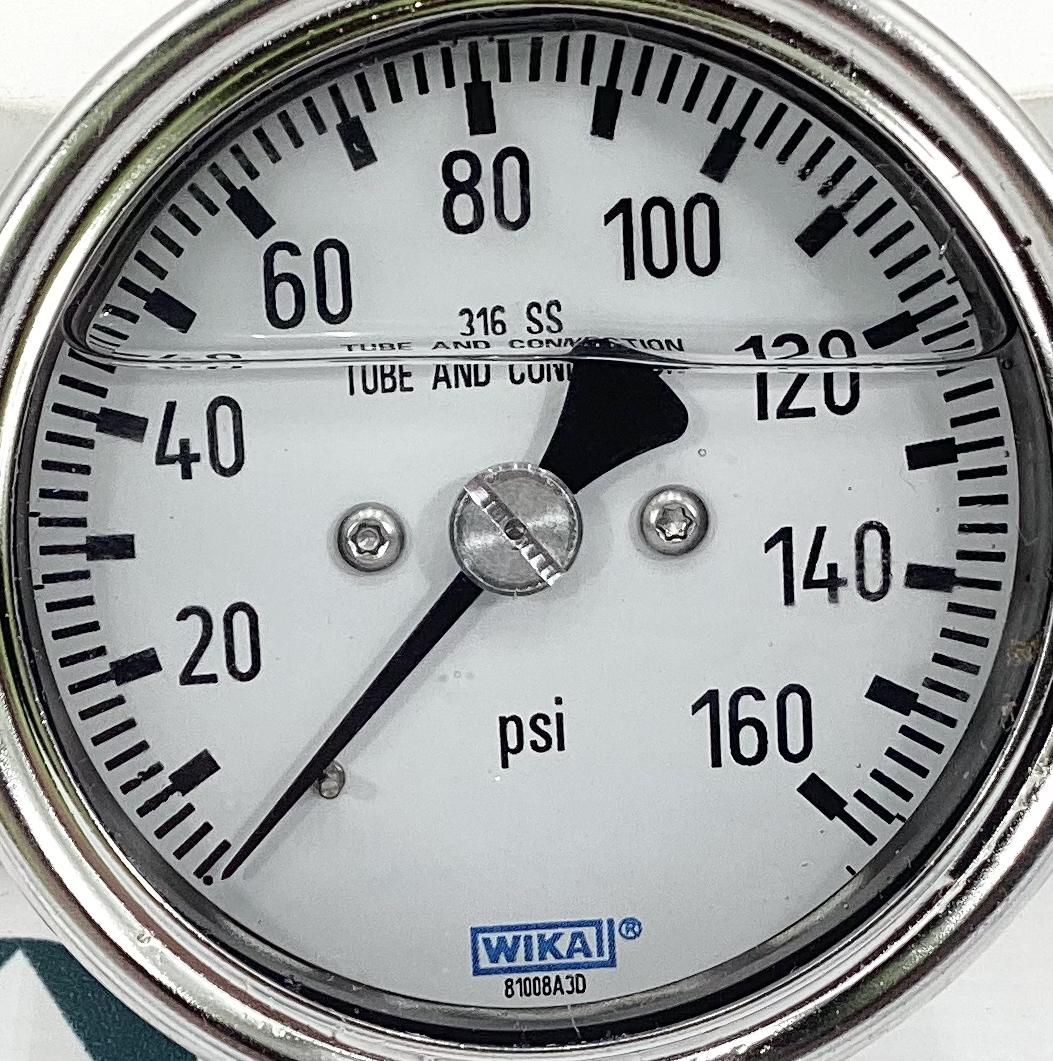

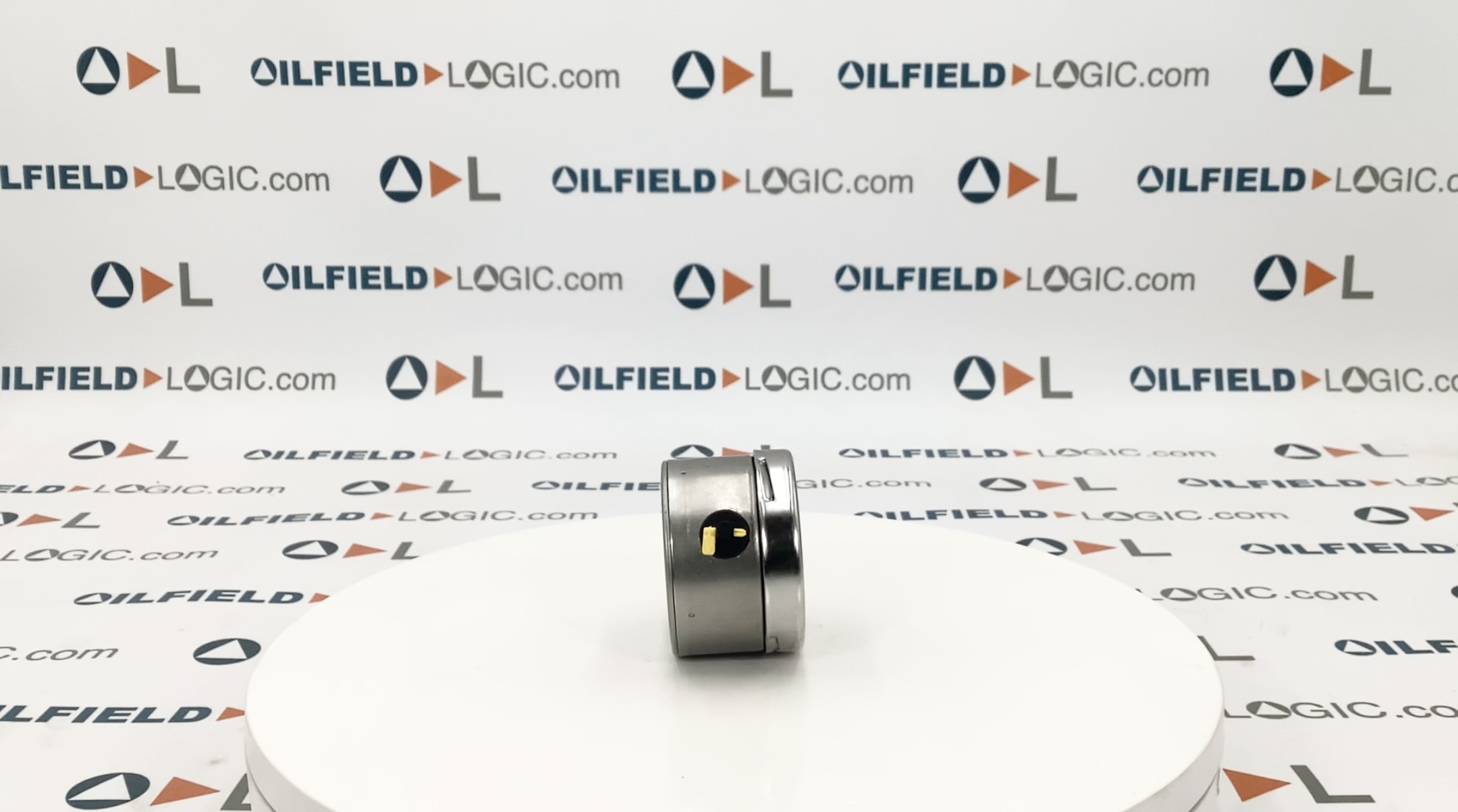

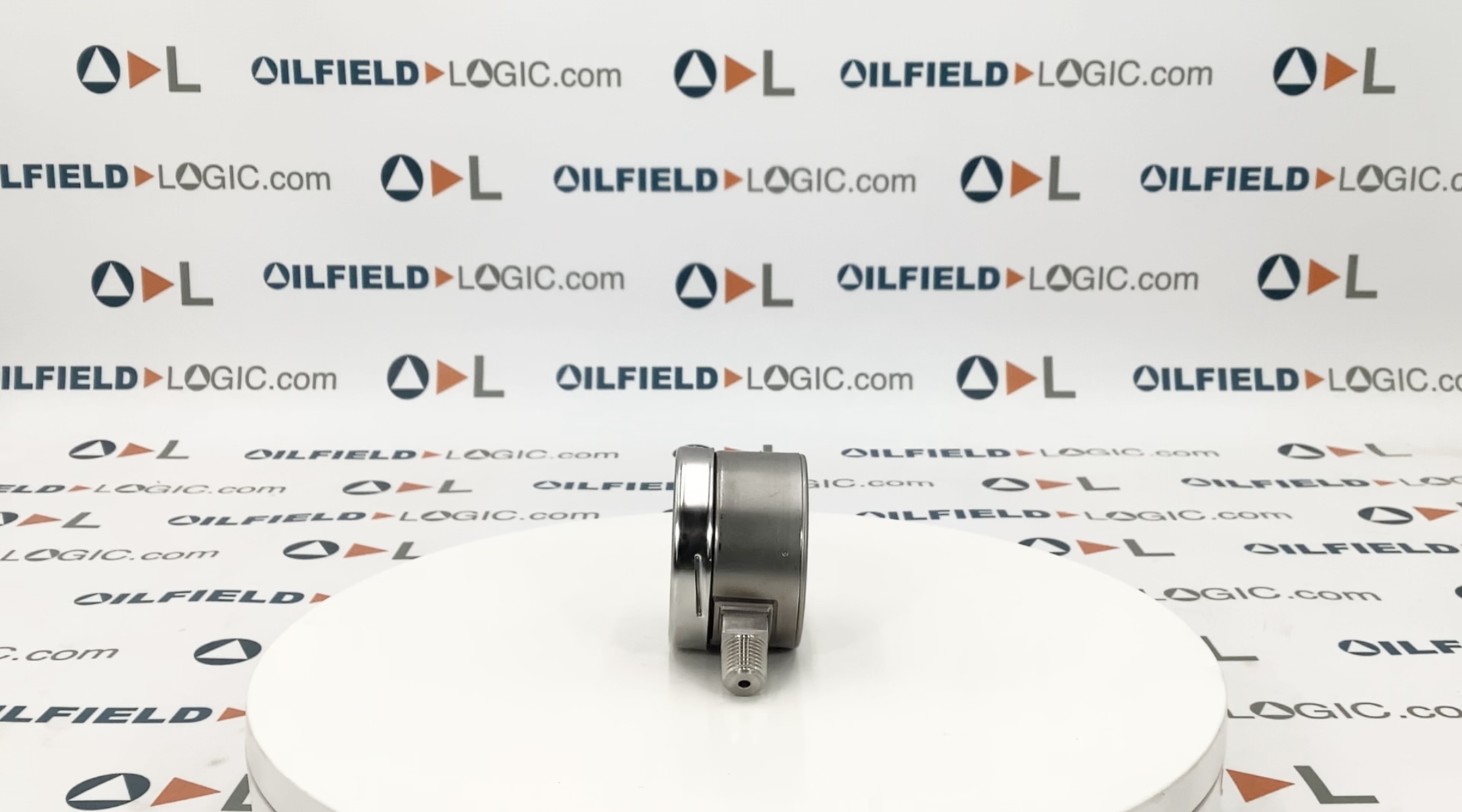

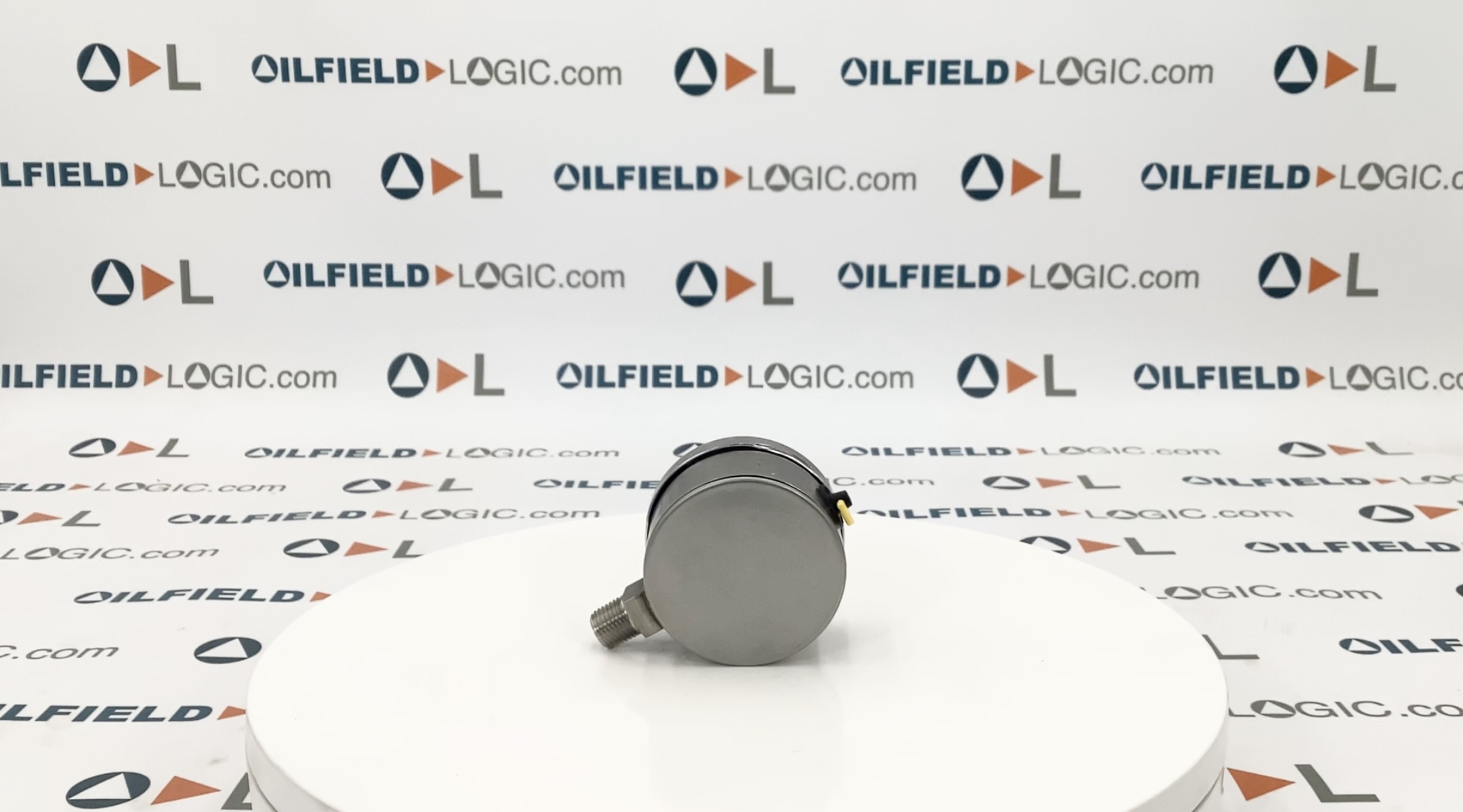

Gauge, Pressure, Liquid Filled, 1/4"x2-1/2", 0-160#
Gauge, Pressure, Liquid Filled, 1/4"x2-1/2", 0-160#
$18 (USD)
Location:Pennsylvania
Available quantity:1
orCall 1 (844) 564-4237
Description
Movement: Copper alloy
Case: Stainless steel with vent plug
Bourdon Tube: Copper alloy
Pressure Connection: Copper alloy
Window: Polycarbonate with Buna N Gasket
Dial: White ABS (2" & 2 1/2"), White aluminum (4")
Pointer: Black aluminum
Accuracy: 2" & 2 1/2" ± 2 1/2% of span ASME B40.100 Grade A, 4" ± 1% of span ASME B40.100 Grade 1A
Specifications
| Manufacturer | Wika |
| Model | 1/4"x2-1/2", 0-160# |
| Condition | New |
| Stock Number | 81008A3D |
| Pressure Range (psi) | 0-160 |
| Gauge Type | Liquid Filled |
| Connection Size (in.) | 1/4 |
| Connection Type | MNPT |
| Connection Location | Bottom |
| Face Size (in.) | 2-1/2 |
| Warehouse Location | PA1B3 |
| Notes | New Surplus |
| Origin Code | OC01 |
| Subcategory 2 | Pressure |
