Valve, Control, Multi-Pressure, 1/4", 150#
Valve, Control, Multi-Pressure, 1/4", 150#
$60 (USD)
Location:Pennsylvania
Available quantity:1
orCall 1 (844) 564-4237
Description

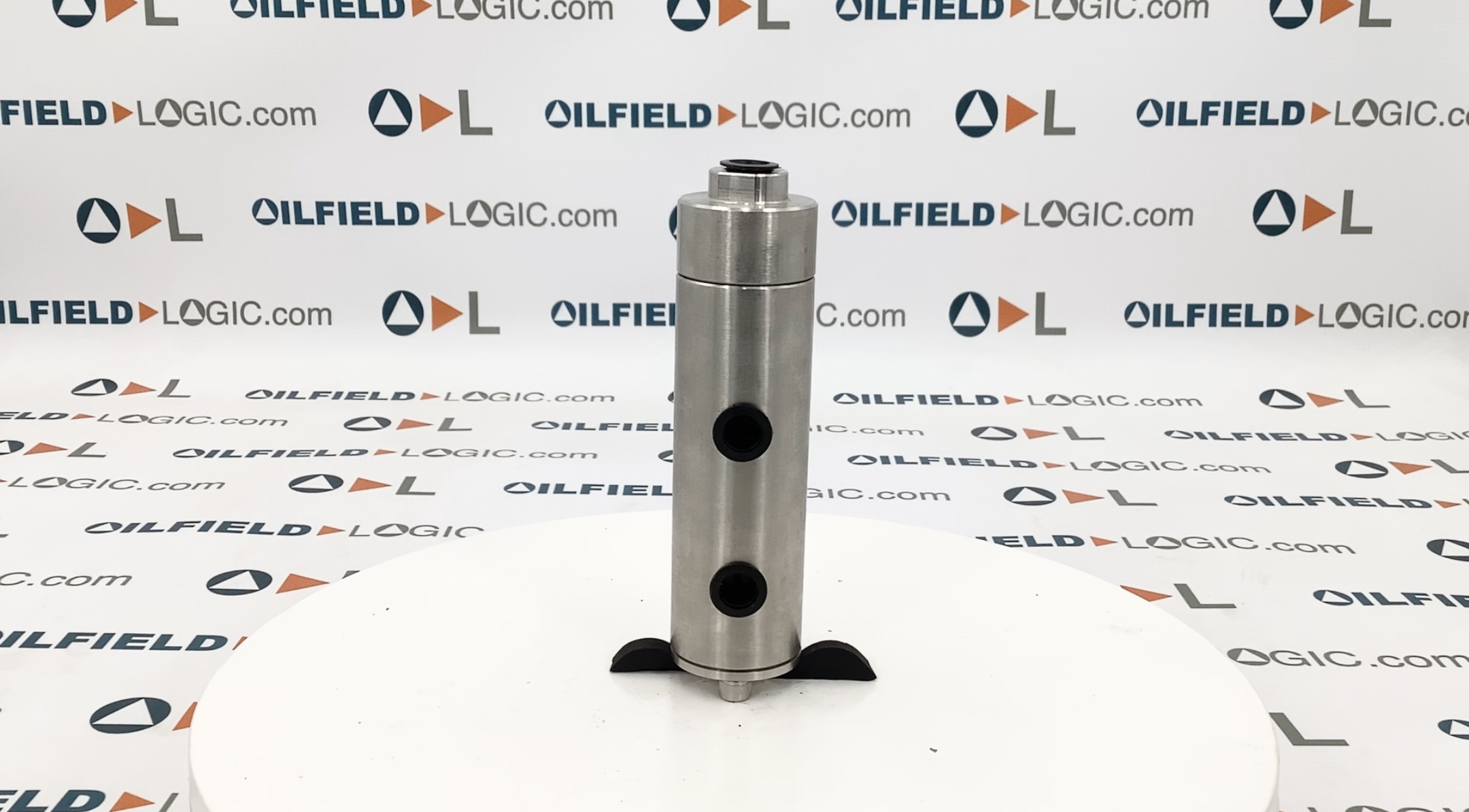

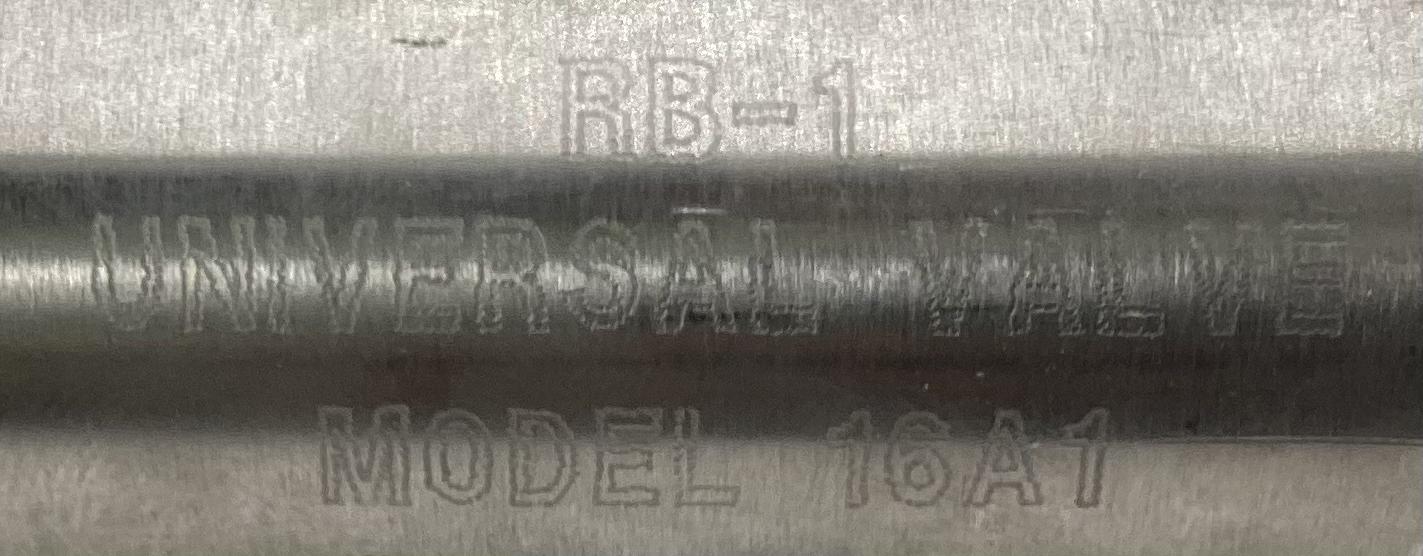

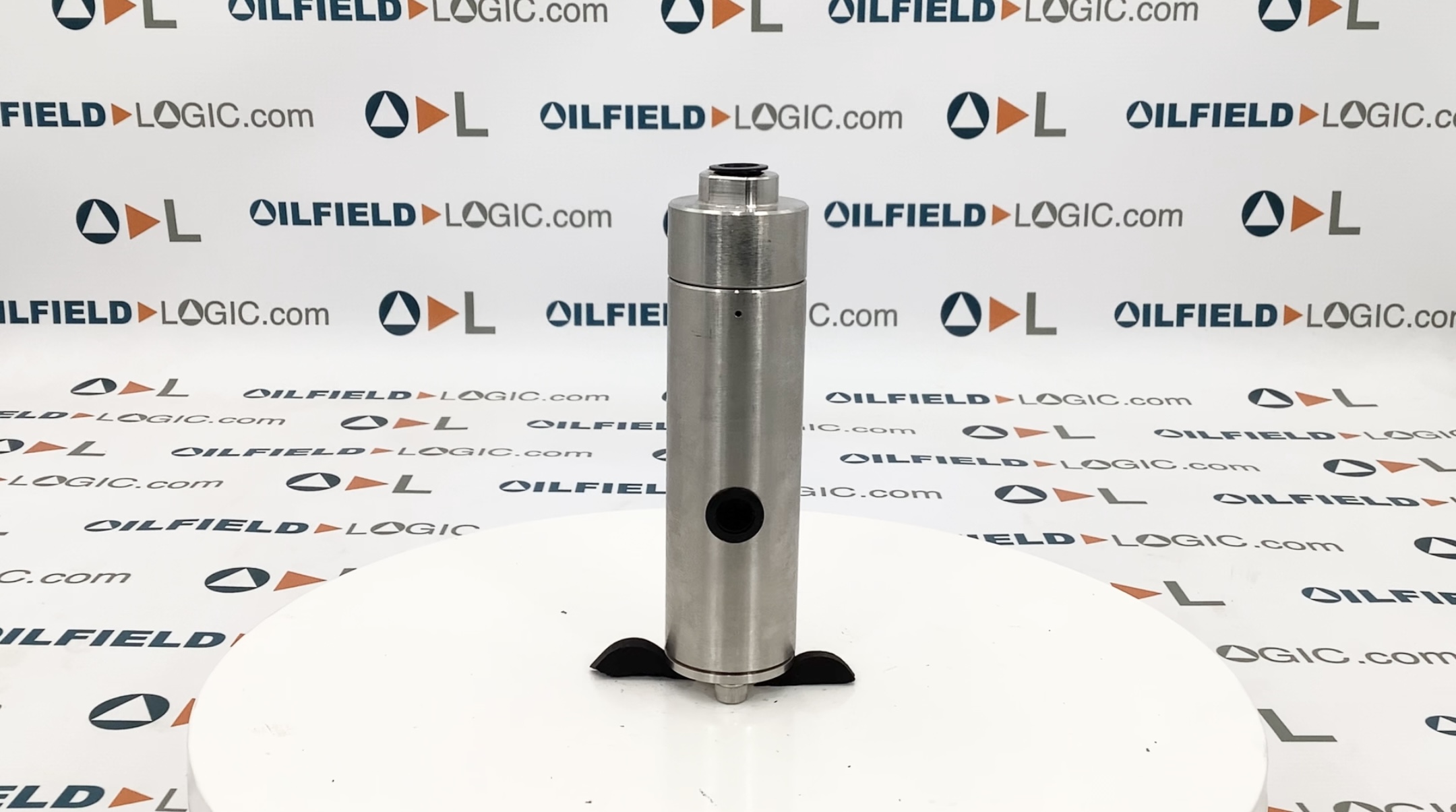

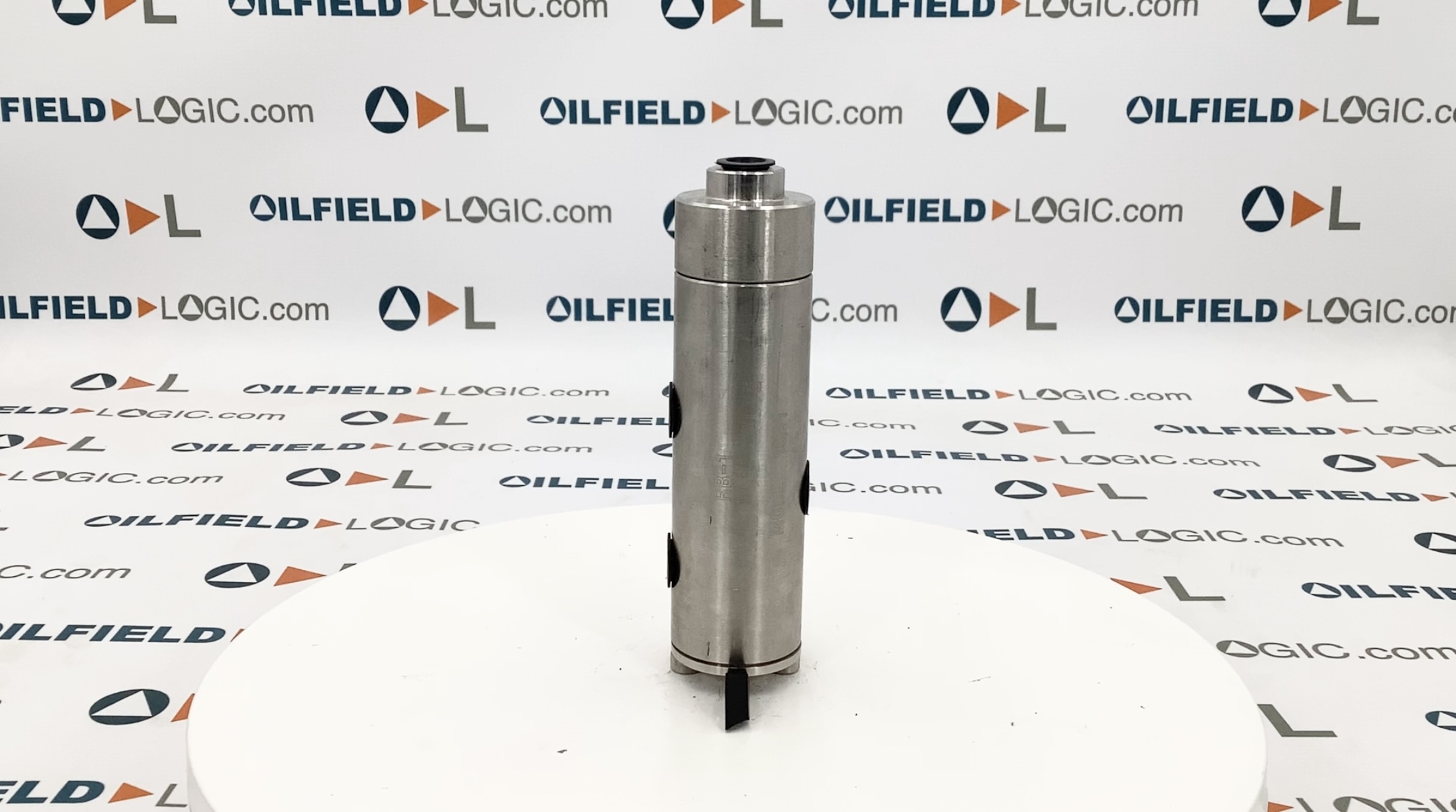

The Ruelco RB-1 is a multi-pressure, universal control valve for production control and safety systems. It functions as an auto- matic reset, pilot operated, normally open or normally closed, block and bleed valve. The relay will allow inlet to outlet flow in one state and outlet to vent flow in the changed state. The high flow rate provides a fast closing time for any connected pneu- matic devices.
- 316 stainless steel construction (models to N.A.C.E. MR0175 available)
- Large Cv factor assures fast system response • Fluorocarbon and nitrile seals are utilized for
dependability
- Inconel X750 spring assures dependability in most corrosive environments
- Supply pressure and pilot cap pressure are independent of each other
Specifications
| Manufacturer | Ruelco |
| Model | 1/4", 150# |
| Condition | New |
| Stock Number | 16A1-20000 |
| Connection Size (in.) | 1/4" |
| Subcategory 2 | Control |
| Warehouse Location | PA1A6 |
| Connection Type | FNPT |
| Body Style | Through Body |
| Body Material | 316 Stainless Steel |
| Max Working Pressure (psi) | 150 |
| Max Temperature (°F) | 250 |
| Weight (lbs) | 2.25 |
| Length (in.) | 5.45 |
| Width (in.) | 1.5 |
| Origin code | OC01 |
