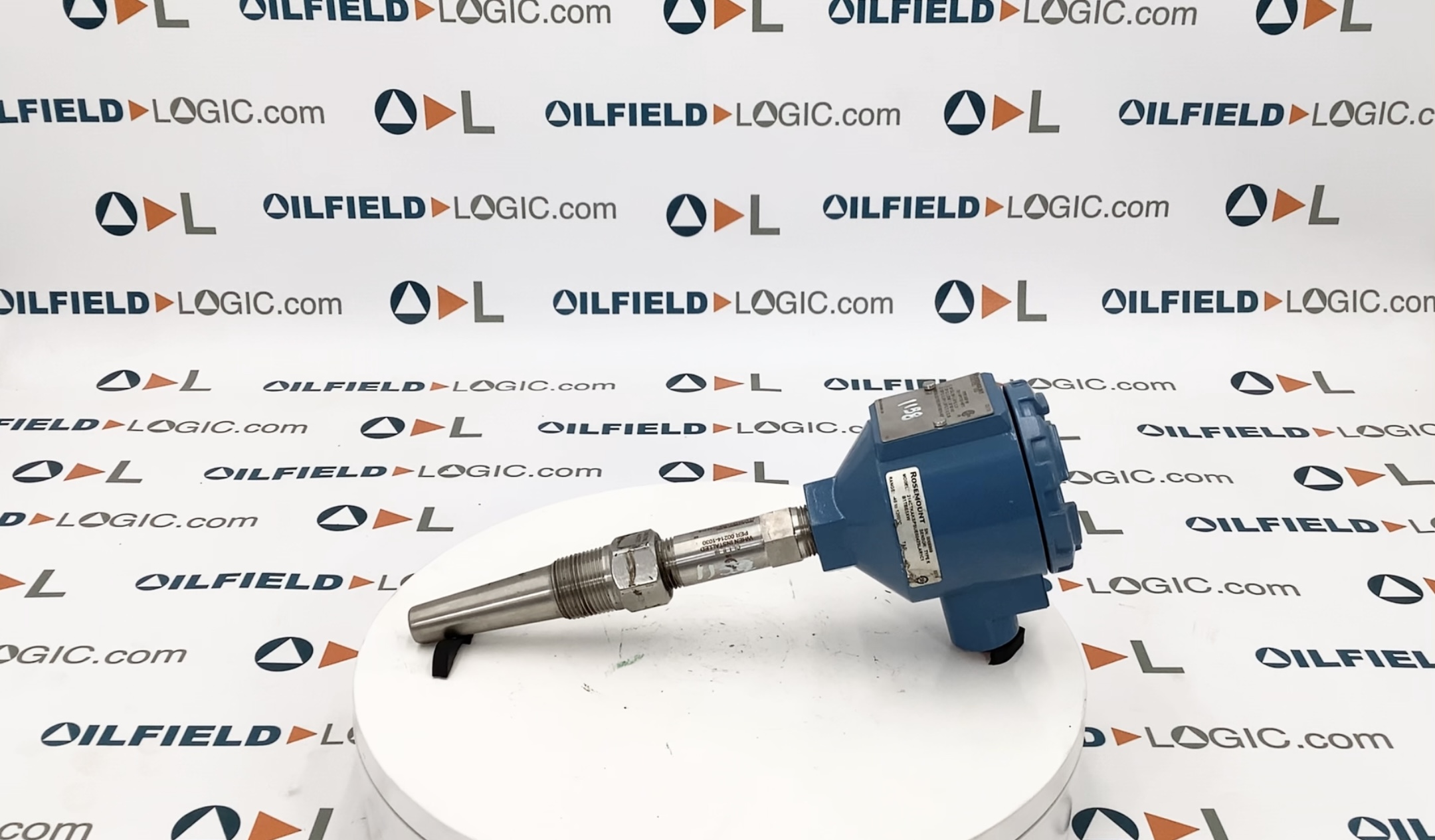

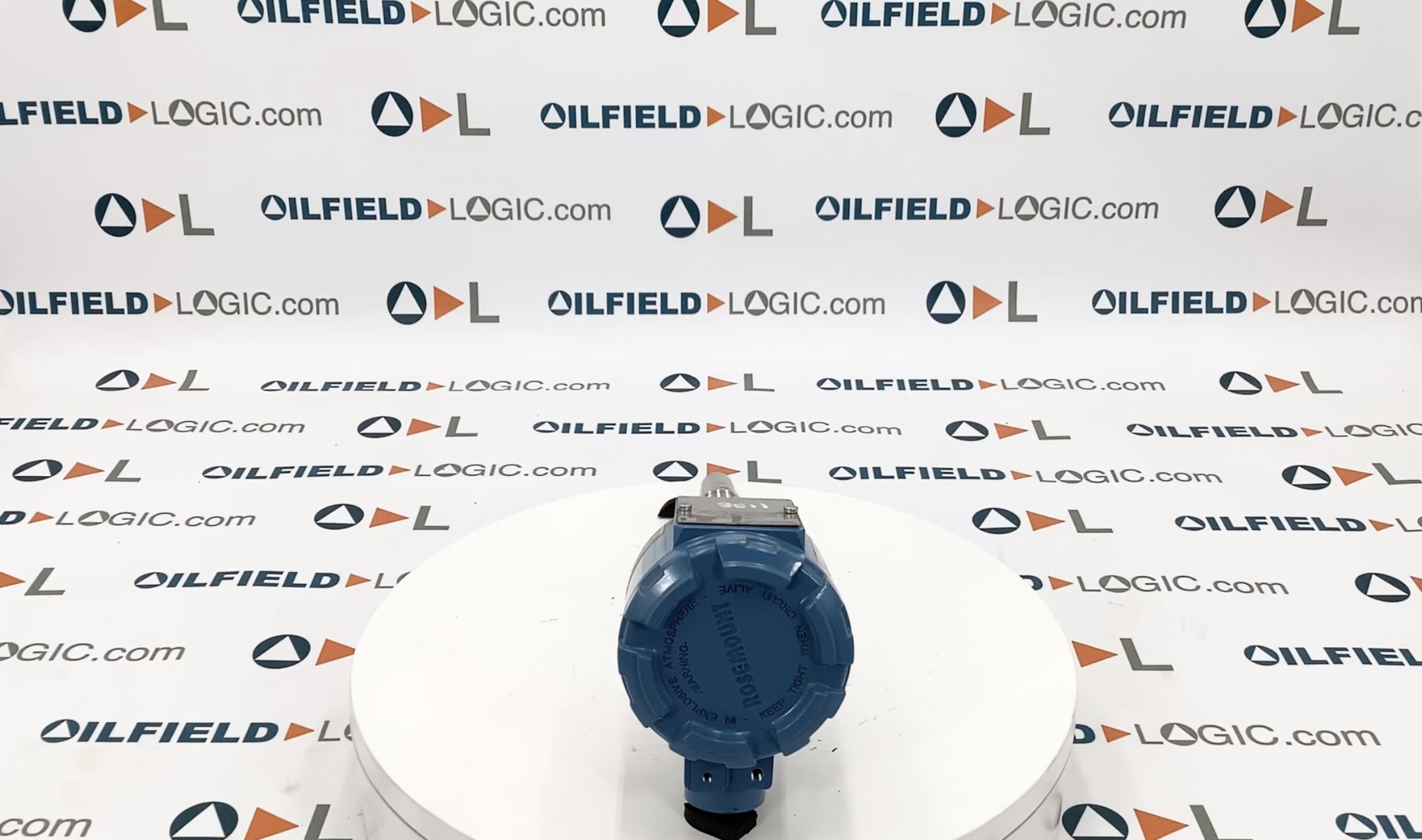

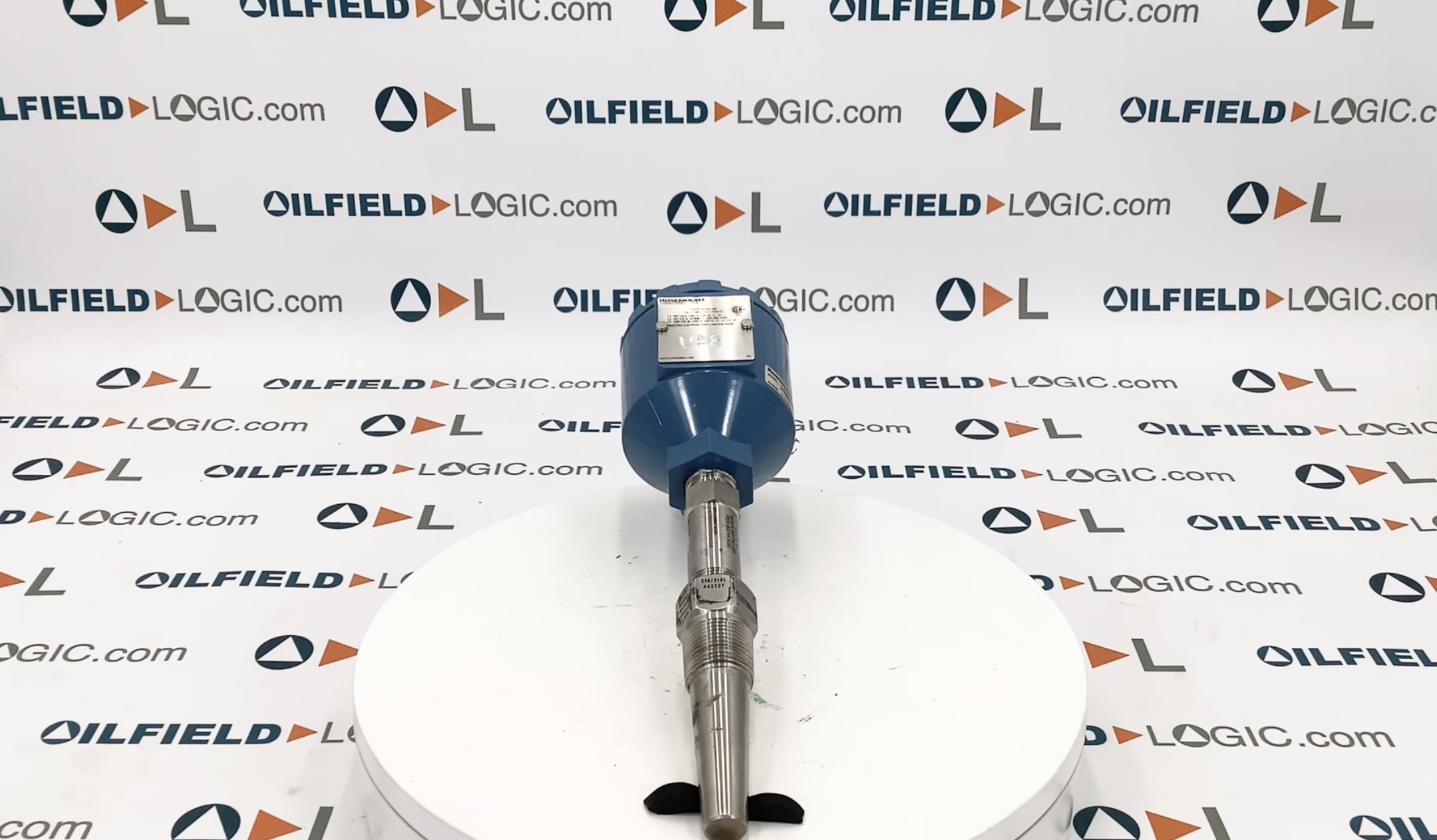

Thermocouple, Rosemount, 1/2"x4-1/4", -40 to 1200°F

Thermocouple, Rosemount, 1/2"x4-1/4", -40 to 1200°F

$345 (USD)

Location:Pennsylvania

Available quantity:15

orCall 1 (844) 564-4237

Description

The Rosemount 214C thermocouples are designed to provide flexible and reliable temperature measurements in process monitoring and control environments. Choose from three thermocouple types to best suit your application needs:

  • Type J is one of the most common thermocouples (iron & constantan conductors)
  • Type K is used for high temperature applications (Chromel & Alumel conductors)
  • Type T is used for low temperature applications (copper & constantan conductors)

Rosemount 214C temperature sensors are available with immersion lengths from 2 to 78-1/2 inches (50 to 2000mm) in 1/4-inch (5mm) increments. All sensor styles and lengths have a standard 1/4-inch (6mm) nominal diameter. Multiple options for connection heads, accuracy, mounting styles, extensions and other factors are also available.

The Rosemount 214C temperature sensors can be combined with process-ready or hand-tight transmitter, sensor, and/or thermowell assemblies to deliver a complete temperature solution.

Specifications

ManufacturerRosemount
Model-40 to 1200°F
ConditionNew
Stock Number214CTKAKSPSUE0042SLAR1C1B1TBE5XW
Connection Size (in.)1/2
Subcategory 2Electric
Warehouse LocationPA1D6
OperationElectric
Sensor TypeThin film PT100, -40 to 1200°F
Sensor Mounting Style Spring loaded adapter
Connection HeadRosemount aluminum connection head
Conduit Entry1/2 inch NPT
Thermowell Assembled To Sensor Process ready assembly
NotesNew Surplus
Origin codeOC01
