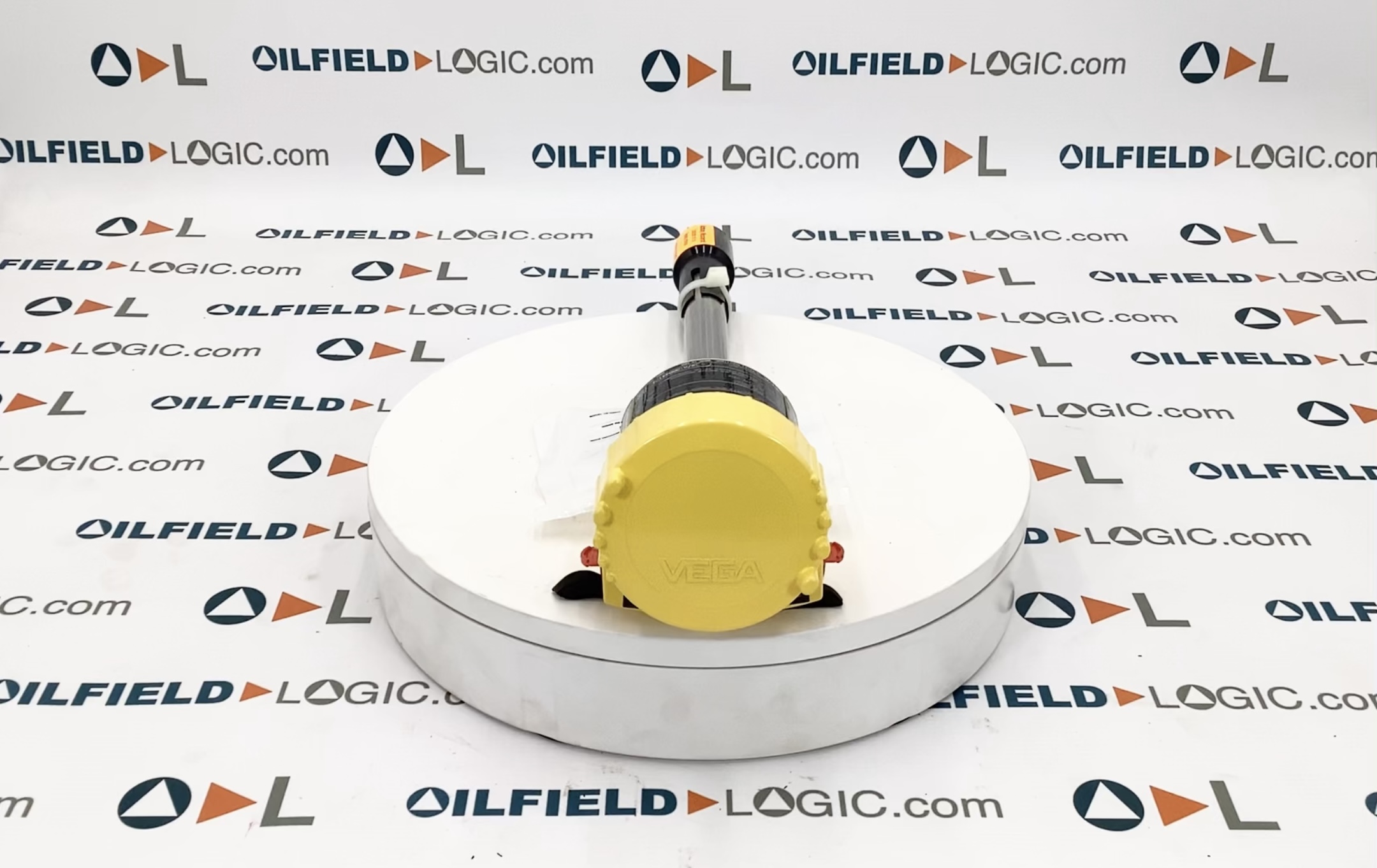

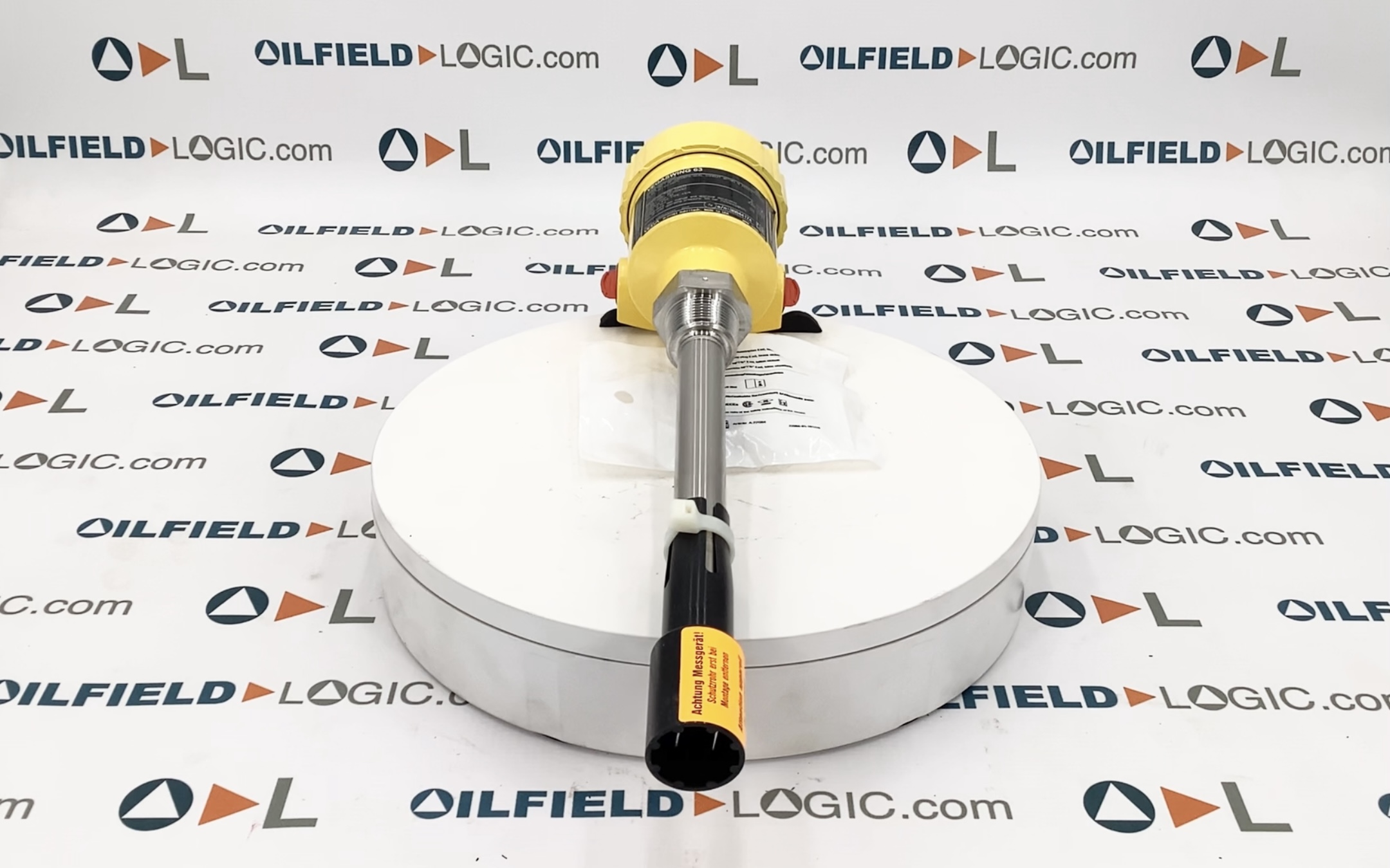

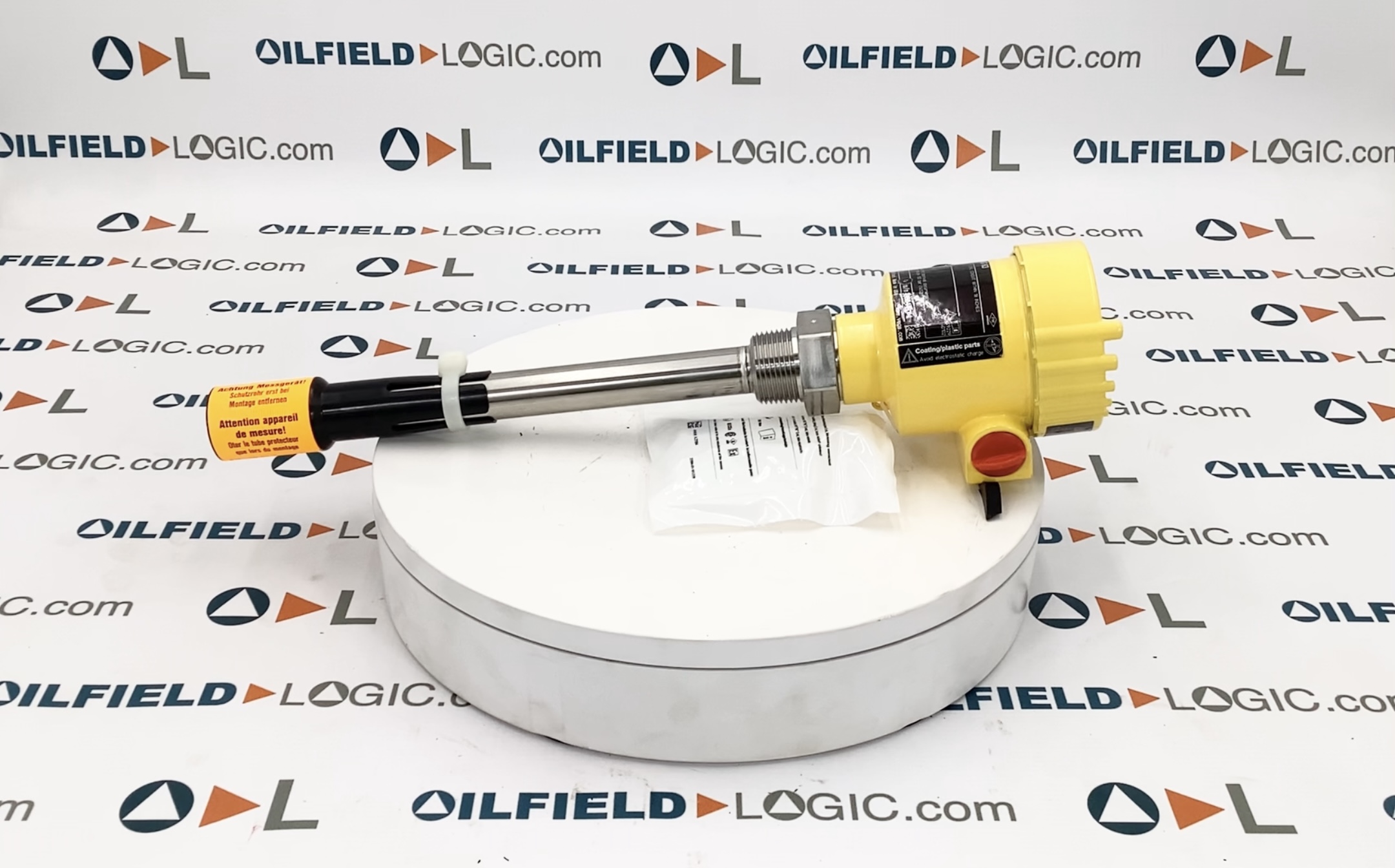

Level Switch, Vibrating, Vegaswing, 1"x10", 1450#
Level Switch, Vibrating, Vegaswing, 1"x10", 1450#
$300 (USD)
Location:Pennsylvania
Available quantity:7
orCall 1 (844) 564-4237
Description
VEGASWING 63 is used as a universal level switch in all liquids. Independent of the mounting position it detects reliably with millimetre accuracy the level. The instrument can be used in vessels as empty or full detector, as approved overfill protection, dry run protection or pump protection. The position of the switching point is determined through the tube extension. The VEGASWING 63 offers high reliability and security in a wide application range.
Specifications
| Manufacturer | Vegaswing |
| Model | 1", 1450# |
| Condition | New |
| Stock Number | SWING63.DUNAVXUR |
| Connection Size (in.) | 1 |
| Subcategory 2 | Level |
| Warehouse Location | PA1C3 |
| Operation | Electric |
| Conduit Entry | 1/2 inch NPT |
| Protection Rating | IP66 Type 4X/6 |
| Output | DPDT |
| Length (in.) | 10 |
| Max Working Pressure (psi) | 1450 |
| Origin code | OC01 |
