Combustor / Flare, 48"x25', 11.7 MMBtu/hr

Combustor / Flare, 48"x25', 11.7 MMBtu/hr

$7,188 (USD)

Location:Colorado

Available quantity:10

orCall 1 (844) 564-4237

Description

  • Model 1: 48” HV ECD
  • Max Flow Rate: 109.0 MSCFD
  • Min Flow Rate: 13.7 MSCFD
  • Max Heat Release: 11.7 MMBtu/hr
  • Inlet Pressure Range: 1 to 16 oz/in2
  • Pilot fuel required: 5-7 psig
  • Pilot fuel consumption: 14-17 SCFH
  • Stack Temperature: 500-1200 Deg F
  • Turndown ratio: 8 : 1
  • VOC destruction efficiency: Min. 95 DRE (98 DRE Avail.)
  • Dimensions: 56″ square base x 25′ high


Application:

Oil and gas tank vapor management

Show All

Specifications

ManufacturerCimarron Energy
Model11.7 MMbtu/hr
Year2013
ConditionUsed

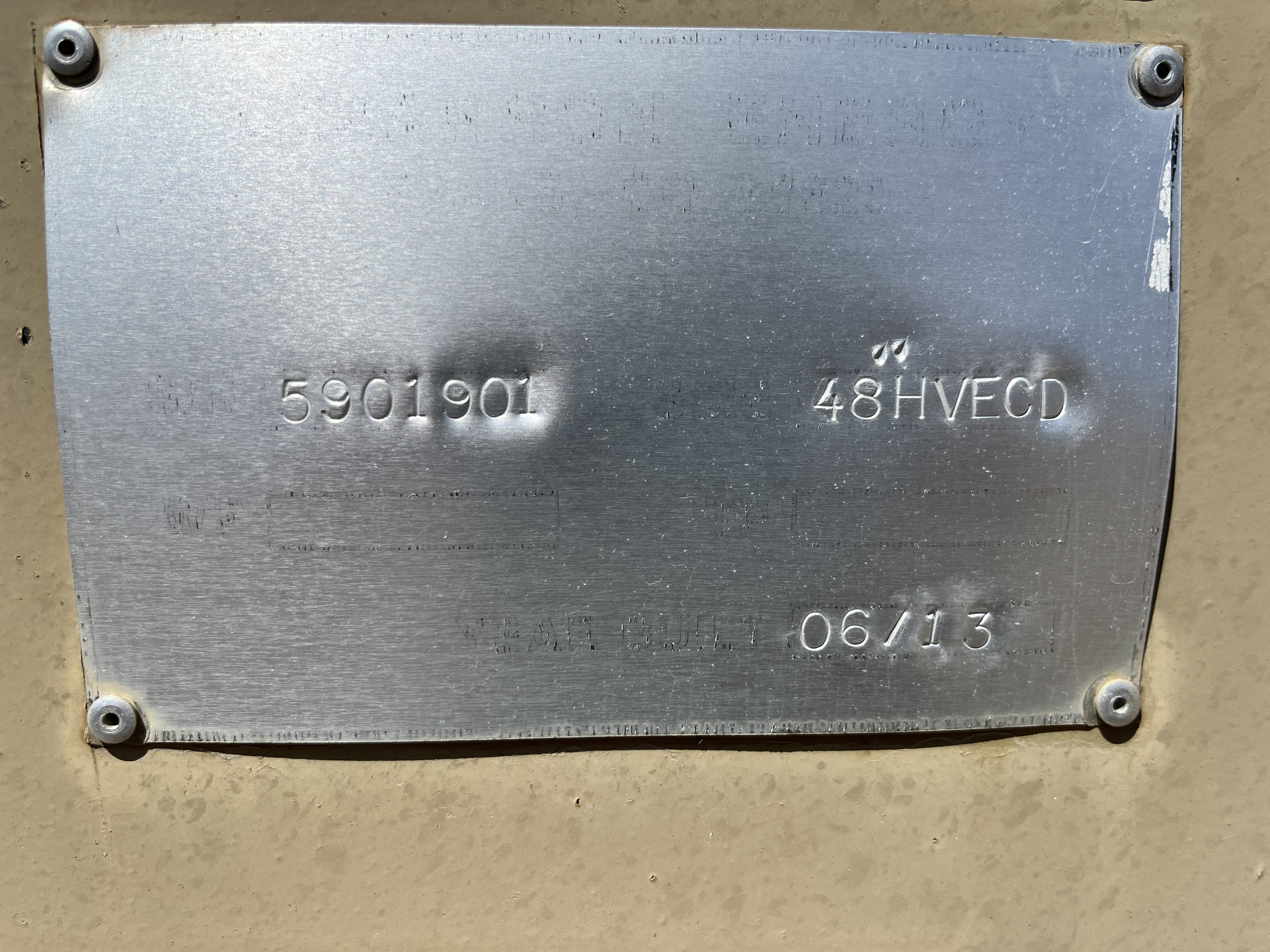

Serial Number5901901
Stock Number5901901
Stack Diameter (in.)48
Subcategory 2Non-Code
Max Flow Rate (mscfd)109
Min Flow Rate (mscfd)13.7
Max Heat Release (mmbtu/hr)11.7
Inlet Pressure Range (oz.)1-16
Turndown8:1
Work Recently PerformedNone
Wear and TearStack insulation likely needs repaired or replaced
TestNone

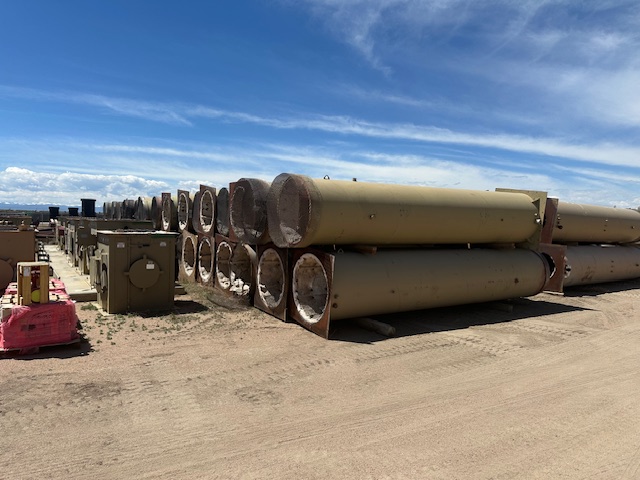

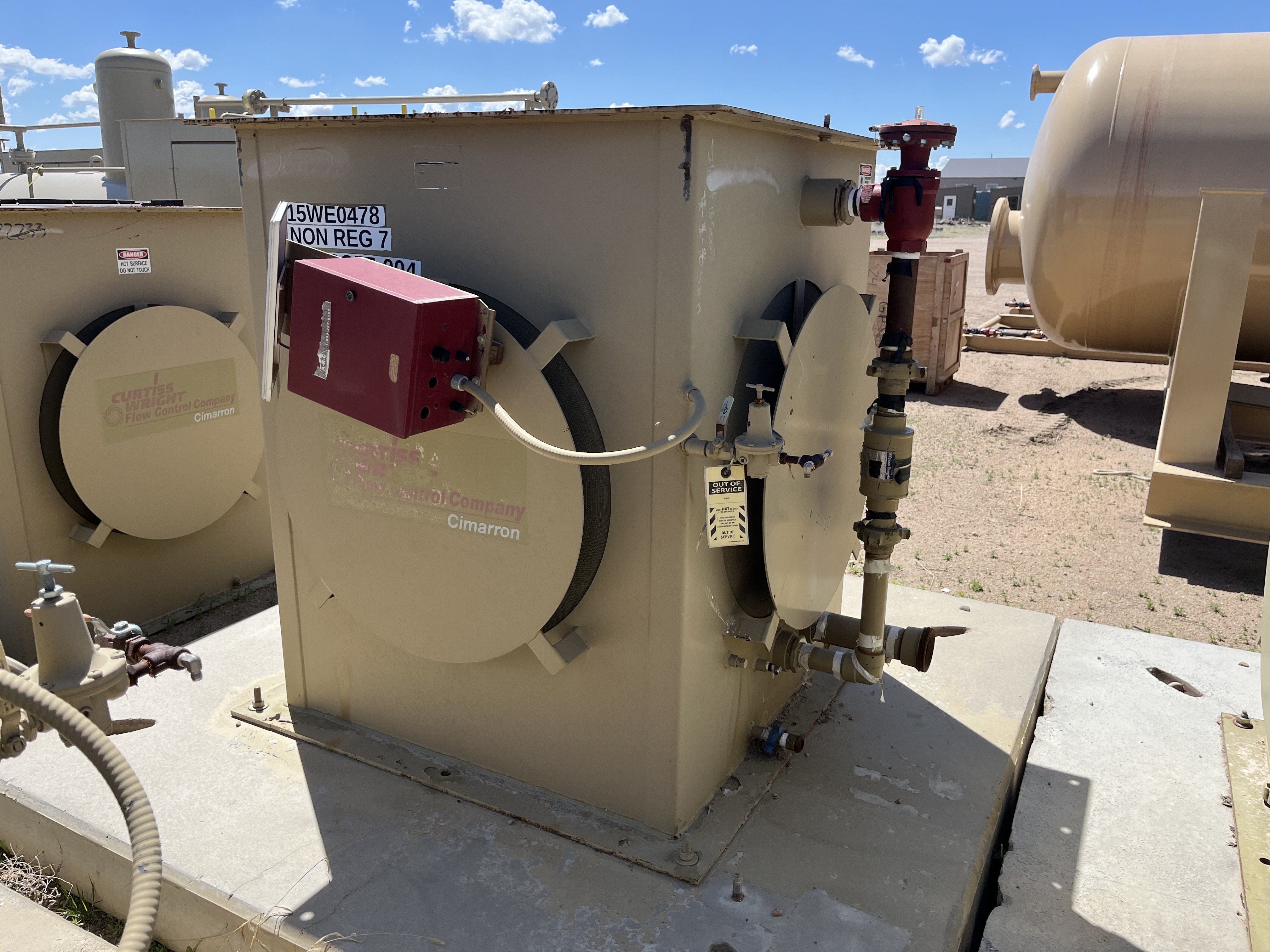

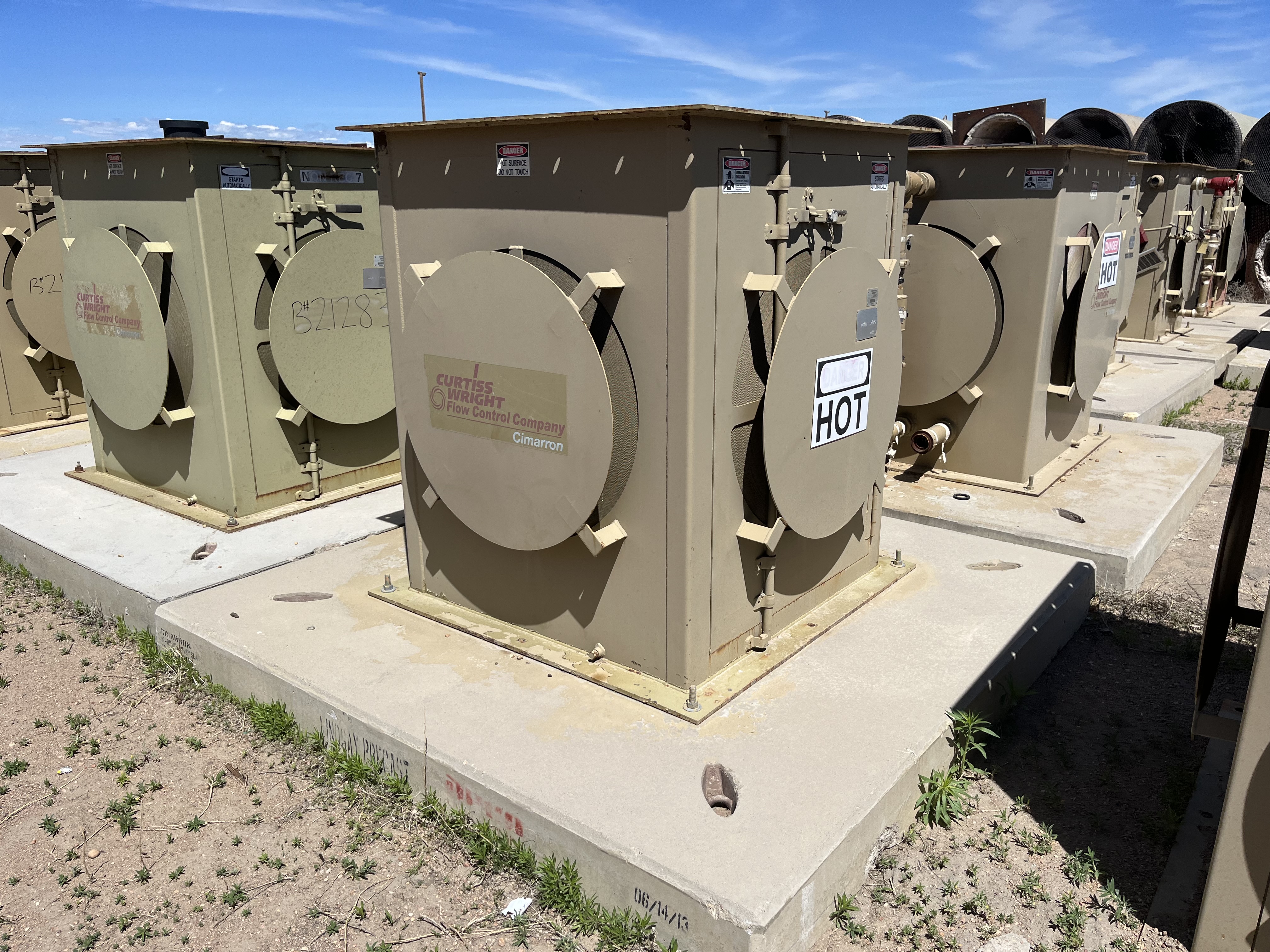

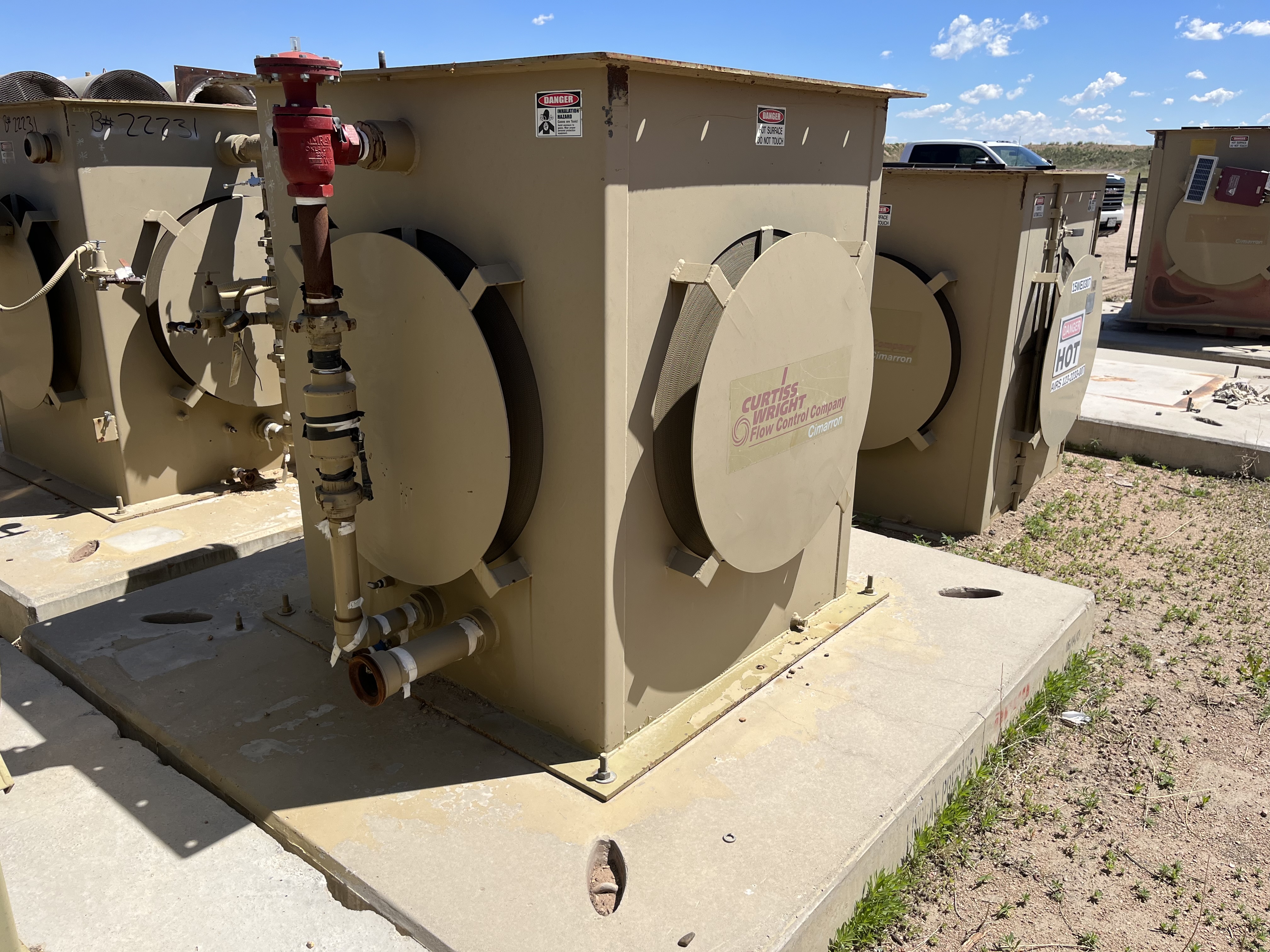

NotesCombustor consists of a base and stack. Refurb service is available; please inquire for quote.
Origin codeOC03
