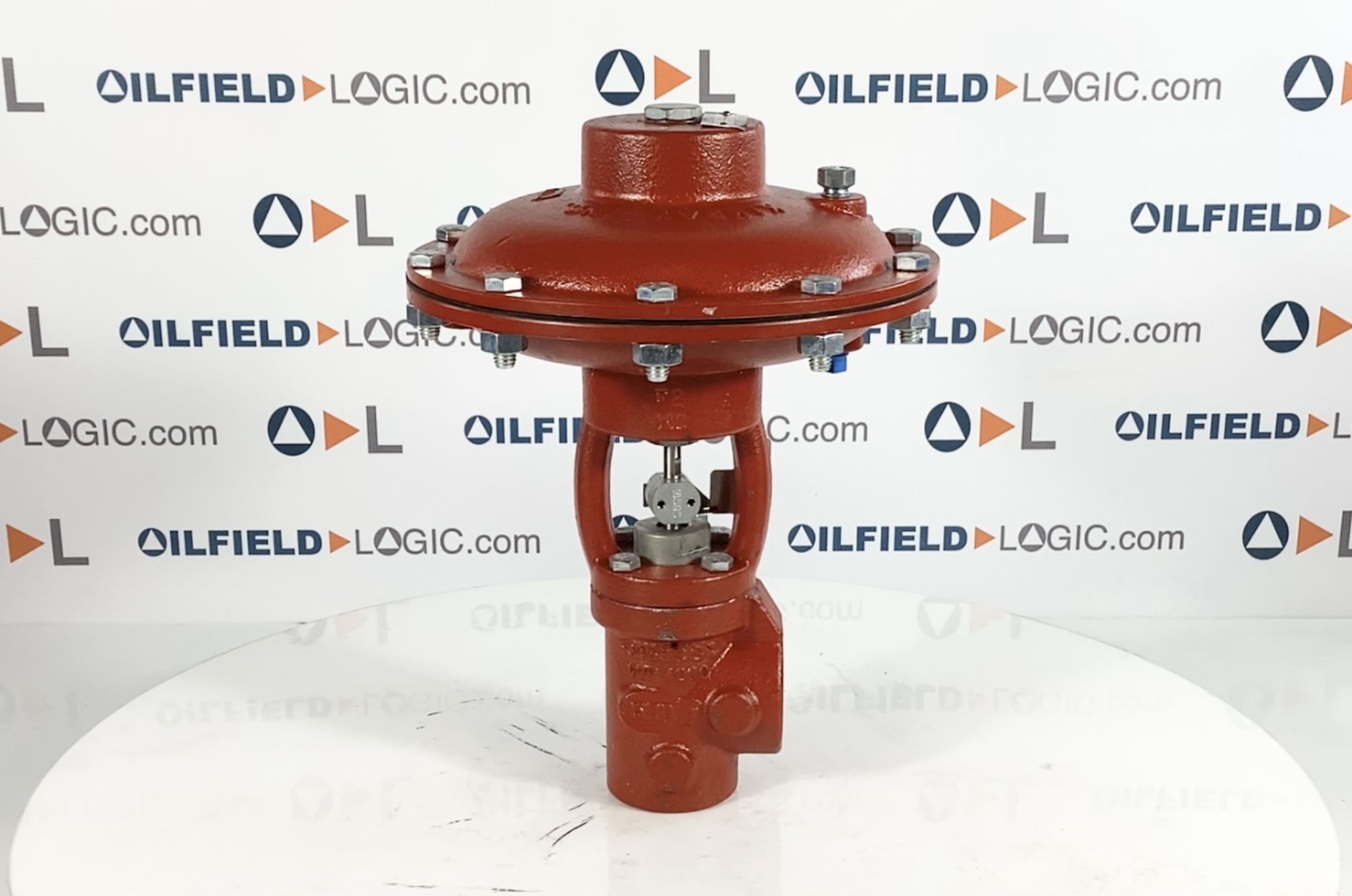

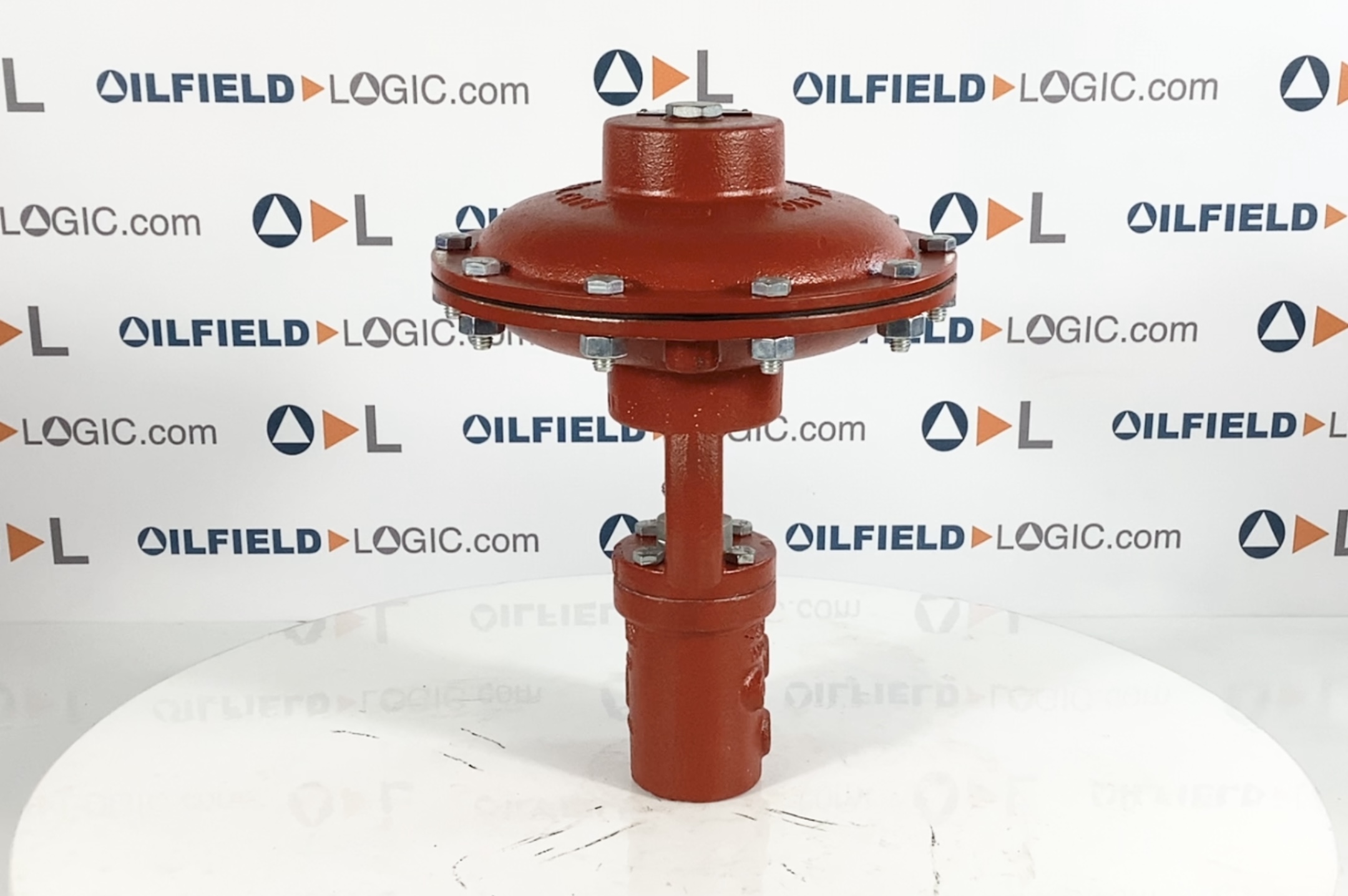

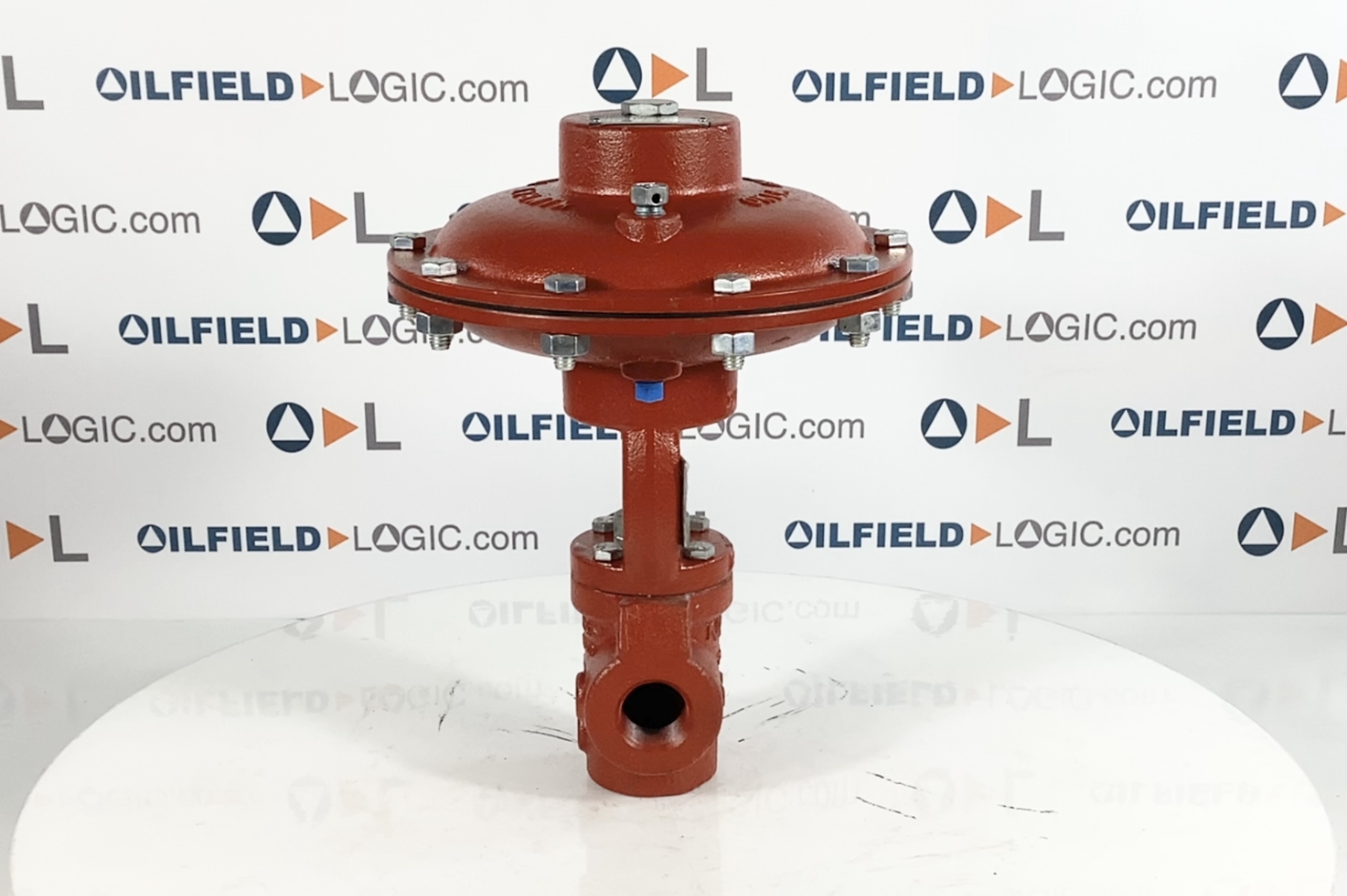

Valve, Control, Kimray, 1" Angle body, 1" Trim, 4000#
Valve, Control, Kimray, 1" Angle body, 1" Trim, 4000#
$675 (USD)
Location:Pennsylvania
Available quantity:2
Description
The Stem-Guided High Pressure Control Valve is a non-balanced valve that can be used as a dump valve, pressure regulator, suction controller, recirculation valve, as well as in plunger lift or flowback applications.

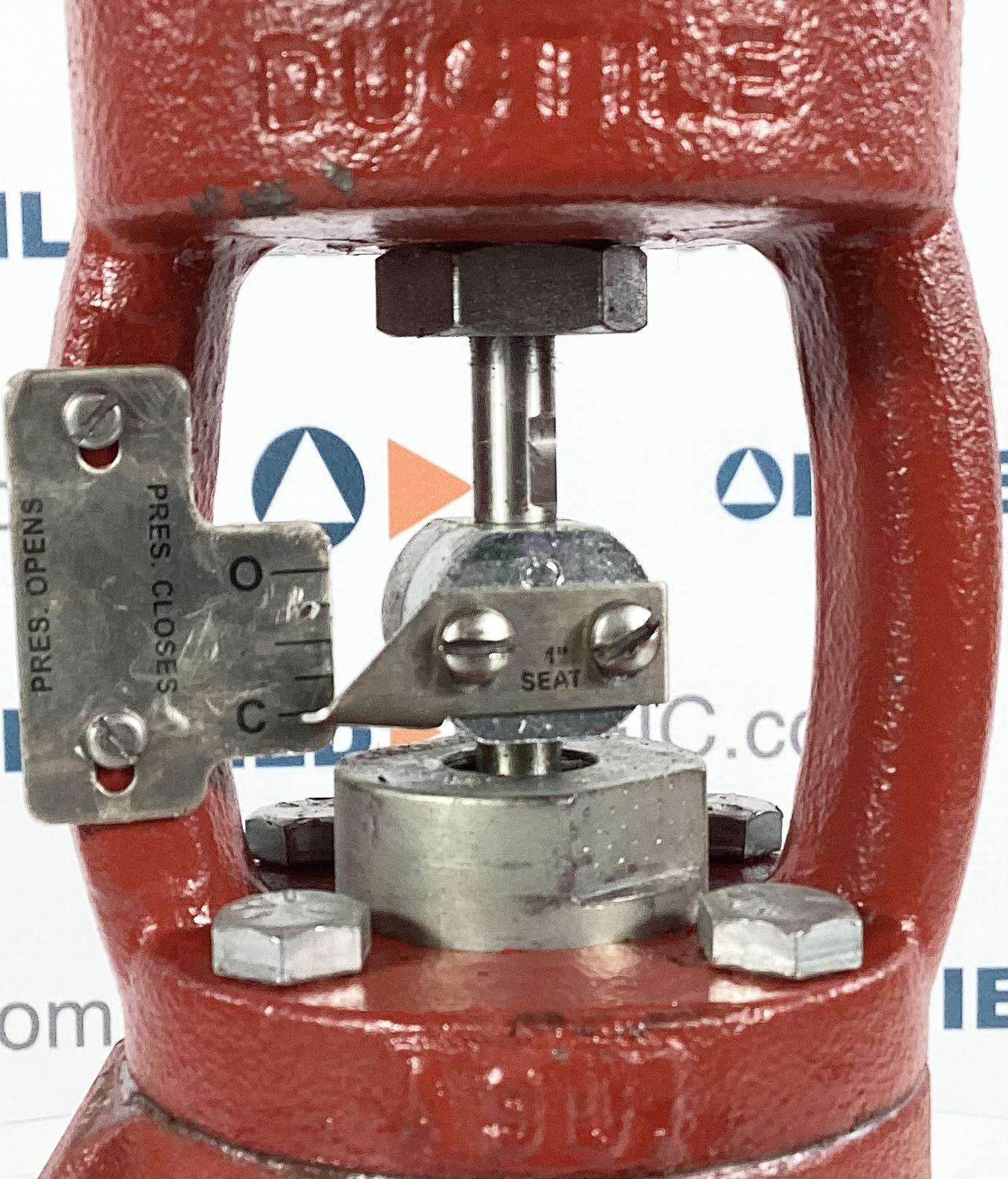

The Stem-Guided Control Valve has smaller trim sizes (available in 1" and 2" end connections) for smaller valve coefficients (Cv) compared to the Cage-Guided series. "Stem-guided" refers to the stem itself guiding the trim into its seat.
It can be fitted with optional electric actuation or operated with compressed air for zero-emission requirements.
The EAD provides increased flow at lower operating pressures. Maximum pressure drop is 300psig. For on-off service only. Uses a standard valve body and has a Teflon seal.
Specifications

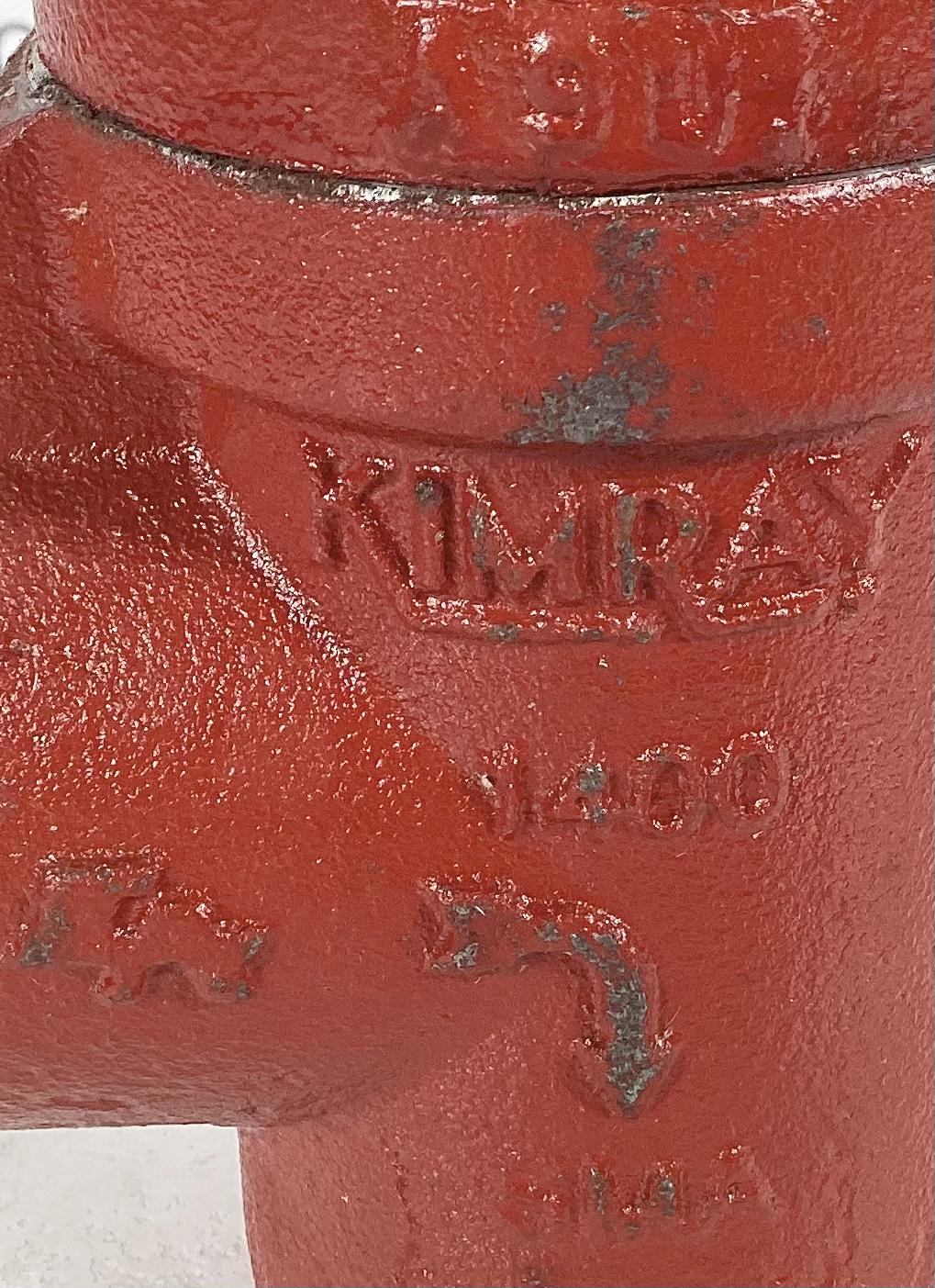

| Manufacturer | Kimray |
| Model | 1", 4000# |
| Condition | New |
| Stock Number | EAD |
| Connection Size (in.) | 1 |
| Subcategory 2 | Control |
| Warehouse Location | PA2A3 & PA4G1 |
| Connection Type | FNPT |
| Body Style | Angle body |
| Body Material | Steel |

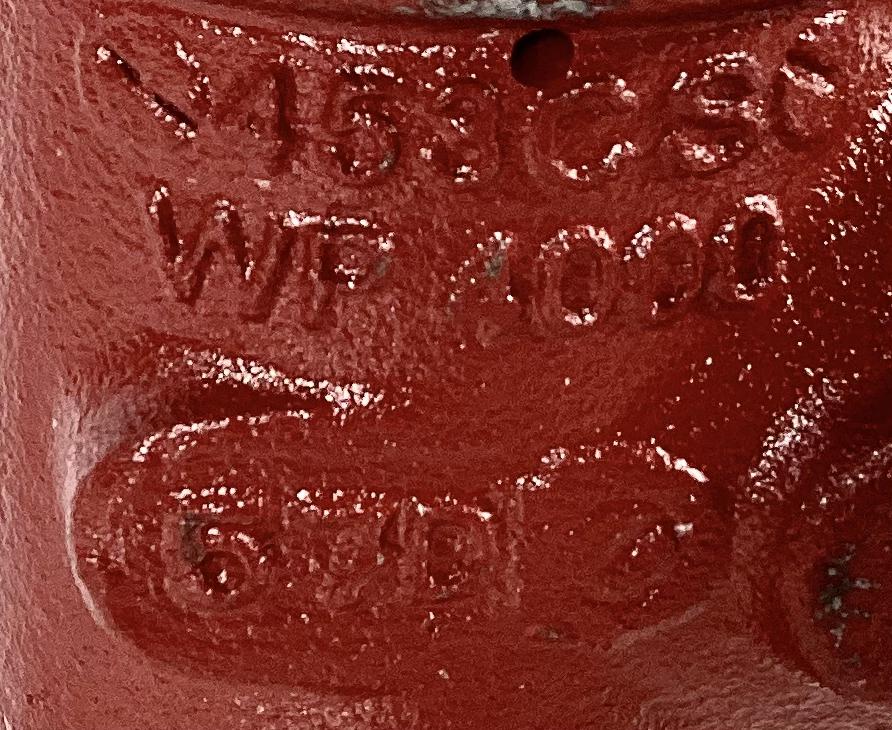

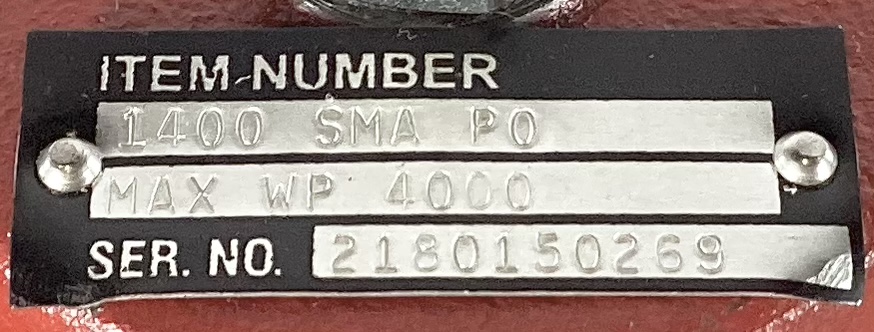

| Max Working Pressure (psi) | 4000 |
| Operation | Pneumatic |
| Trim Size (in.) | 1 |
| Trim Type | Linear (Nominal) |
| Process Fluid | Liquid and Gas |
| Fail Position | Closed-Field Reversible |
| Origin code | OC01 |
