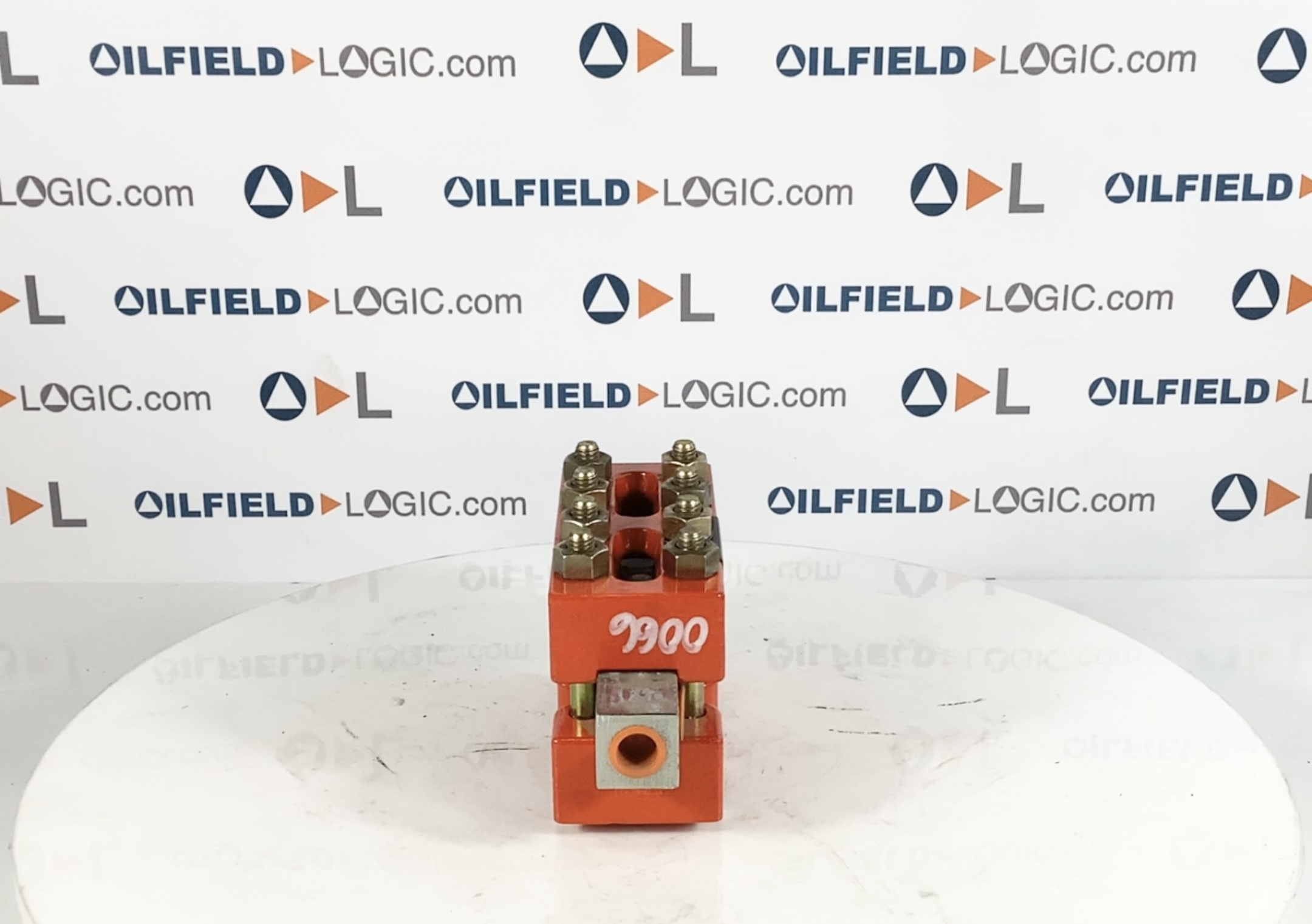

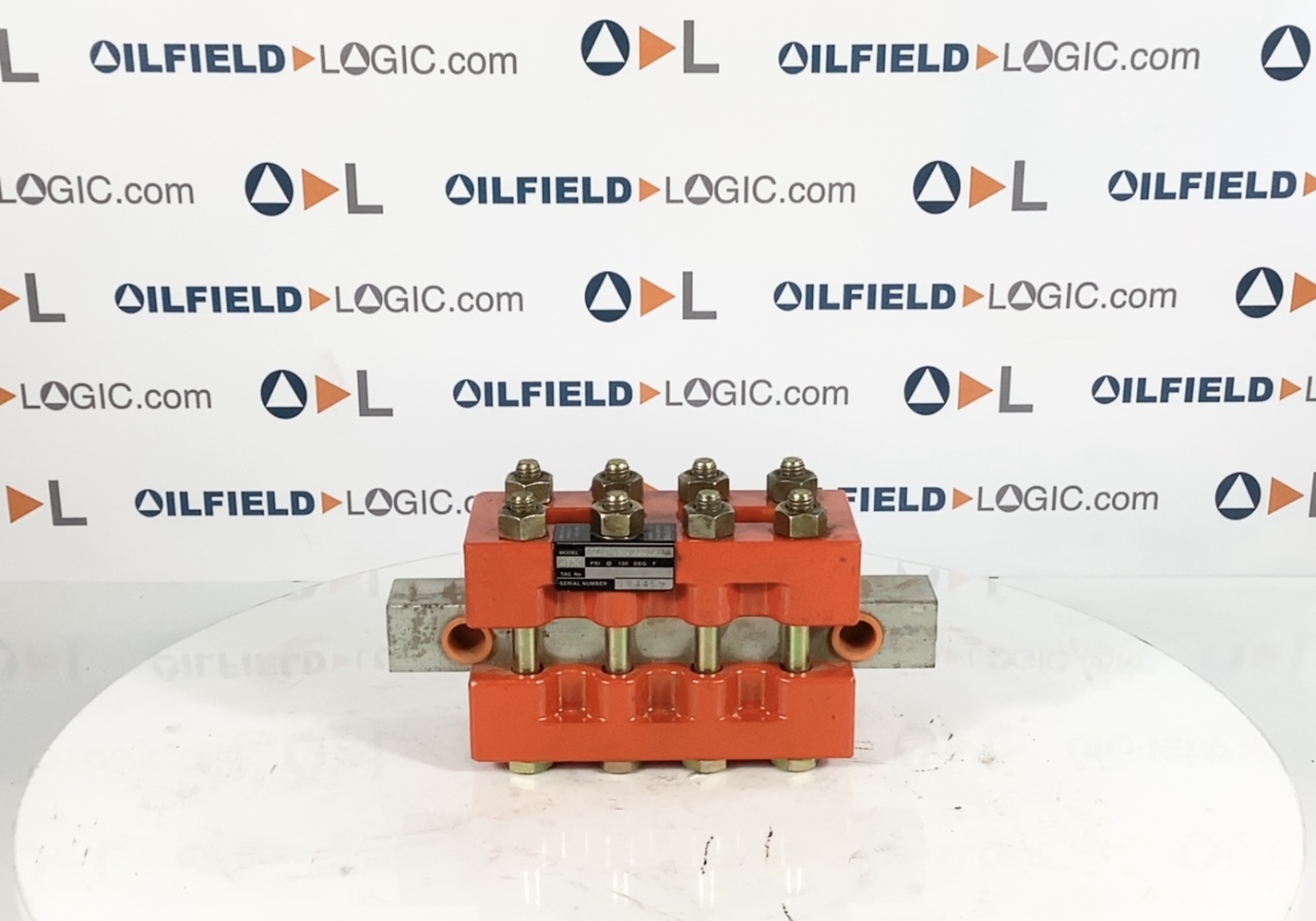

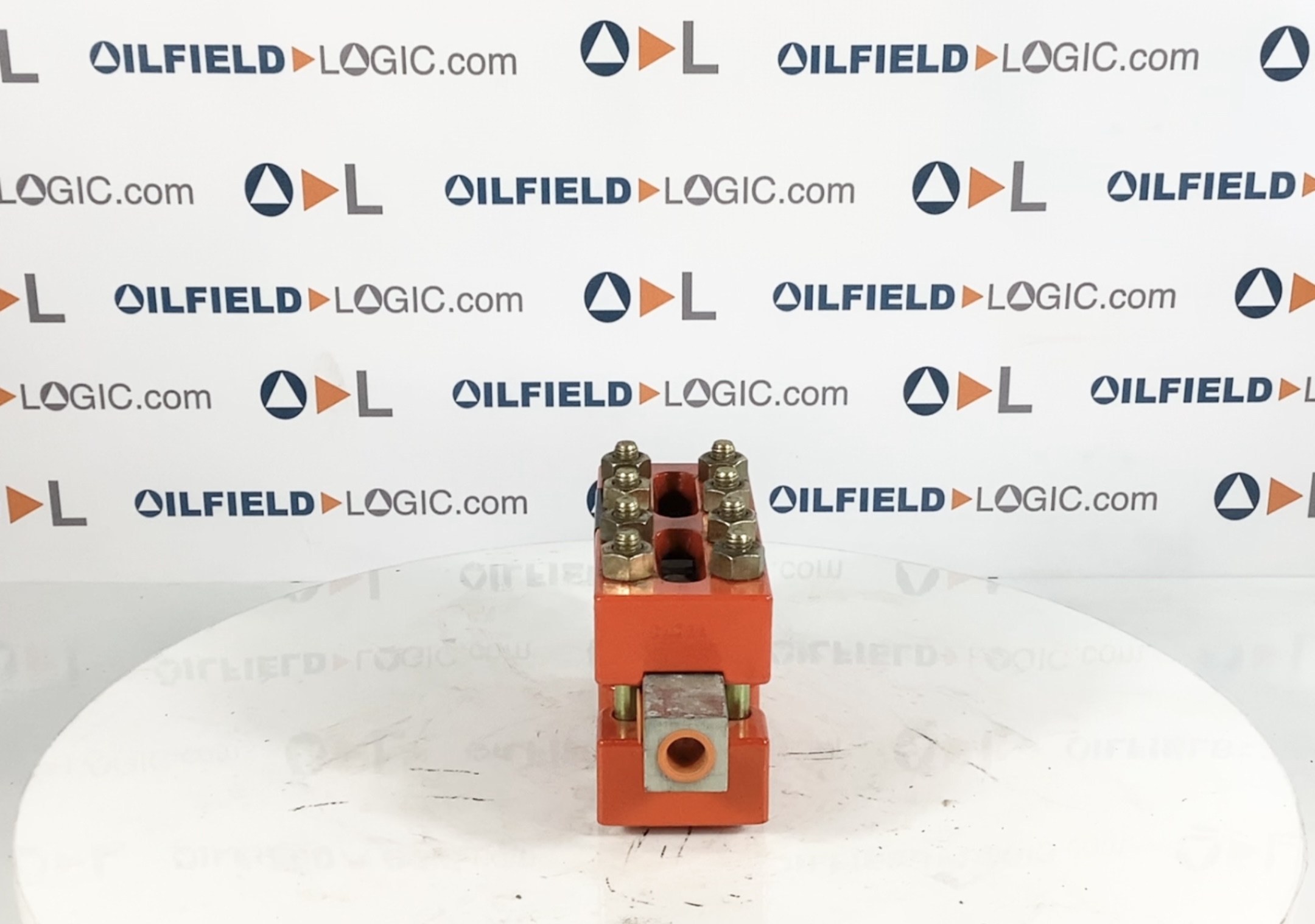

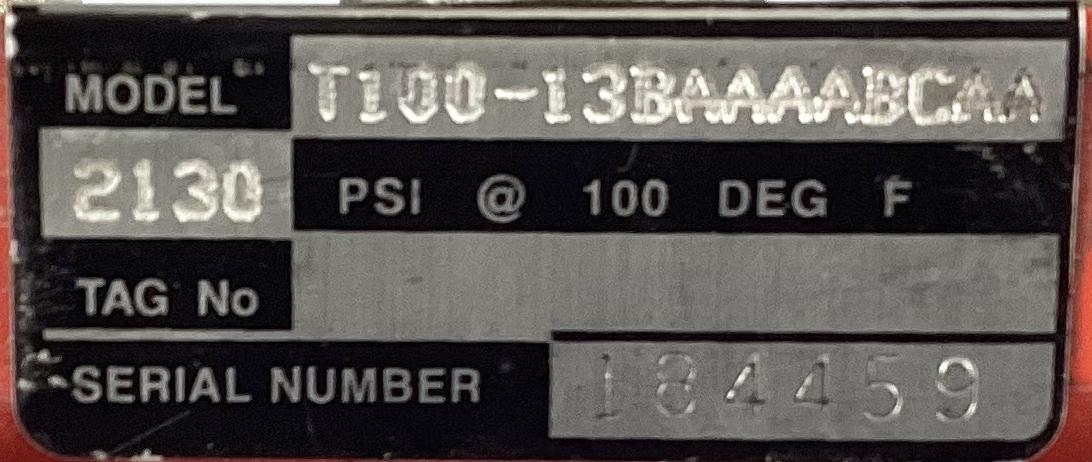

Gauge, Level, Liquid, 1/2"x1/2", 2130#

Inferno T100 Sight Glass

• Tempered borosilicate glass, Maxos® brand
• Gage body (wetted) per NACE
• Cover flanges, powder coated steel (standard)
• or stainless
• B7 bolting, zinc plated (standard)
• B7M, de-rate 20%
• B8M Class 2, de-rate 15%
• Flexible graphite seal / compressed fiber cushion
• Cross ties for added strength, undercut permits
• “behind-the-bar’ vision for complete view, design validated by FEA
• Gage support for long / heavy gages (either factory- welded brackets or lift-from-below angle plate)
• Large thru-bore (0.59 Ø) between sections allows brush access for cleaning
