Valve, Control, Thermostatic Temperature , 3/8", 4000BTU

Thermostatic Temperature
Control Valve
•

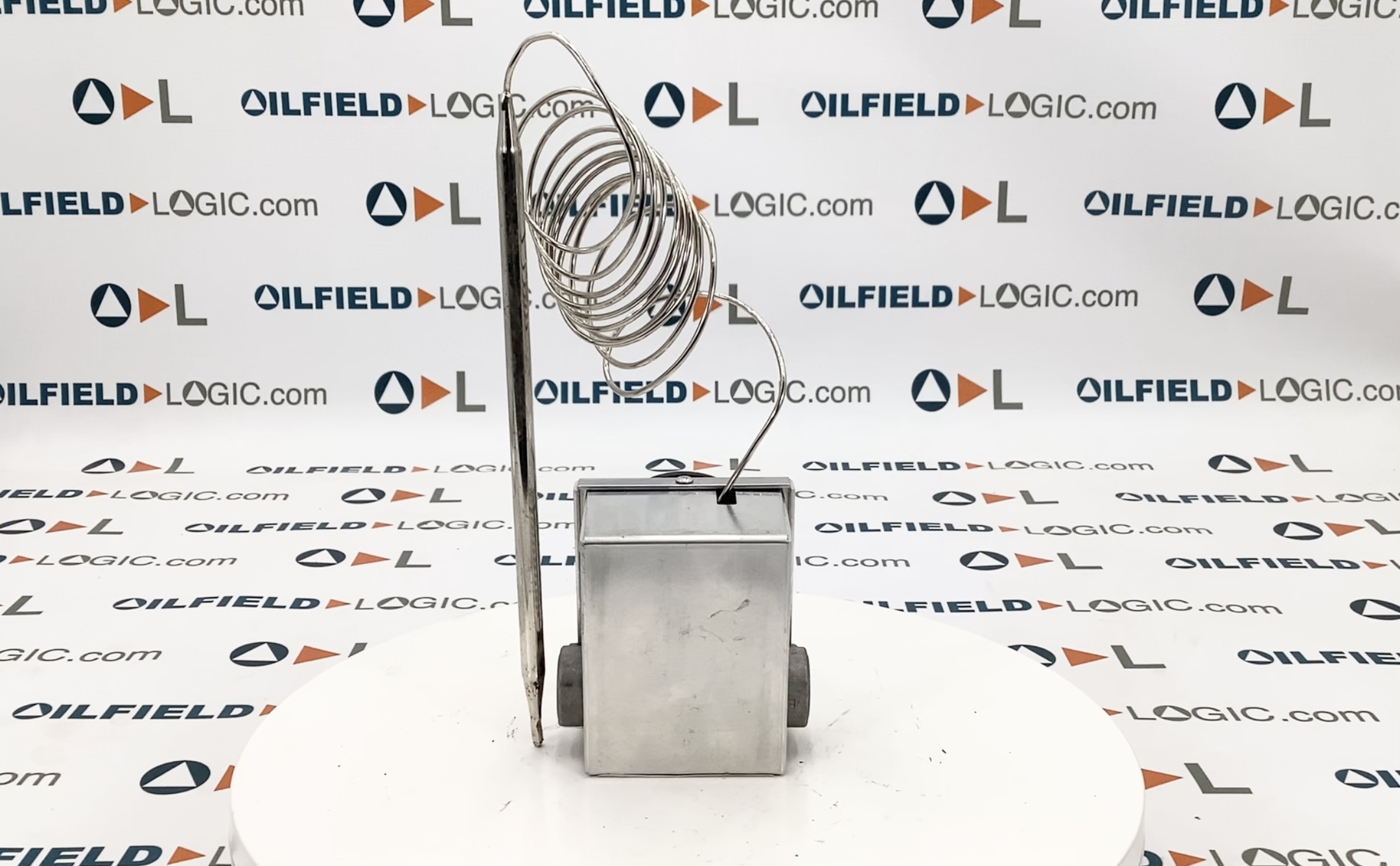

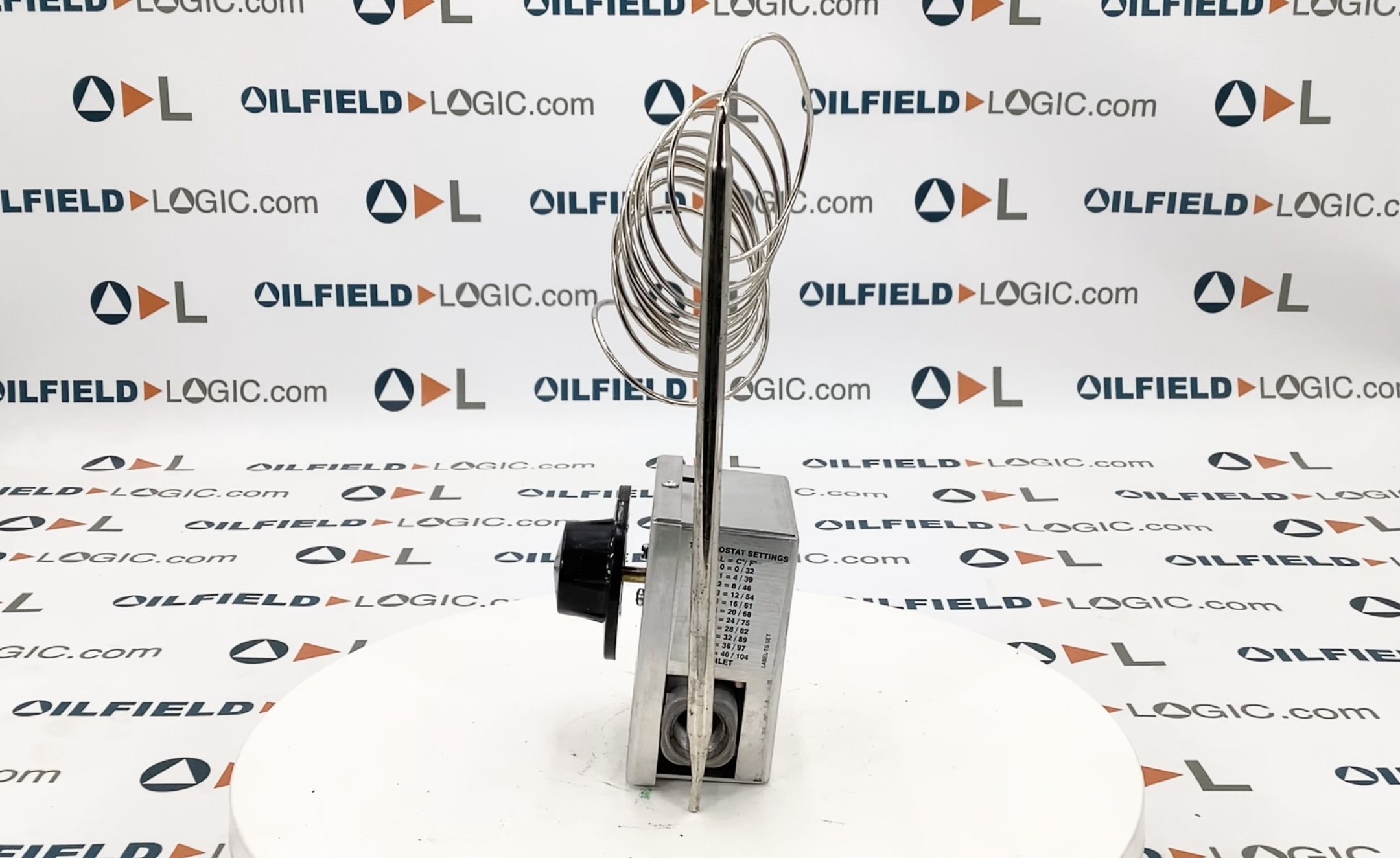

This valve is designed with a bulb and capillary assembly that automatically regulates fuel flow to a
Cata‑Dyne™ heater from 100% when heat is required to approximately 30% when the thermostat is
satisfied
•
This unit is used to control building temperature for spot and space
heating applications
•
The sensing bulb is filled with a temperature sensitive liquid. Changes in the temperature at the bulb
expand and contract the liquid on temperature rise and fall causing the internal mechanism to modulate
the flow of fuel
•
Temperature control range of 0°C to 44°C (32°F to 110°F)
•

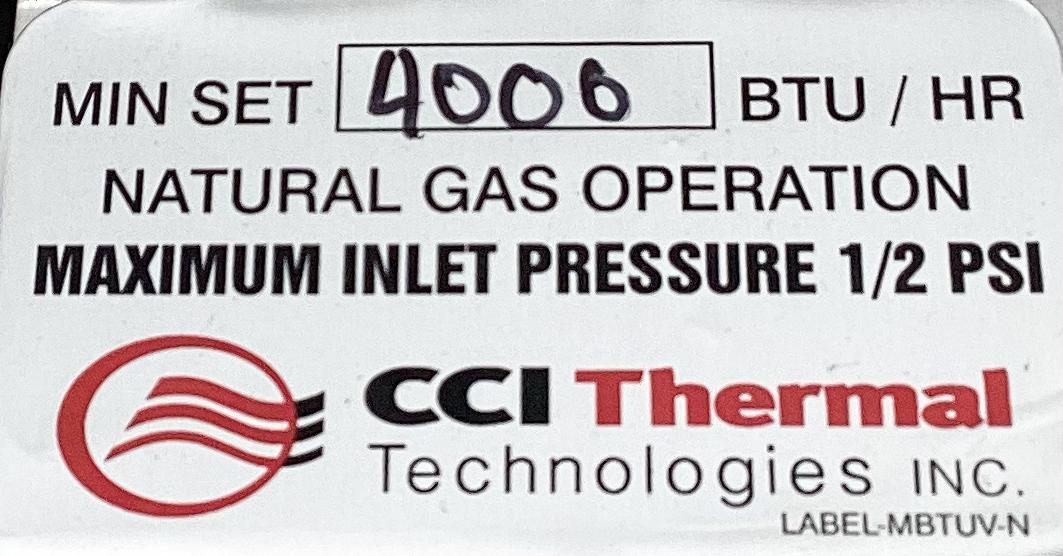

Maximum inlet pressure of 1/2 psi
•

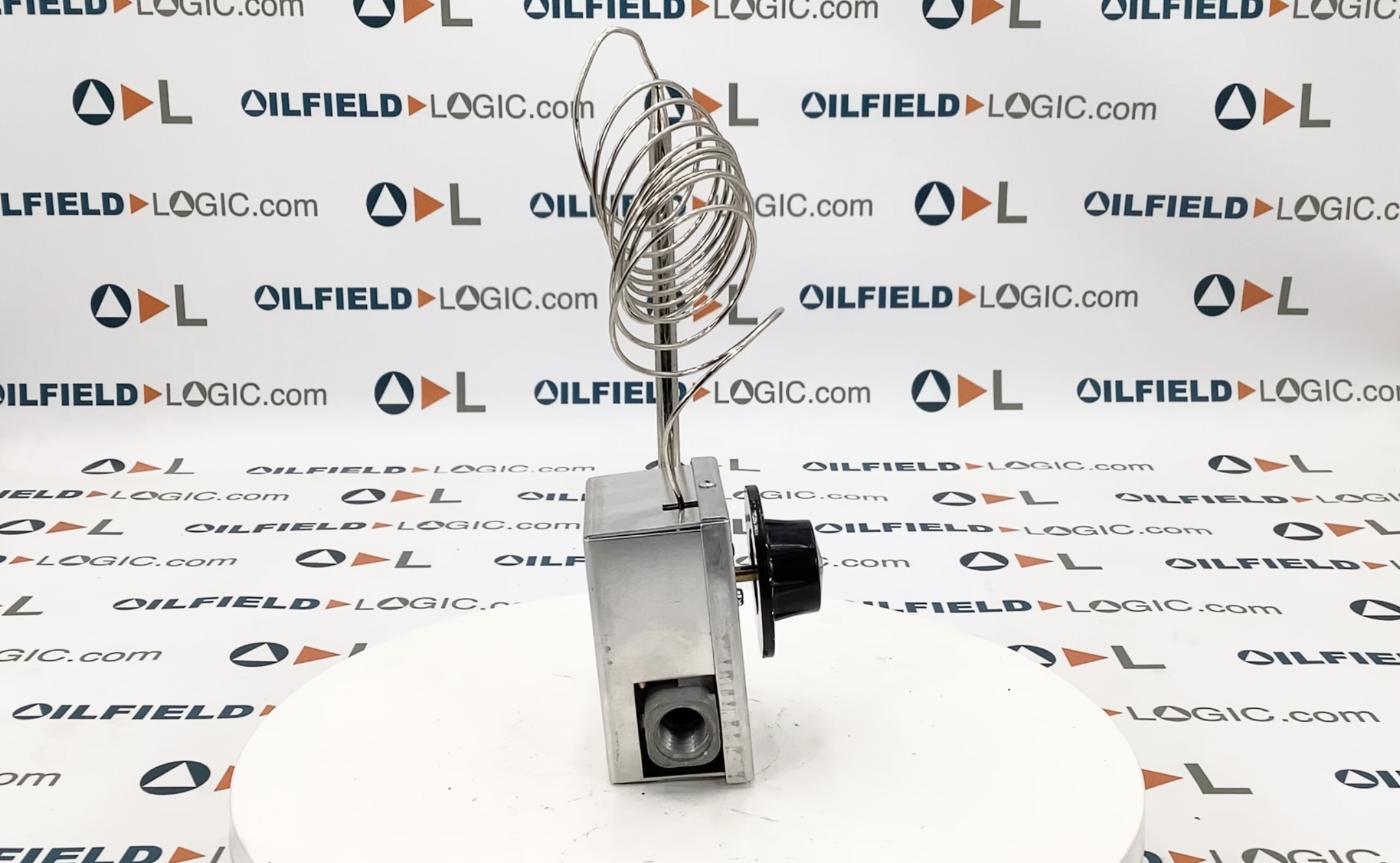

Each unit has a connection size of 3/8" NPT female and a capillary length of 5 ft (1.5 m)
•
No electrical power is required to operate this unit
•
Controls are factory set to specific Btu and fuel ratings for specific heater types and sizes. Contact
factory for the appropriate thermostat control valve.
•
Certifications
– CSA approved
