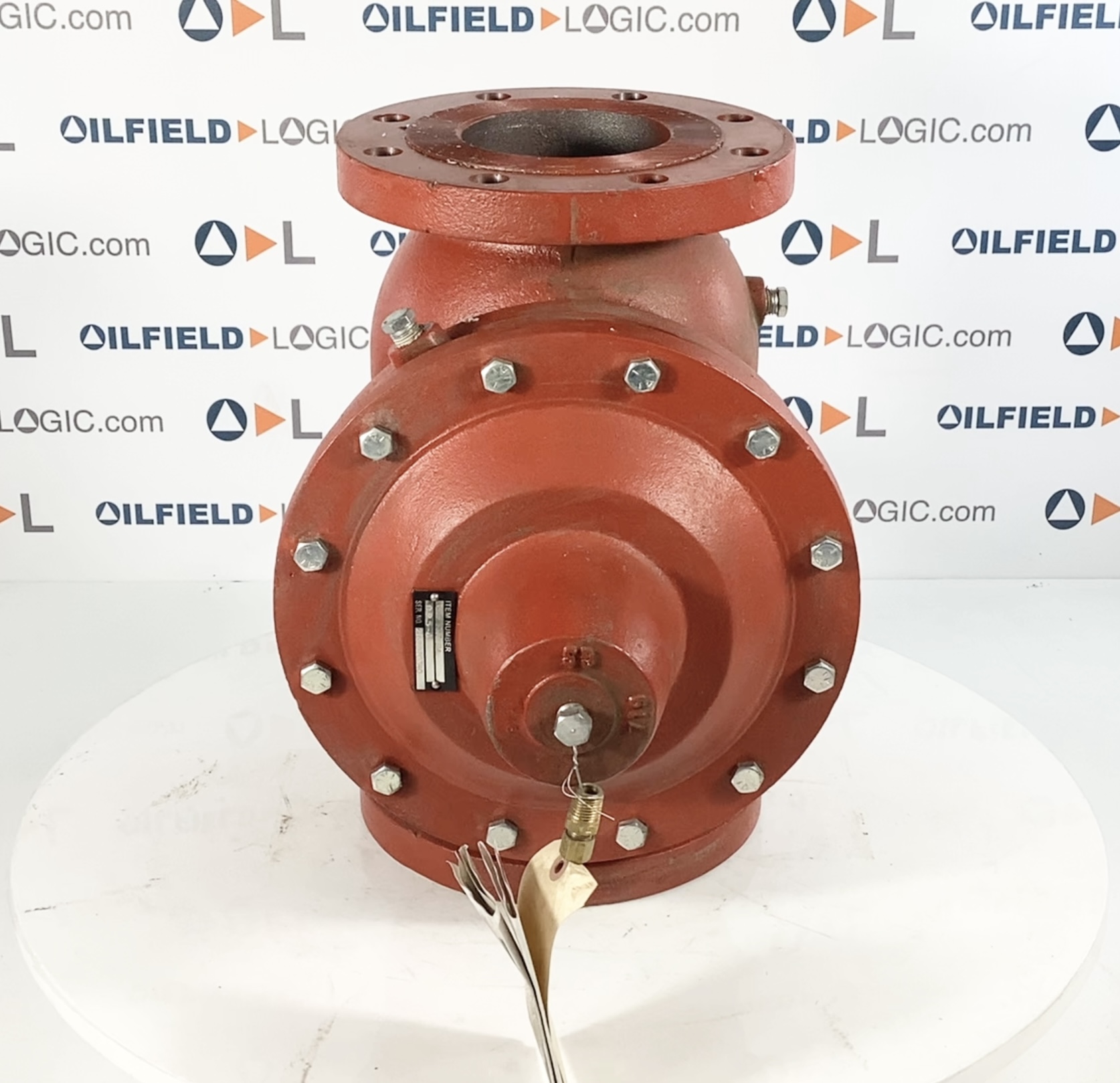

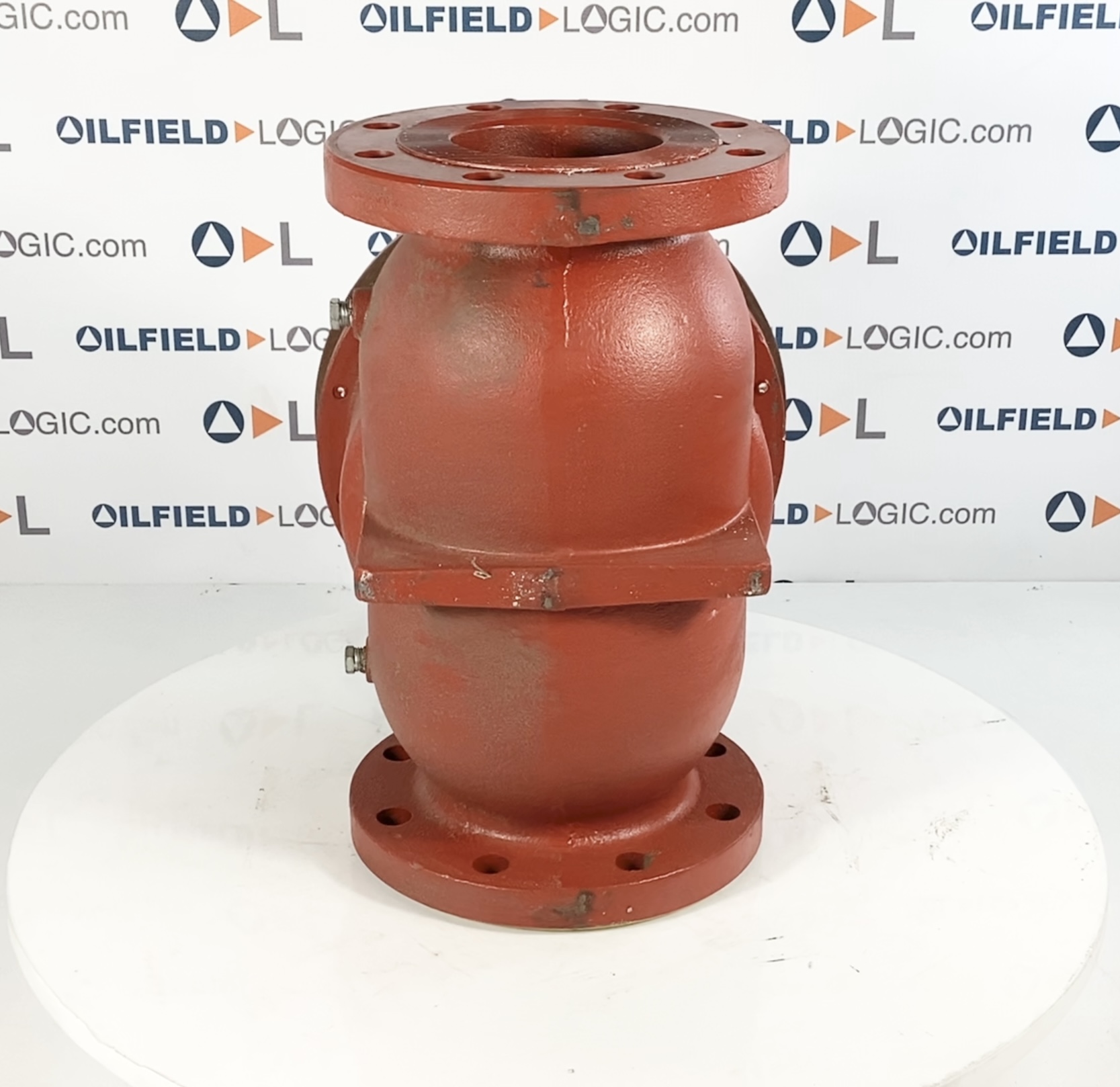

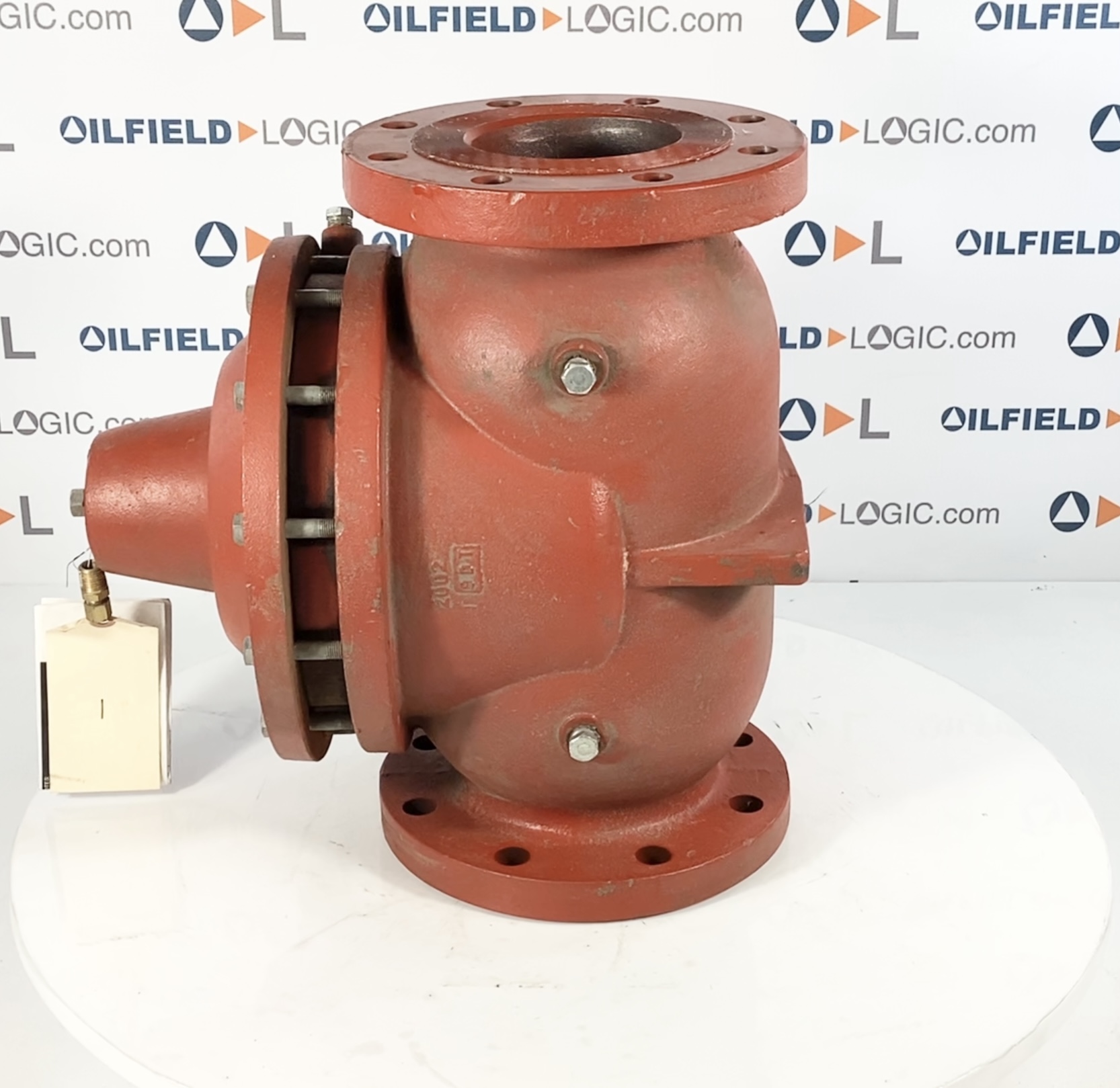

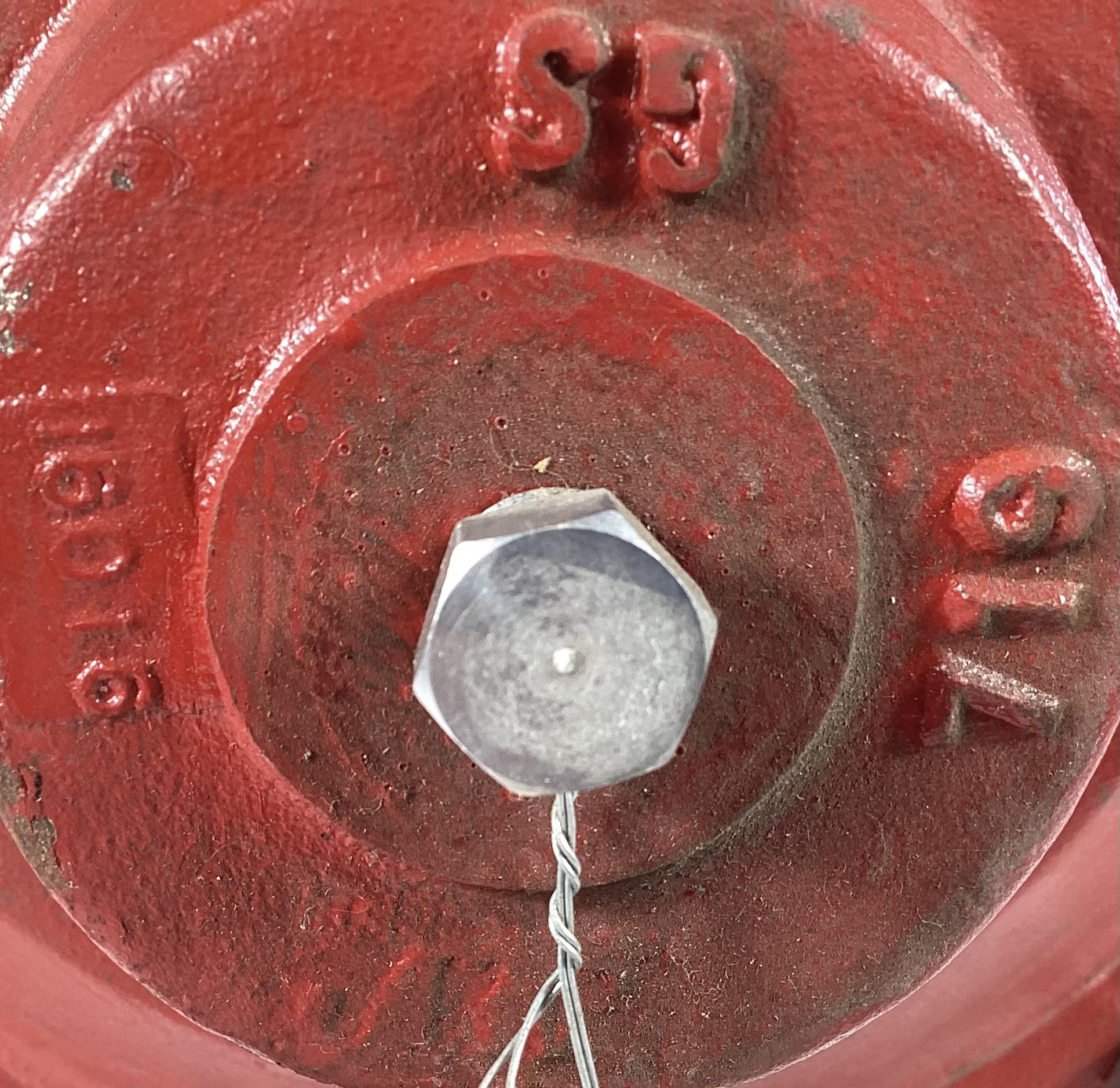

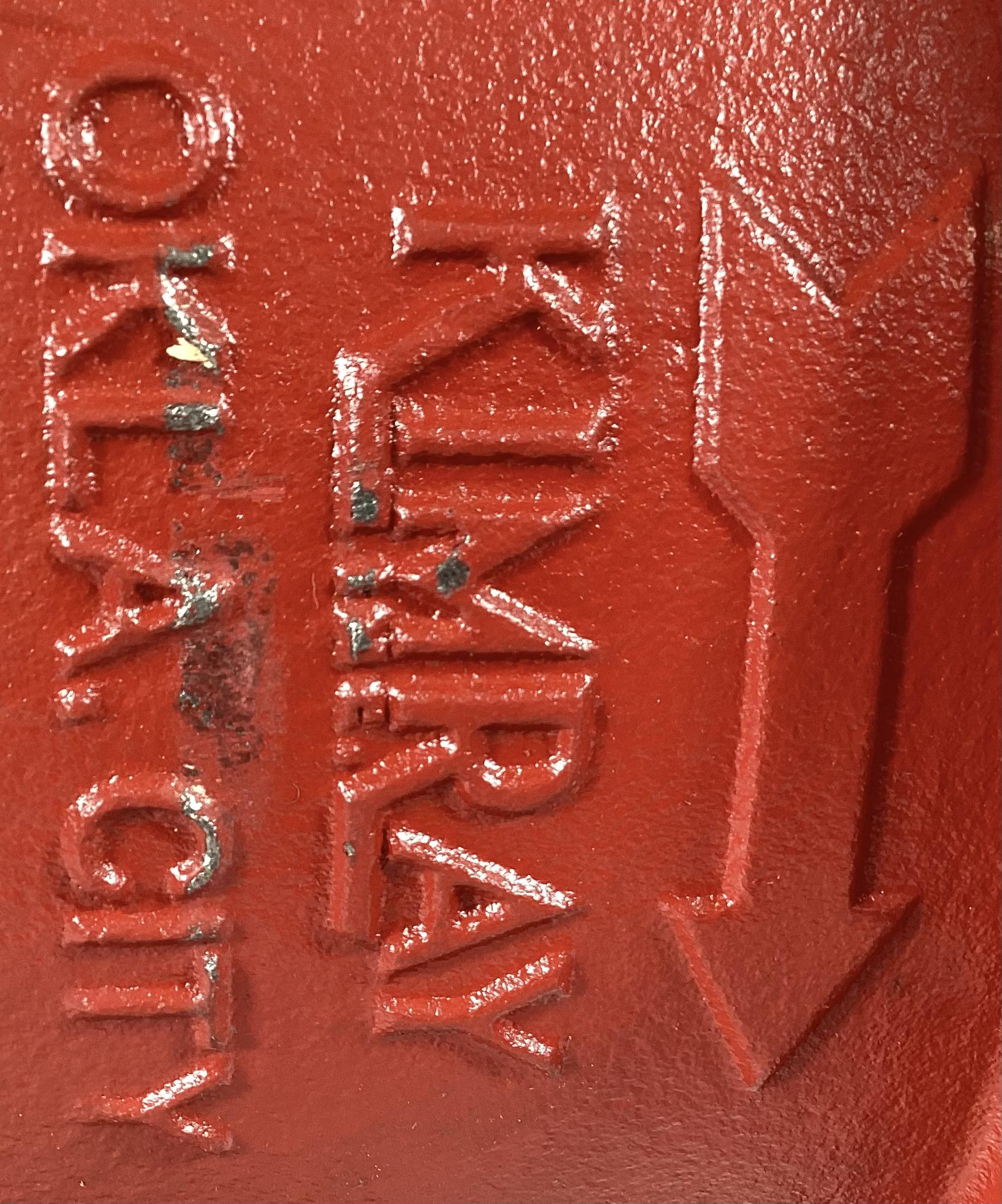

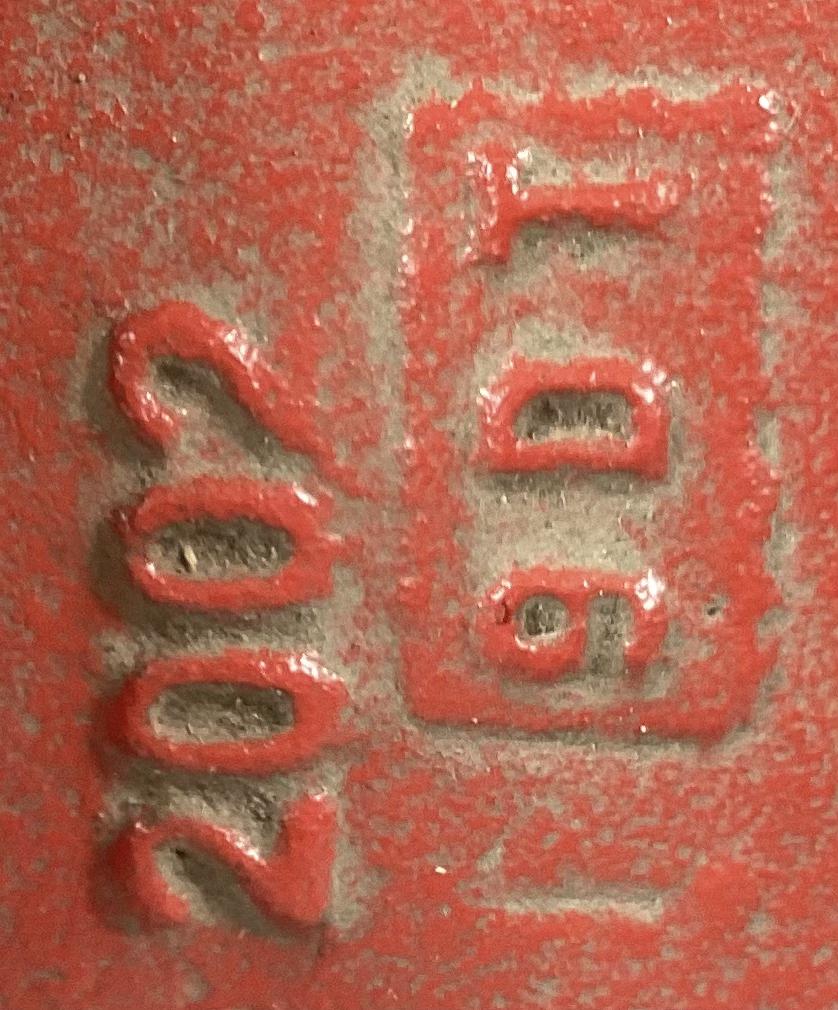

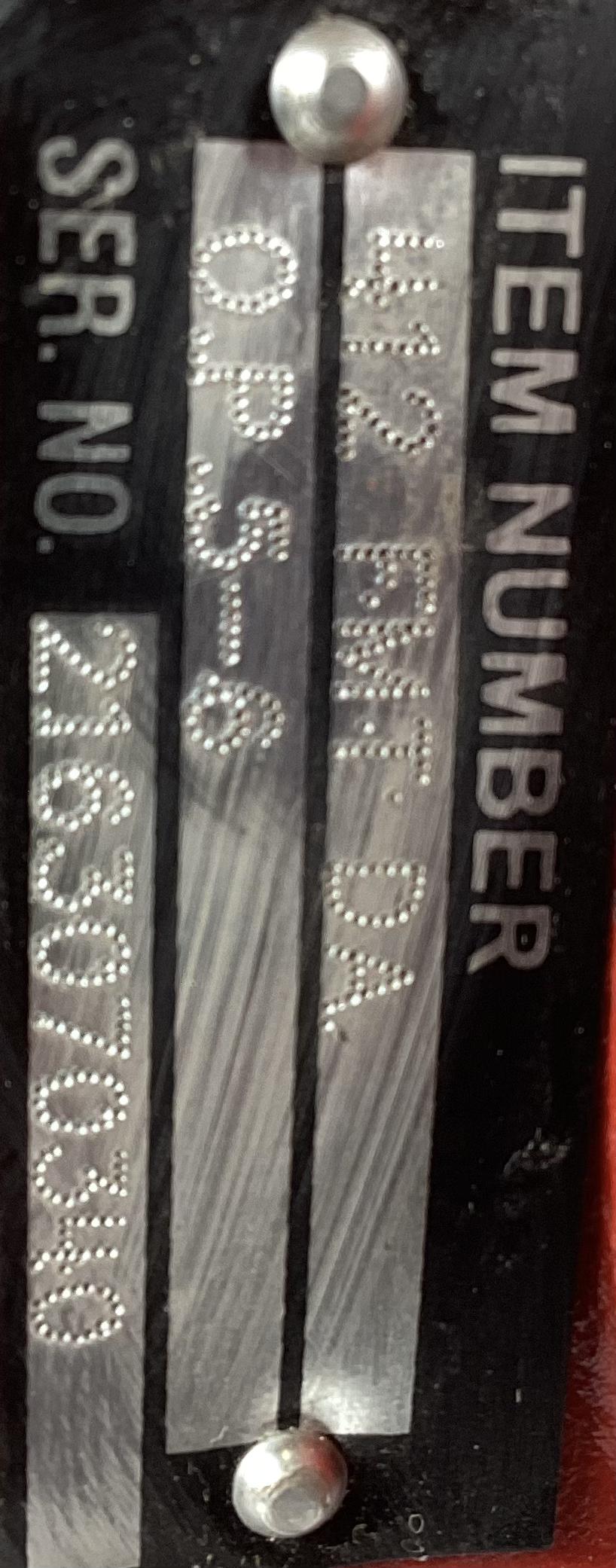

Valve, Control, Kimray, 4" Body, 175#

APPLICATIONS:

Liquid metering vessels where a back pressure is desired.

Any system which requires a valve to receive a 30 psig maximum pilot signal on either or both sides of the main diaphragm operating at pressures up to 300 psig.

FEATURES:

Tight shut-off

Single soft seat

Removable valve seat

All internal parts can be removed with valve in line

Full line size opening:

Ratio of diaphragm to seat area is 2:1

Reduced opening:

Ratio of diaphragm to seat area is:

8:1 on 1" & 5:1 on 2", 3'', 4", and 6"

Operational Pressure Ranges for Standard Configurations:

Full line size opening:

Spring loaded to hold 5 to 6 psi back pressure

Reduced opening:

2-6": Spring loaded to hold 12 to 15 psi back pressure

1": Spring loaded to hold 30 to 35 psi back pressure

Configurations for additional operating pressure ranges are available. Refer to Table A1 for additional configurations.

CERTIFICATIONS:

Canadian Registration Number (CRN):

OC15737.24567890NTY (Ductile)

OC15620.24567890NTY (Steel)

Kimray is an ISO 9001- certified manufacturer.
