GPU, Single, 30"x8', 1440, 1 mmbtu
GPU, Single, 30"x8', 1440, 1 mmbtu
$40,000 (USD)
Location:Pennsylvania
orCall 1 (844) 564-4237
Description

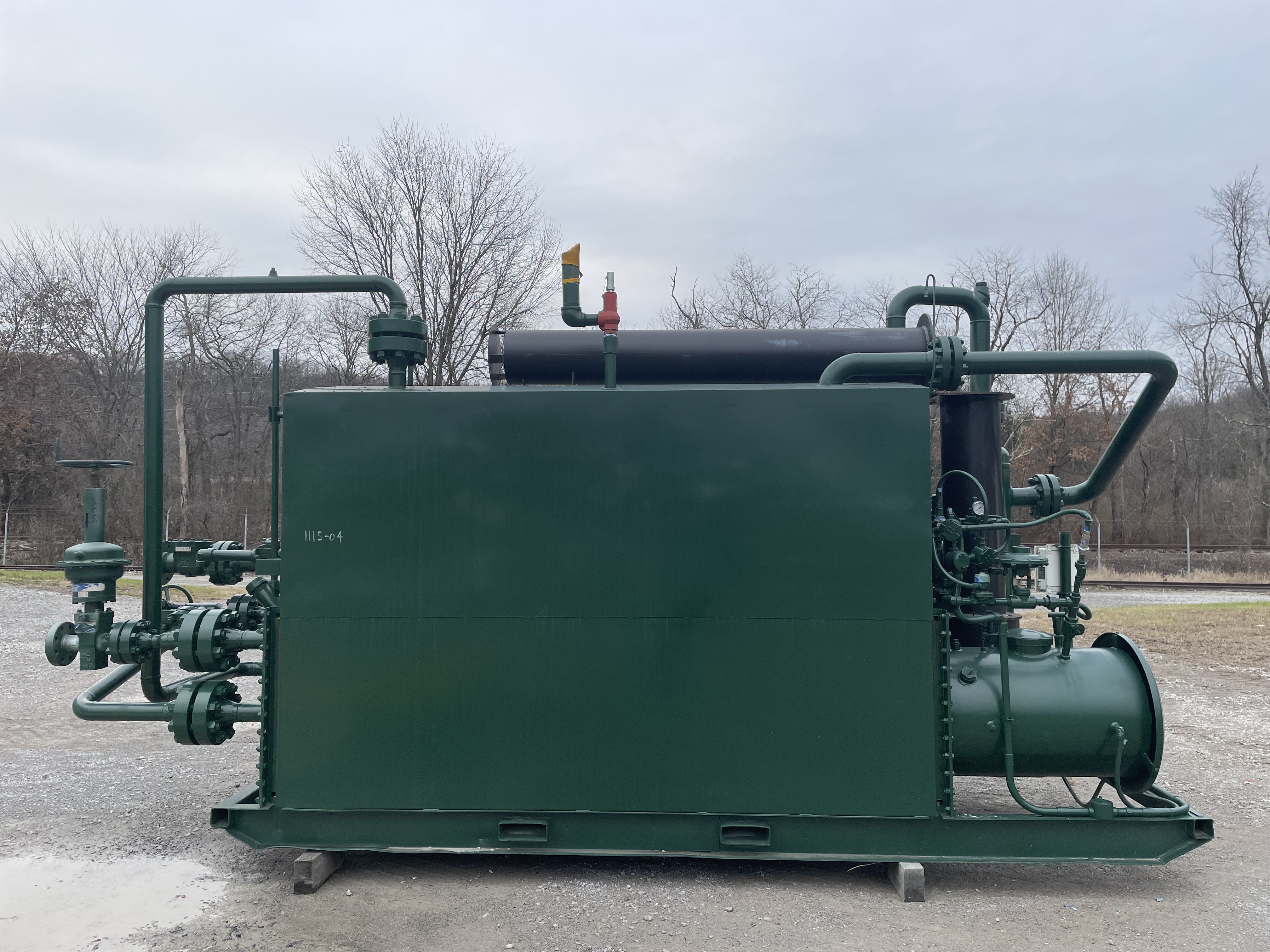

Refurbished gas production unit with a 30"x8' 1440# 3-phase separator. Heater has a 1 mmbtu/hr burner. Coil pack has a 3"XXH preheat with 6 passes rated at 5000#, and a 3"XXH expansion with 8 passes rated at 5000#. Coil ESD leaks by and will need removed or replaced. Unit has been fully refurbished and all supporting documentation can be found below under the documents tab.
Specifications
| Manufacturer | Pride of the Hills |
| Model | 30"x8', 1440# Sep, 3" 5,000# Coil |
| Year | 2012 |
| Condition | Refurbished |
| Serial Number | 1115-04 |
| Stock Number | NB20534 |
| Vessel | Horizontal 3-Phase 30"x8' 1440 MAWP |
| Subcategory 2 | ASME |
| Coils | 3"XXH 5000# x 3"XXH 5000# |
| Heater rating | 1 mmbtu/hr |

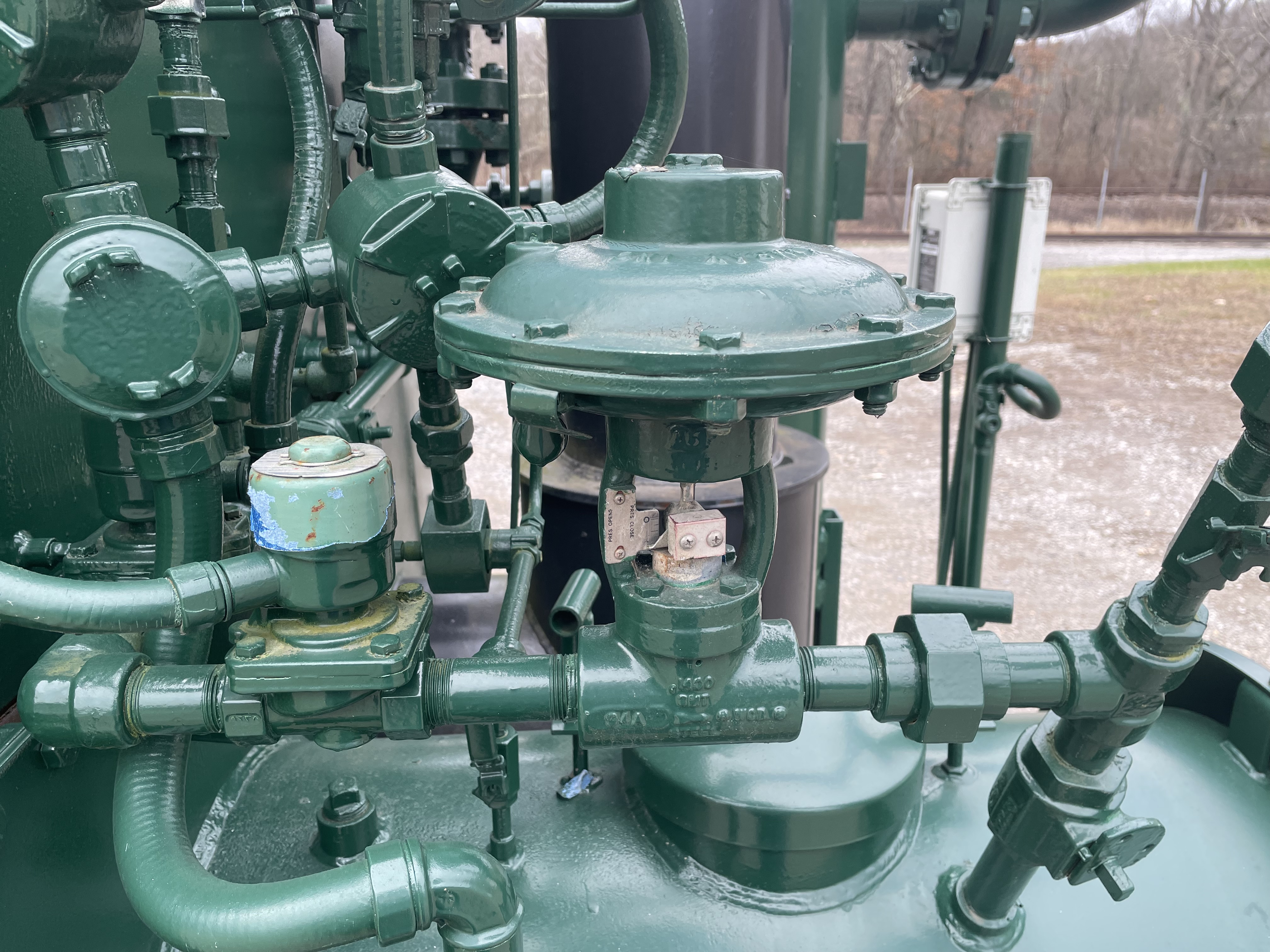

| Accessories | (1) Taylor Choke, (1) Wellmark 2" Motor Valve,(1) Wellmark 1" Motor valve, (2) Wellmark LLC's, (1) Kimray 1" Motor Valve, (1) Profire 2100, (1) Fisher 4660, (2) Recertified PRV's, (2) High pressure sight glasses, (1) Fisher "Big Joe" regulator. (1) scrubber pot, (1) 4" Sure Shot Meter run, (1) PSO bottle, (1) 1" flow meter, Stack hardware, and all other controlling instruments |
| Work Recently Performed | Fully Refurbished |
| Wear and Tear | None |
| Notes | ESD leaks by |
| Origin Code | OC01 |
