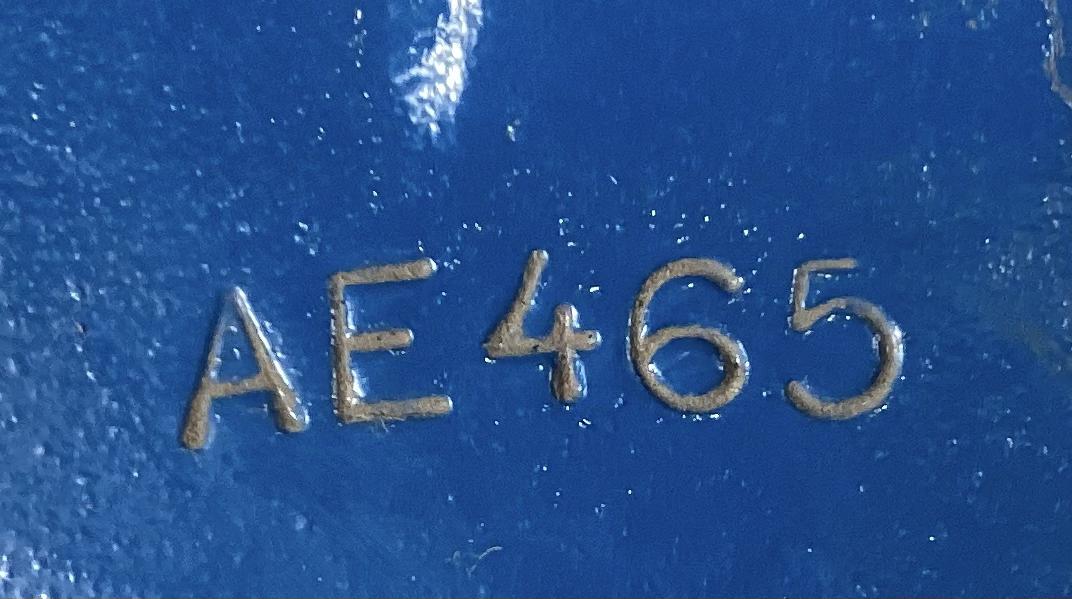

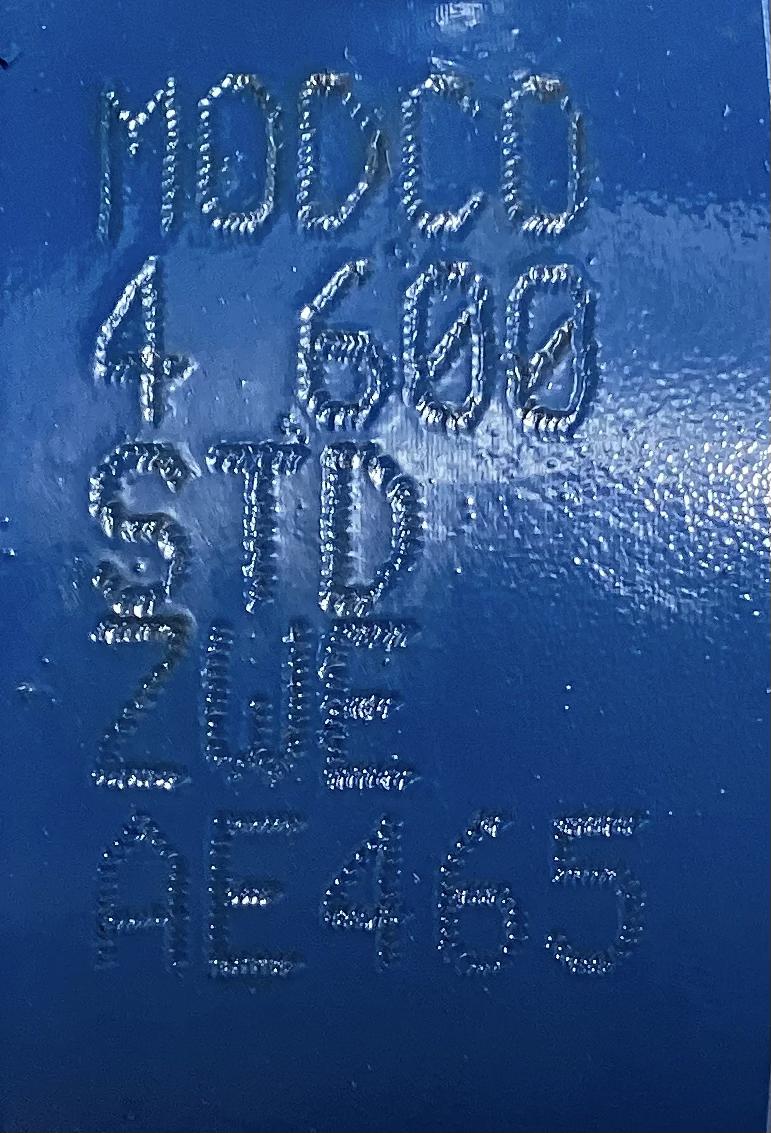

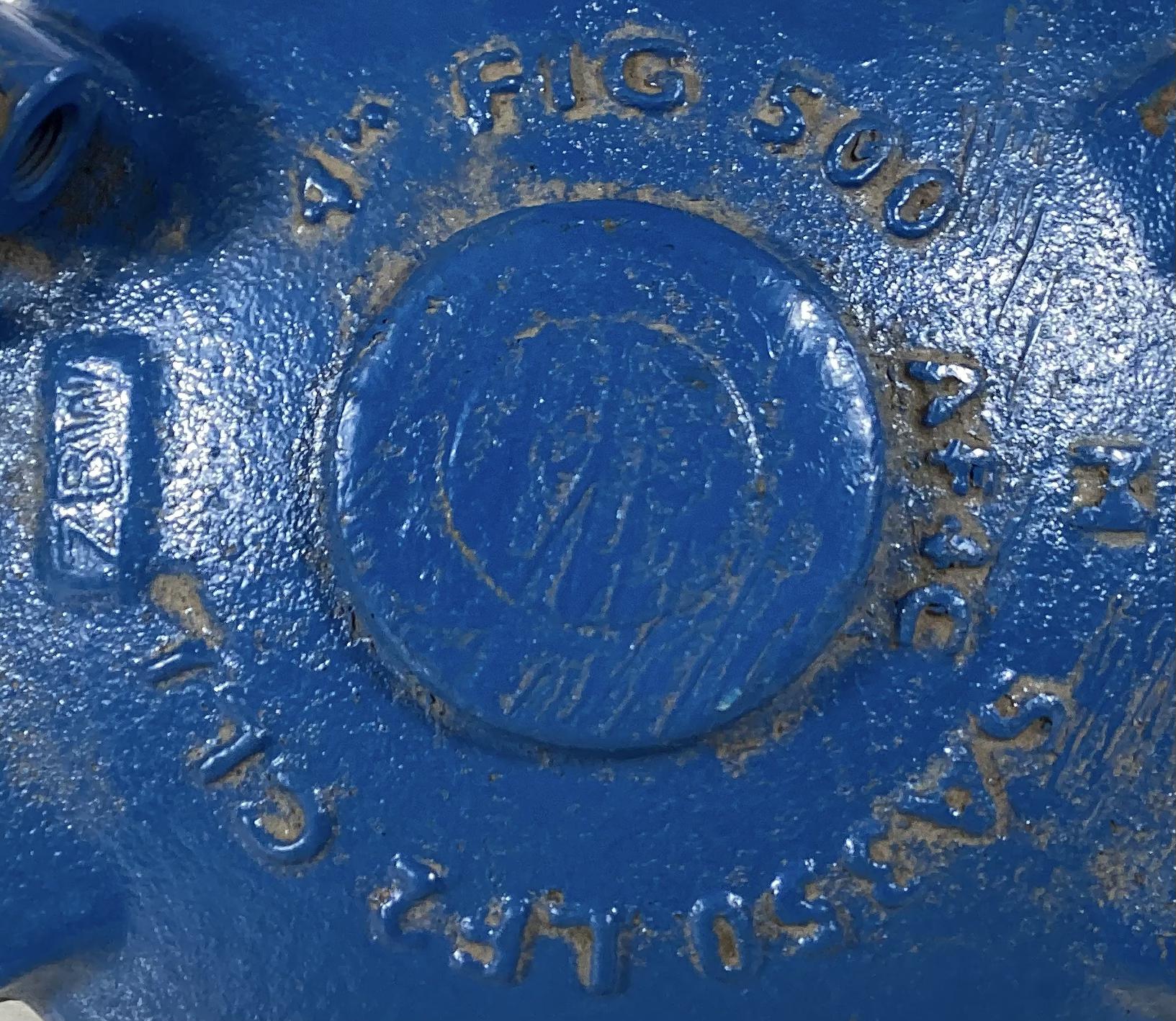

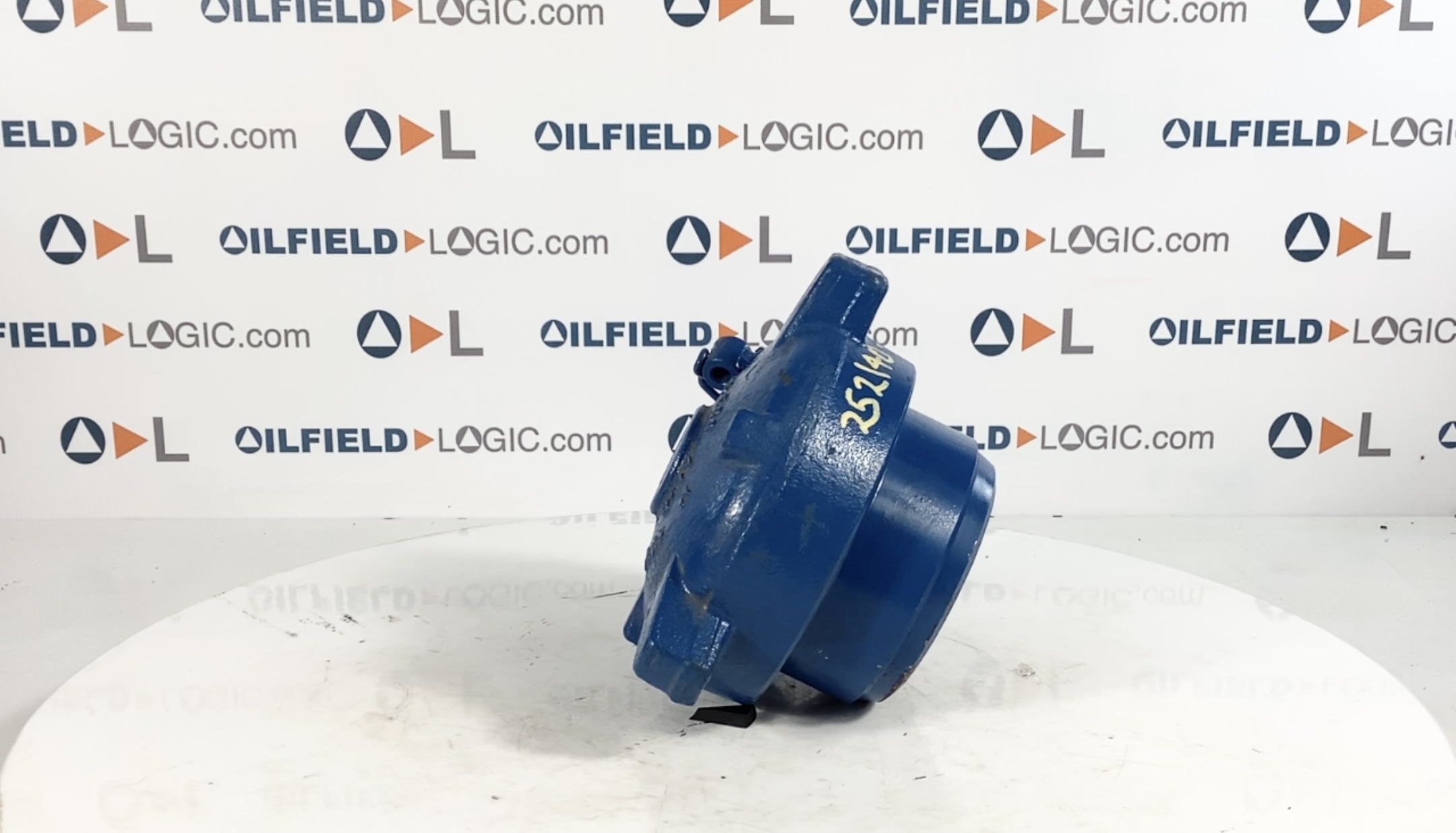

Closure, 4" 600# FIG 500, Quick Open

Modco closures are available for horizontal, vertical or angle applications.

Horizontal closures are equipped with a hinge assembly. Hinge assemblies allow the cap to swivel to the right or the left side once opened.

Vertical closures operate on a davit hinge. These threaded cap pins have the same thread pitch as the cap and hub thread.

Angled closure hinges vary by the specific incline or decline degree. Cap weights vary depending on size but are adjusted to factory specifications prior to shipment. Properly adjusted closures protect the cap from friction of the mating hub thread.

The Figure 500*™ closure can be ordered with various options or combinations.
