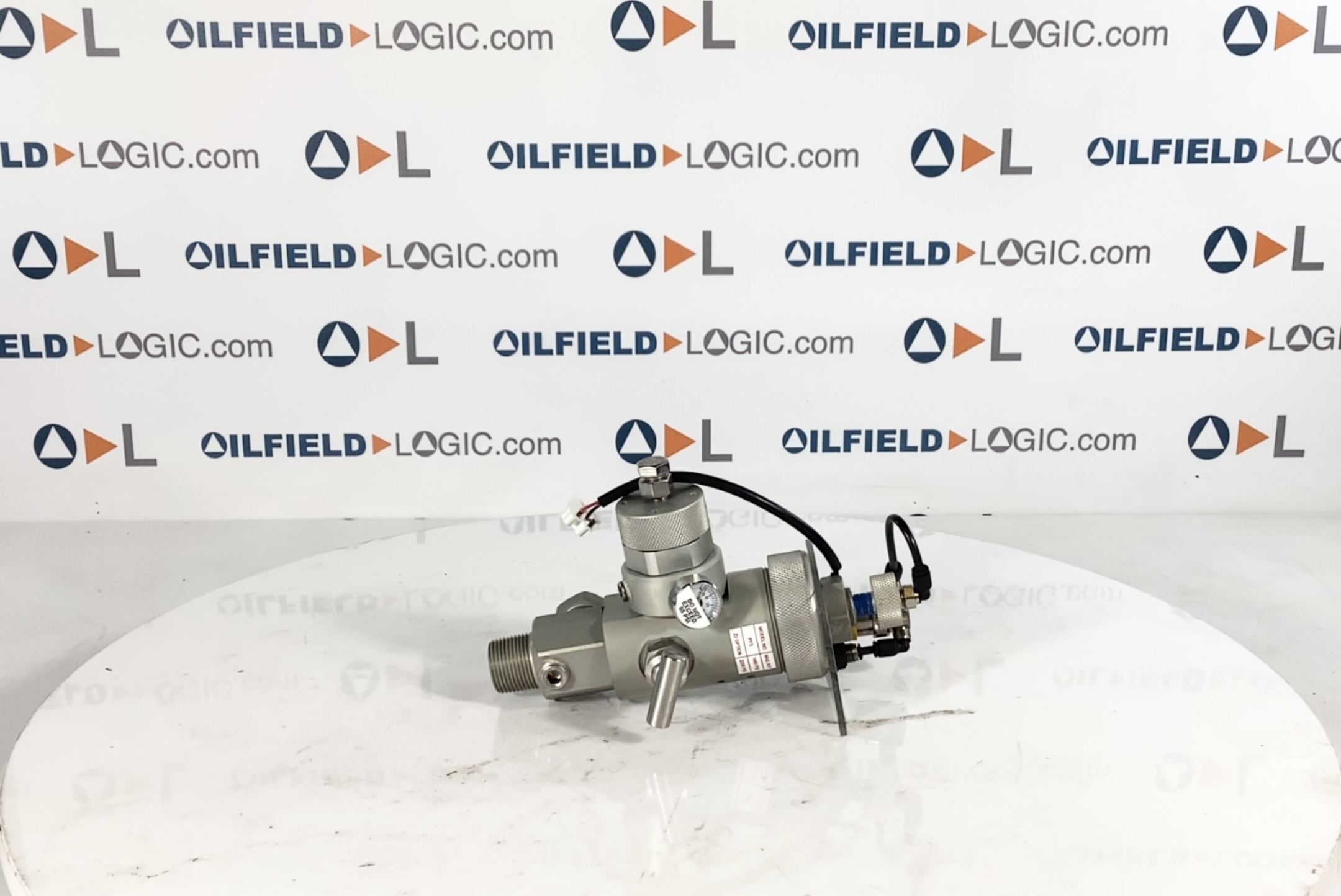

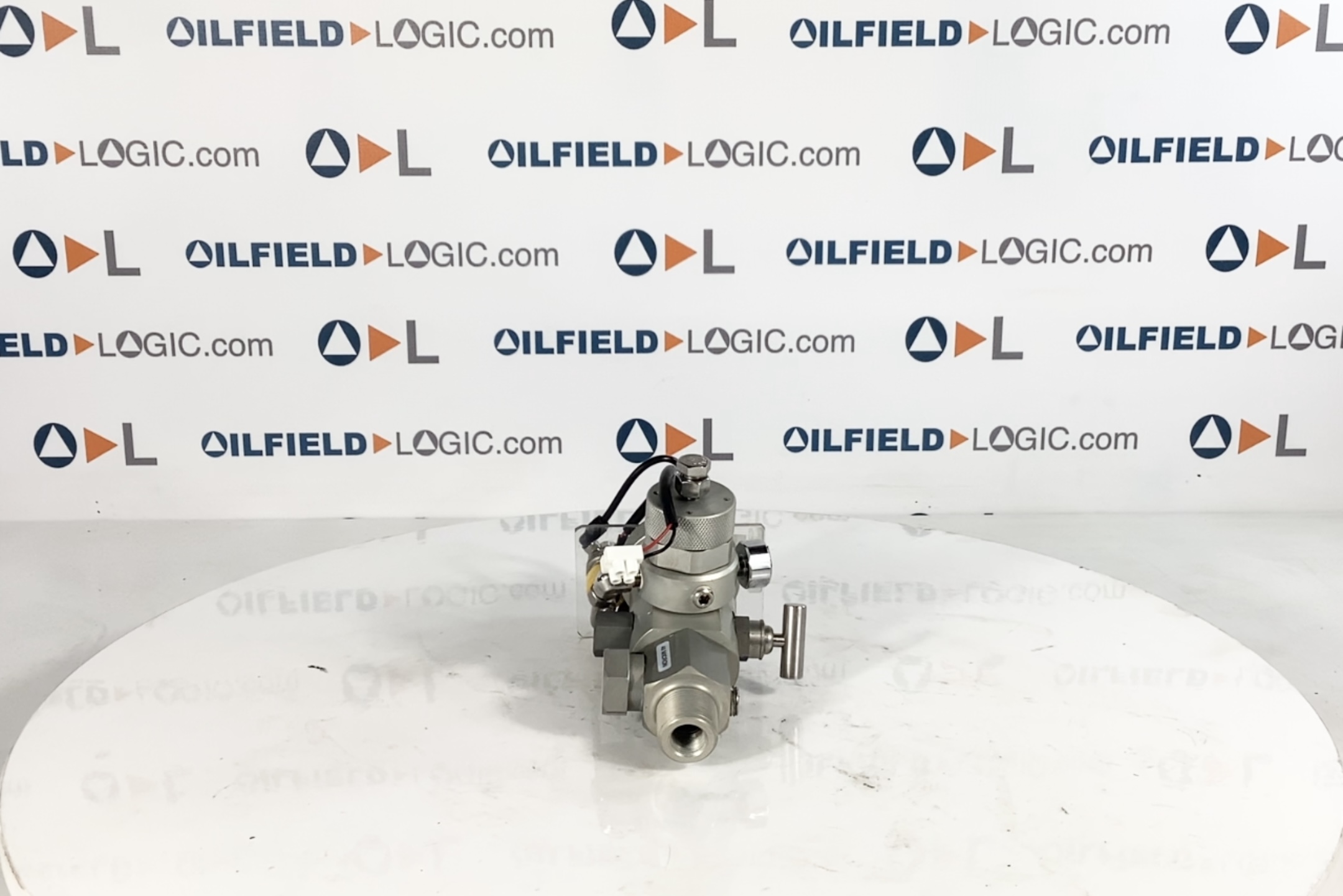

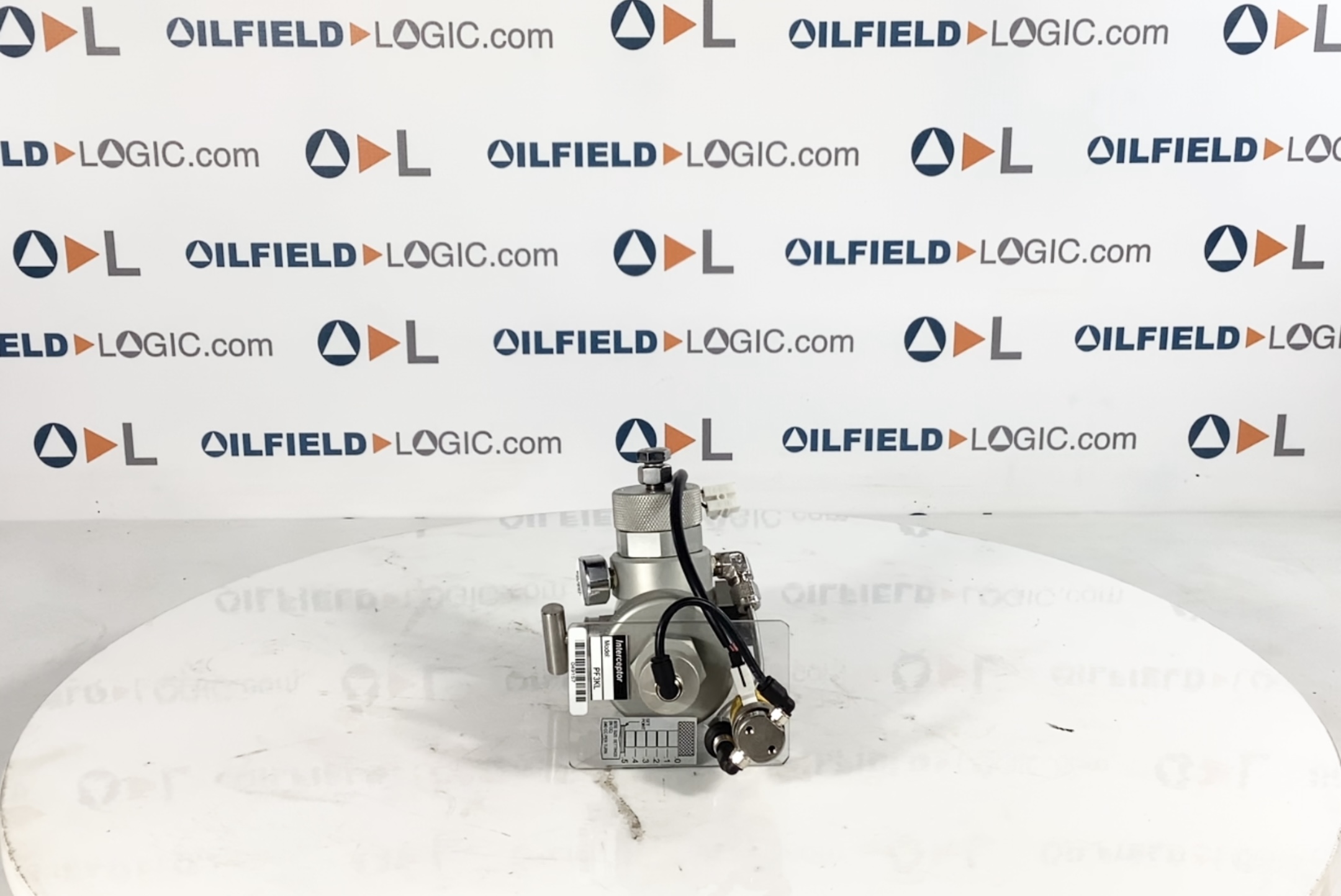

Interceptor Gas Sampler, Model #PF3KL, 1480#

The Interceptor™ gas sampler is a positive displacement piston pump which is powered by a low pressure, gas operated, spring return piston actuator. In high pressure applications, gas directly from the pipeline is regulated by an integral regulator to provide this low pressure gas source. Sampling is accomplished when a 3-way, low power, 6, 12 or 24 VDC solenoid valve is energized, which allows the low pressure gas to perform a downward pumping stroke. After a one second (1 second) "hold in", the solenoid valve is de-energized and the actuator spring returns the piston to begin the next pumping cycle.
