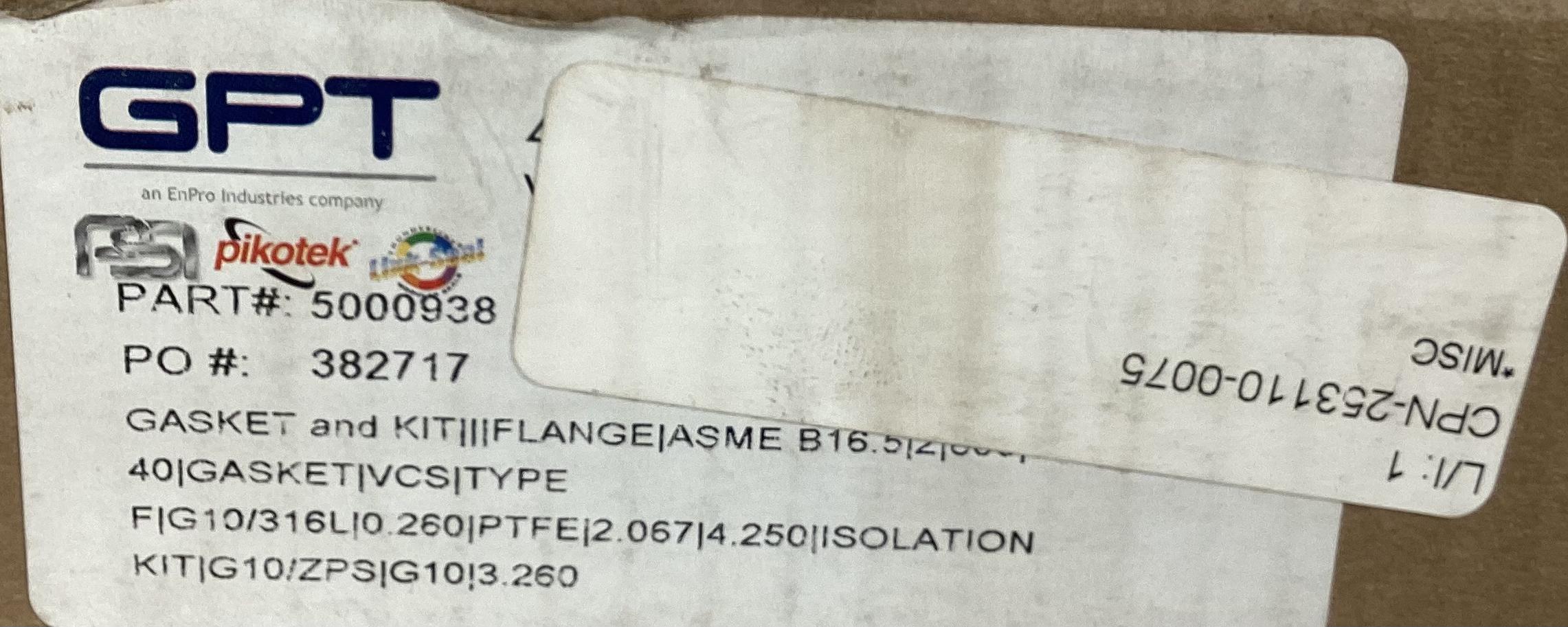

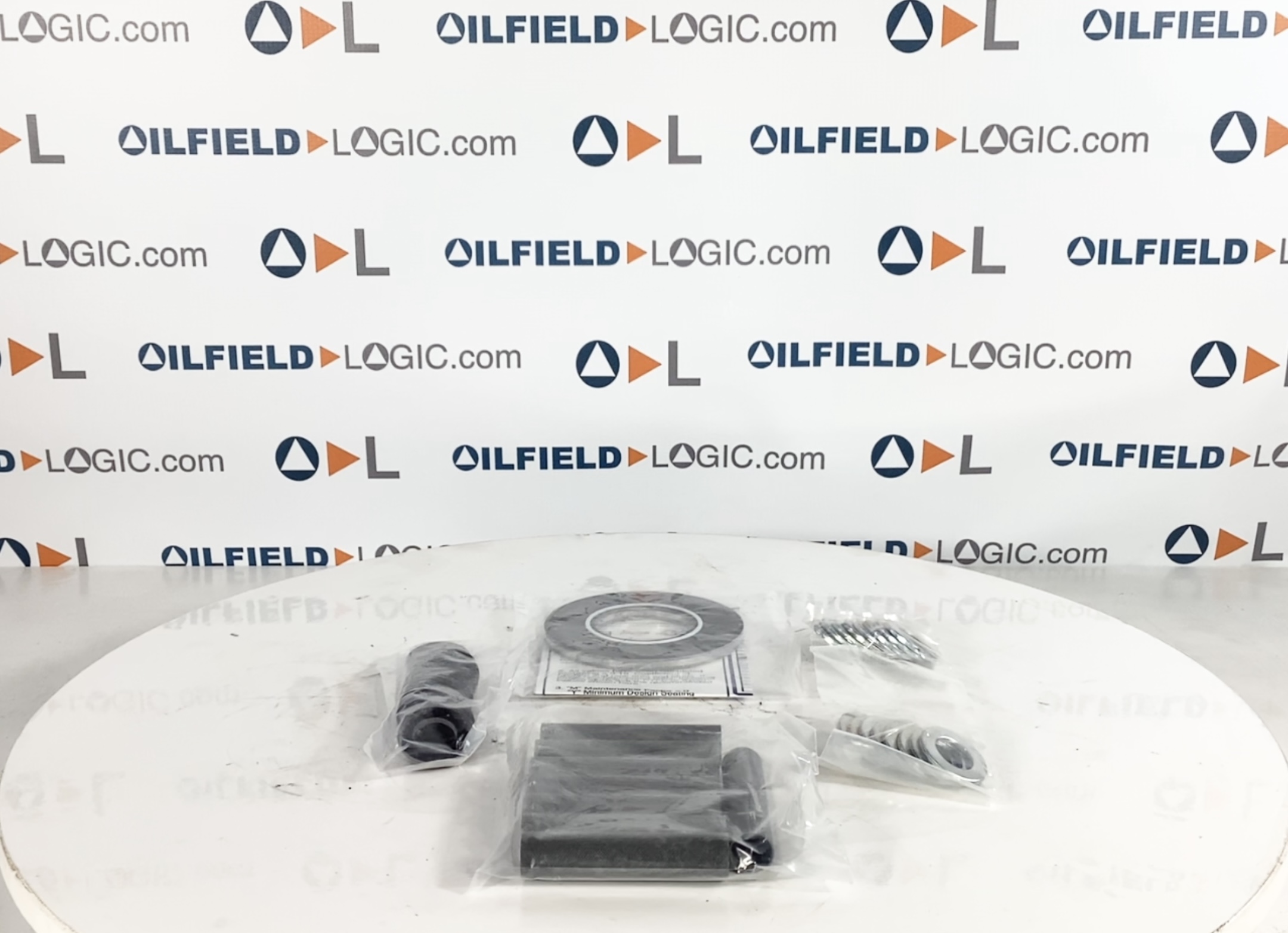

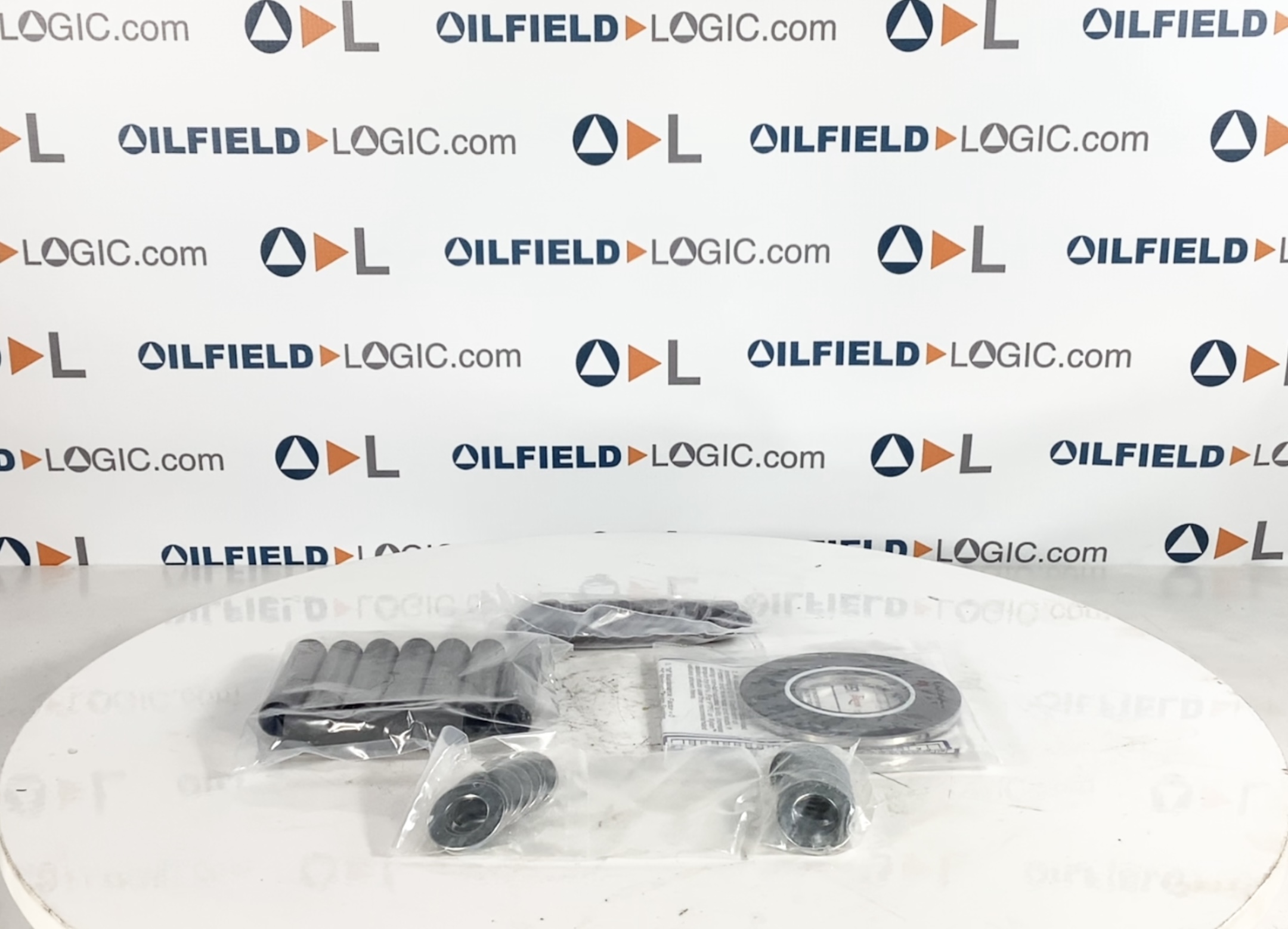

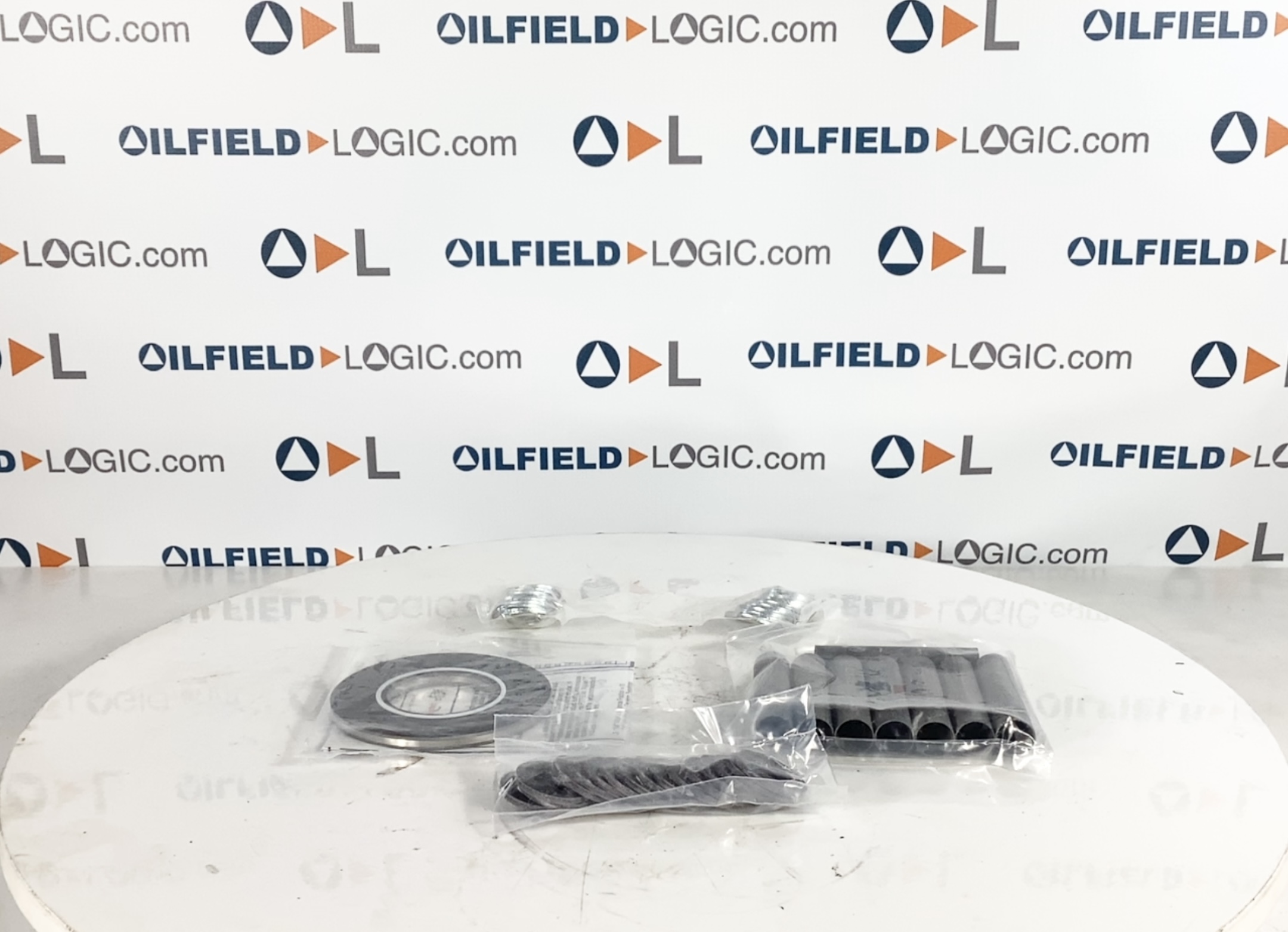

Insulation Kit, Gasket & Flange, 2" 600#

Extreme, high-reliability sealing and electrical isolation solution for critical service

applications

• Seals and isolates all pressure ratings through ANSI 2500 class and API 10,000 psi service.
• Withstands severe service conditions including vibration, temperature and pressure thuctuations
• Designed to withstand corrosive environments
• Good electrical isolation properties for cathodic protection. Reference the VCS data sheet for further information
• Pressure-activated seals provide high confidence sealing, eliminates costly leaks and provides a solution for fugitive emissions
• Gasket is sized to the bore to protect flange faces from media induced corrosion and flow-induced erosion
• Minimizes turbulent flow at flanged connections
• Mitigates galvanic corrosion in dissimilar metal flanges

* High-strength laminate material resists failure due to excessive compression

• Available to match any flange specification (ANSI, ASME, API, MSS, BS, DIN, AS, others) |

• Can mate mismatched RTJ with raised-face flanges
• Easy installation, make up and removal |
• Sealing system is not sensitive to low bolt loads - providing reliable sealing through a range of bolt stress
• Gasket is self-aligning and centering - quick to install and no special tools are required
• Maintenance-free corrosion-resistant design is resistant to deforming under load
• Works in Ring Joint Flanges, reducing fluid entrapment, flow induced erosion and media induced carrasion between flanges
• Reusable by simply replacing sealing ring
